◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MV ▶ 10853 - MV123(RHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#9679) — 24 parça

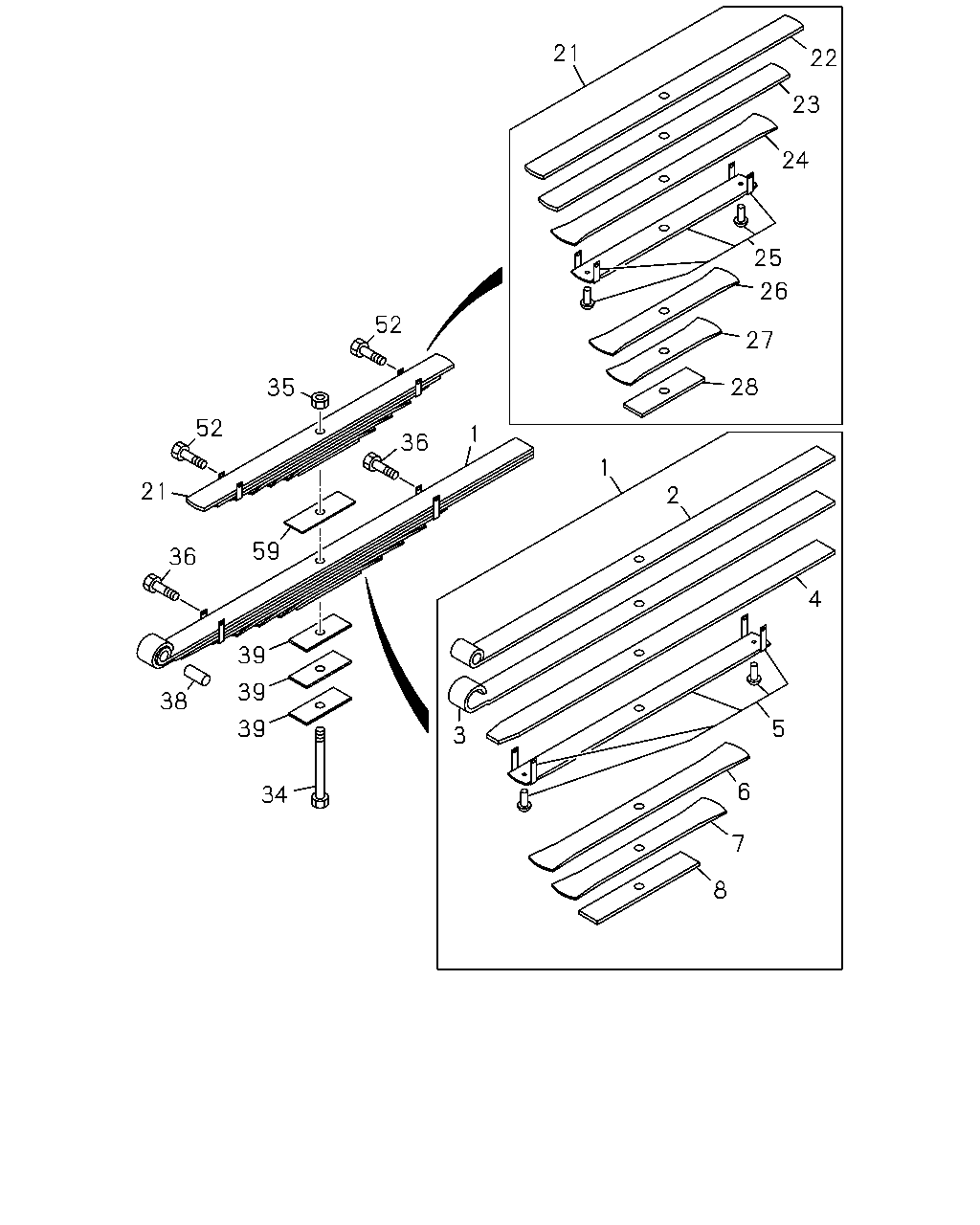

çizim 82516
21 22 23 24 25 26 5 27 28 35 52 1 36 1 21 2 59 36 4 39 39 38 39 5 3 6 34 7 8
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 1-51300-522-1 		1-51410-094-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 1-51300-522-1 		1-51411-094-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 1-51300-522-1 		1-51412-094-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 1-51300-522-1 		1-51413-094-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
W/CLIP ASM PART: A = 1-51300-522-1 		1-51414-094-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 1-51300-522-1 		1-51415-094-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 1-51300-522-1 		1-51416-094-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 1-51300-522-1 		1-51417-094-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 1-51300-522-1 		1-51340-612-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 1-51300-522-1 		1-51341-612-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 1-51300-522-1 		1-51342-612-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 1-51300-522-1 		1-51343-612-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
W/CLIP ASM PART: A = 1-51300-522-1 		1-51344-612-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 1-51300-522-1 		1-51345-612-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 1-51300-522-1 		1-51346-612-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
ASM PART: A = 1-51300-522-1 		1-51347-612-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=235 ASM PART: A = 1-51300-522-1 		1-51356-140-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 1-51300-522-1 		1-09400-054-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: A = 1-51300-522-1 		1-09000-334-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51300-522-1 		1-51351-010-0 01 1 -
38 BUSHING; LEAF SPR,RR
BEST VALUE PARTS ASM PART: A = 1-51300-522-1 		1-87610-164-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=10 ASM PART: A = 1-51300-522-1 		1-51377-118-0 03 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M10X117 ASM PART: A = 1-51300-522-1 		1-09000-334-0 02 1 -
59 SEAT; RR SPRING,SUB
T=10 ASM PART: A = 1-51300-522-1 		1-51377-118-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
