◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MV ▶ 10853 - MV123(RHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#9677) — 75 parça

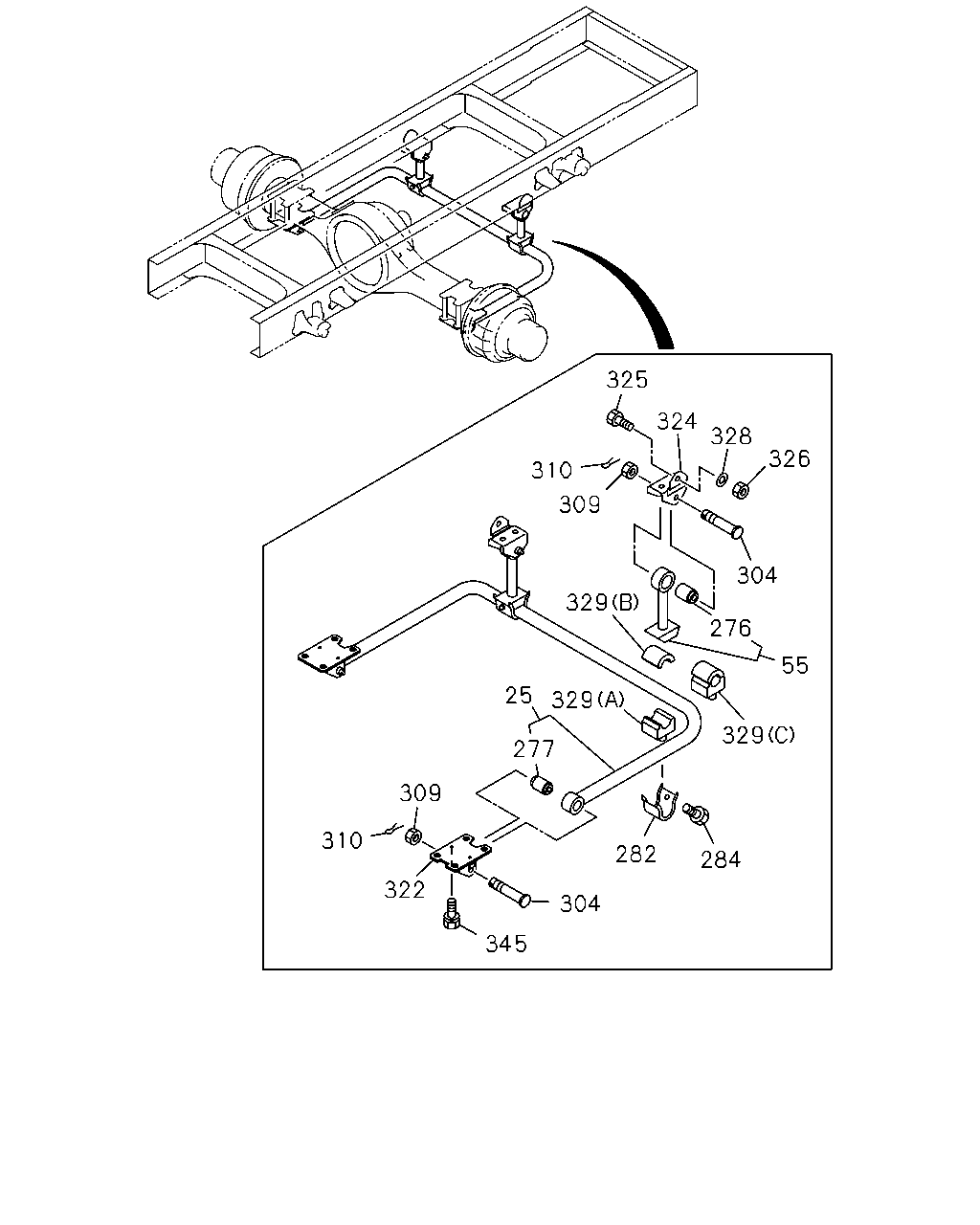

çizim 82070
345 322 310 309 304 282 284 329 329 25 277 329 309 310 325 324 328 326 304 276 55
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 14-LEAF 		1-51300-522-1 02 1 0109-
25 BAR ASM; STAB,RR SUSP
REAR STABILIZER SHAFT<F61> 		1-51770-030-2 01 1 0109-
55 ROD; STAB
REAR STABILIZER SHAFT<F61> 		1-51770-035-1 02 1 0109-
276 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51779-019-0 04 1 0109-0401
276 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51779-019-0 02 1 0402-
277 BUSHING; STAB,RR UPR
REAR STABILIZER SHAFT<F61> 		1-51779-067-0 02 1 0109-
282 RETAINER; STAB BAR
REAR STABILIZER SHAFT<F61> 		1-51789-015-2 02 1 0109-
284 BOLT; RET TO RET
REAR STABILIZER SHAFT<F61> M10X25 		8-94463-351-0 08 1 0109-
304 PIN; STAB ROD
REAR STABILIZER SHAFT<F61> 		1-51789-020-2 04 1 0109-
309 NUT; STAB ROD
REAR STABILIZER SHAFT<F61> M24 		9-99116-424-0 04 1 0109-
310 PIN; SPLIT,STAB ROD
REAR STABILIZER SHAFT<F61> OD=4.6 L=45 		9-08115-045-0 04 1 0109-0606
310 PIN; SPLIT,STAB ROD
REAR STABILIZER SHAFT<F61> OD=4.6 L=45 		0-81125-045-0 04 1 0607-
322 BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61> 		1-51781-127-0 01 1 0109-
322 BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT<F61> 		1-51781-048-4 01 1 0109-
324 BRACKET; STAB BAR TO FRAME
REAR STABILIZER SHAFT<F61> 		1-51781-059-0 02 1 0109-
325 BOLT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14X45 		9-92061-445-0 02 1 0109-
325 BOLT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14X50 		9-92061-450-0 04 1 0109-0512
325 BOLT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14X50 		0-20951-450-0 04 1 0601-
326 NUT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14 		9-99110-514-0 04 1 0109-0512
326 NUT; BRKT TO FRAME
REAR STABILIZER SHAFT<F61> M14 		0-91110-514-0 04 1 0601-
328 WASHER; PL,BRKT
REAR STABILIZER SHAFT<F61> ID=15 		9-09651-069-0 12 1 0109-0109
328 WASHER; PL,BRKT
REAR STABILIZER SHAFT<F61> ID=15 		9-09651-069-0 10 1 0110-0910
328 WASHER; PL,BRKT
REAR STABILIZER SHAFT<F61> ID=15 		8-98010-627-1 10 1 0911-
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (B) 		1-51789-051-1 02 1 0109-1405
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (C) 		1-51789-016-0 02 1 1406-
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT<F61> (A) 		1-51789-052-0 02 1 0109-1405
345 BOLT; BRKT
REAR STABILIZER SHAFT<F61> M10X16 FLANGE 		0-28081-016-0 04 1 0109-0112

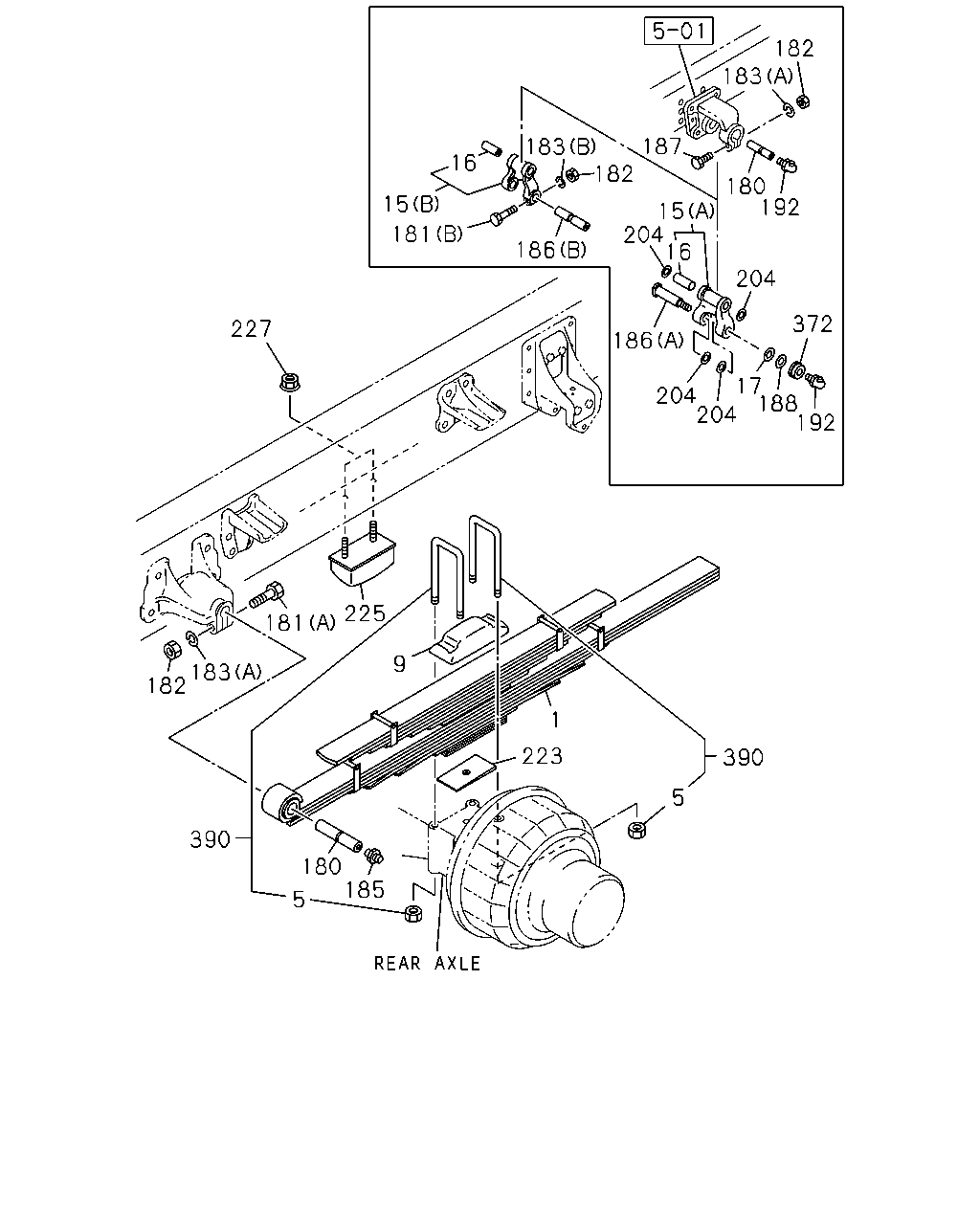

çizim 83928
227 182 183 181 225 9 390 180 5 185 223 5 390 15 181 16 183 186 182 187 183 182 180 192 204 372 192 188 17 204 204 186 204 15 16
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 14-LEAF 		1-51300-522-1 02 1 0109-
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 0109-0512
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 0601-
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 0109-
15 SHACKLE; RR SPR
(A) 		9-51362-085-1 02 1 0109-1105
15 SHACKLE; RR SPR
(A) 		1-51362-050-0 02 1 1106-1403
15 SHACKLE; RR SPR
(B) 		8-98245-110-0 02 1 1404-
16 BUSHING; SHACKLE,RR SPR 1-51351-024-1 02 1 0109-1105
16 BUSHING; SHACKLE,RR SPR
OD=38 		1-51351-031-0 02 1 1106-
17 WASHER; LK,SHACKLE PIN
ID=24.5 OD=52 		9-51369-012-0 02 1 0109-1403
180 PIN; RR SPR 1-51361-020-0 02 1 0109-0207
180 PIN; RR SPR 1-51361-020-0 02 1 0208-1105
180 PIN; RR SPR 1-51361-020-0 02 1 0208-1105
180 PIN; RR SPR 1-51361-026-0 02 1 1106-
180 PIN; RR SPR 1-51361-026-0 02 1 1106-
180 PIN; RR SPR 1-51361-020-0 04 1 0109-0207
181 BOLT; SPR & SHACKLE
(B) M14X70 FLANGE 		0-28851-470-0 04 1 1404-
181 BOLT; SPR & SHACKLE
(A) M14X80 		0-10806-480-0 02 1 0109-0512
181 BOLT; SPR & SHACKLE
(A) M14X80 		0-10856-480-0 02 1 0601-
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 06 1 1404-
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 0109-0512
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 0109-0512
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 0601-1403
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 0601-1403
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 1404-
183 WASHER; LK,PIN,RR SPR
(B) ID=14.2 		0-91510-814-0 04 1 1404-
183 WASHER; LK,PIN,RR SPR
(A) ID=14.2 		9-09150-514-0 02 1 0109-0603
183 WASHER; LK,PIN,RR SPR
(A) ID=14.2 		9-09150-514-0 02 1 0109-0603
183 WASHER; LK,PIN,RR SPR
(A) ID=14.2 		0-91510-514-0 02 1 0604-
183 WASHER; LK,PIN,RR SPR
(A) ID=14.2 		0-91510-514-0 02 1 0604-
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0109-0512
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601-
186 PIN; SHACKLE,RR SPR
(A) 		9-51361-062-1 02 1 0109-1403
186 PIN; SHACKLE,RR SPR
(B) 		8-98245-117-0 02 1 1404-
187 BOLT; SPR & SHACKLE
M14X80 		0-10806-480-0 02 1 0109-0512
187 BOLT; SPR & SHACKLE
M14X80 		0-10856-480-0 02 1 0601-
188 WASHER; PL,SHACKLE PIN
ID=24 		9-09164-624-0 02 1 0109-1403
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 		9-09031-210-0 04 1 0109-0512
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 		0-90301-610-0 04 1 0601-
204 SPACER; RR SPRING 9-51169-018-0 08 1 0109-
223 SPACER; U BOLT,RR SPR 1-51377-370-0 02 1 0109-1306
223 SPACER; U BOLT,RR SPR 8-98220-147-0 02 1 1307-
225 RUBBER; CUSHION,RR SPR 1-53366-045-1 02 1 0109-
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 0109-0602
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0603-
372 NUT; SHACKLE
M24 		9-99111-524-0 02 1 0109-0512
372 NUT; SHACKLE
M24 		0-91111-524-0 02 1 0601-1403
390 U-BOLT SET; RR SPRING
L=490 		1-87870-036-4 04 1 0109-
