◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10627 - FTR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#967) — 28 parça

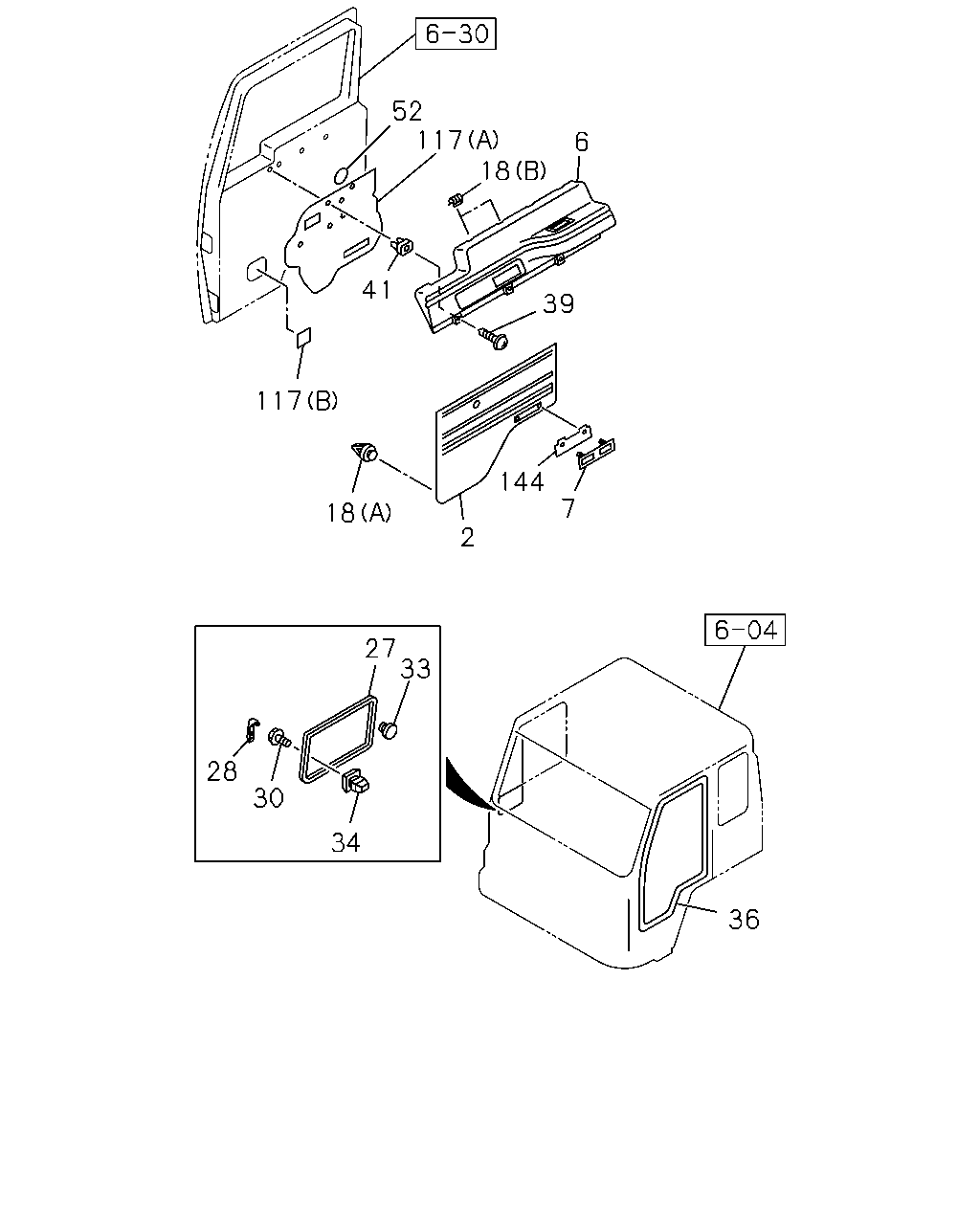

çizim 94609
52 117 6 18 41 39 117 18 2 144 7 27 33 28 30 34 36
BalonParca AdiParca NoAdetTipApplied Date A B
2 TRIM; DOOR,LWR
SAUDI ARABIA EQUIPMENT(WH1) 		1-73337-349-0 01 1 9202- ● ●
2 TRIM; DOOR,LWR
SAUDI ARABIA EQUIPMENT(WH1) 		1-73337-348-0 01 1 9202- ● ●
2 TRIM; DOOR,LWR
EXC. SAUDI ARABIA EQUIPMENT(WH1) DARK GRAY 		1-73338-310-0 01 1 9202- ● ●
2 TRIM; DOOR,LWR
EXC. SAUDI ARABIA EQUIPMENT(WH1) DARK GRAY 		1-73337-347-0 01 1 9202- ● ●
6 TRIM; DOOR,UPR 1-73338-326-0 01 1 9202- ● ●
6 TRIM; DOOR,UPR 1-73338-325-0 01 1 9202- ● ●
7 COVER; DOOR OUTLET VENT
DARK GRAY 		1-73337-310-0 02 1 9202- ● ●
18 CLIP; DOOR PAD
(A) 		1-09987-119-1 22 1 9202- ● ●
18 CLIP; DOOR PAD
(B) 		1-73337-276-0 04 1 9202- ● ●
27 PANEL; ORNAMENT,DOOR 1-71997-511-0 01 1 9202- ● ●
27 PANEL; ORNAMENT,DOOR 1-71997-510-0 01 1 9202- ● ●
28 MOLDING; DOOR ORNAMENT 1-71997-524-1 04 1 9202- ● ●
30 SCREW; DOOR ORNAMENT
M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 9202- ● ●
33 GROMMET; DOOR ORNAMENT 1-09983-090-0 04 1 9202- ● ●
34 GROMMET; SCREW,DOOR ORNAMENT 1-09983-061-0 04 1 9202- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE
L=3060 		1-76717-063-4 02 1 9202- ● ●
39 SCREW; DOOR PAD
M6X16 TAPPING W/PL WASHER 		0-74110-616-0 08 1 9202- ● ●
41 GROMMET; SCREW,DOOR PAD 1-09983-061-0 08 1 9202- ● ●
52 SEAL; WATER,DOOR LWR
OD=25 BLACK 		1-76798-019-0 03 1 9202-9205 ● ●
52 SEAL; WATER,DOOR LWR
OD=25 BLACK 		1-76798-019-0 05 1 9206- ● ●
117 SEAL ASM; WATER DOOR
(B) 		1-76797-023-0 02 1 9204- ● ●
117 SEAL ASM; WATER DOOR
SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-76777-087-1 01 1 9202-9210 ● ●
117 SEAL ASM; WATER DOOR
(A) 		1-76777-087-1 01 1 9211- ● ●
117 SEAL ASM; WATER DOOR
SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-76777-086-1 01 1 9202-9210 ● ●
117 SEAL ASM; WATER DOOR
(A) 		1-76777-086-1 01 1 9211- ● ●
117 SEAL ASM; WATER DOOR
EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-76777-083-1 01 1 9202-9210 ● ●
117 SEAL ASM; WATER DOOR
EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-76777-090-0 01 1 9202-9210 ● ●
144 SHUTTER; DOOR TRIM 1-73337-288-0 02 1 9202- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
