4-10 — FRONT AXLE (#9664) — 212 parça

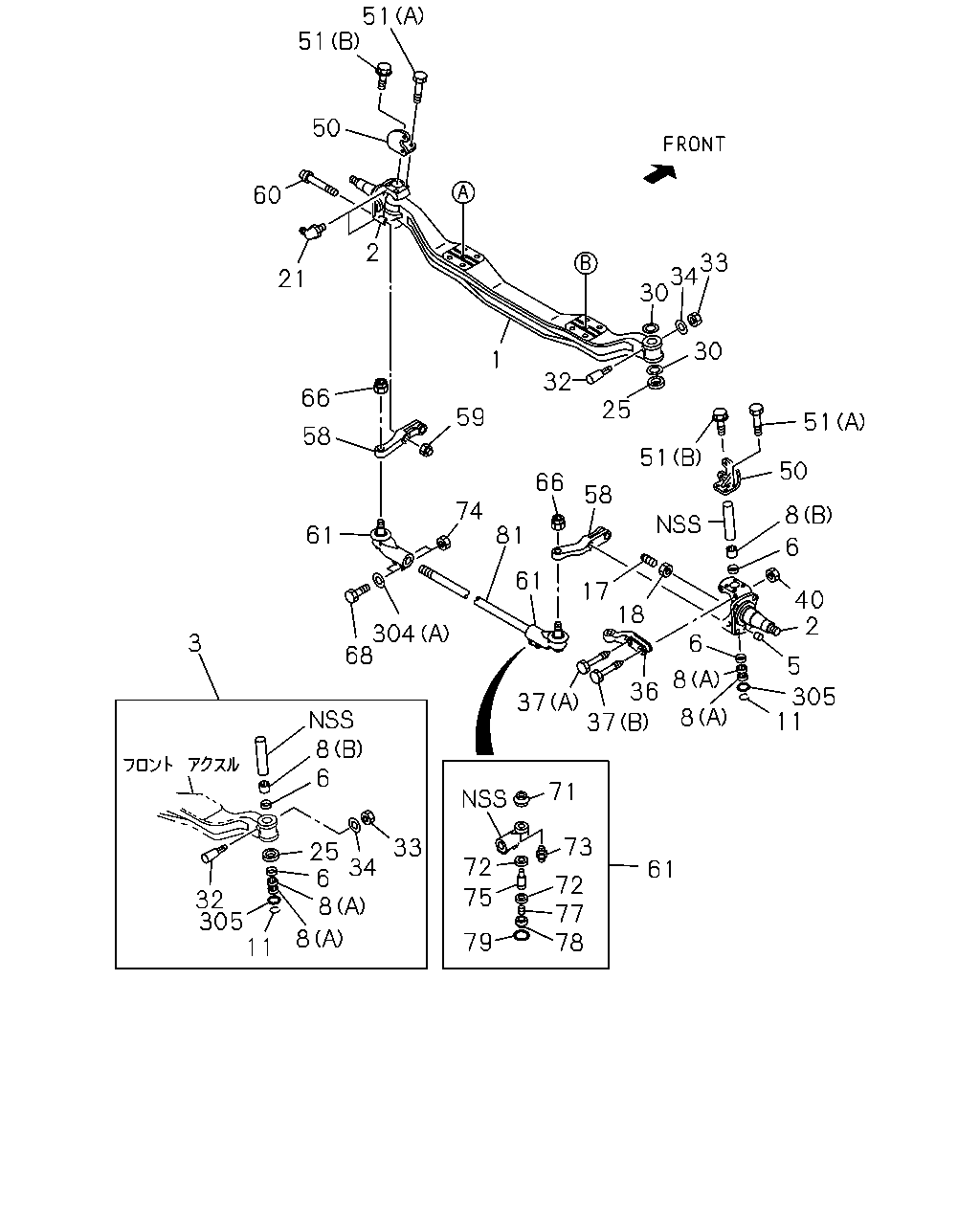

51 51 50 60 2 33 34 30 21 30 1 32 66 25 59 51 58 51 50 66 58 74 8 61 81 6 61 17 18 40 2 304 68 3 6 5 8 36 305 11 37 37 8 8 6 71 73 33 72 25 34 6 8 61 72 77 78 75 32 305 11 8 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-113-6	01	1	0109-
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0109-
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0109-
3	KING PIN SET	1-87830-738-5	02	1	0109-
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0109-
6	SEAL; KING PIN	9-09926-024-0	04	1	0109-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0109-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0109-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0109-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0109-0705
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0109-0512
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0109-0512
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0109-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0109-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0109-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0109-0512
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0109-0603
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-
36	ARM; KNUCKLE	1-43133-063-3	01	1	0109-
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	0109-0704
37	BOLT; KNUCKLE ARM (A) M22X179	8-98052-380-1	01	1	0705-
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	0109-0704
37	BOLT; KNUCKLE ARM (B) M22X167	8-98052-381-1	01	1	0705-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0109-0704
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	0109-
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	0109-
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28081-260-0	02	1	0109-0512
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28051-260-0	02	1	0601-
51	BOLT; POWER CHAMBER BRKT (B) M12X25 FLANGE	0-28681-225-0	06	1	0109-0512
51	BOLT; POWER CHAMBER BRKT (B) M12X25 FLANGE	0-28651-225-0	06	1	0601-
58	ARM; TIE ROD	1-43135-044-3	01	1	0109-1106
58	ARM; TIE ROD	1-43135-042-3	01	1	1107-
58	ARM; TIE ROD	1-43134-044-3	01	1	0109-1106
58	ARM; TIE ROD	1-43134-042-3	01	1	1107-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0109-0704
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0109-0704
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0705-
61	ROD END; TIE ROD	1-43150-440-1	01	1	0109-1106
61	ROD END; TIE ROD	8-98171-445-0	01	1	1107-1306
61	ROD END; TIE ROD	8-98236-801-0	01	1	1307-
61	ROD END; TIE ROD	1-43150-439-1	01	1	0109-1106
61	ROD END; TIE ROD	8-98171-444-0	01	1	1107-1306
61	ROD END; TIE ROD	8-98236-800-0	01	1	1307-
66	NUT; TIE ROD END M24	9-09844-669-2	02	1	0109-1106
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1107-
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	0109-1106
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1107-
71	BOOT; TIE ROD END ID=31 & 49	1-43159-038-0	02	1	0109-1106
72	SEAT; BALL,TIE ROD JOINT	1-44371-012-1	04	1	0109-1106
73	NIPPLE; GREASE,TIE ROD END PT1/8 STRAIGHT	9-09031-010-0	02	1	0109-0512
73	NIPPLE; GREASE,TIE ROD END PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-1106
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1107-
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0109-0512
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-
75	JOINT; BALL,DRAG LINK	9-44361-169-3	02	1	0109-1106
77	SPRING; TIE ROD END	9-09941-272-0	02	1	0109-1106
78	PLUG; ADJ,ROD END	1-44375-014-0	02	1	0109-1106
79	RING; SNAP,ADJ PLUG	1-09589-006-0	02	1	0109-1106
81	ROD; TIE	1-43151-152-0	01	1	0109-1106
81	ROD; TIE	8-98172-133-0	01	1	1107-1109
81	ROD; TIE	8-98193-965-0	01	1	1110-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0109-1106
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1107-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0109-0907
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	0908-
305	COVER; KNUCKLE	1-43175-021-0	02	1	0109-0704
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-

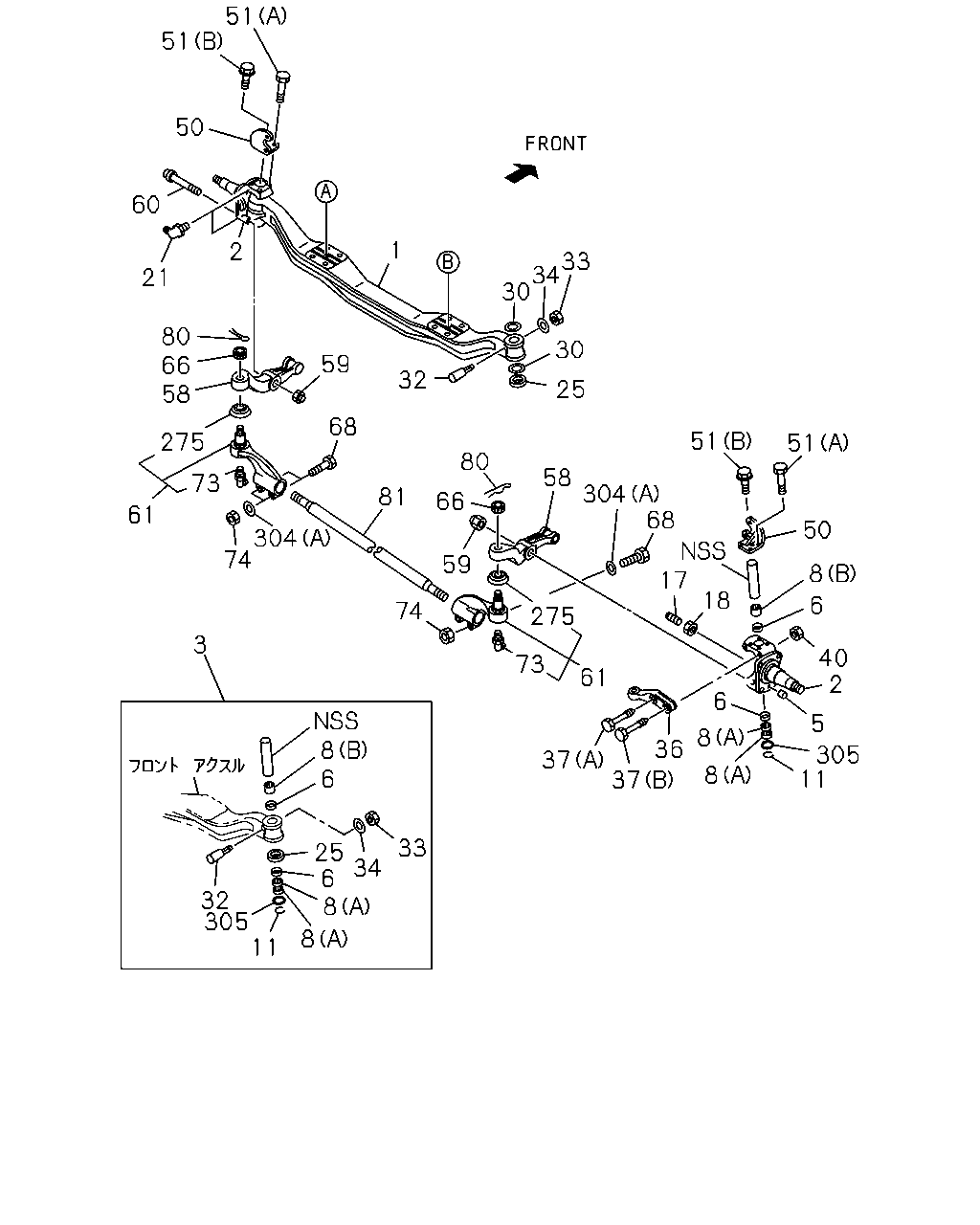

51 51 50 60 1 2 33 34 30 21 30 80 66 58 59 32 25 68 51 275 51 80 58 73 304 68 81 66 61 50 304 74 17 59 8 18 6 74 275 3 40 2 73 61 6 8 6 5 8 36 305 11 37 37 8 33 25 34 6 8 32 305 11 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-113-6	01	1	0109-
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0109-
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0109-
3	KING PIN SET	1-87830-738-5	02	1	0109-
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0109-
6	SEAL; KING PIN	9-09926-024-0	04	1	0109-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0109-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0109-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0109-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0109-0705
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0109-0512
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0109-0512
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0109-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0109-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0109-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0109-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0109-0512
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0109-0603
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-
36	ARM; KNUCKLE	1-43133-063-3	01	1	0109-
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	0109-0704
37	BOLT; KNUCKLE ARM (A) M22X179	8-98052-380-1	01	1	0705-
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	0109-0704
37	BOLT; KNUCKLE ARM (B) M22X167	8-98052-381-1	01	1	0705-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0109-0704
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	0109-
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	0109-
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28081-260-0	02	1	0109-0512
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28051-260-0	02	1	0601-
51	BOLT; POWER CHAMBER BRKT (B) M12X25 FLANGE	0-28681-225-0	06	1	0109-0512
51	BOLT; POWER CHAMBER BRKT (B) M12X25 FLANGE	0-28651-225-0	06	1	0601-
58	ARM; TIE ROD	1-43135-044-3	01	1	0109-1106
58	ARM; TIE ROD	1-43135-042-3	01	1	1107-
58	ARM; TIE ROD	1-43134-044-3	01	1	0109-1106
58	ARM; TIE ROD	1-43134-042-3	01	1	1107-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0109-0704
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0109-0704
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0705-
61	ROD END; TIE ROD	1-43150-440-1	01	1	0109-1106
61	ROD END; TIE ROD	8-98171-445-0	01	1	1107-1306
61	ROD END; TIE ROD	8-98236-801-0	01	1	1307-
61	ROD END; TIE ROD	1-43150-439-1	01	1	0109-1106
61	ROD END; TIE ROD	8-98171-444-0	01	1	1107-1306
61	ROD END; TIE ROD	8-98236-800-0	01	1	1307-
66	NUT; TIE ROD END M24	9-09844-669-2	02	1	0109-1106
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1107-
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	0109-1106
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1107-
73	NIPPLE; GREASE,TIE ROD END PT1/8 STRAIGHT	9-09031-010-0	02	1	0109-0512
73	NIPPLE; GREASE,TIE ROD END PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-1106
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1107-
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0109-0512
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1107-
81	ROD; TIE	1-43151-152-0	01	1	0109-1106
81	ROD; TIE	8-98172-133-0	01	1	1107-1109
81	ROD; TIE	8-98193-965-0	01	1	1110-
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1107-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0109-1106
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1107-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0109-0907
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	0908-
305	COVER; KNUCKLE	1-43175-021-0	02	1	0109-0704
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-

116 116 116 116 115 112 115 115 112 115 115 112 115 114 115 112 115 114 127 128 110 111 110 105 234 91 111 127 91 87 128 234 296 87 103 82 93 87 304 303 93 237 93 87 93 237

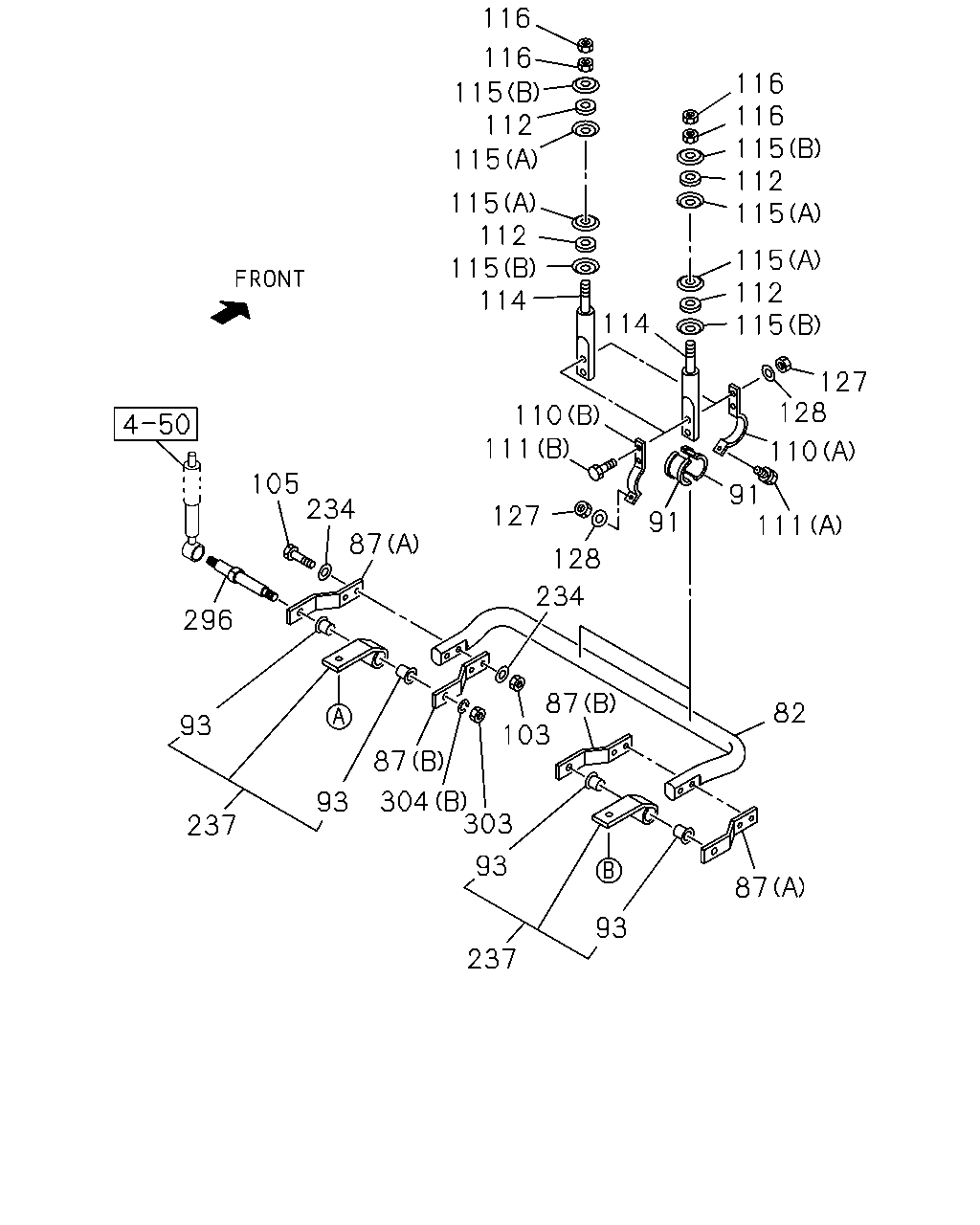

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-113-0	01	1	0109-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	1-51781-083-1	02	1	0109-0912
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1001-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	1-51781-084-1	02	1	0109-0912
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1001-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-084-0	04	1	0109-
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	0109-
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	9-99110-514-0	04	1	0109-0512
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	0601-
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91061-470-0	04	1	0109-0206
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91066-470-0	04	1	0207-0910
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	0911-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0109-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0109-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20801-230-0	02	1	0109-0910
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	0911-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20801-250-0	04	1	0109-0910
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	0911-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	0109-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-084-0	02	1	0109-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.8	1-51631-022-0	04	1	0109-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=14.5	9-51631-051-0	04	1	0109-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	0109-0512
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	0601-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	9-99110-412-0	06	1	0109-0512
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	0601-
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	0109-0603
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-512-0	06	1	0604-0912
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1001-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	08	1	0109-0910
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	0911-
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-724-0	02	1	0109-0209
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	0210-
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	1-51682-145-2	02	1	0109-0907
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	0908-
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	9-99110-520-0	02	1	0109-0512
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	0601-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0109-1106
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1107-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0109-0907
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	0908-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
