4-01 — PROPELLER SHAFT (#9663) — 92 parça

95 8 9 1 56 128 106 9 8 225 104 56 74 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP (C) L=1204	1-37124-835-1	01	1	0109-
1	SHAFT; PROP (B) L=1293	1-37152-832-1	01	1	0109-
1	SHAFT; PROP (A) L=953	1-37153-159-1	01	1	0109-
8	YOKE; FLANGE,PROP SHAFT	1-37211-079-1	02	1	0109-
8	YOKE; FLANGE,PROP SHAFT	1-37211-079-1	01	1	0109-
8	YOKE; FLANGE,PROP SHAFT	1-37211-079-1	01	1	0109-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-110-0	01	1	0109-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-110-0	02	1	0109-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-111-0	01	1	0109-
14	COVER; DUST,SPIDER	1-37249-131-0	08	1	0109-
14	COVER; DUST,SPIDER	1-37249-131-0	04	1	0109-
14	COVER; DUST,SPIDER	1-37249-131-0	04	1	0109-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0109-0512
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0109-0512
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	9-09031-210-0	01	1	0109-0512
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	01	1	0601-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	08	1	0109-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	04	1	0109-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	04	1	0109-
56	NUT; YOKE M14 FLANGE	1-09440-048-0	04	1	0109-0805
56	NUT; YOKE M14 FLANGE	1-09440-048-0	04	1	0109-0805
56	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	0806-
56	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	0806-
74	BOLT; YOKE,TRANS M14X50	1-09000-645-0	04	1	0109-
74	BOLT; YOKE,TRANS M14X50	1-09000-645-0	04	1	0109-
95	BOLT; YOKE,FINAL M14X50	1-09000-645-0	04	1	0109-
104	PLUG; SLEEVE YOKE	1-09600-067-0	01	1	0109-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	9-09031-010-0	01	1	0109-0512
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-
128	SEAL; SLEEVE	1-37247-019-0	01	1	0109-
225	YOKE; SLEEVE,PROP SHAFT L=330	1-37241-124-0	01	1	0109-

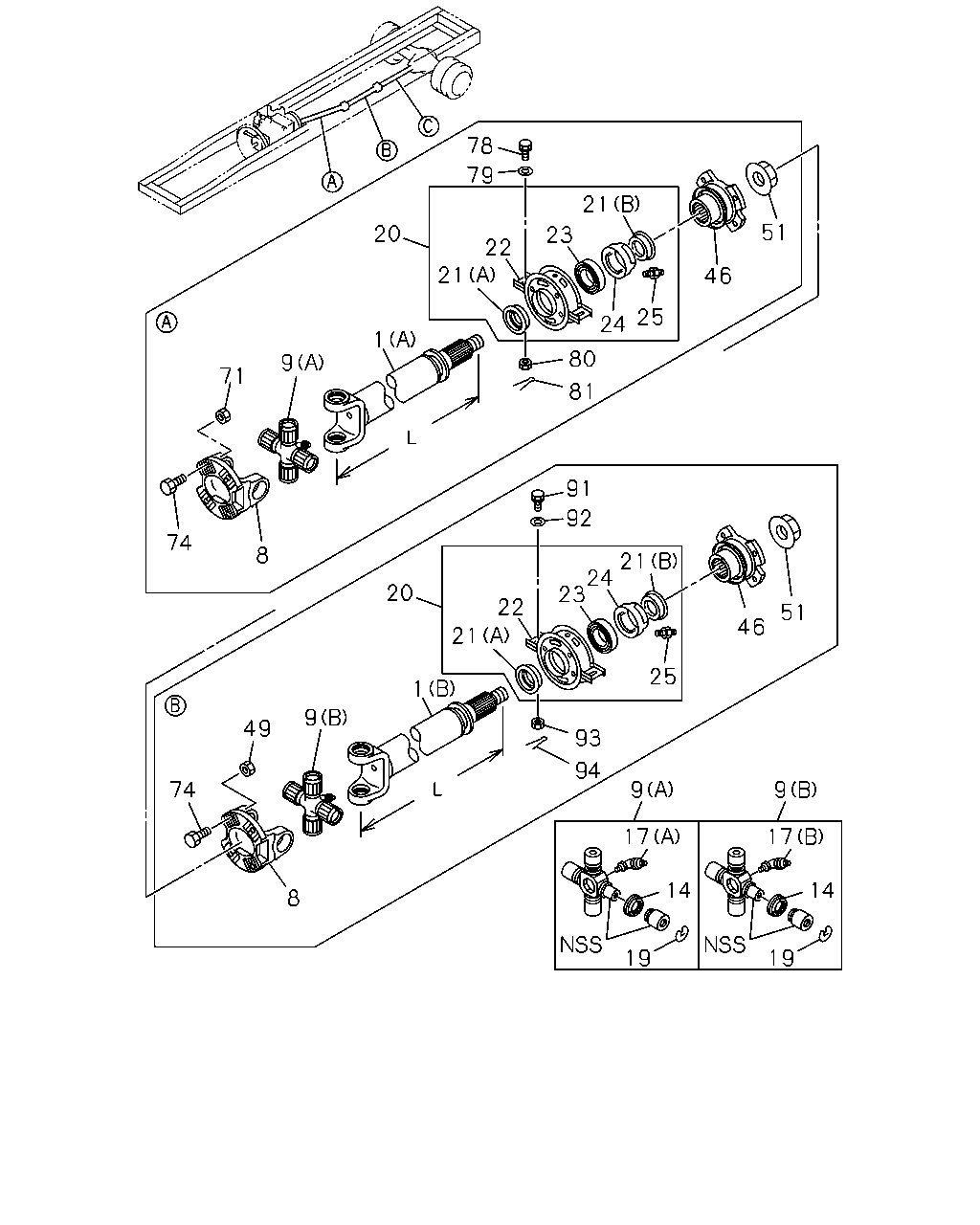

78 79 21 51 20 23 22 21 46 25 24 1 80 9 71 81 91 92 74 8 21 24 23 20 22 51 46 21 25 1 9 49 93 94 74 9 9 17 17 14 14 8 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP (C) L=1204	1-37124-835-1	01	1	0109-
1	SHAFT; PROP (B) L=1293	1-37152-832-1	01	1	0109-
1	SHAFT; PROP (A) L=953	1-37153-159-1	01	1	0109-
8	YOKE; FLANGE,PROP SHAFT	1-37211-079-1	02	1	0109-
8	YOKE; FLANGE,PROP SHAFT	1-37211-079-1	01	1	0109-
8	YOKE; FLANGE,PROP SHAFT	1-37211-079-1	01	1	0109-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-110-0	01	1	0109-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-110-0	02	1	0109-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-111-0	01	1	0109-
14	COVER; DUST,SPIDER	1-37249-131-0	08	1	0109-
14	COVER; DUST,SPIDER	1-37249-131-0	04	1	0109-
14	COVER; DUST,SPIDER	1-37249-131-0	04	1	0109-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0109-0512
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0109-0512
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	9-09031-210-0	01	1	0109-0512
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	01	1	0601-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	08	1	0109-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	04	1	0109-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	04	1	0109-
20	BEARING ASM; CTR,PROP SHAFT ID=60	1-37510-115-0	01	1	0109-
20	BEARING ASM; CTR,PROP SHAFT ID=60	1-37510-115-0	01	1	0109-
21	SEAL; OIL,CENTER BRG (A) D=120	1-09625-127-0	01	1	0109-
21	SEAL; OIL,CENTER BRG (A) D=120	1-09625-127-0	01	1	0109-
21	SEAL; OIL,CENTER BRG (B)	1-09625-621-0	01	1	0109-
21	SEAL; OIL,CENTER BRG (B)	1-09625-621-0	01	1	0109-
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-048-2	01	1	0109-
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-048-2	01	1	0109-
23	BEARING; CENTER,PROP SHAFT	9-00090-256-0	01	1	0109-
23	BEARING; CENTER,PROP SHAFT	9-00090-256-0	01	1	0109-
24	RETAINER; CENTER BRG,1ST	1-37529-109-0	01	1	0109-
24	RETAINER; CENTER BRG,1ST	1-37529-109-0	01	1	0109-
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0109-
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0109-
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-348-0	01	1	0109-
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-348-0	01	1	0109-
49	NUT; YOKE M14 FLANGE	1-09440-048-0	04	1	0109-0805
49	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	0806-
51	NUT; FLANGE,SPLINED M39 FLANGE	1-09440-046-0	01	1	0109-
51	NUT; FLANGE,SPLINED M39 FLANGE	1-09440-046-0	01	1	0109-
71	NUT; YOKE M14 FLANGE	1-09440-048-0	04	1	0109-0805
71	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	0806-
74	BOLT; YOKE,TRANS M14X50	1-09000-645-0	04	1	0109-
74	BOLT; YOKE,TRANS M14X50	1-09000-645-0	04	1	0109-
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	0109-
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-1	02	1	0109-
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	9-99116-516-0	02	1	0109-0605
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	0-91116-516-0	02	1	0606-1204
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	8-98049-689-0	02	1	1205-
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	9-08114-025-0	02	1	0109-0606
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	0-81124-025-0	02	1	0607-
91	BOLT; HOLDER SET,CTR BRG M16X45	1-09042-030-0	02	1	0109-
92	WASHER; LK,HOLDER SET,CTR BRG ID=17	1-09503-241-1	02	1	0109-
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	9-99116-516-0	02	1	0109-0605
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	0-91116-516-0	02	1	0606-1204
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	8-98049-689-0	02	1	1205-
94	PIN; SPLIT,HOLDER SET CTR BRG OD=3.7 L=25	9-08114-025-0	02	1	0109-0606
94	PIN; SPLIT,HOLDER SET CTR BRG OD=3.7 L=25	0-81124-025-0	02	1	0607-
