3-78 — FIXING PARTS; AIR PIPING (#9662) — 111 parça

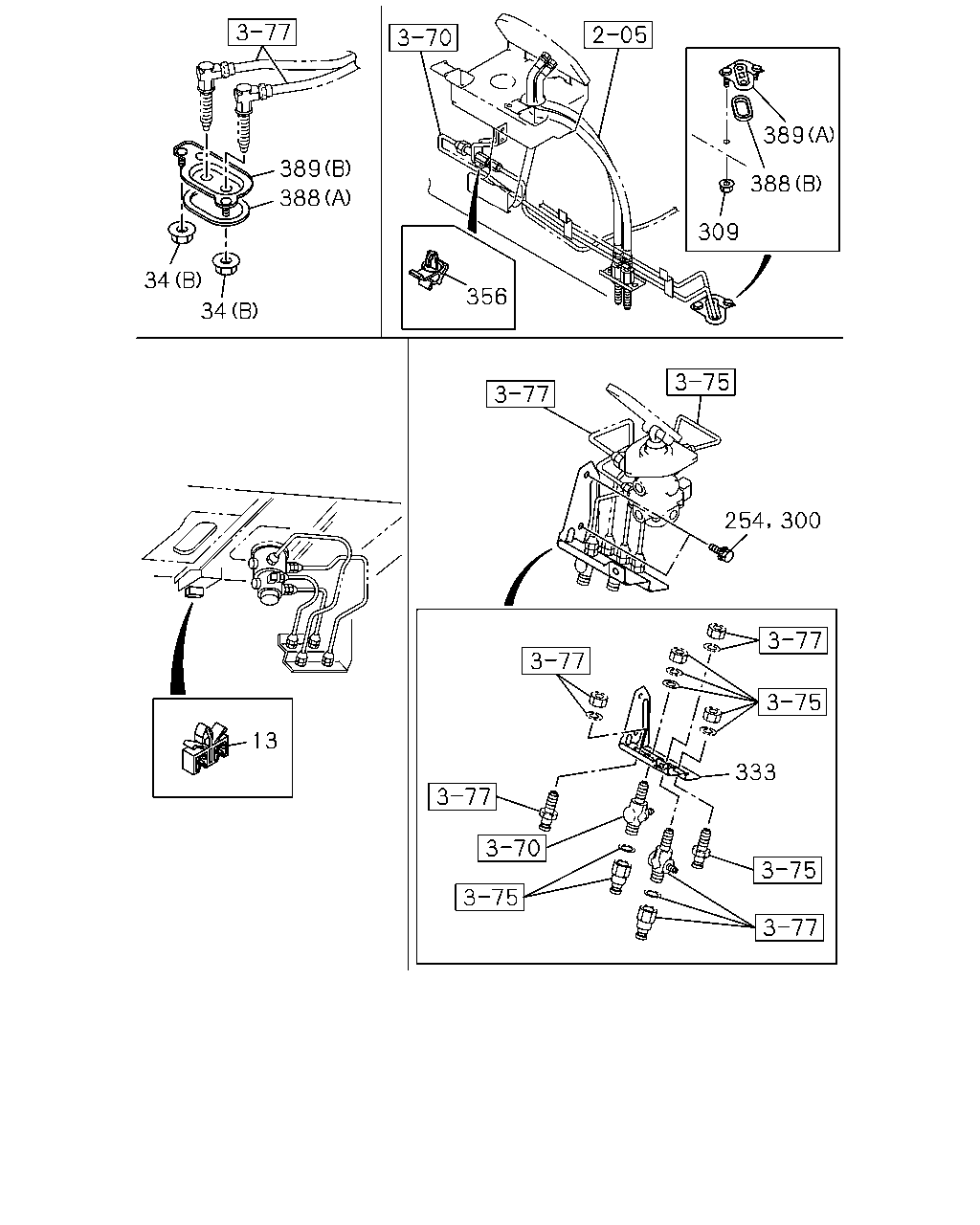

çizim 82009
389 389 388 388 309 34 356 34 13 333 254 300
BalonParca AdiParca NoAdetTipApplied Date
13 CLIP; AIR PIPE 8-94435-553-0 03 1 0109-
34 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 01 1 0109-0602
34 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
34 NUT; BRKT
(B) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 0109-
254 BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0109-0204
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0205-0904
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
309 NUT; BRKT FIX
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0109-
333 BRACKET; BRK AIR PIPE 1-79738-815-2 01 1 0109-
356 CLIP; AIR PIPE
AIR SUSP DRIVER SEAT<A56> ID=4.8 		8-94128-483-0 01 1 0109-
388 SEAL
(A) L=280 		1-79738-793-1 01 1 0109-
388 SEAL
(B) 		1-79738-826-0 01 1 0109-
389 BRACKET; UNION
(B) 		1-79738-814-2 01 1 0109-
389 BRACKET; UNION
(A) 		1-79738-827-1 01 1 0109-

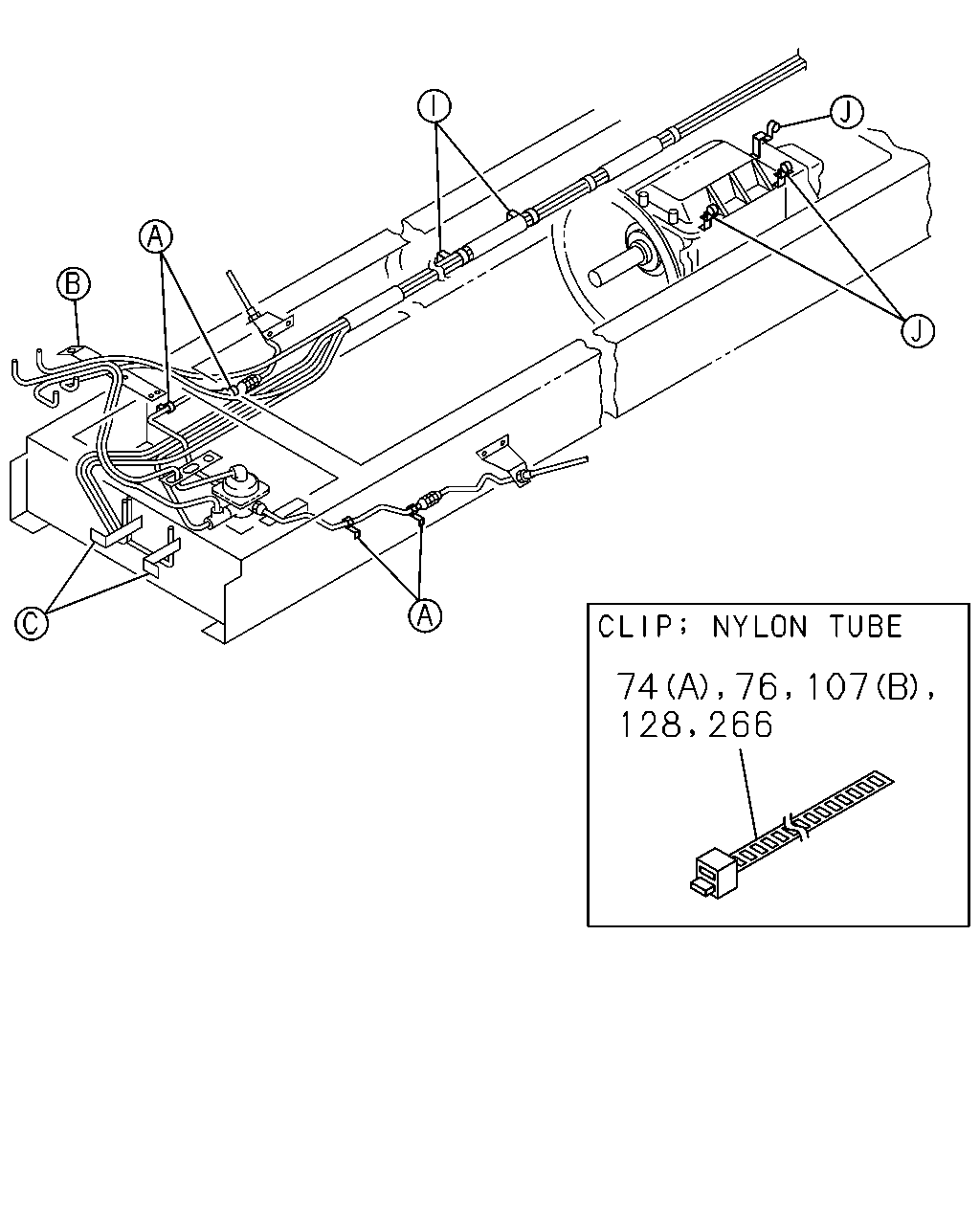

çizim 103408
74 128 107 266 76
BalonParca AdiParca NoAdetTipApplied Date
74 CLIP; NYLON TUBE
(B) ID=24 L=27 		1-09700-809-0 01 1 0109-
74 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 12 1 0109-
76 CLIP; NYLON TUBE
L=250 		1-09707-126-0 06 1 0109-
107 CLIP; NYLON TUBE
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0109-
107 CLIP; NYLON TUBE
(D) ID=35 H=45 L=33 		1-09700-947-0 02 1 0109-
107 CLIP; NYLON TUBE
(C) ID=18 L=28 		1-09701-067-0 01 1 0109-
107 CLIP; NYLON TUBE
(C) ID=15 L=28 		1-09701-216-0 01 1 0109-0203
107 CLIP; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) ID=15 L=28 		1-09701-216-0 01 1 0204-0206
107 CLIP; NYLON TUBE
(C) ID=15 L=28 		1-09701-216-0 01 1 0207-
107 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 29 1 0109-
128 CLIP; NYLON TUBE
L=250 		1-09707-126-0 04 1 0109-
266 CLIP; NYLON TUBE
L=250 		1-09707-126-0 07 1 0109-

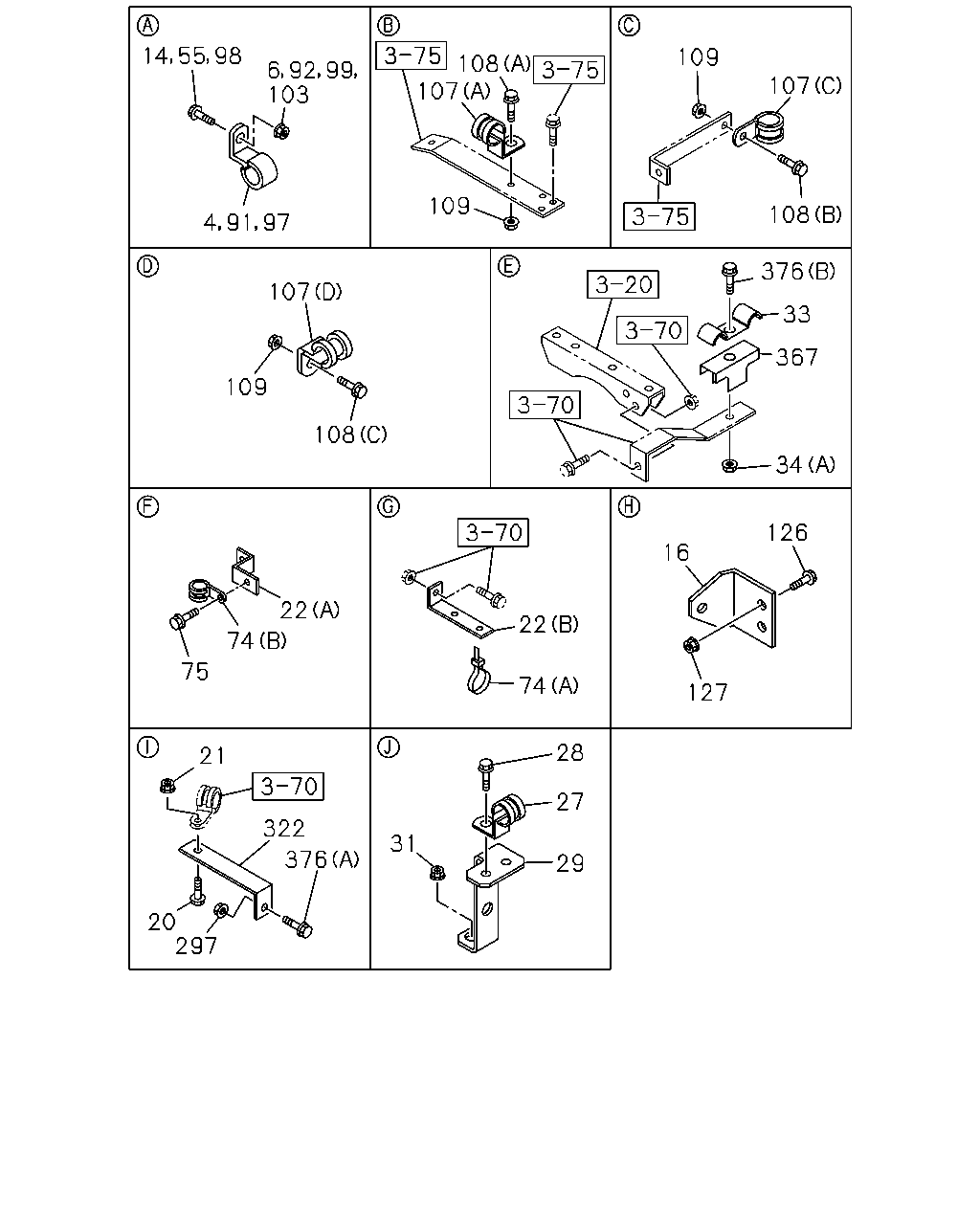

çizim 103409
14 109 108 107 99 103 107 109 108 91 376 107 33 367 109 108 34 126 16 22 22 74 75 74 127 28 21 27 322 31 376 29 20 297 55 98 92 6 4 97
BalonParca AdiParca NoAdetTipApplied Date
4 CLIP; AIR PIPE
ID=11 H=20 L=20 		5-09700-351-0 01 1 0109-0707
4 CLIP; AIR PIPE
ID=11 H=20 L=20 		8-98033-780-0 01 1 0708-
6 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0109-0602
6 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
14 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0109-0512
14 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
16 BRACKET; PIPE CLIP 1-47476-699-2 02 1 0109-
20 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0109-0512
20 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0109-0602
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
22 BRACKET; CLIP
(A) 		1-47475-881-0 01 1 0109-
22 BRACKET; CLIP
(B) L=60 H=30 		1-47477-716-1 01 1 0109-
27 CLIP; FLEX HOSE
ID=25 H=30 L=35 		1-09700-875-0 03 1 0109-
28 BOLT; CLIP,FLEX HOSE
M8X25 FLANGE 		0-28680-825-0 03 1 0109-0512
28 BOLT; CLIP,FLEX HOSE
M8X25 FLANGE 		0-28650-825-0 03 1 0601-
29 BRACKET; CLIP,AIR PIPE 1-82699-639-1 03 1 0109-
31 NUT; CLIP BRKT
M10 FLANGE 		5-09440-006-0 03 1 0109-
33 CLIP; BOLT
ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 0109-
34 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 01 1 0109-0602
34 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
34 NUT; BRKT
(B) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 0109-
55 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0109-0512
55 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
74 CLIP; NYLON TUBE
(B) ID=24 L=27 		1-09700-809-0 01 1 0109-
74 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 12 1 0109-
75 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0109-0512
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
91 CLIP; AIR PIPE
ID=11 H=20 L=20 		5-09700-351-0 02 1 0109-0707
91 CLIP; AIR PIPE
ID=11 H=20 L=20 		8-98033-780-0 02 1 0708-
92 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0109-0602
92 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
97 CLIP; AIR PIPE
ID=11 H=20 L=20 		5-09700-351-0 01 1 0109-0707
97 CLIP; AIR PIPE
ID=11 H=20 L=20 		8-98033-780-0 01 1 0708-
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0109-0512
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
99 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0109-0602
99 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
103 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0109-0602
103 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
107 CLIP; NYLON TUBE
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0109-
107 CLIP; NYLON TUBE
(D) ID=35 H=45 L=33 		1-09700-947-0 02 1 0109-
107 CLIP; NYLON TUBE
(C) ID=18 L=28 		1-09701-067-0 01 1 0109-
107 CLIP; NYLON TUBE
(C) ID=15 L=28 		1-09701-216-0 01 1 0109-0203
107 CLIP; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) ID=15 L=28 		1-09701-216-0 01 1 0204-0206
107 CLIP; NYLON TUBE
(C) ID=15 L=28 		1-09701-216-0 01 1 0207-
107 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 29 1 0109-
108 BOLT; TUBE CLIP
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0109-0512
108 BOLT; TUBE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
108 BOLT; TUBE CLIP
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0109-0203
108 BOLT; TUBE CLIP
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0204-0206
108 BOLT; TUBE CLIP
AIR SUSP DRIVER SEAT<A56> (B) M8X25 FLANGE 		0-28680-825-0 01 1 0204-0206
108 BOLT; TUBE CLIP
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0207-0512
108 BOLT; TUBE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
108 BOLT; TUBE CLIP
(C) M8X30 FLANGE 		0-28680-830-0 02 1 0109-0512
108 BOLT; TUBE CLIP
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
109 NUT; TUBE CLIP
AIR SUSP DRIVER SEAT<A56> M8 FLANGE 		0-91150-108-0 01 1 0204-0206
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 05 1 0109-0203
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 04 1 0204-0206
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 05 1 0207-0602
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0109-0512
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 04 1 0109-0602
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0109-0602
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
322 BRACKET; CLIP
L=95 		1-82699-085-0 01 1 0109-
367 BRACKET ASM 1-47475-427-1 01 1 0109-
376 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0109-0512
376 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
376 BOLT; BRKT
(B) M8X40 FLANGE 		0-28680-840-0 01 1 0109-0512
376 BOLT; BRKT
(B) M8X40 FLANGE 		0-28650-840-0 01 1 0601-

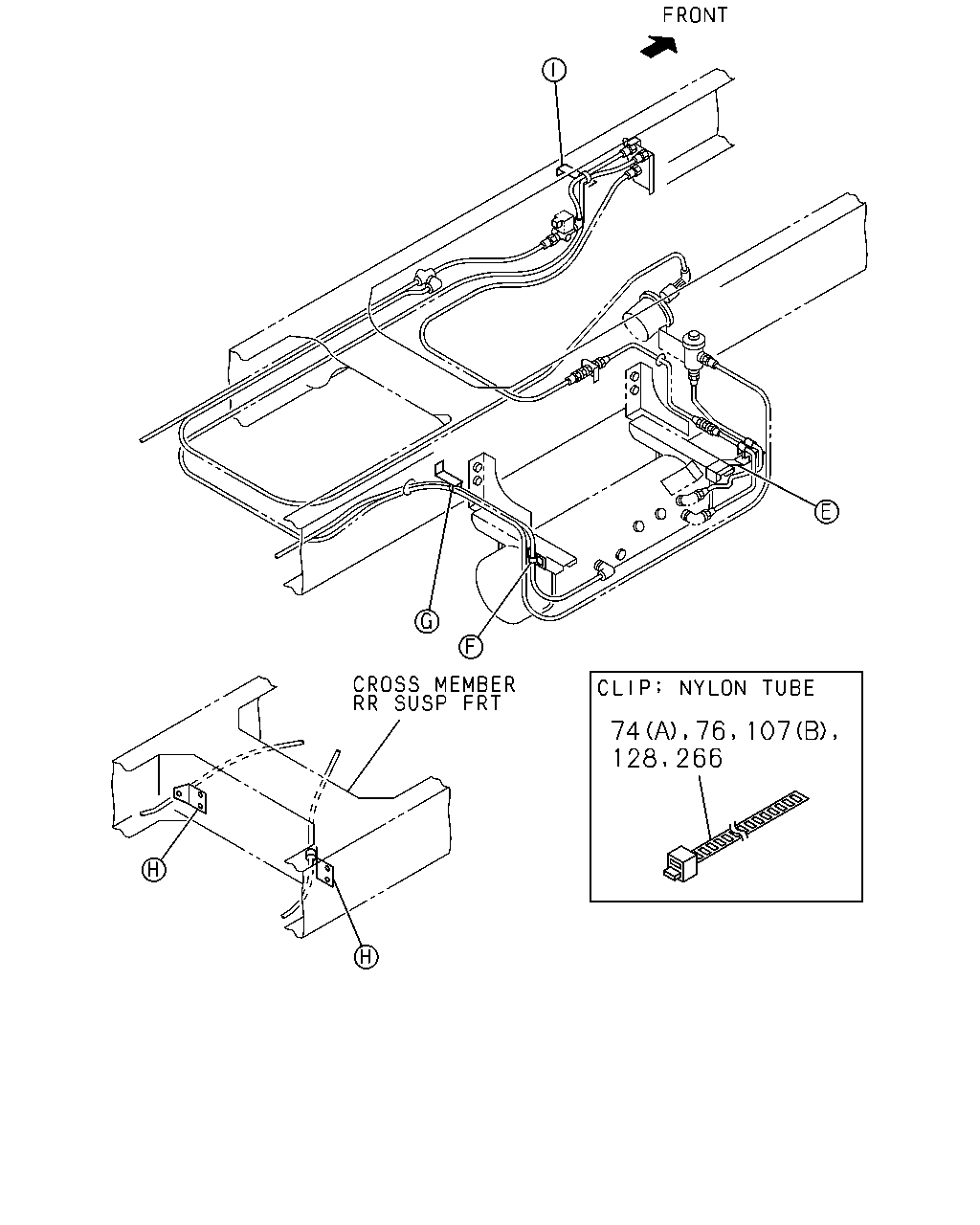

çizim 103454
74 128 107 76 266
BalonParca AdiParca NoAdetTipApplied Date
74 CLIP; NYLON TUBE
(B) ID=24 L=27 		1-09700-809-0 01 1 0109-
74 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 12 1 0109-
76 CLIP; NYLON TUBE
L=250 		1-09707-126-0 06 1 0109-
107 CLIP; NYLON TUBE
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0109-
107 CLIP; NYLON TUBE
(D) ID=35 H=45 L=33 		1-09700-947-0 02 1 0109-
107 CLIP; NYLON TUBE
(C) ID=18 L=28 		1-09701-067-0 01 1 0109-
107 CLIP; NYLON TUBE
(C) ID=15 L=28 		1-09701-216-0 01 1 0109-0203
107 CLIP; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) ID=15 L=28 		1-09701-216-0 01 1 0204-0206
107 CLIP; NYLON TUBE
(C) ID=15 L=28 		1-09701-216-0 01 1 0207-
107 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 29 1 0109-
128 CLIP; NYLON TUBE
L=250 		1-09707-126-0 04 1 0109-
266 CLIP; NYLON TUBE
L=250 		1-09707-126-0 07 1 0109-
