3-75 — BRAKE PIPING; AIR,FRONT (#9660) — 133 parça

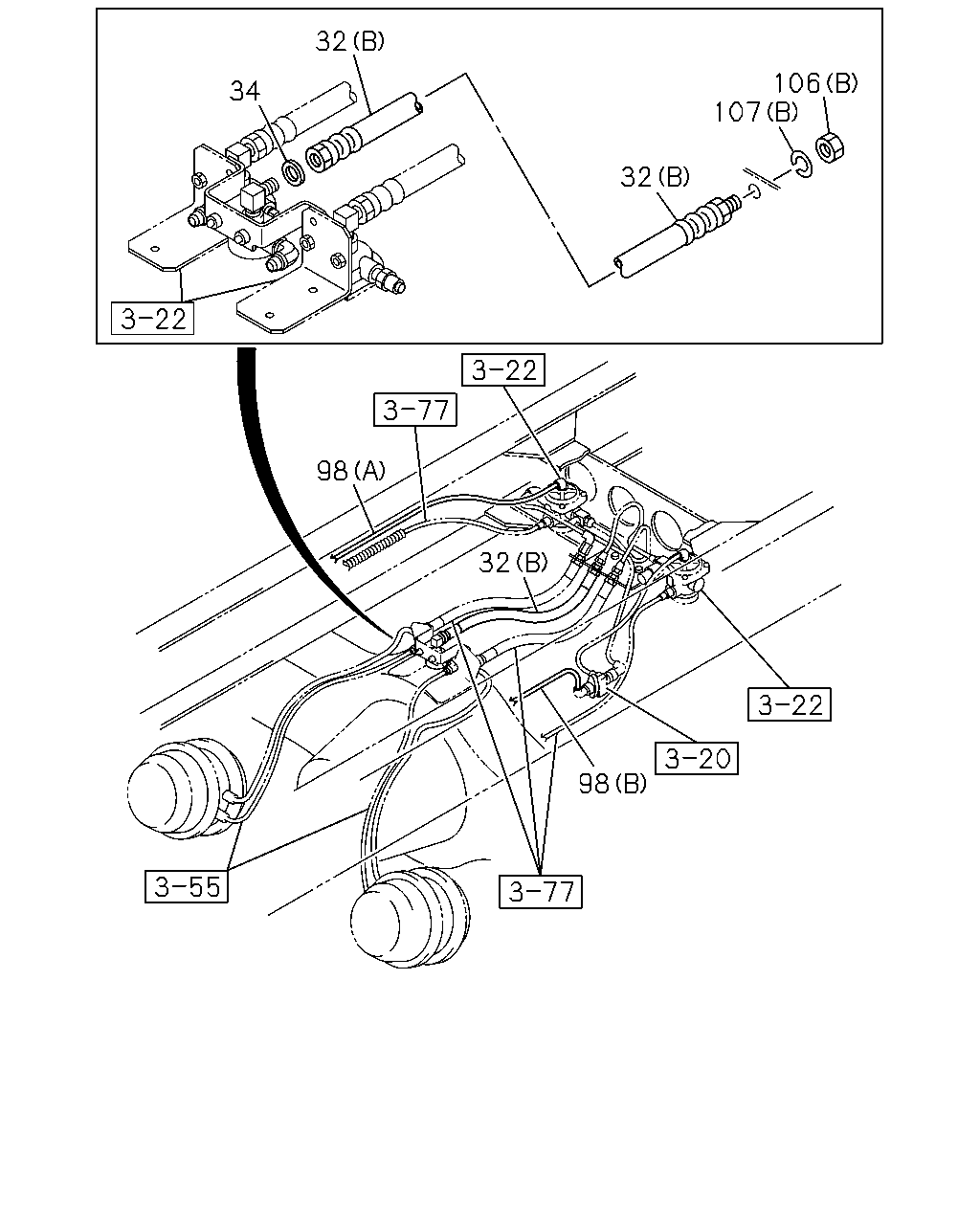

32 106 107 34 32 98 32 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	0109-0605
32	HOSE; FLEX,FRT (A) L=630	0-57475-630-1	02	1	0606-
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	0109-0112
32	HOSE; FLEX,FRT (B) L=610	0-07806-610-1	01	1	0201-
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0109-
98	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56> (B) L=5780,6910 SERVICED BY L=8000 OD=8	1-87410-076-0	01	1	0204-0206
98	TUBE; NYLON (A) L=10360 SERVICED BY L=30000 OD=12	1-09369-544-0	01	1	0109-
98	TUBE; NYLON (B) L=8930 SERVICED BY L=30000 OD=8	1-09369-578-0	01	1	0109-
98	TUBE; NYLON (A) L=1530 SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0109-
98	TUBE; NYLON (A) L=5240 SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0109-
98	TUBE; NYLON (A) L=7960 SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0109-
98	TUBE; NYLON (B) L=1530 SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0109-
98	TUBE; NYLON (B) L=5780,6910 SERVICED BY L=8000 OD=8	1-87410-076-0	02	1	0109-0203
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B) L=5780,6910 SERVICED BY L=8000 OD=8	1-87410-076-0	02	1	0204-0206
98	TUBE; NYLON (B) L=5780,6910 SERVICED BY L=8000 OD=8	1-87410-076-0	02	1	0207-
106	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	0109-0512
106	NUT; FLEX HOSE (A) M16	0-91111-516-0	02	1	0601-
106	NUT; FLEX HOSE (A) M16	9-99111-416-0	01	1	0109-0512
106	NUT; FLEX HOSE (A) M16	9-99111-416-0	01	1	0109-0512
106	NUT; FLEX HOSE (A) M16	0-91111-516-0	01	1	0601-
106	NUT; FLEX HOSE (A) M16	0-91111-516-0	01	1	0601-
106	NUT; FLEX HOSE (B) M20	9-99111-420-0	01	1	0109-0512
106	NUT; FLEX HOSE (B) M20	0-91111-520-0	01	1	0601-
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	01	1	0109-0603
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	01	1	0109-0603
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	01	1	0109-0603
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	01	1	0109-0603
107	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	01	1	0604-
107	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	01	1	0604-
107	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	01	1	0604-
107	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	01	1	0604-
107	WASHER; LK,FLEX HOSE (B) ID=20.2	9-09150-520-0	01	1	0109-0603
107	WASHER; LK,FLEX HOSE (B) ID=20.2	0-91510-520-0	01	1	0604-

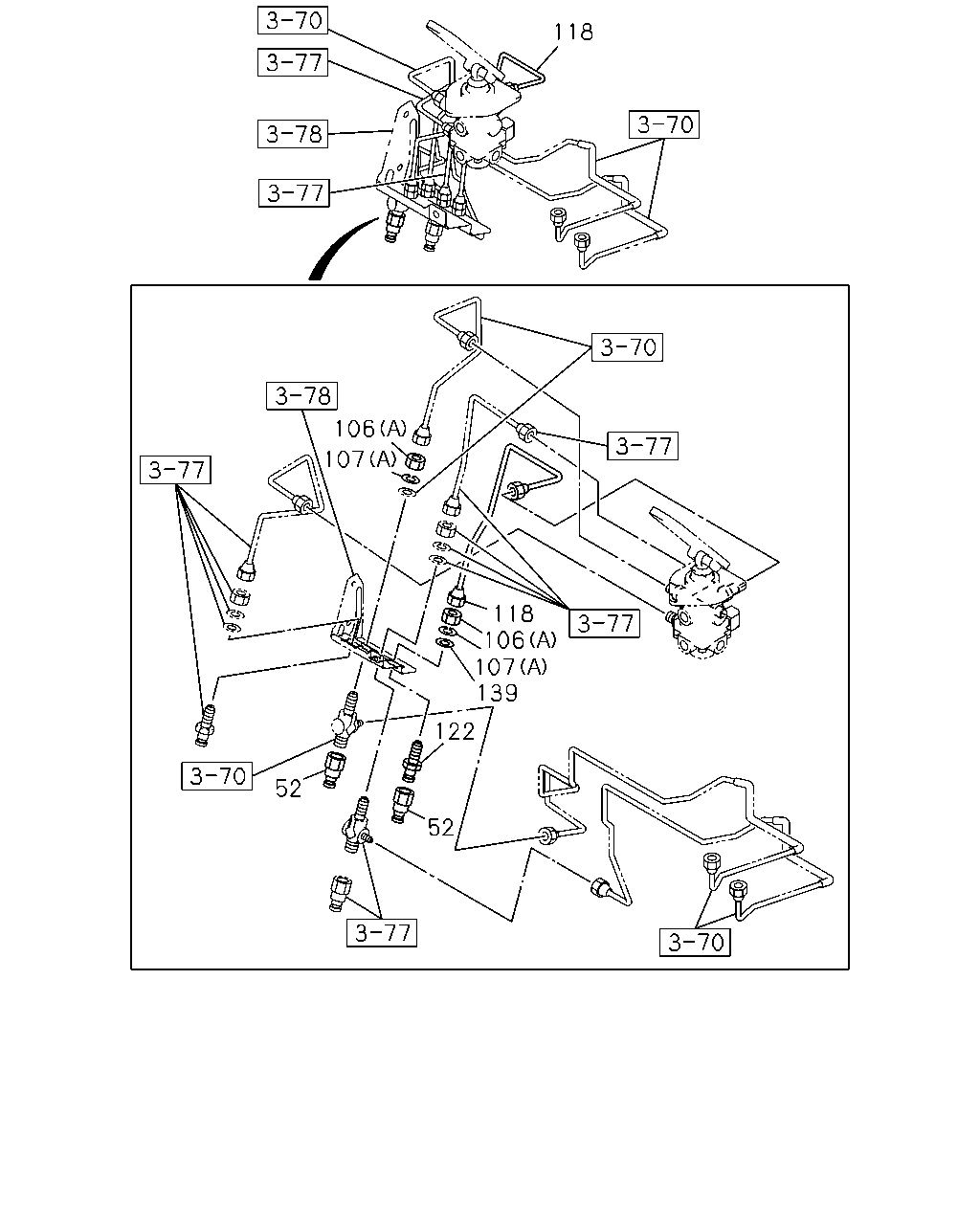

118 106 107 118 106 107 139 122 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0109-
106	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	0109-0512
106	NUT; FLEX HOSE (A) M16	0-91111-516-0	02	1	0601-
106	NUT; FLEX HOSE (A) M16	9-99111-416-0	01	1	0109-0512
106	NUT; FLEX HOSE (A) M16	9-99111-416-0	01	1	0109-0512
106	NUT; FLEX HOSE (A) M16	0-91111-516-0	01	1	0601-
106	NUT; FLEX HOSE (A) M16	0-91111-516-0	01	1	0601-
106	NUT; FLEX HOSE (B) M20	9-99111-420-0	01	1	0109-0512
106	NUT; FLEX HOSE (B) M20	0-91111-520-0	01	1	0601-
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	01	1	0109-0603
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	01	1	0109-0603
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	01	1	0109-0603
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	01	1	0109-0603
107	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	01	1	0604-
107	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	01	1	0604-
107	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	01	1	0604-
107	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	01	1	0604-
107	WASHER; LK,FLEX HOSE (B) ID=20.2	9-09150-520-0	01	1	0109-0603
107	WASHER; LK,FLEX HOSE (B) ID=20.2	0-91510-520-0	01	1	0604-
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=419	1-49115-942-3	01	1	0109-
122	CONNECTOR; FLEX HOSE M16 STRAIGHT	1-09654-380-0	01	1	0109-
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	0109-0605
139	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-

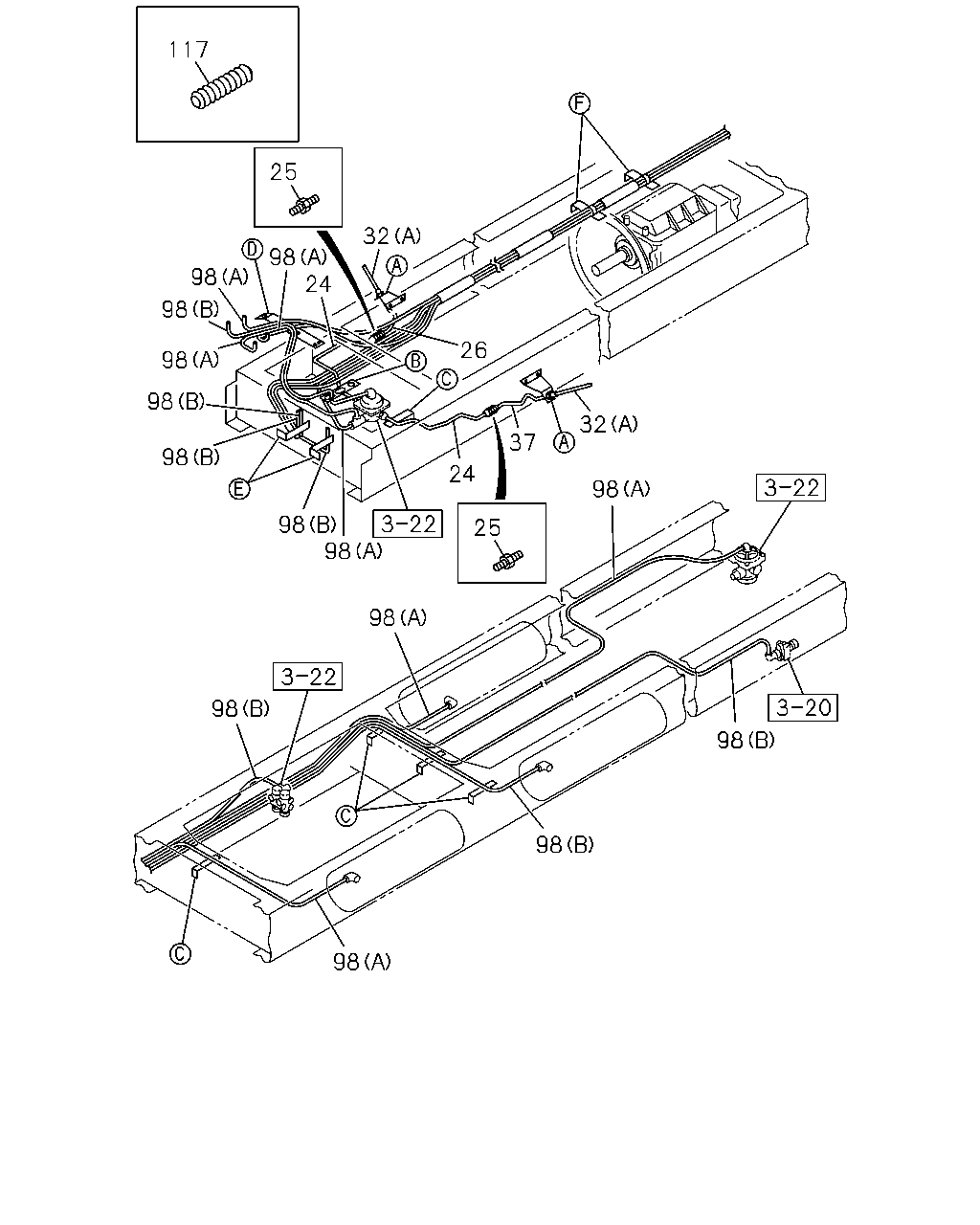

117 25 32 98 24 98 98 26 98 98 32 37 98 24 98 98 98 25 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE; AIR,RELAY VLV TO UNION L=883 SERVICED BY L=900	1-47428-788-0	01	1	0109-
24	PIPE; AIR,RELAY VLV TO UNION L=883 SERVICED BY L=900	1-47428-788-0	01	1	0109-
25	UNION; AIR PIPE M16 L=42	9-09233-010-1	02	1	0109-0607
25	UNION; AIR PIPE M16 STRAIGHT L=42	0-92123-010-0	02	1	0608-
26	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-325-0	01	1	0109-
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	0109-0605
32	HOSE; FLEX,FRT (A) L=630	0-57475-630-1	02	1	0606-
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	0109-0112
32	HOSE; FLEX,FRT (B) L=610	0-07806-610-1	01	1	0201-
37	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-327-0	01	1	0109-
98	TUBE; NYLON EXC. AIR SUSP DRIVER SEAT<A56> (B) L=5780,6910 SERVICED BY L=8000 OD=8	1-87410-076-0	01	1	0204-0206
98	TUBE; NYLON (A) L=10360 SERVICED BY L=30000 OD=12	1-09369-544-0	01	1	0109-
98	TUBE; NYLON (B) L=8930 SERVICED BY L=30000 OD=8	1-09369-578-0	01	1	0109-
98	TUBE; NYLON (A) L=1530 SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0109-
98	TUBE; NYLON (A) L=5240 SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0109-
98	TUBE; NYLON (A) L=7960 SERVICED BY L=8000 OD=12	1-87410-072-0	01	1	0109-
98	TUBE; NYLON (B) L=1530 SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0109-
98	TUBE; NYLON (B) L=5780,6910 SERVICED BY L=8000 OD=8	1-87410-076-0	02	1	0109-0203
98	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B) L=5780,6910 SERVICED BY L=8000 OD=8	1-87410-076-0	02	1	0204-0206
98	TUBE; NYLON (B) L=5780,6910 SERVICED BY L=8000 OD=8	1-87410-076-0	02	1	0207-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0109-0203
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0204-0206
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0207-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0109-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	04	1	0109-0203
117	TUBE; CORRUGATE AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 ID=32	1-87410-104-0	04	1	0204-0206
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	04	1	0207-

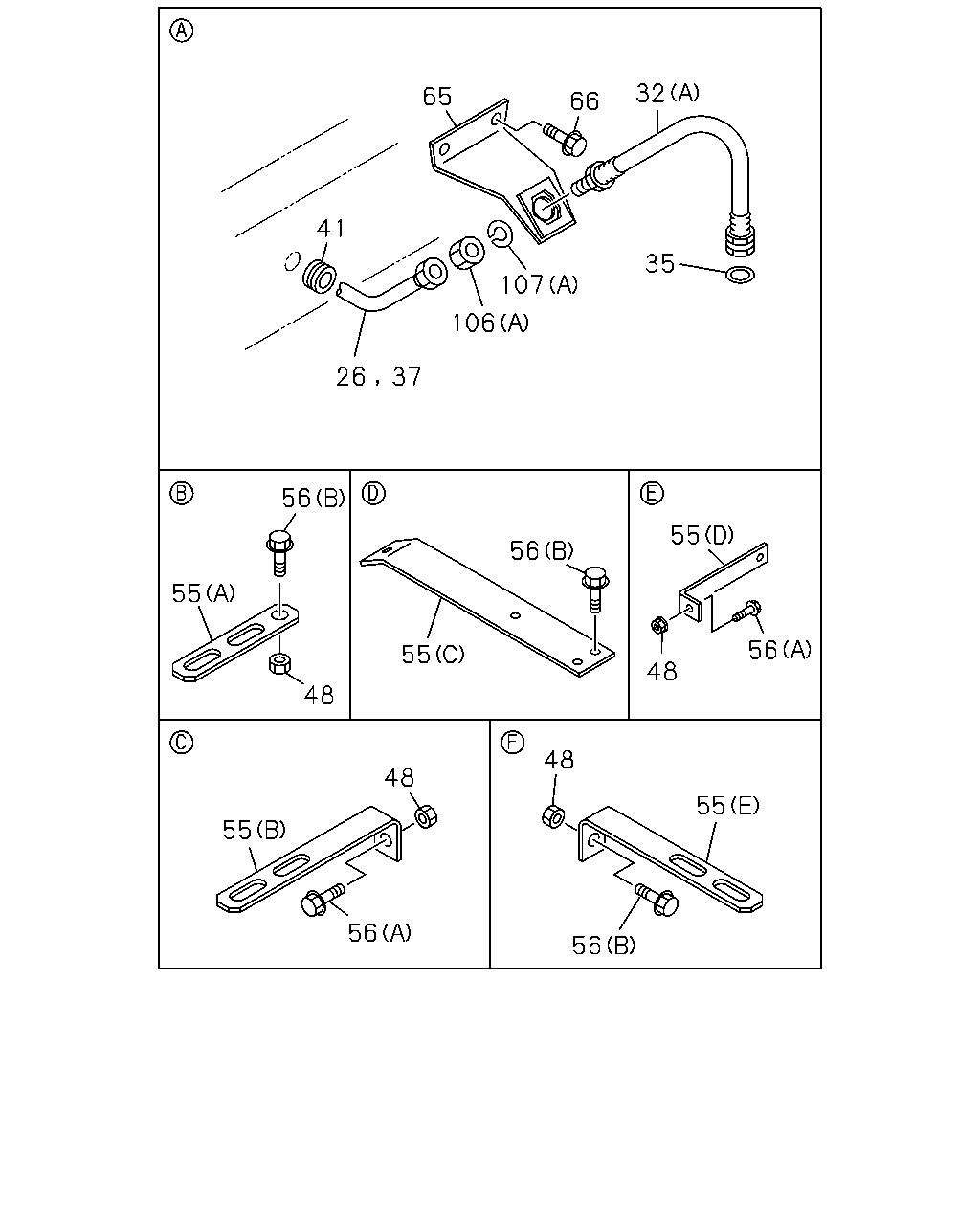

32 65 66 41 35 107 106 26 37 56 55 56 55 56 55 48 48 48 48 55 55 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-325-0	01	1	0109-
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	0109-0605
32	HOSE; FLEX,FRT (A) L=630	0-57475-630-1	02	1	0606-
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	0109-0112
32	HOSE; FLEX,FRT (B) L=610	0-07806-610-1	01	1	0201-
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0109-
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0109-
37	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-327-0	01	1	0109-
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	0109-
48	NUT; UNION BRKT EXC. AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	09	1	0204-0206
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	10	1	0109-0203
48	NUT; UNION BRKT AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	01	1	0204-0206
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	10	1	0207-0602
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	10	1	0603-
55	BRACKET; TUBE UNION (C)	1-47477-256-1	01	1	0109-
55	BRACKET; TUBE UNION (A)	1-47477-514-3	01	1	0109-
55	BRACKET; TUBE UNION (B) L=150 H=30	1-47477-629-2	05	1	0109-
55	BRACKET; TUBE UNION (E) L=100 H=30	1-47477-645-2	02	1	0109-
55	BRACKET; TUBE UNION (D) L=160 B=25	1-53441-518-0	02	1	0109-0203
55	BRACKET; TUBE UNION (D) L=160 B=25	1-53441-518-0	01	1	0204-0206
55	BRACKET; TUBE UNION (D) L=160 B=25	1-53441-518-0	02	1	0207-
56	BOLT; UNION BRKT EXC. AIR SUSP DRIVER SEAT<A56> (A) M8X25 FLANGE	0-28680-825-0	06	1	0204-0206
56	BOLT; UNION BRKT (A) M8X25 FLANGE	0-28680-825-0	07	1	0109-0203
56	BOLT; UNION BRKT AIR SUSP DRIVER SEAT<A56> (A) M8X25 FLANGE	0-28680-825-0	01	1	0204-0206
56	BOLT; UNION BRKT (A) M8X25 FLANGE	0-28680-825-0	07	1	0207-0512
56	BOLT; UNION BRKT (A) M8X25 FLANGE	0-28650-825-0	07	1	0601-
56	BOLT; UNION BRKT (B) M8X30 FLANGE	0-28680-830-0	05	1	0109-0512
56	BOLT; UNION BRKT (B) M8X30 FLANGE	0-28650-830-0	05	1	0601-
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	0109-
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	0109-
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28080-812-0	04	1	0109-0512
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28050-812-0	04	1	0601-
106	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	0109-0512
106	NUT; FLEX HOSE (A) M16	0-91111-516-0	02	1	0601-
106	NUT; FLEX HOSE (A) M16	9-99111-416-0	01	1	0109-0512
106	NUT; FLEX HOSE (A) M16	9-99111-416-0	01	1	0109-0512
106	NUT; FLEX HOSE (A) M16	0-91111-516-0	01	1	0601-
106	NUT; FLEX HOSE (A) M16	0-91111-516-0	01	1	0601-
106	NUT; FLEX HOSE (B) M20	9-99111-420-0	01	1	0109-0512
106	NUT; FLEX HOSE (B) M20	0-91111-520-0	01	1	0601-
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	01	1	0109-0603
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	01	1	0109-0603
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	01	1	0109-0603
107	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	01	1	0109-0603
107	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	01	1	0604-
107	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	01	1	0604-
107	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	01	1	0604-
107	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	01	1	0604-
107	WASHER; LK,FLEX HOSE (B) ID=20.2	9-09150-520-0	01	1	0109-0603
107	WASHER; LK,FLEX HOSE (B) ID=20.2	0-91510-520-0	01	1	0604-
