3-70 — BRAKE PIPING; AIR,AIR MASTER (#9659) — 102 parça

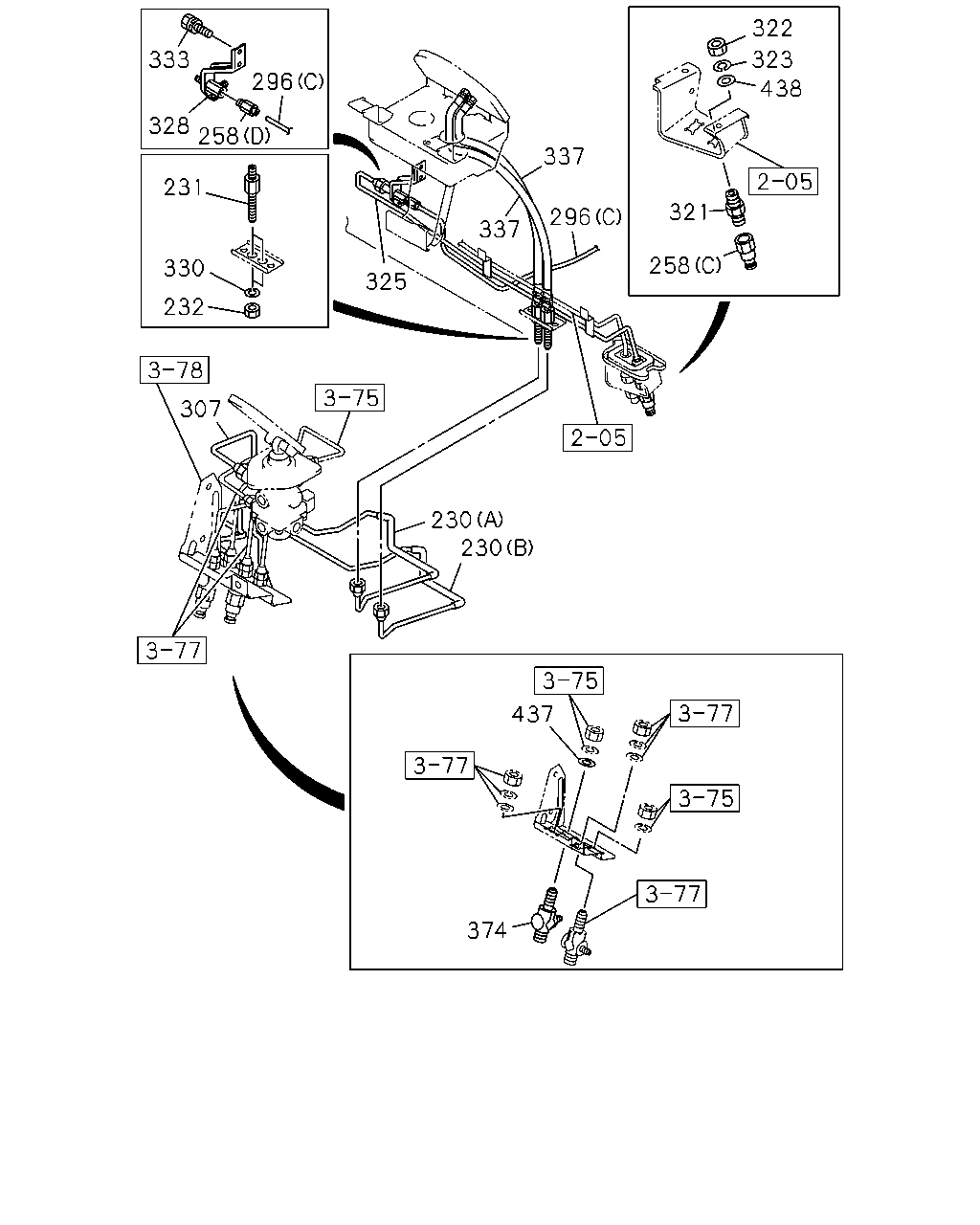

çizim 81969
322 296 323 333 438 328 258 337 231 321 296 337 258 330 325 232 307 230 230 437 374
BalonParca AdiParca NoAdetTipApplied Date
230 PIPE; AIR,UNION TO UNION
(A) L=1561 		1-49122-779-0 01 1 0109-
230 PIPE; AIR,UNION TO UNION
(B) L=1245 		1-49122-780-0 01 1 0109-
231 UNION; AIR PIPE
M10 STRAIGHT 		1-09654-361-0 02 1 0109-
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 02 1 0109-
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0109-
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0109-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0109-0302
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0109-
258 CONNECTOR; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0109-
296 TUBE; NYLON
(A) L=930,1280,1950 SERVICED BY L=2000 OD=12 		1-87410-069-0 03 1 0109-
296 TUBE; NYLON
(B) L=4200 SERVICED BY L=6000 OD=8 		1-87410-075-0 01 1 0109-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (C) L=1200 OD=6 		1-09366-256-1 01 1 0109-
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 0109-
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> 		1-09656-712-0 01 1 0109-
321 JOINT; FLEX HOSE
EXC. AIR SUSP DRIVER SEAT<A56> 		1-09656-728-1 01 1 0109-
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0109-
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0109-0603
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0604-
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> 		1-47493-105-1 01 1 0109-
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> 		1-47470-392-0 01 1 0109-
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 0109-0603
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 0604-
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0109-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0109-0608
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 0609-
374 CONNECTOR 1-09656-754-0 01 1 0109-
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 0109-0605
437 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606-
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0109-

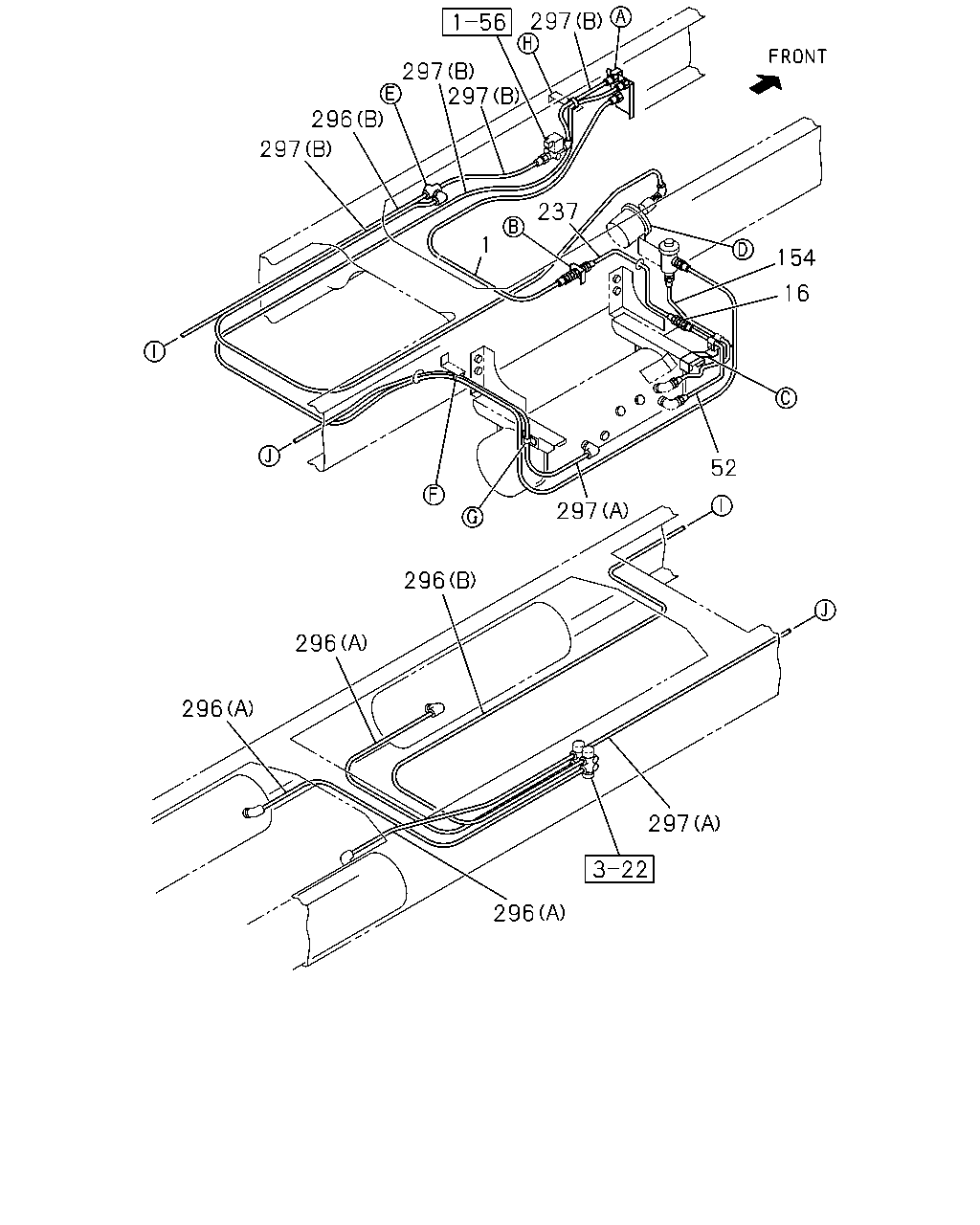

çizim 82040
297 297 297 296 297 237 1 154 16 52 297 296 296 296 297 296
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1350 		0-17806-135-1 01 1 0109-
16 UNION; AIR PIPE
M22 		9-09233-015-1 01 1 0109-0607
16 UNION; AIR PIPE
M22 L=51 		0-92123-015-0 01 1 0608-
52 PIPE; AIR,UNION TO AIR TANK 1-49123-089-0 01 1 0109-
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49123-090-0 01 1 0109-
237 PIPE; AIR,FLEX HOSE TO UNION
L=436 		1-49123-088-0 01 1 0109-
296 TUBE; NYLON
(A) L=930,1280,1950 SERVICED BY L=2000 OD=12 		1-87410-069-0 03 1 0109-
296 TUBE; NYLON
(B) L=4200 SERVICED BY L=6000 OD=8 		1-87410-075-0 01 1 0109-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (C) L=1200 OD=6 		1-09366-256-1 01 1 0109-
297 TUBE; NYLON
(A) L=2220 SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0109-
297 TUBE; NYLON
(B) L=280,440 SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0109-0212
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0301-
297 TUBE; NYLON
(B) L=3900 SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0109-
297 TUBE; NYLON
(B) L=5240 SERVICED BY L=6000 OD=8 		1-87410-075-0 01 1 0109-

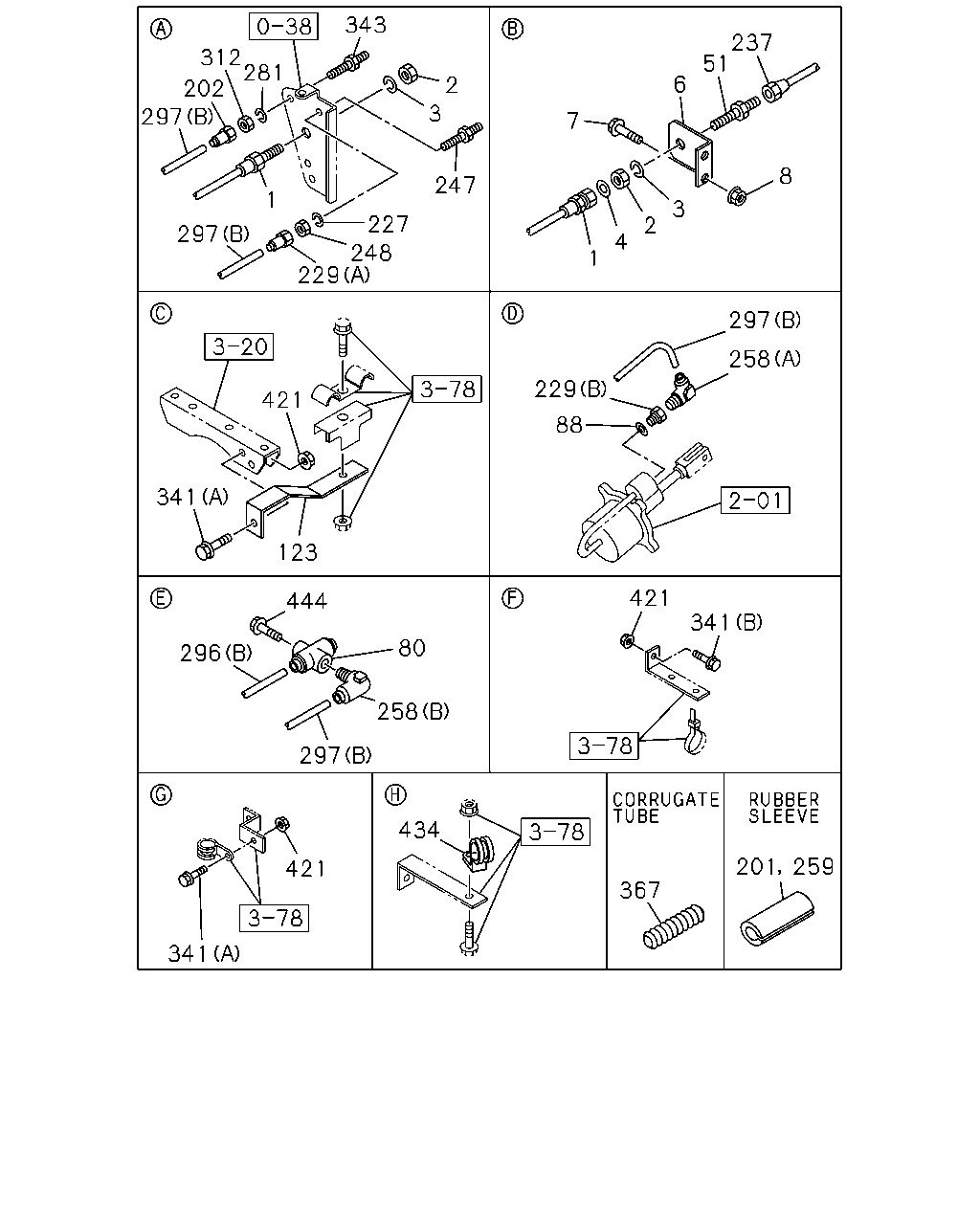

çizim 103407
343 237 51 312 281 6 2 202 3 297 7 8 247 1 3 227 2 297 4 248 229 1 297 258 229 421 88 341 123 421 444 341 80 296 258 297 434 201 259 421 367 341
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1350 		0-17806-135-1 01 1 0109-
2 NUT; FLEX HOSE,AIR TANK
M20 		9-99111-420-0 02 1 0109-0512
2 NUT; FLEX HOSE,AIR TANK
M20 		0-91111-520-0 02 1 0601-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		9-09150-520-0 02 1 0109-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		0-91510-520-0 02 1 0604-
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 0109-
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-389-0 01 1 0109-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X35 FLANGE 		0-28680-835-0 02 1 0109-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 0109-0602
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91180-108-0 02 1 0603-
51 UNION
M20 & M22 STRAIGHT 		1-09654-166-1 01 1 0109-
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0109-
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 0109-
123 BRACKET; UNION 1-47479-254-0 01 1 0109-
201 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 02 1 0109-
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0109-
227 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0109-0603
227 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 0604-
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0109-
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 		9-48319-149-0 01 1 0109-0206
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0207-
237 PIPE; AIR,FLEX HOSE TO UNION
L=436 		1-49123-088-0 01 1 0109-
247 UNION; AIR PIPE
M12 L=66.5 		9-09223-306-1 01 1 0109-0607
247 UNION; AIR PIPE
M12 L=66.5 		0-92113-306-0 01 1 0608-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0109-
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0109-
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0109-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0109-0302
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0109-
258 CONNECTOR; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0109-
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0109-
281 WASHER; LK UNION
ID=12.2 		9-09150-512-0 01 1 0109-0603
281 WASHER; LK UNION
ID=12.2 		0-91510-512-0 01 1 0604-
296 TUBE; NYLON
(A) L=930,1280,1950 SERVICED BY L=2000 OD=12 		1-87410-069-0 03 1 0109-
296 TUBE; NYLON
(B) L=4200 SERVICED BY L=6000 OD=8 		1-87410-075-0 01 1 0109-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (C) L=1200 OD=6 		1-09366-256-1 01 1 0109-
297 TUBE; NYLON
(A) L=2220 SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0109-
297 TUBE; NYLON
(B) L=280,440 SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0109-0212
297 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0301-
297 TUBE; NYLON
(B) L=3900 SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0109-
297 TUBE; NYLON
(B) L=5240 SERVICED BY L=6000 OD=8 		1-87410-075-0 01 1 0109-
312 NUT; UNION
M12 		9-09840-280-0 01 1 0109-
341 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0109-0512
341 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
341 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0109-0512
341 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
343 UNION; NYLON TUBE
M12 L=66.5 		9-09223-306-1 01 1 0109-0607
343 UNION; NYLON TUBE
M12 L=66.5 		0-92113-306-0 01 1 0608-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0109-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 01 1 0109-
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0109-0602
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603-
434 CLIP
ID=21 L=30 H=40 		1-09700-991-1 01 1 0109-
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 02 1 0109-0109
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 0110-0512
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 01 1 0601-
