10853 - MV123(RHD)
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#9654) — 53 parça
◀
[326A] -'14/3 FIXING;HAND BRK VALVE (10 parça)
[326A] -'14/3 COMPONENT AND REPAIR KIT (29 parça)
[326A] '14/4- FIXING;HAND BRK VALVE (10 parça)
[326A] '14/4- COMPONENT AND REPAIR KIT (4 parça)
▶

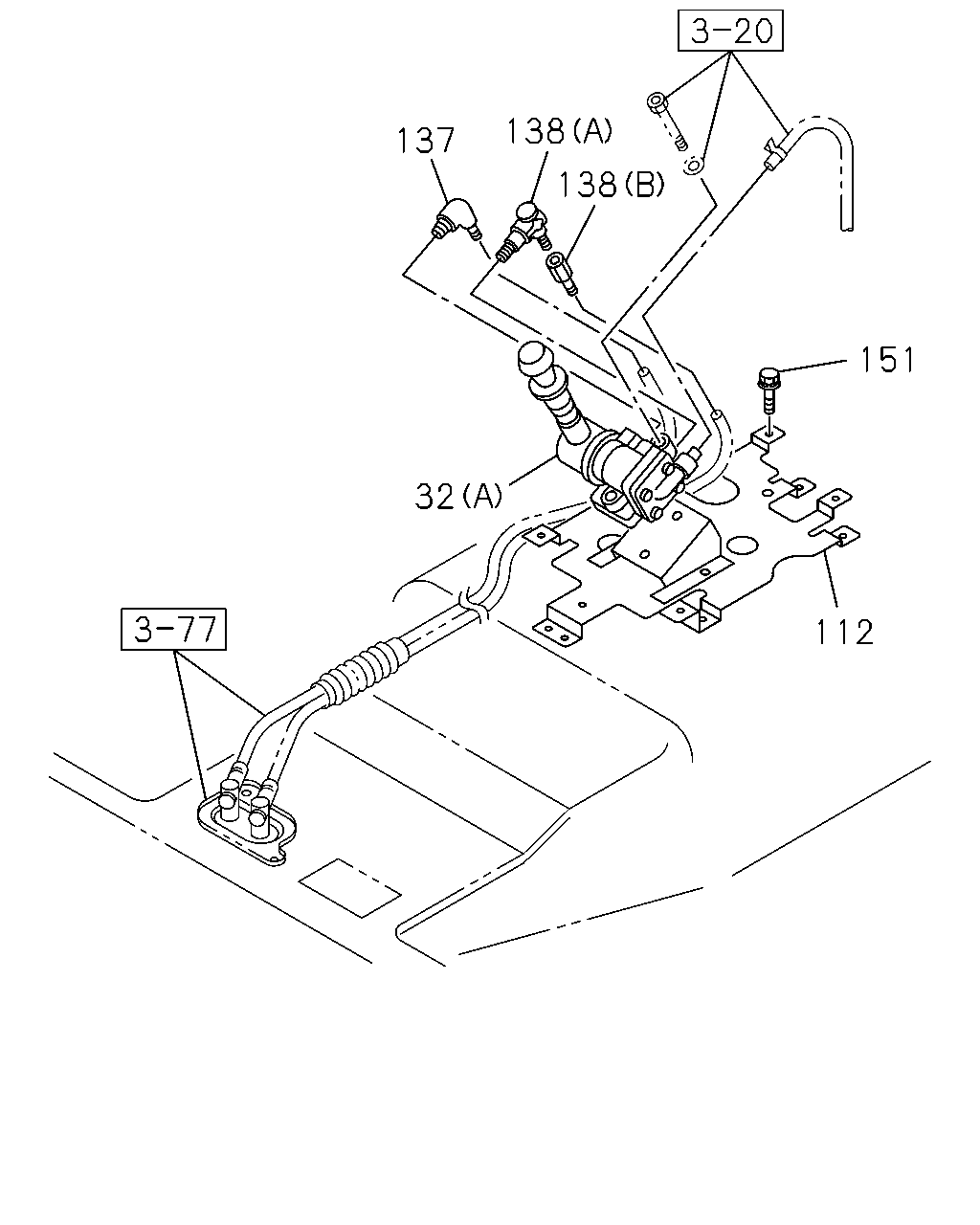

137
138
138
151
112
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
(A)
1-48460-306-0
01
1
0109-1403
32
VALVE; BRK,HAND CONT
(B)
8-98172-211-1
01
1
1404-
112
BRACKET; CONT VLV
1-73908-054-7
01
1
0109-
137
CONNECTOR; SUPPLY
DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0109-1403
137
CONNECTOR; SUPPLY
DIN8 & M16 ELBOW
1-09661-520-0
01
1
1404-
138
CONNECTOR; DELIVERY
(A) DIN6 & PT1/4 ELBOW
1-09650-240-1
01
1
0109-1403
138
CONNECTOR; DELIVERY
(C) DIN8 & M16 ELBOW
1-09661-520-0
01
1
1404-
138
CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0109-1403
151
BOLT; VLV BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
0109-1403
151
BOLT; VLV BRKT
M8X25 FLANGE
0-28650-825-0
02
1
1404-

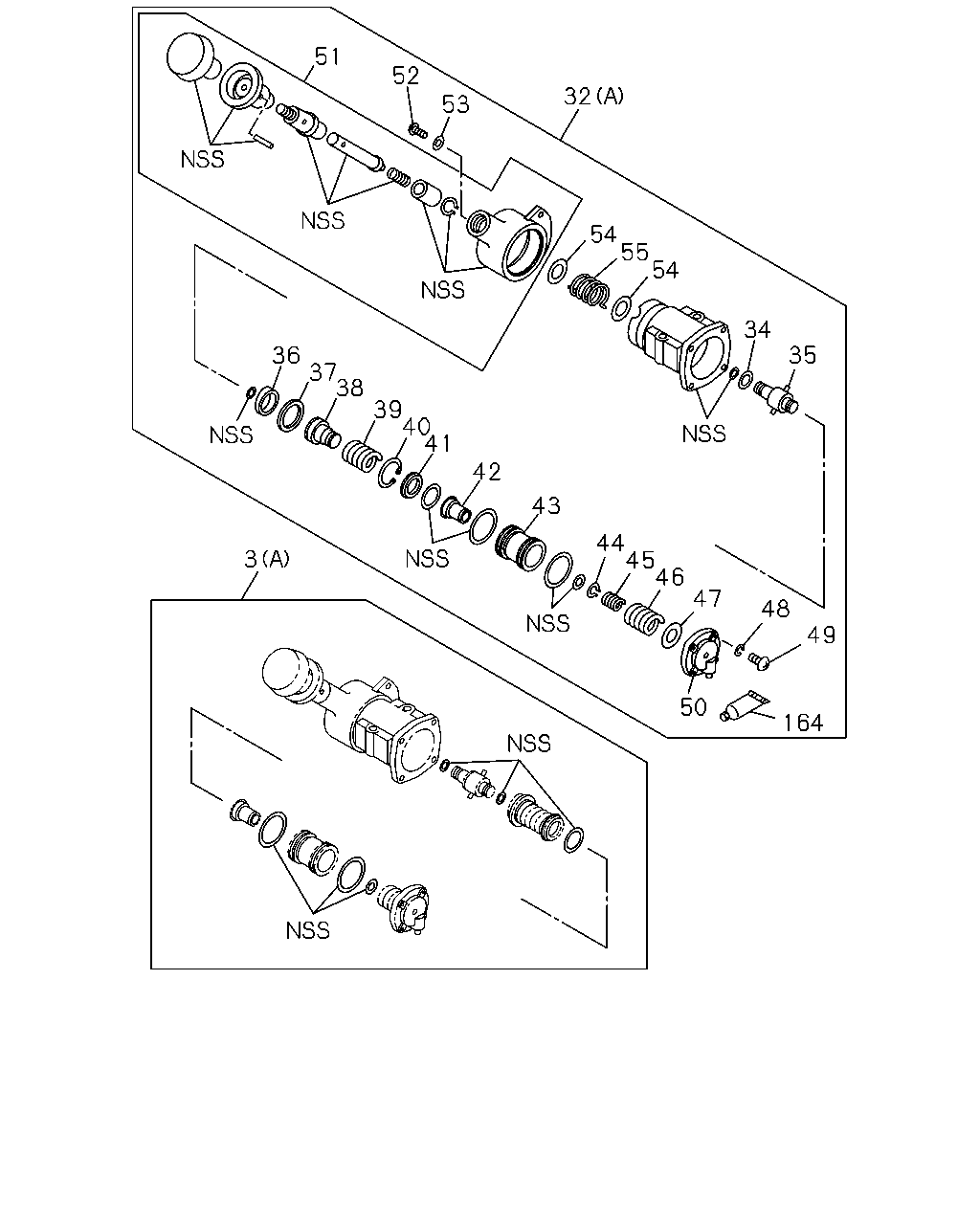

164
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
54
55
54
53
52
51
50
32
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; HAND BRK VLV
(C)
8-98206-117-0
01
1
1404-
3
REPAIR KIT; HAND BRK VLV
(D)
8-98206-118-0
01
1
1404-
3
REPAIR KIT; HAND BRK VLV
(A)
1-48469-096-0
01
1
0109-1403
3
REPAIR KIT; HAND BRK VLV
(B)
8-98206-116-0
01
1
1404-
32
VALVE; BRK,HAND CONT
(A)
1-48460-306-0
01
1
0109-1403
32
VALVE; BRK,HAND CONT
(B)
8-98172-211-1
01
1
1404-
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
0109-1403
35
HOLDER; CAM
1-48469-054-0
01
1
0109-1403
36
RING; CAM
1-48469-056-0
01
1
0109-1403
37
GUIDE; CAM RING
1-48469-058-0
01
1
0109-1403
38
SEAT; EXH VLV
1-48469-057-0
01
1
0109-1403
39
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
0109-1403
40
RING; SNAP
1-48469-067-0
01
1
0109-1403
41
SEAT; FEED VLV
1-48469-066-0
01
1
0109-1403
42
VALVE; FEED
1-48469-065-0
01
1
0109-1403
43
PISTON; HAND BRK VLV
1-48469-064-0
01
1
0109-1403
44
RING; SNAP,FEED VLV
1-48469-068-0
02
1
0109-1403
45
SPRING; FEED VLV
1-48469-070-0
01
1
0109-1403
46
SPRING; MAIN,PISTON
1-48469-089-0
01
1
0109-1403
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
0109-1403
48
WASHER; COVER
1-48469-091-0
04
1
0109-1403
49
SCREW; COVER
1-48469-092-0
04
1
0109-1403
50
COVER; HAND BRK VLV
1-48469-090-0
01
1
0109-1403
51
HANDLE ASM; HAND BRK VLV
1-48469-122-0
01
1
0109-1403
52
SCREW; HANDLE
1-48469-062-0
01
1
0109-1403
53
WASHER; HANDLE
1-48469-061-0
01
1
0109-1403
54
SEAT; SPRING
1-48469-082-0
02
1
0109-1403
55
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
0109-1403
164
GREASE; HAND BRK VLV
1-48469-084-0
01
1
0109-1403

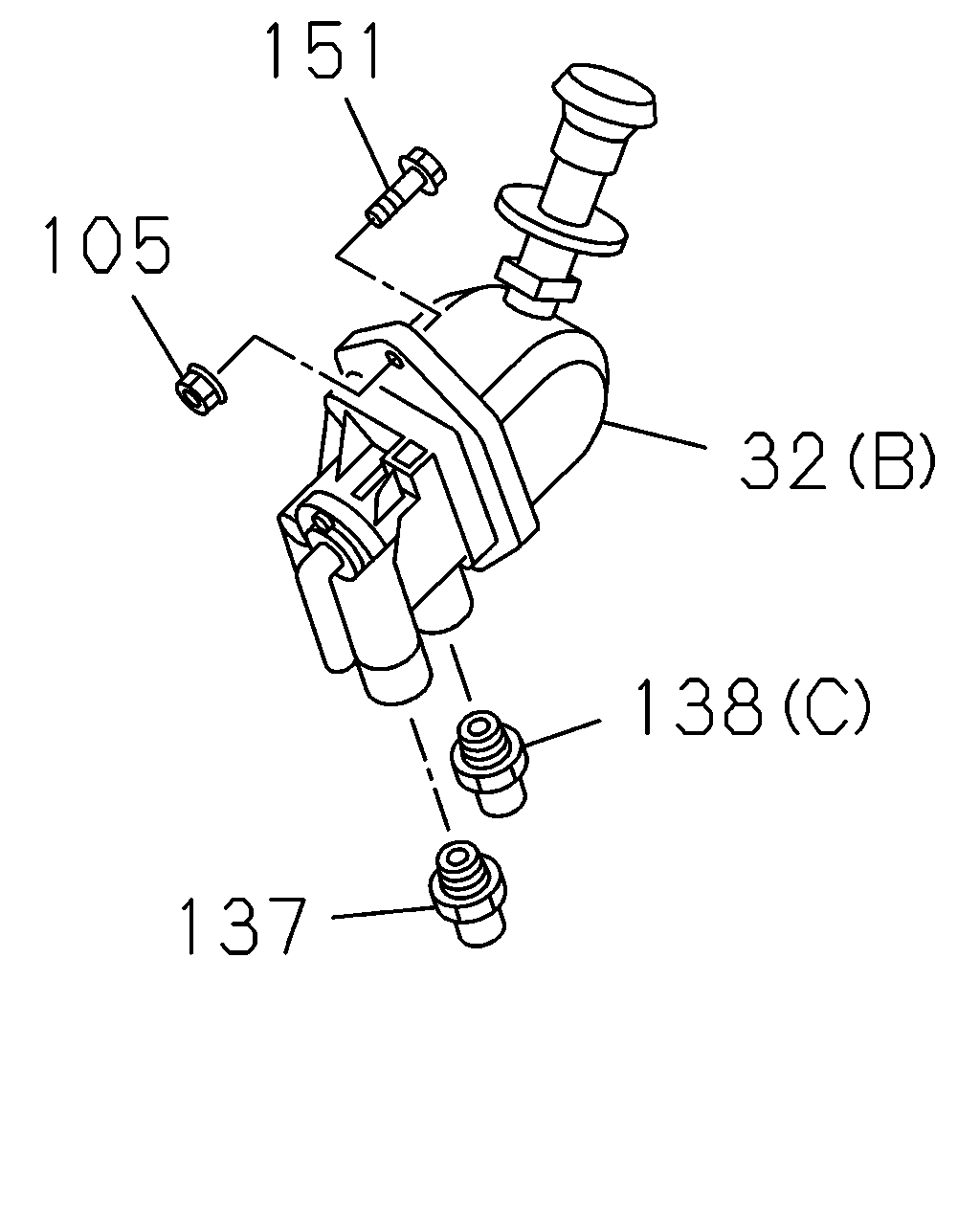

151
105
32
138
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
(A)
1-48460-306-0
01
1
0109-1403
32
VALVE; BRK,HAND CONT
(B)
8-98172-211-1
01
1
1404-
105
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1404-
137
CONNECTOR; SUPPLY
DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0109-1403
137
CONNECTOR; SUPPLY
DIN8 & M16 ELBOW
1-09661-520-0
01
1
1404-
138
CONNECTOR; DELIVERY
(A) DIN6 & PT1/4 ELBOW
1-09650-240-1
01
1
0109-1403
138
CONNECTOR; DELIVERY
(C) DIN8 & M16 ELBOW
1-09661-520-0
01
1
1404-
138
CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0109-1403
151
BOLT; VLV BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
0109-1403
151
BOLT; VLV BRKT
M8X25 FLANGE
0-28650-825-0
02
1
1404-

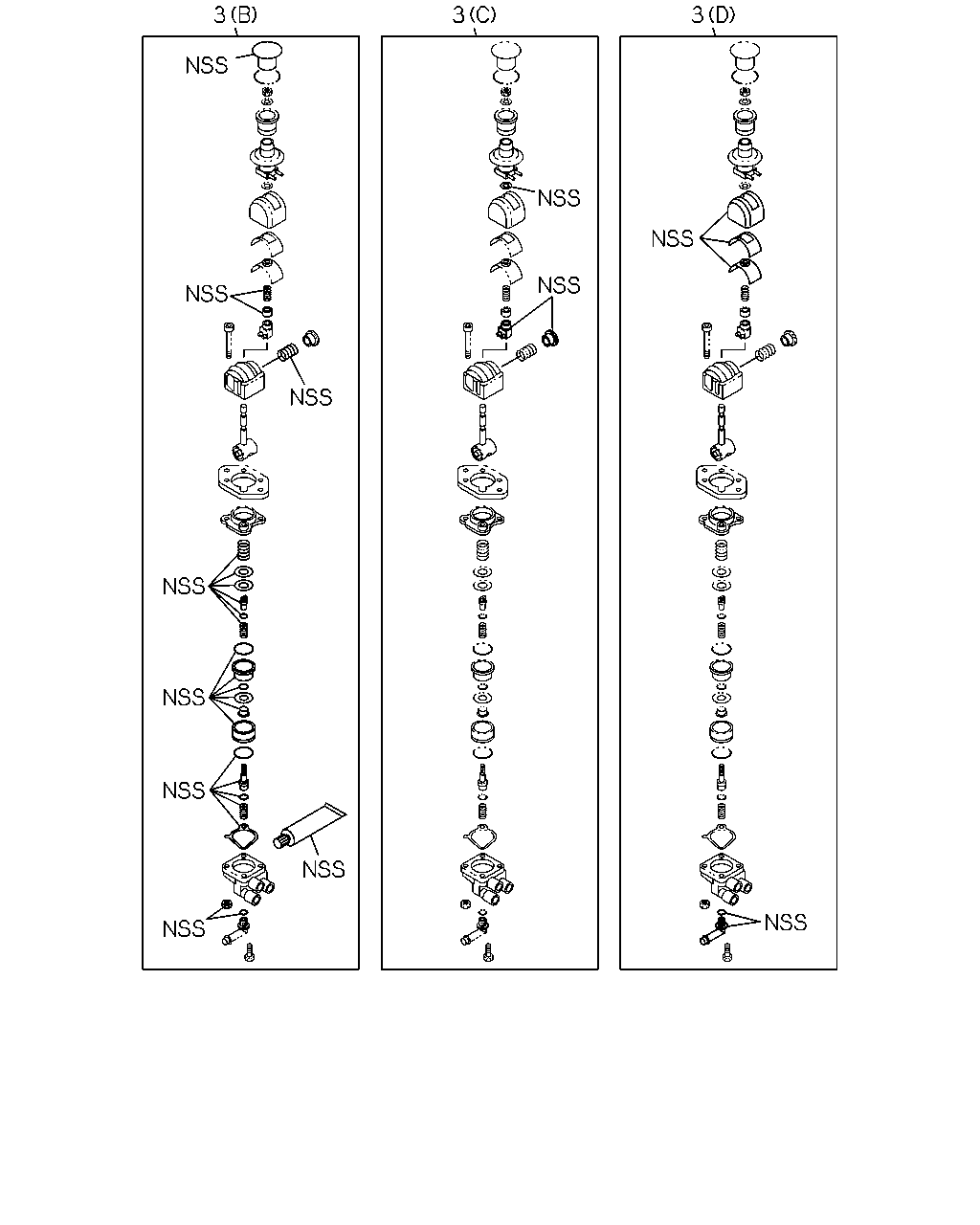

3
3
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; HAND BRK VLV
(C)
8-98206-117-0
01
1
1404-
3
REPAIR KIT; HAND BRK VLV
(D)
8-98206-118-0
01
1
1404-
3
REPAIR KIT; HAND BRK VLV
(A)
1-48469-096-0
01
1
0109-1403
3
REPAIR KIT; HAND BRK VLV
(B)
8-98206-116-0
01
1
1404-
