3-22 — AIR CONTROL PARTS (#9653) — 134 parça

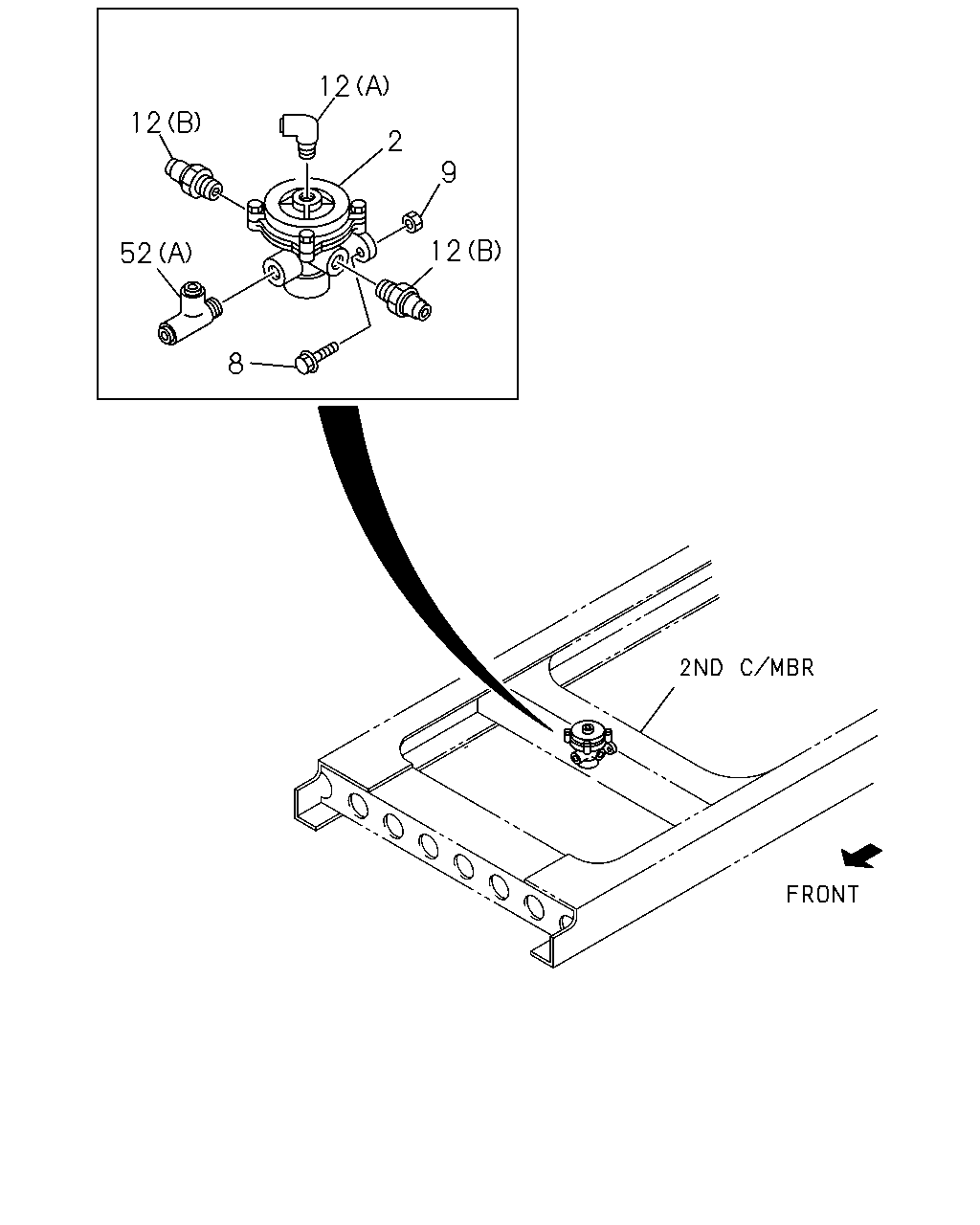

çizim 82399
12 12 2 9 12 52 8
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY 1-48210-755-0 02 1 0109-
8 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0109-0512
8 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601-
9 NUT
M10 FLANGE 		0-91150-210-0 02 1 0109-0602
9 NUT
M10 FLANGE 		0-91180-210-0 02 1 0603-
12 CONNECTOR; RELAY VLV
(B) M16 & PT1/2 STRAIGHT 		1-09650-245-1 02 1 0109-
12 CONNECTOR; RELAY VLV
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0109-
12 CONNECTOR; RELAY VLV
(F) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0109-
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0109-
12 CONNECTOR; RELAY VLV
(D) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0109-
12 CONNECTOR; RELAY VLV
(E) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0109-
52 CONNECTOR; RELAY VLV
(A) DIN12X2 & R1/2 3WAY 		1-09661-019-0 01 1 0109-
52 CONNECTOR; RELAY VLV
(B) 		1-09656-476-0 01 1 0109-

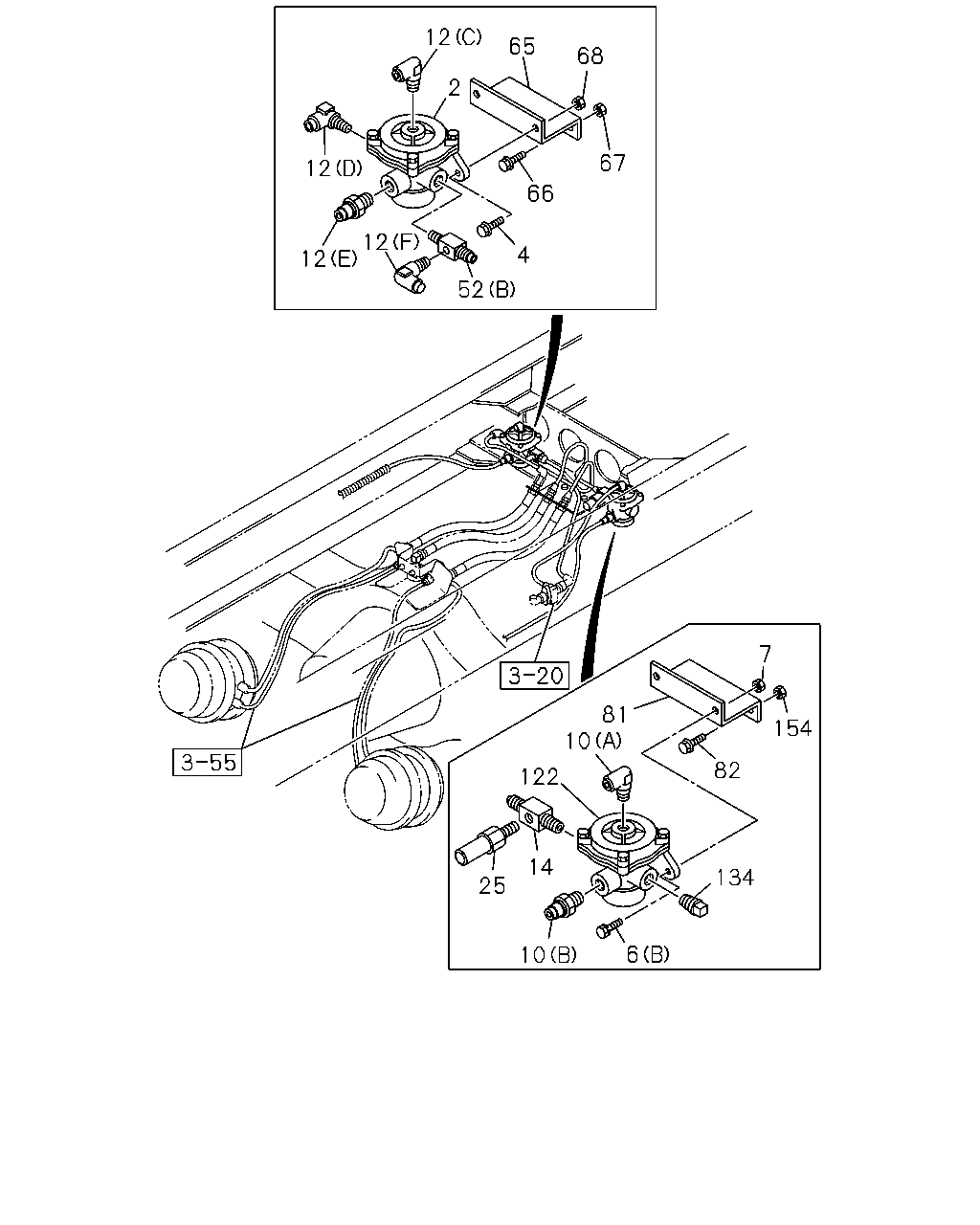

çizim 82400
12 65 68 2 67 12 66 12 12 4 52 7 81 10 154 82 122 14 134 25 6 10
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY 1-48210-755-0 02 1 0109-
4 BOLT; RELAY VLV TO BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0109-0512
4 BOLT; RELAY VLV TO BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601-
6 BOLT; VLV
(B) M10X30 FLANGE 		0-28681-030-0 02 1 0109-0512
6 BOLT; VLV
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0601-
6 BOLT; VLV
(A) M8X20 FLANGE 		0-28080-820-0 02 1 0109-0512
6 BOLT; VLV
(A) M8X20 FLANGE 		0-28050-820-0 02 1 0601-
7 NUT; RELAY VLV
M10 FLANGE 		0-91150-210-0 02 1 0109-0602
7 NUT; RELAY VLV
M10 FLANGE 		0-91180-210-0 02 1 0603-
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0109-
10 CONNECTOR
(B) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0109-
12 CONNECTOR; RELAY VLV
(B) M16 & PT1/2 STRAIGHT 		1-09650-245-1 02 1 0109-
12 CONNECTOR; RELAY VLV
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0109-
12 CONNECTOR; RELAY VLV
(F) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0109-
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0109-
12 CONNECTOR; RELAY VLV
(D) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0109-
12 CONNECTOR; RELAY VLV
(E) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0109-
14 CONNECTOR; RELAY VLV 1-09656-476-0 01 1 0109-
25 SWITCH; PRESSURE 1-82410-163-1 01 1 0109-
52 CONNECTOR; RELAY VLV
(A) DIN12X2 & R1/2 3WAY 		1-09661-019-0 01 1 0109-
52 CONNECTOR; RELAY VLV
(B) 		1-09656-476-0 01 1 0109-
65 BRACKET; RELAY VLV RR 1-47477-964-0 01 1 0109-
66 BOLT; BRKT,RELAY VLV RR
M8X25 FLANGE 		0-28680-825-0 02 1 0109-0512
66 BOLT; BRKT,RELAY VLV RR
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
66 BOLT; BRKT,RELAY VLV RR
M10X25 FLANGE 		0-28681-025-0 02 1 0109-0512
66 BOLT; BRKT,RELAY VLV RR
M10X25 FLANGE 		0-28651-025-0 02 1 0601-
67 NUT; BRKT,RELAY VLV RR
M8 FLANGE 		0-91150-108-0 02 1 0109-0602
67 NUT; BRKT,RELAY VLV RR
M8 FLANGE 		0-91180-108-0 02 1 0603-
67 NUT; BRKT,RELAY VLV RR
M10 FLANGE 		0-91150-210-0 02 1 0109-0602
67 NUT; BRKT,RELAY VLV RR
M10 FLANGE 		0-91180-210-0 02 1 0603-
68 NUT; RELAY VLV TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 0109-0602
68 NUT; RELAY VLV TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-
81 BRACKET; RELAY VLV,PARKING BRK 1-47477-964-0 01 1 0109-
82 BOLT; BRKT,RELAY VLV
M10X25 FLANGE 		0-28681-025-0 02 1 0109-0512
82 BOLT; BRKT,RELAY VLV
M10X25 FLANGE 		0-28651-025-0 02 1 0601-
122 VALVE ASM; CONT,WHEEL PARKING 1-48210-755-0 01 1 0109-
134 PLUG; RELAY VALVE
PT1/2 		9-09204-521-0 01 1 0109-
154 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0109-0602
154 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-

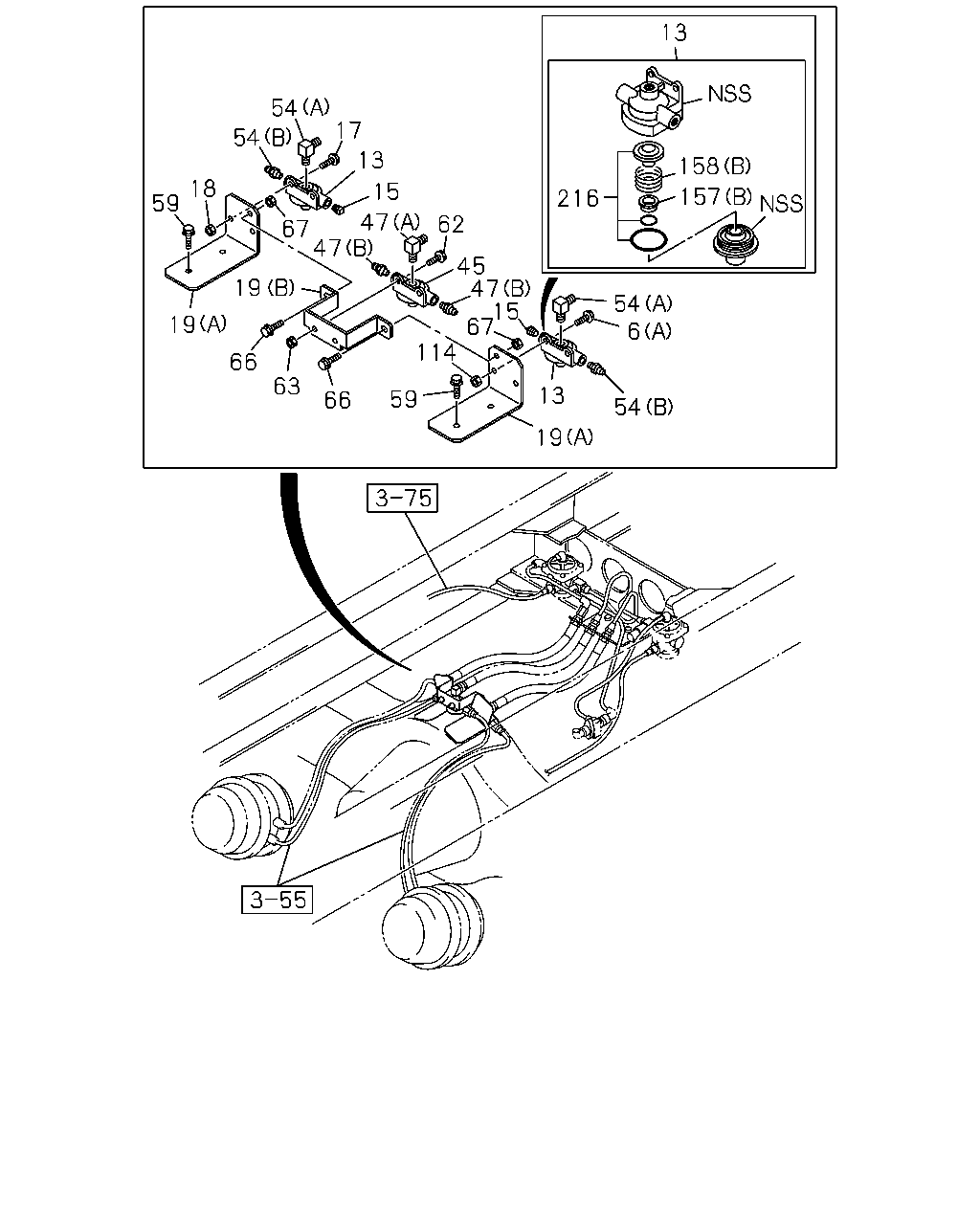

çizim 82402
13 17 13 158 18 15 157 216 59 47 67 47 62 45 47 15 67 19 54 6 114 66 63 13 59 66 54 19 54 54 19
BalonParca AdiParca NoAdetTipApplied Date
6 BOLT; VLV
(B) M10X30 FLANGE 		0-28681-030-0 02 1 0109-0512
6 BOLT; VLV
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0601-
6 BOLT; VLV
(A) M8X20 FLANGE 		0-28080-820-0 02 1 0109-0512
6 BOLT; VLV
(A) M8X20 FLANGE 		0-28050-820-0 02 1 0601-
13 VALVE ASM; QUICK RELEASE 1-48410-320-0 02 1 0109-0109
13 VALVE ASM; QUICK RELEASE 1-48410-659-0 02 1 0110-
15 PLUG; VALVE
PT3/8 		9-09204-517-0 02 1 0109-
17 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 0109-0512
17 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 02 1 0601-
18 NUT; BRKT
M8 		9-09110-408-0 02 1 0109-0512
18 NUT; BRKT
M8 		0-91110-508-0 02 1 0601-
19 BRACKET; QUICK RELEASE VLV
(B) 		1-47477-518-0 01 1 0109-
19 BRACKET; QUICK RELEASE VLV
(A) 		1-48495-154-0 01 1 0109-
19 BRACKET; QUICK RELEASE VLV
(A) 		1-48495-153-0 01 1 0109-
45 VALVE; QUICK RELEASE 1-48410-320-0 01 1 0109-0109
45 VALVE; QUICK RELEASE 1-48410-659-0 01 1 0110-
47 CONNECTOR; RELAY VLV,CONT
(A) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 0109-
47 CONNECTOR; RELAY VLV,CONT
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0109-
54 CONNECTOR; QUICK RELEASE VLV
(A) M20 & PT3/8 ELBOW 		1-09660-684-0 02 1 0109-
54 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0109-
59 BOLT; RELEASE VALVE FIX
M8X16 FLANGE 		0-28080-816-0 04 1 0109-0512
59 BOLT; RELEASE VALVE FIX
M8X16 FLANGE 		0-28050-816-0 04 1 0601-
62 BOLT; BRKT FIX
M8X25 FLANGE 		0-28080-825-0 02 1 0109-0512
62 BOLT; BRKT FIX
M8X25 FLANGE 		0-28050-825-0 02 1 0601-
63 NUT; BRKT FIX
M8 		9-09110-408-0 02 1 0109-0512
63 NUT; BRKT FIX
M8 		0-91110-508-0 02 1 0601-
66 BOLT; BRKT,RELAY VLV RR
M8X25 FLANGE 		0-28680-825-0 02 1 0109-0512
66 BOLT; BRKT,RELAY VLV RR
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
66 BOLT; BRKT,RELAY VLV RR
M10X25 FLANGE 		0-28681-025-0 02 1 0109-0512
66 BOLT; BRKT,RELAY VLV RR
M10X25 FLANGE 		0-28651-025-0 02 1 0601-
67 NUT; BRKT,RELAY VLV RR
M8 FLANGE 		0-91150-108-0 02 1 0109-0602
67 NUT; BRKT,RELAY VLV RR
M8 FLANGE 		0-91180-108-0 02 1 0603-
67 NUT; BRKT,RELAY VLV RR
M10 FLANGE 		0-91150-210-0 02 1 0109-0602
67 NUT; BRKT,RELAY VLV RR
M10 FLANGE 		0-91180-210-0 02 1 0603-
114 NUT; VLV
M8 		9-09110-408-0 02 1 0109-0512
114 NUT; VLV
M8 		0-91110-508-0 02 1 0601-
157 RETAINER; VALVE
(B) 		1-48419-020-0 03 1 0110-
157 RETAINER; VALVE
(A) 		1-48213-002-0 03 1 0109-
158 SPRING; VALVE
(B) 		9-48419-003-0 03 1 0110-
158 SPRING; VALVE
(A) 		1-47819-089-0 03 1 0109-
216 REPAIR KIT; QUICK RELEASE VLV 1-85576-235-0 03 1 0110-

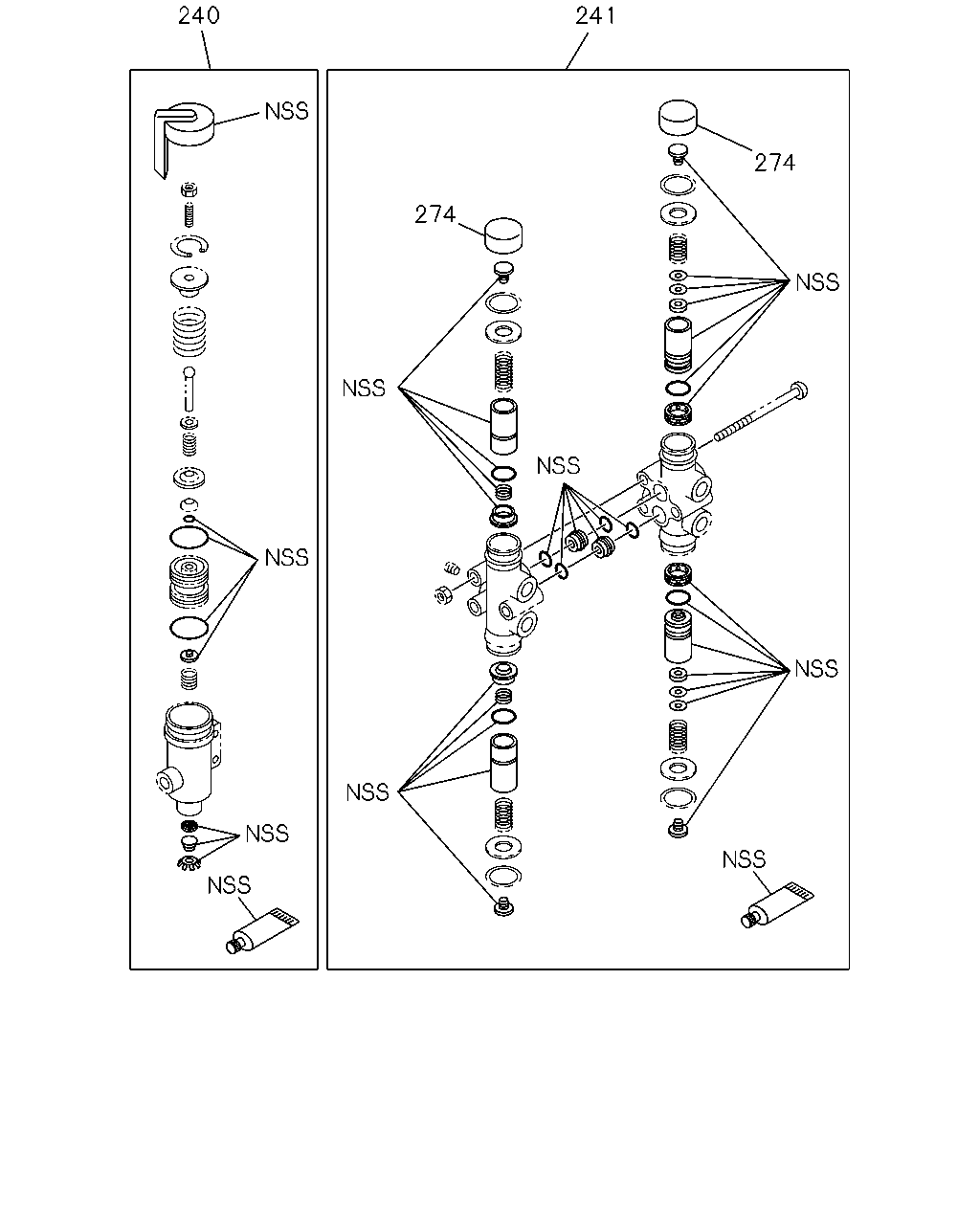

çizim 82403
240 241 274 274
BalonParca AdiParca NoAdetTipApplied Date
240 REPAIR KIT; AIR CONT GOV 1-85576-467-0 01 1 0109-
241 REPAIR KIT; PROTECTION VALVE 1-85576-224-0 01 1 0109-
274 COVER; DUST 1-48119-450-0 02 1 0109-

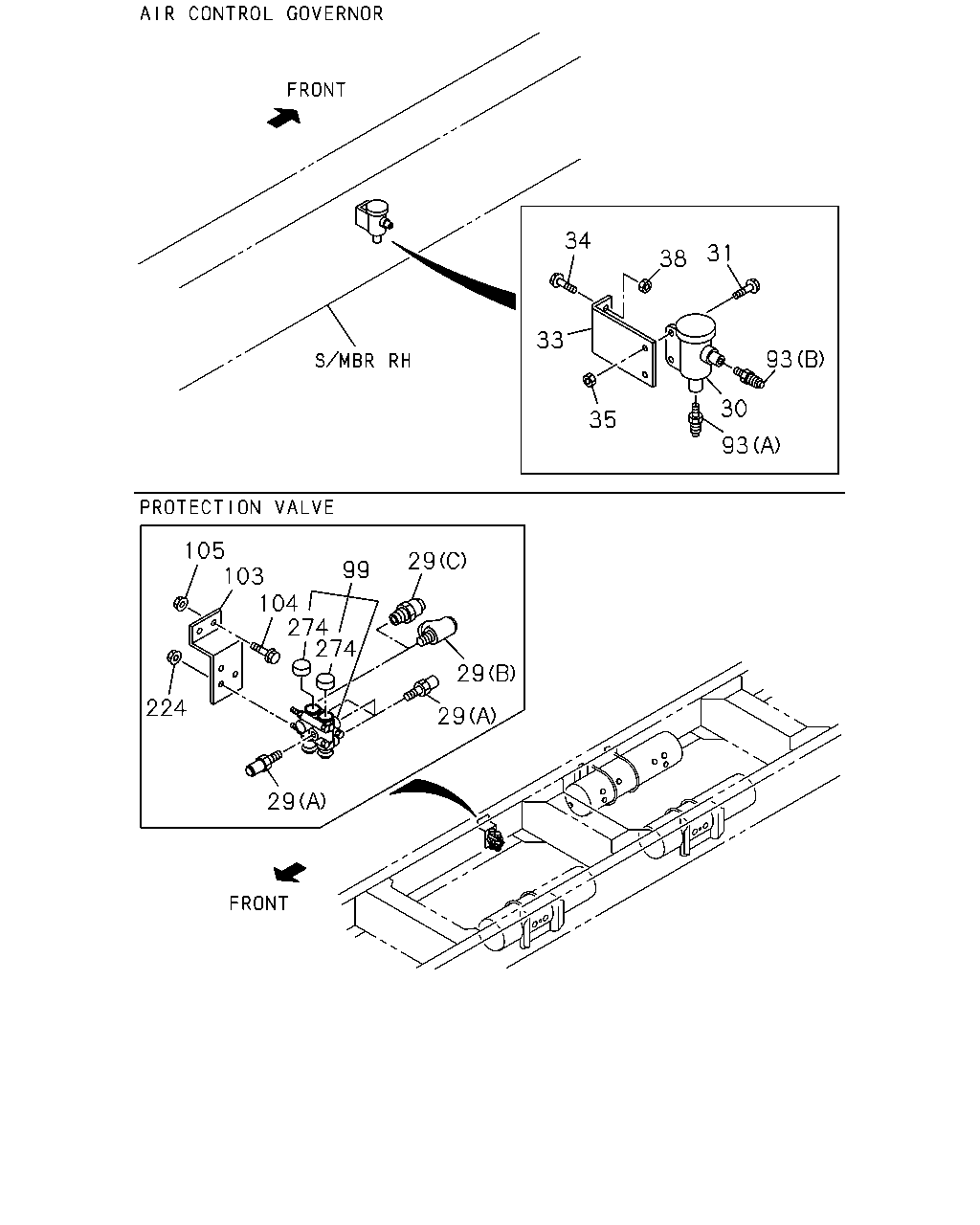

çizim 82405
34 31 38 33 93 30 35 93 105 103 104 274 274 29 99 29 224 29 29
BalonParca AdiParca NoAdetTipApplied Date
29 CONNECTOR; AIR VLV
EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0204-0206
29 CONNECTOR; AIR VLV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 04 1 0109-
29 CONNECTOR; AIR VLV
(B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109-0203
29 CONNECTOR; AIR VLV
AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0204-0206
29 CONNECTOR; AIR VLV
(B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0207-
30 GOVERNOR; AIR CONT 1-48350-063-2 01 1 0109-
31 BOLT; GOV TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 0109-0512
31 BOLT; GOV TO FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
33 BRACKET; GOV,AIR CONT 1-48359-106-1 01 1 0109-
34 BOLT; BRKT,GOV
M8X35 FLANGE 		0-28680-835-0 02 1 0109-0512
34 BOLT; BRKT,GOV
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0109-0602
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603-
38 NUT; BRKT,GOV
M8 FLANGE 		0-91150-108-0 02 1 0109-0602
38 NUT; BRKT,GOV
M8 FLANGE 		0-91180-108-0 02 1 0603-
93 CONNECTOR; GOV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0109-
93 CONNECTOR; GOV
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0109-
99 VALVE; PROTECTION 1-48110-135-5 01 1 0109-
103 BRACKET; PROTECTION VALVE 1-47478-694-0 01 1 0109-
104 BOLT; BRKT,VALVE
M8X35 FLANGE 		0-28680-835-0 02 1 0109-0512
104 BOLT; BRKT,VALVE
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
105 NUT; BRKT,VALVE
M8 FLANGE 		0-91150-108-0 02 1 0109-0602
105 NUT; BRKT,VALVE
M8 FLANGE 		0-91180-108-0 02 1 0603-
224 NUT; PROTECTION VALVE
M8 FLANGE 		0-91150-108-0 03 1 0109-0602
224 NUT; PROTECTION VALVE
M8 FLANGE 		0-91180-108-0 03 1 0603-
274 COVER; DUST 1-48119-450-0 02 1 0109-

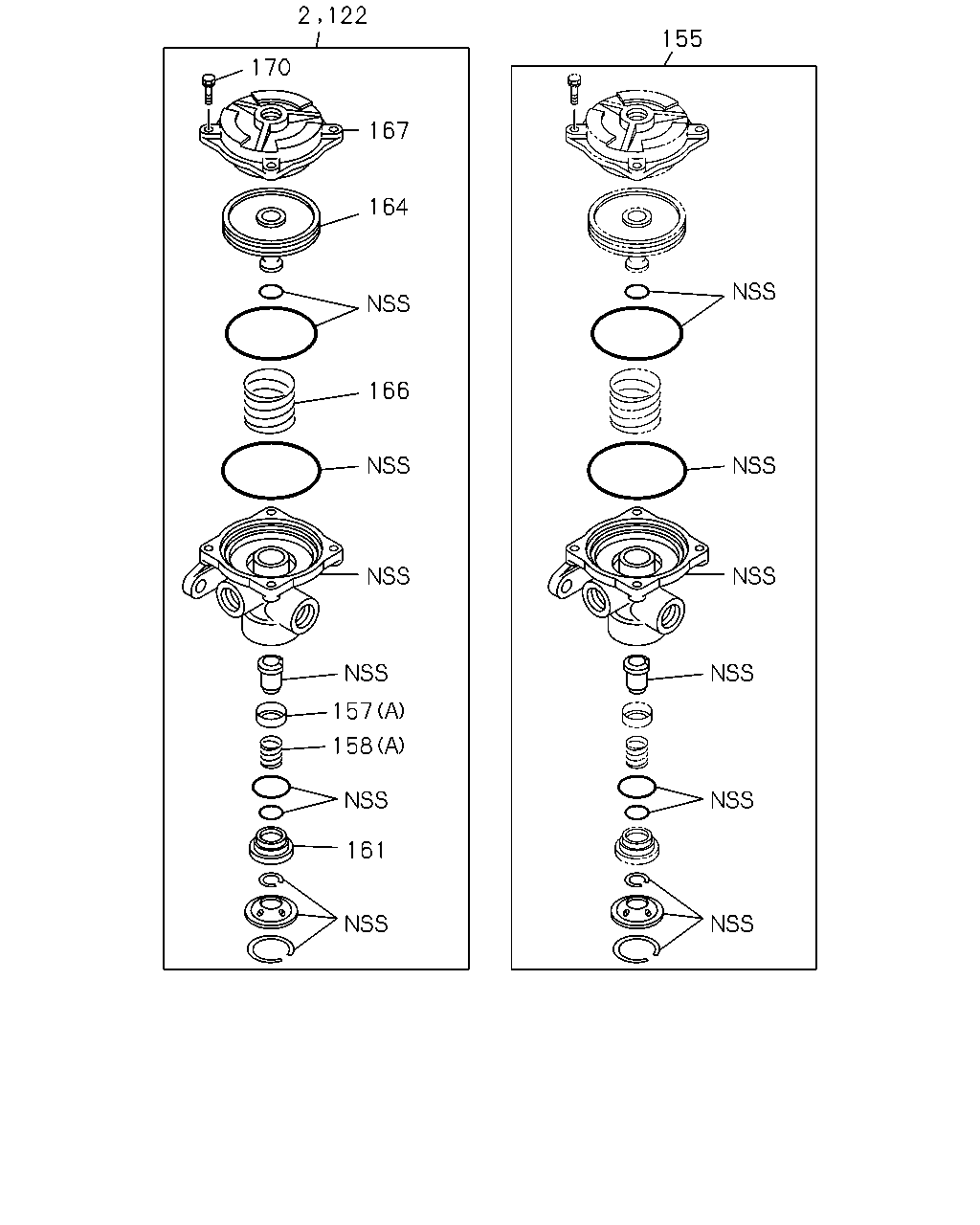

çizim 103403
155 170 167 164 166 157 158 161 2 122
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY 1-48210-755-0 02 1 0109-
122 VALVE ASM; CONT,WHEEL PARKING 1-48210-755-0 01 1 0109-
155 REPAIR KIT; RELAY VALVE 1-85576-033-0 03 1 0109-
157 RETAINER; VALVE
(B) 		1-48419-020-0 03 1 0110-
157 RETAINER; VALVE
(A) 		1-48213-002-0 03 1 0109-
158 SPRING; VALVE
(B) 		9-48419-003-0 03 1 0110-
158 SPRING; VALVE
(A) 		1-47819-089-0 03 1 0109-
161 GUIDE; VALVE 1-48129-014-0 03 1 0109-
164 PISTON; RELAY VALVE 1-48219-071-0 03 1 0109-
166 SPRING; PISTON 1-47819-090-0 03 1 0109-
167 COVER; VALVE 1-48219-070-0 03 1 0109-
170 SCREW; COVER TO BODY 1-48219-039-0 12 1 0109-
