Isuzu WW
▶
BUSES
▶
MV
▶
10853 - MV123(RHD)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶

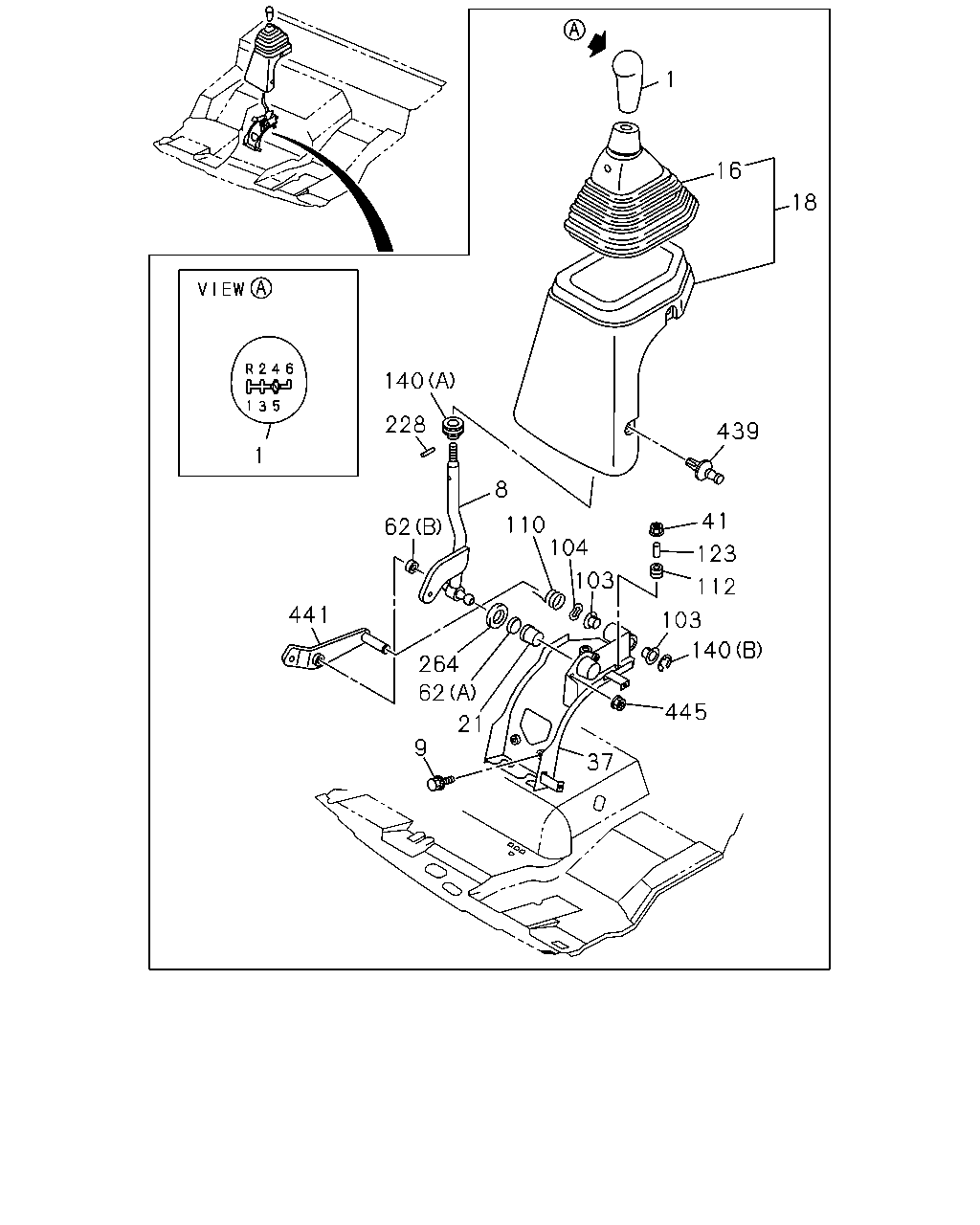

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#9645) — 25 parça
1
16
18
140
228
439
1
8
41
110
104
62
123
103
112
441
103
140
264
62
445
21
37
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
KNOB; CHANGE LEVER
1-33611-068-1
01
1
0109-
8
LEVER; CHANGE
1-33619-553-0
01
1
0109-
9
BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER
8-94412-342-0
02
1
0109-
16
BOOT; CHANGE LEVER
1-79998-751-4
01
1
0109-
18
BOOT; CHANGE LEVER
1-79996-396-3
01
1
0109-
21
SEAT; CHANGE LEVER
1-33619-429-0
01
1
0109-
37
BRACKET; CHANGE LEVER SUPPORT
1-33619-445-2
01
1
0109-
41
NUT; CHANGE LEVER
M8 FLANGE
8-97046-127-0
02
1
0109-0805
41
NUT; CHANGE LEVER
M8 W/DISHED WASHER
8-97329-625-0
02
1
0806-
62
SEAT; BALL,CHANGE LEVER
(A)
1-33619-427-0
01
1
0109-
62
SEAT; BALL,CHANGE LEVER
(B)
8-97011-900-0
01
1
0109-
103
BUSHING; RELAY LEVER
ID=14 OD=16
8-94252-671-0
02
1
0109-
104
WASHER; WAVED
1-09550-009-0
01
1
0109-
110
SPRING; RETURN,CHANGE LEVER
1-33619-435-0
01
1
0109-
112
RUBBER; CUSHION
1-33619-442-0
04
1
0109-
123
COLLAR; DIST,CHANGE LEVER
1-33619-443-0
04
1
0109-
140
RING; SNAP
(A)
1-33619-504-0
01
1
0109-
140
RING; SNAP
(B) ID=10
9-09185-410-0
01
1
0109-0604
140
RING; SNAP
(B) ID=10
0-91805-510-0
01
1
0605-
228
PIN; SPR,CHANGE LEVER
1-33619-505-0
01
1
0109-
264
PLATE; COVER
1-33619-430-0
01
1
0109-
439
FASTENER; COVER
D8X13.5
1-09987-270-0
04
1
0109-
441
LEVER; SELECT
1-33619-437-2
01
1
0109-
445
NUT; PLATE
M6 FLANGE
0-91150-106-0
02
1
0109-0602
445
NUT; PLATE
M6 FLANGE
0-91180-106-0
02
1
0603-
