2-30 — GEAR SHIFTER AND QUADRANT BOX (#9644) — 118 parça

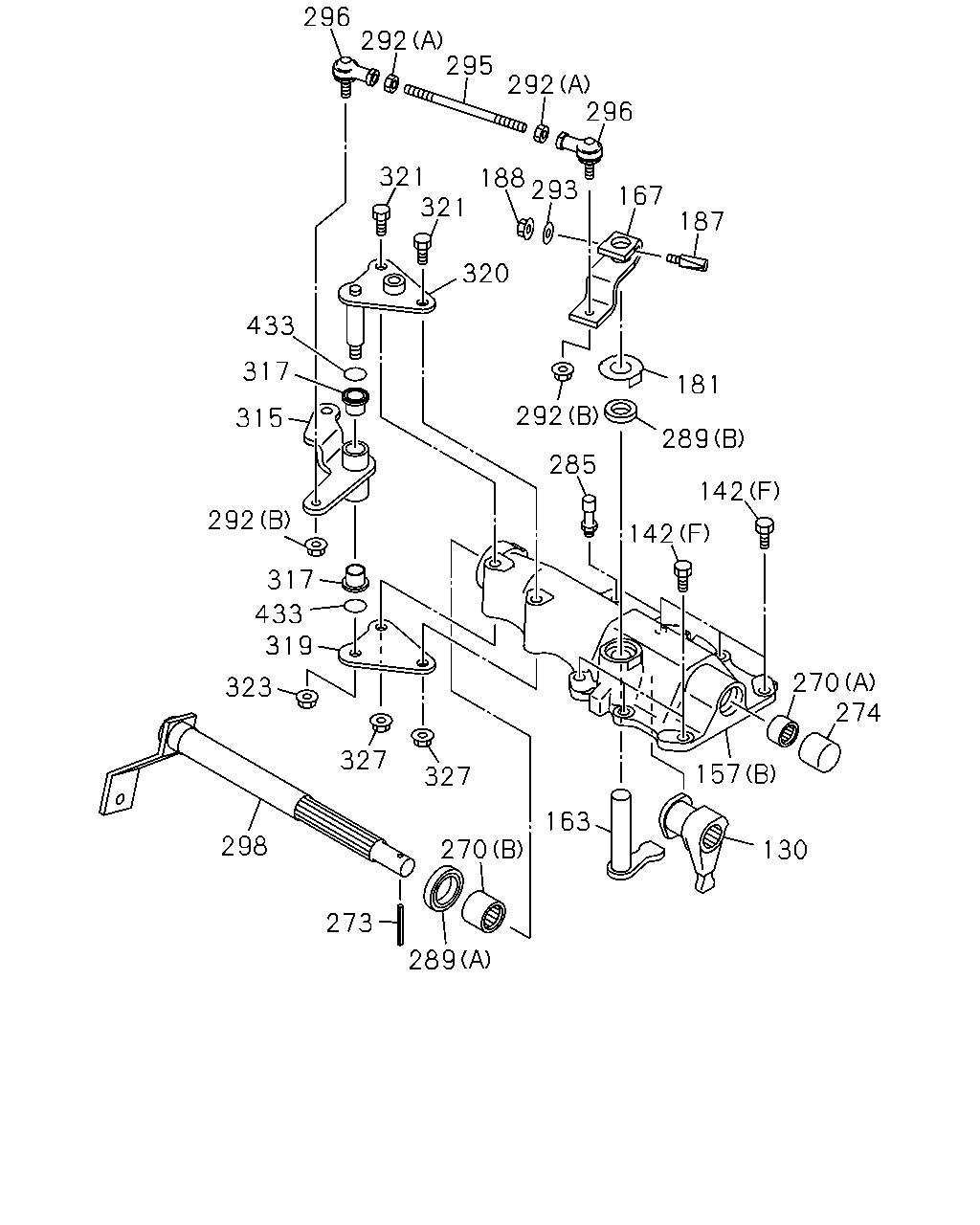

çizim 103361
296 292 295 292 296 321 321 188 293 167 187 320 433 317 181 292 315 289 285 142 292 142 317 433 319 270 274 323 327 157 327 163 298 270 130 273 289
BalonParca AdiParca NoAdetTipApplied Date
130 LEVER; SHIFT,INTERNAL 1-33521-119-0 01 1 0109-
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0109-0805
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		8-98044-944-0 11 1 0806-
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 04 1 0109-0805
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0109-0805
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		8-98010-334-0 03 1 0806-
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0109-0805
142 BOLT; QUAD BOX
(F) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806-
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0109-0805
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		8-98010-335-0 01 1 0806-
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		8-98032-017-0 01 1 0806-
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0109-0805
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 0806-
157 BOX; QUAD,TRANS
(B) 		1-33541-256-2 01 1 0109-
157 BOX; QUAD,TRANS
(A) 		1-33541-345-2 01 1 0109-
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0109-
167 LEVER; SELECT,EXTERNAL 1-33521-064-1 01 1 0109-
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0109-
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0109-
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0109-
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 0109-
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 0109-
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 0109-
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 0109-
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0109-
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0109-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0109-0307
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0109-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0109-
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0109-0512
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601-
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0109-0605
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0606-
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0109-
296 ROD END
L=45.5 		1-09760-118-1 02 1 0307-
296 ROD END
L=48 		1-09760-038-1 02 1 0109-0309
298 SHAFT; SHIFT LEVER 1-33522-145-1 01 1 0109-
315 LEVER; SELECT 1-33651-669-0 01 1 0109-
317 BUSHING; LEVER 1-09330-119-0 02 1 0109-
319 BRACKET; SELECT LEVER 1-33657-628-0 01 1 0109-
320 SHAFT; LEVER 1-33619-537-0 01 1 0109-
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 0109-0512
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10856-080-0 02 1 0601-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0109-
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 0109-0602
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91180-210-0 02 1 0603-
433 GASKET; BUSHING 1-09623-594-0 02 1 0109-

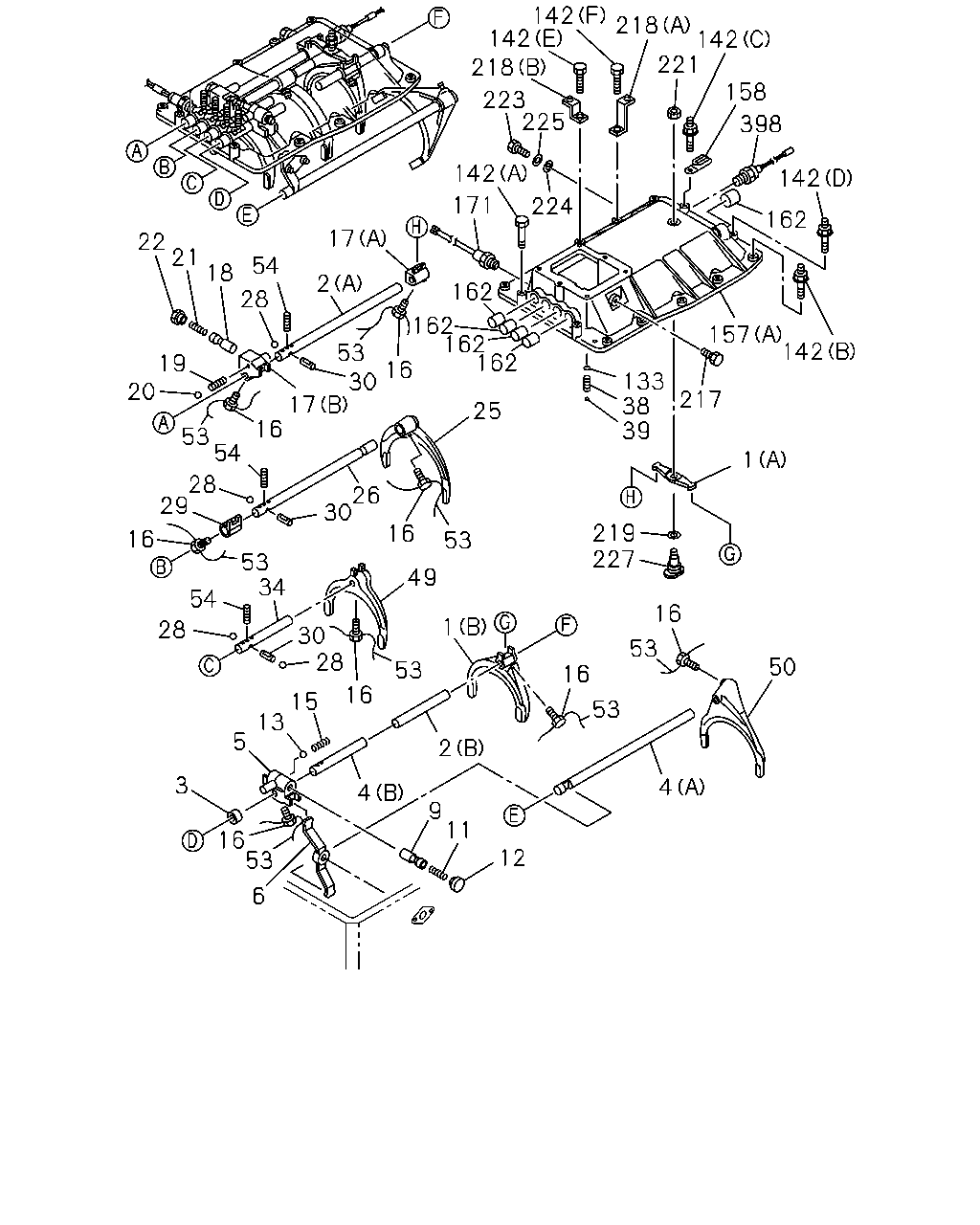

çizim 103367
142 218 142 218 142 221 158 223 225 398 142 142 171 224 162 17 22 21 54 18 28 162 2 162 162 162 157 142 53 30 17 16 19 20 16 133 38 39 217 25 53 54 1 28 29 26 30 219 227 16 16 53 53 34 49 54 16 1 28 30 28 53 50 53 16 16 15 13 53 5 2 3 4 4 9 11 16 53 12 6
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-458-0 01 1 0109-
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-541-0 01 1 0109-
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-400-1 01 1 0109-
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-415-1 01 1 0109-
3 STOPPER; 6TH SHIFT ROD 9-33537-018-0 01 1 0109-
4 ROD; SHIFT,6TH
(B) 		1-33531-405-1 01 1 0109-
4 ROD; SHIFT,6TH
(A) 		1-33531-407-1 01 1 0109-
5 BLOCK; SHIFT,6TH 1-33511-372-2 01 1 0109-
6 LEVER; RELAY 9-33511-402-1 01 1 0109-
9 SLEEVE; 6TH,SHIFT BLOCK 1-33516-022-1 01 1 0109-
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 0109-1510
11 SPRING; RETURN,SHIFT SLEEVE 8-98294-206-0 01 1 1511-
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0109-
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0109-
15 SPRING; LK,SHIFT SLEEVE 9-09941-007-0 01 1 0109-
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 W/HOLE 		1-09052-038-0 08 1 0109-
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-298-4 01 1 0109-
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-540-0 01 1 0109-
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 0109-
19 SPRING; COIL COMP 1-09580-438-0 01 1 0109-
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0109-
21 SPRING; COIL COMP SLEEVE 1-09580-444-0 01 1 0109-
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0109-
25 ARM; SHIFT,2ND & 3RD 1-33511-440-0 01 1 0109-
26 ROD; SHIFT,2ND & 3RD 1-33531-401-1 01 1 0109-
28 BALL; INTER LK 9-00097-501-0 04 1 0109-
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 0109-
30 PIN; INTER LK 9-33534-003-0 03 1 0109-
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-402-1 01 1 0109-
38 SPRING; DETENT 1-09580-379-0 04 1 0109-
39 BALL; DETENT 1-09843-012-0 04 1 0109-
49 ARM; SHIFT,4TH & 5TH 1-33511-461-0 01 1 0109-
50 ARM; SHIFT,6TH 1-33511-185-3 01 1 0109-
53 WIRE; BOLT
L=180 		1-09780-024-0 06 1 0109-
53 WIRE; BOLT
L=200 		9-08351-020-0 02 1 0109-
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0109-
133 SEAT; SPR 1-33549-072-0 04 1 0109-
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0109-0805
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		8-98044-944-0 11 1 0806-
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 04 1 0109-0805
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0109-0805
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		8-98010-334-0 03 1 0806-
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0109-0805
142 BOLT; QUAD BOX
(F) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806-
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0109-0805
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		8-98010-335-0 01 1 0806-
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		8-98032-017-0 01 1 0806-
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0109-0805
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 0806-
157 BOX; QUAD,TRANS
(B) 		1-33541-256-2 01 1 0109-
157 BOX; QUAD,TRANS
(A) 		1-33541-345-2 01 1 0109-
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0109-
162 COVER; SHIFT ROD,QUAD BOX
OD=24 L=31 		9-33545-011-1 05 1 0109-
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0109-0702
171 SWITCH; NEUTRAL 8-98072-777-0 01 1 0703-0801
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0802-1109
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110-
217 SCREW; SET,6TH SHIFT BLOCK
M8X12.5 		9-09814-533-0 01 1 0109-
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0109-
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0109-
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0109-
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 0109-0602
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0603-
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0109-
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 0109-0605
224 WASHER; PL,QUAD BOX
ID=15 		0-91610-514-0 01 1 0606-
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 0109-0603
225 WASHER; LK,QUAD BOX
ID=14.2 		0-91510-514-0 01 1 0604-
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0109-
398 SWITCH; REV LAMP 1-82440-082-0 01 1 0109-
