◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MV ▶ 10853 - MV123(RHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#9638) — 56 parça

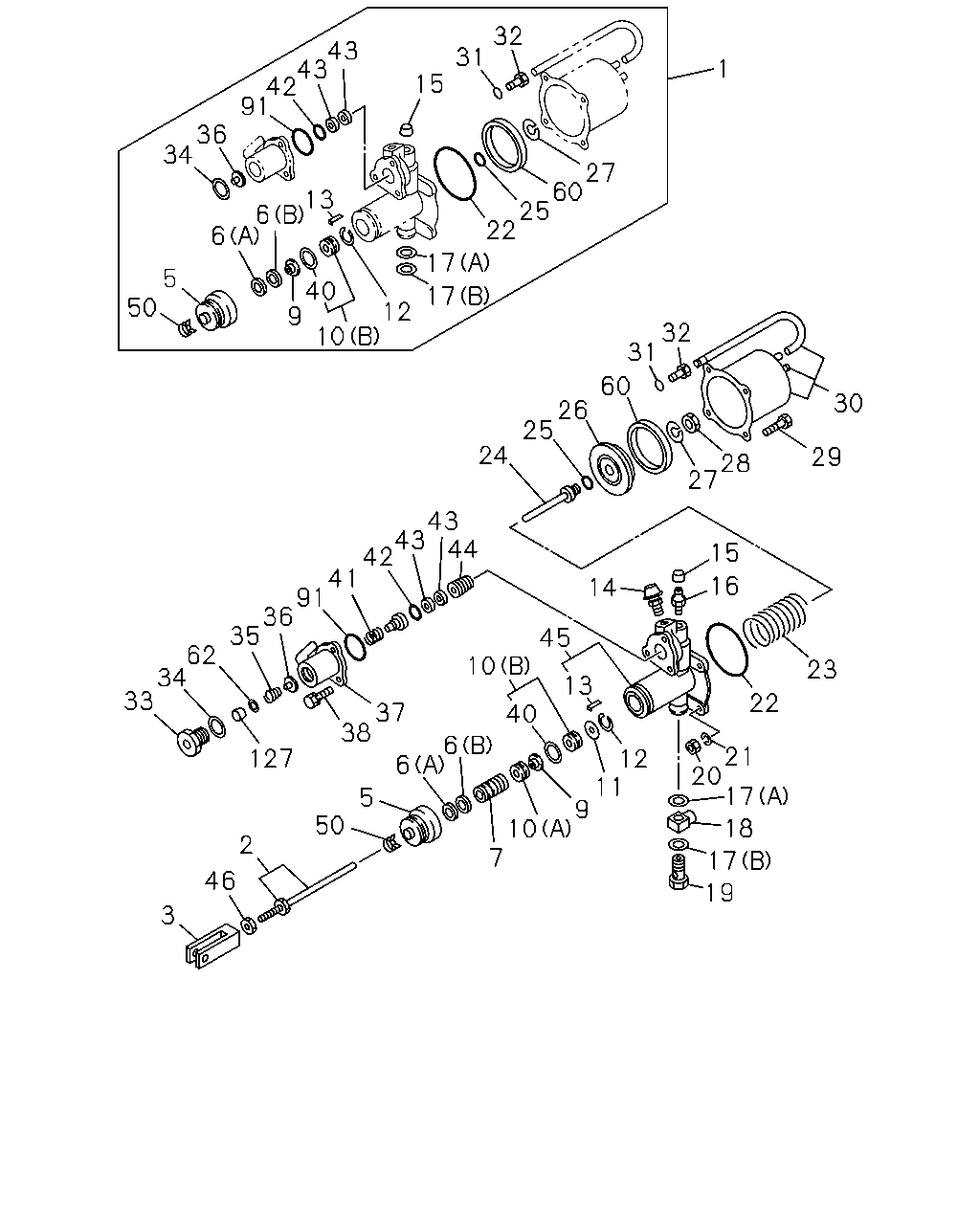

çizim 103314
32 43 43 42 91 31 1 15 36 34 27 60 25 22 13 6 6 17 5 50 40 9 17 12 10 32 31 60 30 26 25 24 29 28 27 43 43 44 42 41 91 36 35 15 16 14 45 10 62 34 33 23 13 22 37 38 40 6 21 20 17 127 12 11 9 6 5 50 18 10 7 2 17 46 19 3
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-543-0 01 1 0109-
2 ROD; PUSH,CLU BOOSTER 1-31824-208-0 01 1 0109-0501
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 0502-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-538-0 01 1 0109-0307
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 0308-
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0109-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0109-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0109-
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0109-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 0109-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 0109-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 0109-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0109-
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0109-
13 PIN; SPR 1-31829-109-0 01 1 0109-
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0109-0307
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0308-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0109-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0109-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0109-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0109-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0109-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0109-
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0109-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0109-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 0109-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0109-
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 0109-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0109-
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 0109-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0109-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0109-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0109-
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 0109-
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0109-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0109-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0109-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0109-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0109-
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0109-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0109-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0109-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0109-1412
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 0109-
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 0109-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0109-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-049-0 01 1 0109-0307
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 0308-
45 PLATE; END,CLU BOOSTER 1-31811-060-0 01 1 0109-
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 0109-0501
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0502-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0109-
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 0109-
62 RETAINER; POPPET 1-31829-489-0 01 1 0109-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0109-
127 FILTER; POPPET 1-31829-495-0 01 1 0109-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
