2-05 — CLUTCH PIPING (#9637) — 71 parça

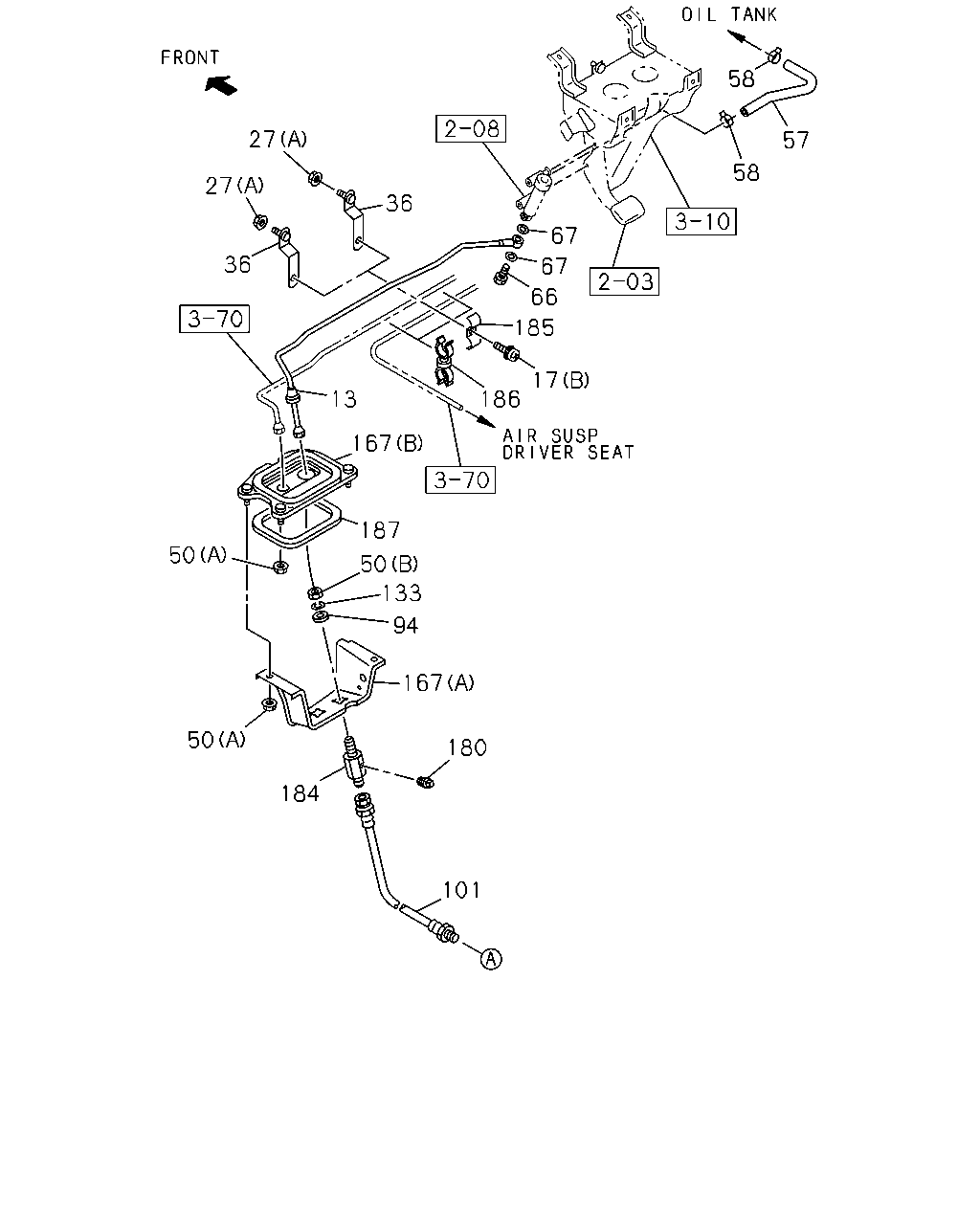

58 27 57 58 27 36 67 36 67 66 185 17 13 186 167 187 50 50 133 94 167 50 180 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47424-110-4	01	1	0109-
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0109-0512
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0109-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0109-0602
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0109-
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	02	1	0109-
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0109-
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0109-0512
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0109-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0109-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0109-0805
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0109-1312
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0109-0605
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0109-0703
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0109-0603
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-
167	BRACKET; UNION (A)	1-79738-193-6	01	1	0109-
167	BRACKET; UNION (B)	1-79738-845-1	01	1	0109-
180	PLUG; PIPE	9-09204-510-0	01	1	0109-
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0109-
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	02	1	0109-
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	02	1	0109-
187	SEAL; BRKT	1-79738-190-0	01	1	0109-

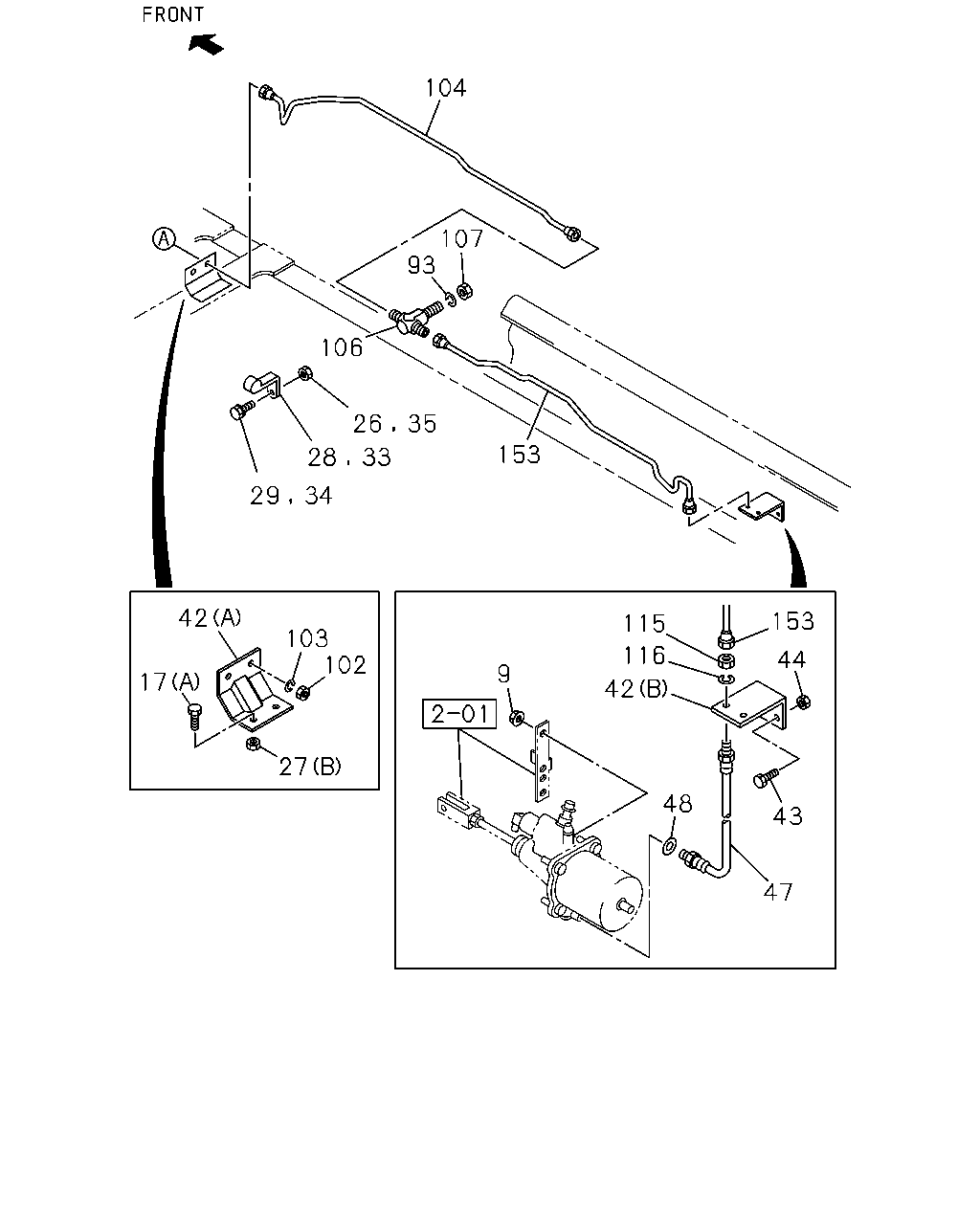

104 107 93 106 26 35 153 28 33 34 29 42 153 115 103 102 116 44 9 17 42 27 48 43 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0109-0602
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0603-
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0109-0512
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0109-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0109-0602
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0109-0602
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0109-
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0109-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0109-0512
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0109-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0109-0512
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0109-0602
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0109-
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0109-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0109-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	0601-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0109-0602
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-
47	HOSE; FLEX,CLU CONT L=430	1-09364-725-0	01	1	0109-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0109-
93	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	0109-0603
93	WASHER; LK,UNION,OIL PIPE ID=12.2	0-91510-512-0	01	1	0604-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0109-0512
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0109-0603
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1604 SERVICED BY L=1700	1-47426-478-0	01	1	0109-
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	0109-
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	0109-0512
107	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0601-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0109-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0109-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
153	PIPE ASM; CLU,UNION TO FLEX L=1324 SERVICED BY L=1400	1-47426-476-0	01	1	0109-
