Isuzu WW
▶
BUSES
▶
MV
▶
10853 - MV123(RHD)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶

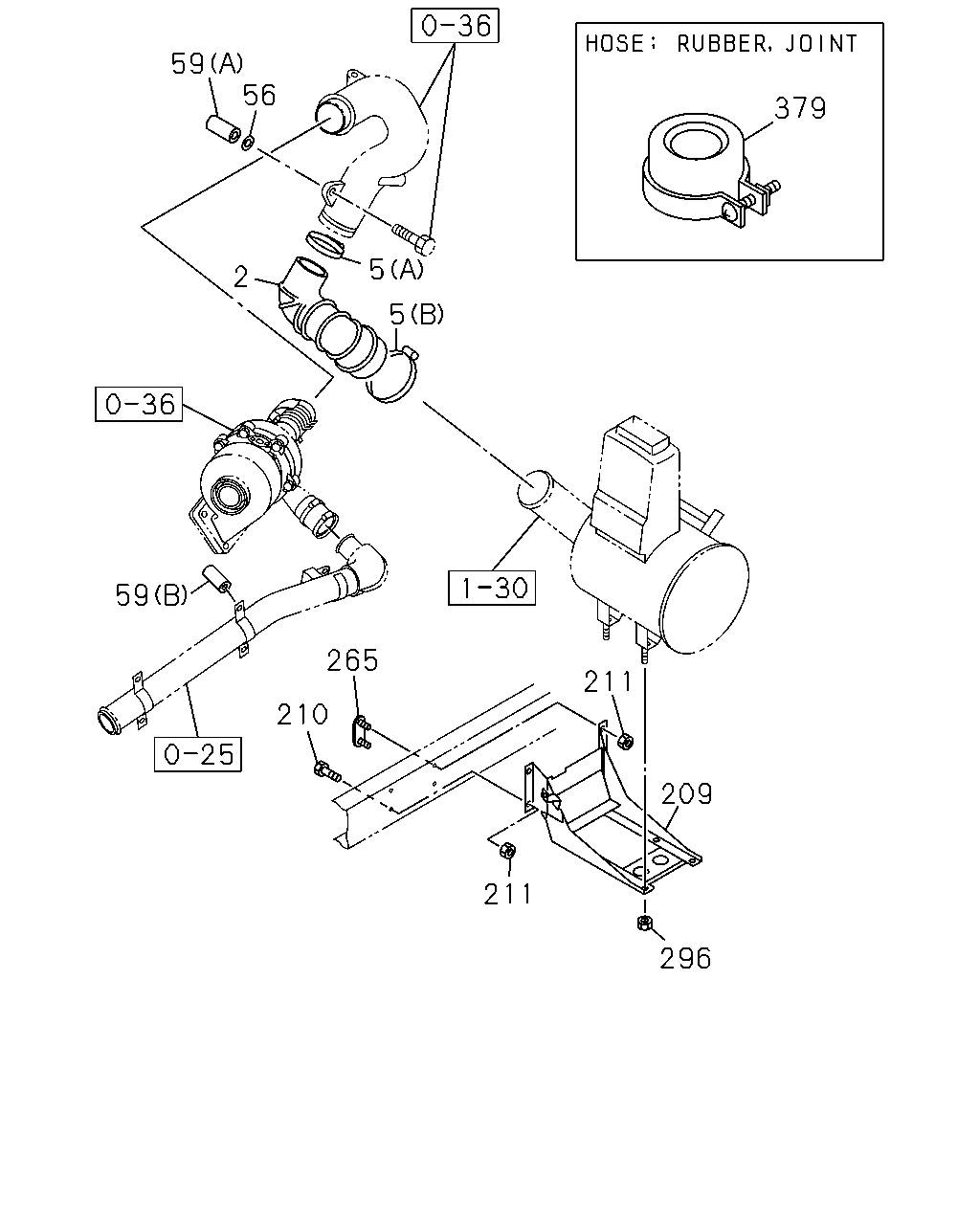

1-31 — AIR DUCT
(#9627) — 20 parça
59
56
379
5
2
5
59
265
211
210
209
211
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; ACL
1-14231-914-1
01
1
0109-0709
2
HOSE; ACL
8-98096-414-0
01
1
0710-
5
CLIP; AIR DUCT
(A) ID=77-95
1-09707-114-0
01
1
0109-0306
5
CLIP; AIR DUCT
(A) ID=77-95
1-09707-198-0
01
1
0307-0810
5
CLIP; AIR DUCT
(A) ID=75-95
8-98133-357-0
01
1
0811-
5
CLIP; AIR DUCT
(B) ID=130-169
1-09707-157-0
01
1
0109-0306
5
CLIP; AIR DUCT
(B) ID=130-165
1-09707-201-0
01
1
0307-0810
5
CLIP; AIR DUCT
(B) ID=130-150
8-98133-360-0
01
1
0811-
56
WASHER; LK,AIR INT DUCT
T=5.5
1-14149-042-0
02
1
0109-
59
TUBE; DIST,AIR INT DUCT
(B) L=43
1-14149-048-1
02
1
0109-
59
TUBE; DIST,AIR INT DUCT
(A) L=55
1-14149-166-0
02
1
0109-
209
BRACKET; ACL
1-53497-587-0
01
1
0109-
210
BOLT; ACL BRKT
M12X40 FLANGE
0-28681-240-0
02
1
0109-0512
210
BOLT; ACL BRKT
M12X40 FLANGE
0-28651-240-0
02
1
0601-
211
NUT; BRKT
M12 FLANGE
0-91150-212-0
04
1
0109-0602
211
NUT; BRKT
M12 FLANGE
0-91180-212-0
04
1
0603-
265
BRACKET; STUD,ACL
1-53497-454-1
01
1
0109-
296
NUT; ACL
M8 FLANGE
0-91150-108-0
04
1
0109-0602
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
0603-
379
HOSE; RUBBER
1-14231-194-0
01
1
0109-
