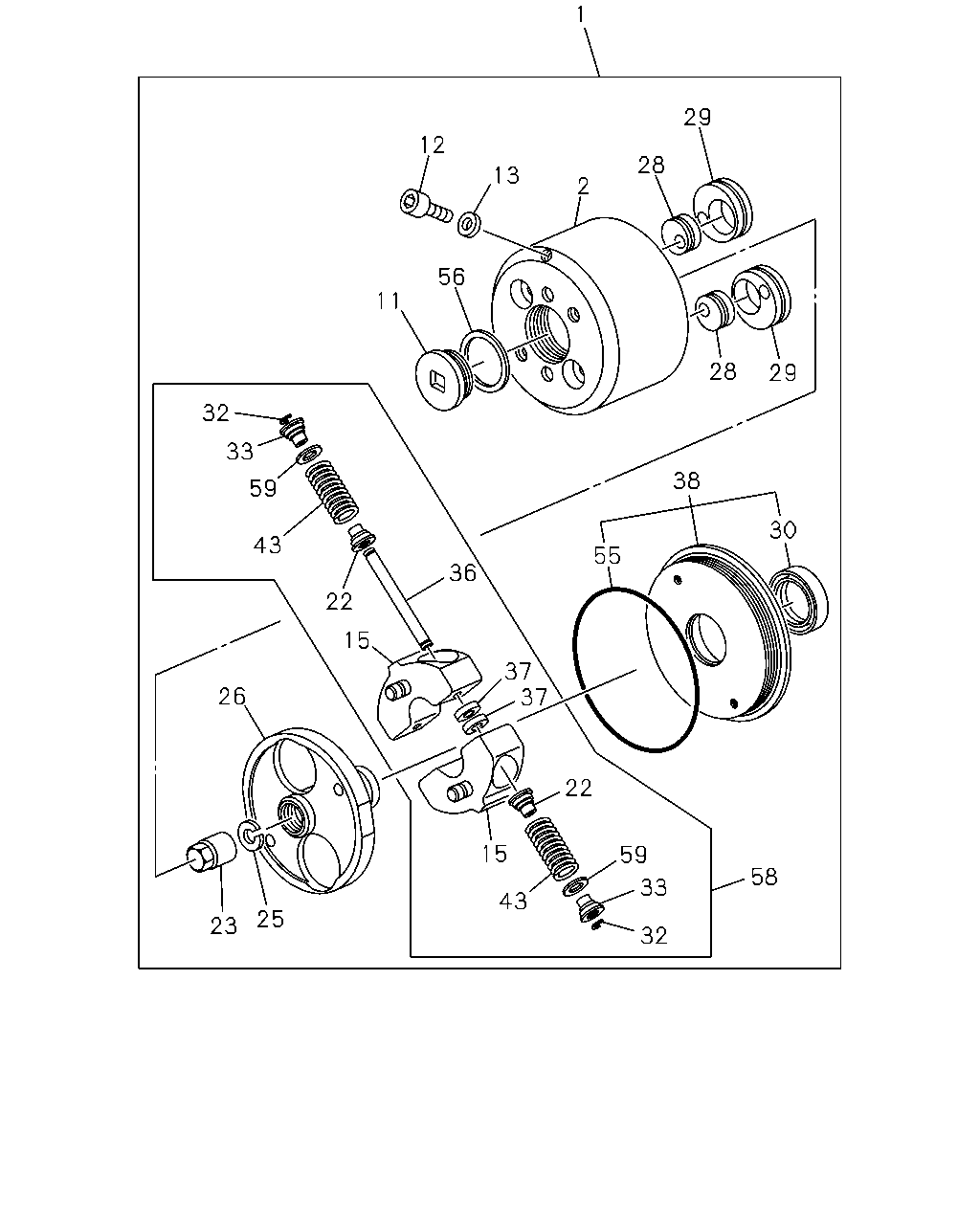

0-85 — AUTO TIMER; INJECTION PUMP (#9621) — 28 parça

1 29 12 28 13 2 56 11 28 29 32 33 38 59 30 43 55 36 22 15 37 37 26 22 15 59 58 33 43 25 23 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15603-216-4	1-15740-520-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15603-216-4	1-15741-074-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-216-4	1-15749-735-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-216-4	1-15749-031-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: A = 1-15603-216-4	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15603-216-4	1-15743-147-0	02	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15603-216-4	1-15749-870-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-216-4	1-15749-117-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-216-4	1-15749-116-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15603-216-4	1-15742-100-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15603-216-4	1-15749-152-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15603-216-4	1-15749-151-0	02	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 1-15603-216-4	1-15749-789-0	01	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 1-15603-216-4	1-15749-159-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15603-216-4	1-15749-871-0	04	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: A = 1-15603-216-4	1-15749-869-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: A = 1-15603-216-4	1-15749-402-0	04	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15603-216-4	1-15749-798-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=66.0 ASM PART: A = 1-15603-216-4	1-15749-924-0	04	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-216-4	1-15749-111-0	01	1	-
56	GASKET; CAP ASM PART: A = 1-15603-216-4	1-15749-736-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: A = 1-15603-216-4	1-15743-145-0	01	1	-
59	SHIM; SPR,TIMER T=0.10 ASM PART: A = 1-15603-216-4	1-15749-390-0	AR	1	-
59	SHIM; SPR,TIMER T=0.30 ASM PART: A = 1-15603-216-4	1-15749-391-0	AR	1	-
59	SHIM; SPR,TIMER T=0.50 ASM PART: A = 1-15603-216-4	1-15749-392-0	AR	1	-
59	SHIM; SPR,TIMER T=1.00 ASM PART: A = 1-15603-216-4	1-15749-393-0	AR	1	-
59	SHIM; SPR,TIMER T=0.40 ASM PART: A = 1-15603-216-4	1-15749-493-0	AR	1	-
59	SHIM; SPR,TIMER T=0.70 ASM PART: A = 1-15603-216-4	1-15749-494-0	AR	1	-
