0-84 — FEED PUMP; INJECTION PUMP (#9620) — 21 parça

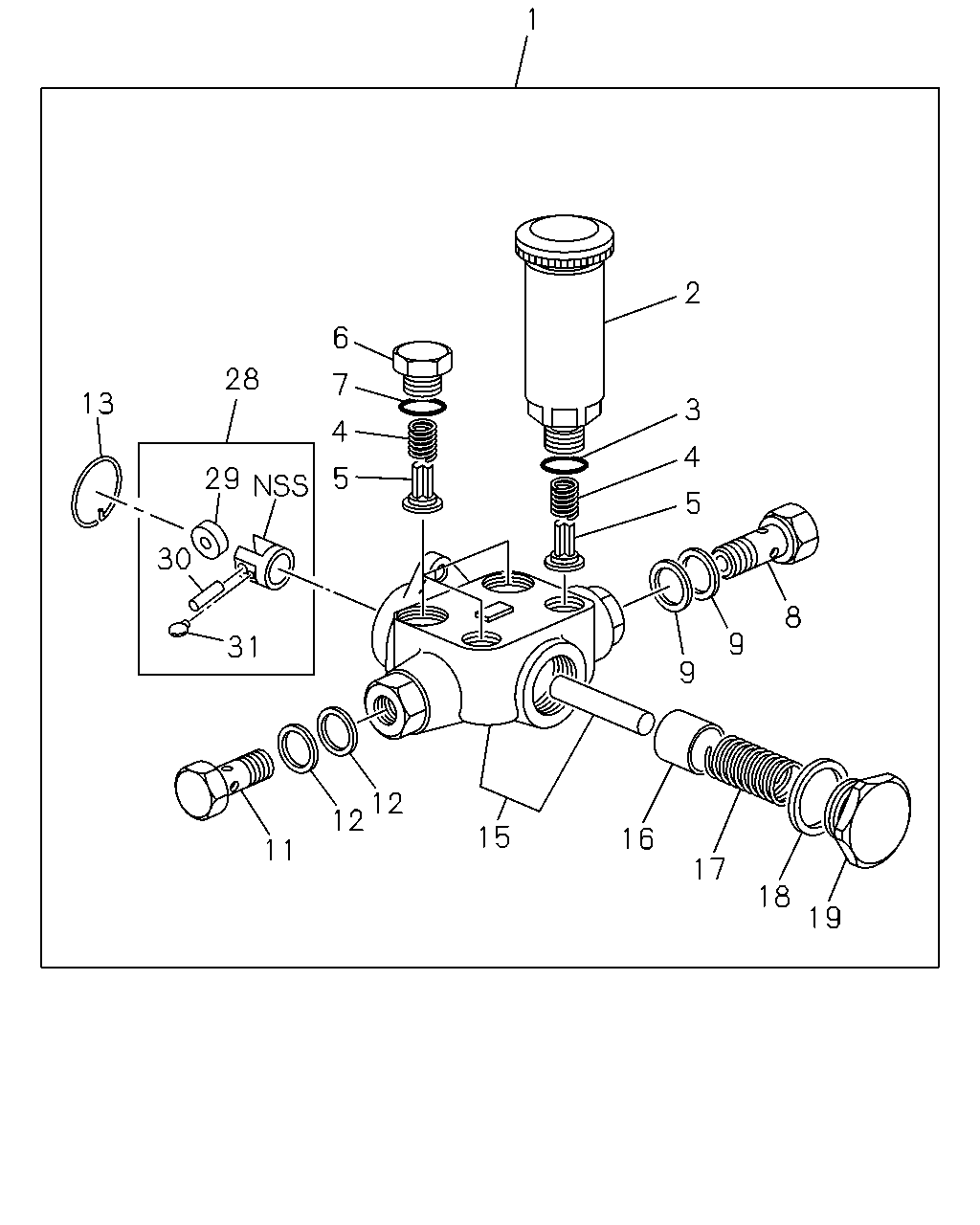

çizim 81267
1 2 6 28 7 13 3 4 4 5 29 5 30 8 9 31 9 12 12 15 16 11 17 18 19
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 1-15603-216-4 		1-15750-158-0 01 1 -
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 1-15603-216-4 		1-15761-006-0 01 1 -
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 1-15603-216-4 		1-19623-016-0 01 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 1-15603-216-4 		9-81351-702-0 04 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: A = 1-15603-216-4 		1-15755-002-0 04 1 -
6 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: A = 1-15603-216-4 		1-15759-009-0 03 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 1-15603-216-4 		9-81355-031-0 03 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
M14X30 ASM PART: A = 1-15603-216-4 		8-97203-957-0 01 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: A = 1-15603-216-4 		1-09630-085-0 02 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: A = 1-15603-216-4 		1-15751-022-0 01 1 -
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: A = 1-15603-216-4 		1-09630-085-0 02 1 -
13 RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15603-216-4 		9-81355-062-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: A = 1-15603-216-4 		1-15751-010-0 01 1 -
16 PISTON; FUEL FEED PUMP
ASM PART: A = 1-15603-216-4 		9-81351-205-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 1-15603-216-4 		9-81351-503-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 1-15603-216-4 		9-81355-035-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 1-15603-216-4 		8-94171-185-0 01 1 -
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: A = 1-15603-216-4 		1-15754-005-0 01 1 -
29 ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15603-216-4 		9-81355-059-0 01 1 -
30 PIN; TAPPET ROLLER,FUEL FEED PUMP
ASM PART: A = 1-15603-216-4 		9-81355-060-0 01 1 -
31 GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15603-216-4 		1-15759-078-0 02 1 -
