◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51422 - QKR LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-82 - BOOST COMPENSATOR; INJECTION GOVERNOR ▶
0-82 — BOOST COMPENSATOR; INJECTION GOVERNOR (#96188) — 103 parça

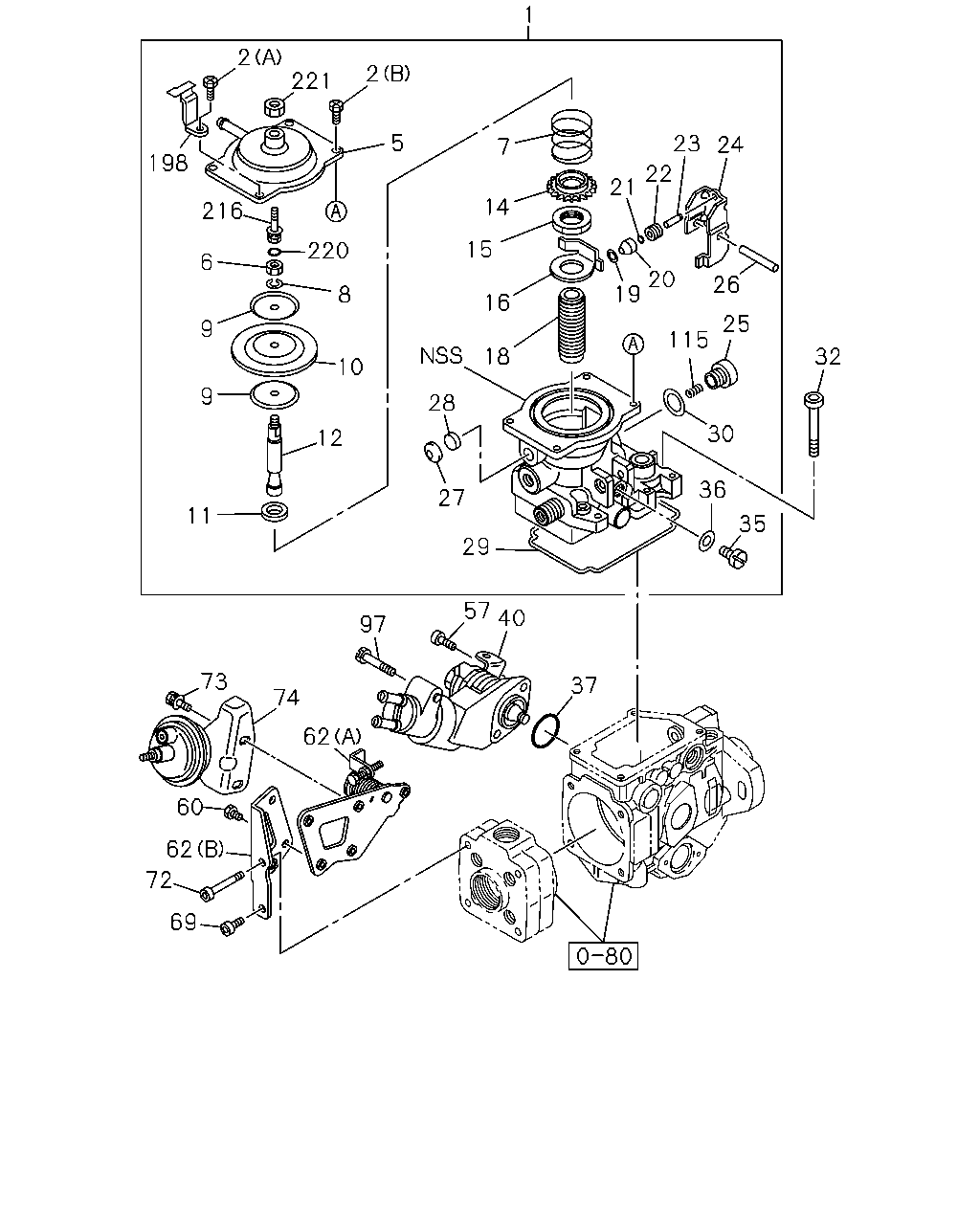

çizim 289567
37 40 57 97 62 74 73 60 62 72 69 29 27 28 18 35 36 30 32 115 25 26 20 19 24 23 22 21 7 14 15 16 1 11 12 10 9 9 6 216 198 2 221 2 5 220 8
BalonParca AdiParca NoAdetTipApplied Date
1 03.485 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: A = 8-97263-086-3, 97263086 		8-97302-242-0 01 1 -
2 03.306 BOLT; COVER FIX,BOOST COMPENSATO
03.308, (B) ASM PART: A = 8-97263-086-3, 97263086 		8-94313-264-0 02 1 -
2 03.306 BOLT; COVER FIX,BOOST COMPENSATO
03.308, (A) ASM PART: A = 8-97263-086-3, 97263086 		8-94313-267-0 02 1 -
5 03.306 COVER; HSG,BOOST COMPENSATOR,GOV
ASM PART: A = 8-97263-086-3, 97263086 		8-97214-503-0 01 1 -
6 03.320 NUT; DIAPH,BOOST COMPENSATOR
08.845 ASM PART: A = 8-97263-086-3, 97263086 		9-88410-525-0 01 1 -
7 03.320 SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97263-086-3, 97263086 		8-97185-286-0 01 1 -
8 03.318 WASHER; LK,DIAPH,BOOST COMPENSAT
03.314 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-725-0 01 1 -
9 03.318 PLATE; DIAPH,BOOST COMPENSATOR
03.314 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-723-0 02 1 -
10 03.320 DIAPHRAGM; BOOST COMPENSATOR,GOV
03.314 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-724-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.70 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-729-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.90 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-730-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.10 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-731-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.30 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-732-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.50 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-733-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.70 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-734-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.90 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-735-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.10 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-736-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.30 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-737-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.70 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-738-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.90 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-739-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.10 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-740-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.30 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-741-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.50 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-742-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.80 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-743-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.00 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-744-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.20 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-745-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.40 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-746-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.60 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-747-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.80 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-748-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.00 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-749-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.20 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-750-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.40 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-751-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.60 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-752-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.80 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-753-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.00 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-754-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.20 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-755-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.40 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-756-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.50 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-757-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.60 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-758-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=1.80 ASM PART: A = 8-97263-086-3, 97263086 		8-94169-510-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=1.90 ASM PART: A = 8-97263-086-3, 97263086 		8-94169-511-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.00 ASM PART: A = 8-97263-086-3, 97263086 		8-94169-512-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.10 ASM PART: A = 8-97263-086-3, 97263086 		8-94169-513-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.20 ASM PART: A = 8-97263-086-3, 97263086 		8-94169-514-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.30 ASM PART: A = 8-97263-086-3, 97263086 		8-94169-515-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.40 ASM PART: A = 8-97263-086-3, 97263086 		8-94169-516-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.50 ASM PART: A = 8-97263-086-3, 97263086 		8-94169-517-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.60 ASM PART: A = 8-97263-086-3, 97263086 		8-94169-518-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.70 ASM PART: A = 8-97263-086-3, 97263086 		8-97046-102-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.80 ASM PART: A = 8-97263-086-3, 97263086 		8-97046-103-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.90 ASM PART: A = 8-97263-086-3, 97263086 		8-97046-104-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.00 ASM PART: A = 8-97263-086-3, 97263086 		8-97046-105-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.10 ASM PART: A = 8-97263-086-3, 97263086 		8-97046-106-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.20 ASM PART: A = 8-97263-086-3, 97263086 		8-97046-107-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.30 ASM PART: A = 8-97263-086-3, 97263086 		8-97046-108-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.40 ASM PART: A = 8-97263-086-3, 97263086 		8-97046-109-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.50 ASM PART: A = 8-97263-086-3, 97263086 		8-97046-110-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.60 ASM PART: A = 8-97263-086-3, 97263086 		8-97046-111-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.70 ASM PART: A = 8-97263-086-3, 97263086 		8-97046-112-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.80 ASM PART: A = 8-97263-086-3, 97263086 		8-97046-113-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.90 ASM PART: A = 8-97263-086-3, 97263086 		8-97046-114-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.00 ASM PART: A = 8-97263-086-3, 97263086 		8-97046-115-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.10 ASM PART: A = 8-97263-086-3, 97263086 		8-97169-970-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.20 ASM PART: A = 8-97263-086-3, 97263086 		8-97169-971-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.30 ASM PART: A = 8-97263-086-3, 97263086 		8-97169-972-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.40 ASM PART: A = 8-97263-086-3, 97263086 		8-97169-973-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.50 ASM PART: A = 8-97263-086-3, 97263086 		8-97169-974-0 01 1 -
12 03.318 PIN; ADJ,DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97263-086-3, 97263086 		8-97120-314-0 01 1 -
14 03.318 NUT; DIAPH ADJ,BOOST COMPENSATOR
ASM PART: A = 8-97263-086-3, 97263086 		8-94122-726-0 01 1 -
15 03.320 NUT; BUSHING LK,BOOST COMPENSATO
03.318 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-720-0 01 1 -
16 03.330 PLATE; BUSHING,ADJ
03.314 ASM PART: A = 8-97263-086-3, 97263086 		8-94122-719-0 01 1 -
18 03.320 BUSHING; ADJ PIN,BOOST COMPENSAT
03.314 ASM PART: A = 8-97263-086-3, 97263086 		8-94151-391-0 01 1 -
19 03.320 GASKET; BUSHING,BOOST COMPENSATO
03.318 ASM PART: A = 8-97263-086-3, 97263086 		8-94257-686-0 01 1 -
20 03.320 BUSHING; CONT PIN,BOOST COMPENSA
ASM PART: A = 8-97263-086-3, 97263086 		8-97218-966-0 01 1 -
21 03.320 GASKET; CONT PIN,BOOST COMPENSAT
03.318 ASM PART: A = 8-97263-086-3, 97263086 		8-94257-684-0 01 1 -
22 03.320 NUT; BUSHING,CONT PIN,BOOST COMP
03.318 ASM PART: A = 8-97263-086-3, 97263086 		8-94257-683-0 01 1 -
23 03.320 PIN; CONT,BOOST COMPENSATOR
03.318 ASM PART: A = 8-97263-086-3, 97263086 		8-94151-392-0 01 1 -
24 03.320 LEVER; BOOST COMPENSATOR,GOV
ASM PART: A = 8-97263-086-3, 97263086 		8-97218-967-0 01 1 -
25 03.306 PLUG; HSG,BOOST COMPENSATOR
ASM PART: A = 8-97263-086-3, 97263086 		8-97214-502-0 01 1 -
26 03.320 PIN; CONT LEVER,BOOST COMPENSATO
03.318 ASM PART: A = 8-97263-086-3, 97263086 		8-94257-693-0 01 1 -
27 03.320 PLUG; ELEMENT
03.318 ASM PART: A = 8-97263-086-3, 97263086 		8-94151-395-0 01 1 -
28 03.320 ELEMENT; BOOST COMPENSATOR
03.314 ASM PART: A = 8-97263-086-3, 97263086 		8-94159-096-0 01 1 -
29 03.306 GASKET; HSG,BOOST COMPENSATOR
03.308 ASM PART: A = 8-97263-086-3, 97263086 		8-97136-413-0 01 1 -
30 03.306 GASKET; HSG PLUG,BOOST COMPENSAT
ASM PART: A = 8-97263-086-3, 97263086 		8-94144-588-0 01 1 -
32 03.485 BOLT; BOOST COMPENSATOR FIX,INJ
03.330 ASM PART: A = 8-97263-086-3, 97263086 		8-94242-298-0 04 1 -
35 03.320 PLUG; CONT LEVER PIN,BOOST COMPE
03.318 ASM PART: A = 8-97263-086-3, 97263086 		8-94257-694-0 02 1 -
36 03.320 GASKET; LEVER PIN,BOOST COMPENSA
09.170 ASM PART: A = 8-97263-086-3, 97263086 		5-15729-099-0 02 1 -
37 03.306 GASKET; STARTING ADVANCER,INJ PU
ASM PART: A = 8-97263-086-3, 97263086 		8-94227-491-0 01 1 -
40 03.308 ADVANCER ASM; STARTING,GOV
ASM PART: A = 8-97263-086-3, 97263086 		8-97313-362-0 01 1 -
57 03.308 BOLT; START ADVANCE
ASM PART: A = 8-97263-086-3, 97263086 		1-15619-276-0 01 1 -
60 03.330 BOLT; BRKT
03.306 ASM PART: A = 8-97263-086-3, 97263086 		8-94313-203-0 02 1 -
62 03.314 BRACKET; ACTUATOR
(A) ASM PART: A = 8-97263-086-3, 97263086 		8-97086-128-1 01 1 -
62 03.314 BRACKET; ACTUATOR
(B) ASM PART: A = 8-97263-086-3, 97263086 		8-97086-129-0 01 1 -
69 03.330 SCREW; BRKT,INJ PUMP
ASM PART: A = 8-97263-086-3, 97263086 		8-94325-497-0 01 1 -
72 03.330 BOLT; BRKT FIX,INJ PUMP
ASM PART: A = 8-97263-086-3, 97263086 		8-94242-278-0 01 1 -
73 03.330 BOLT; ACTUATOR
ASM PART: A = 8-97263-086-3, 97263086 		8-97094-111-0 02 1 -
74 03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ
ASM PART: A = 8-97263-086-3, 97263086 		8-97086-134-0 01 1 -
97 03.306 BOLT; PLATE,START ADVANCE
ASM PART: A = 8-97263-086-3, 97263086 		8-97218-972-0 01 1 -
115 03.308 SPRING; COMPENSATOR
ASM PART: A = 8-97263-086-3, 97263086 		8-97214-505-0 01 1 -
198 03.340 BRACKET; DIAPH
ASM PART: A = 8-97263-086-3, 97263086 		8-97214-507-0 01 1 -
216 03.320 SCREW; ADJ,DIAPH,BOOST COMPENSAT
ASM PART: A = 8-97263-086-3, 97263086 		8-97214-478-0 01 1 -
220 03.308 GASKET; ADJ SCREW,BOOST COMPENSA
ASM PART: A = 8-97263-086-3, 97263086 		8-94122-761-0 01 1 -
221 03.330 NUT; ADJ SCREW LOCK,BOOST COMPEN
03.318 ASM PART: A = 8-97263-086-3, 97263086 		1-15729-006-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
