◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51422 - QKR LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#96183) — 23 parça

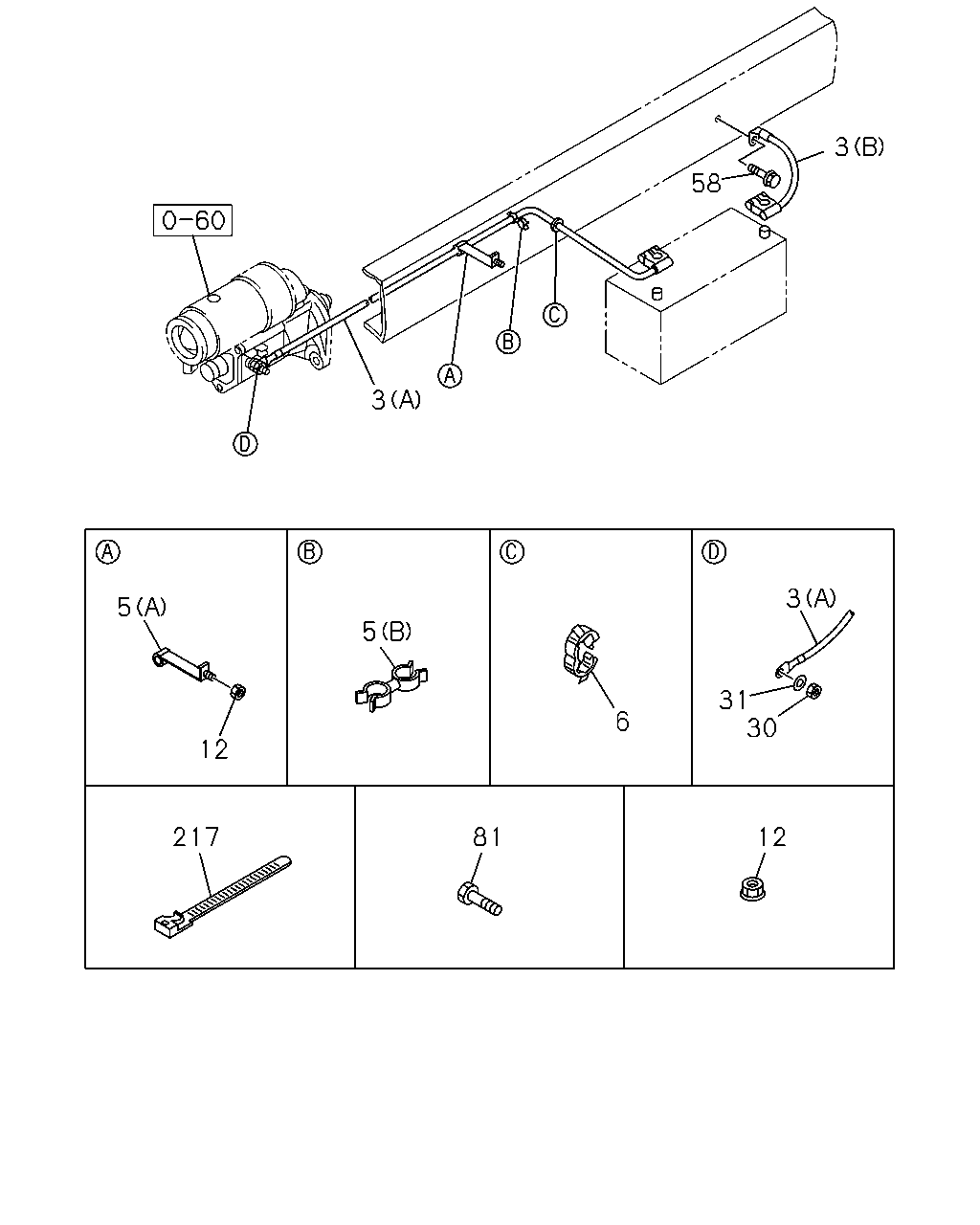

çizim 288167
3 31 30 12 6 81 5 12 5 217 3 3 58
BalonParca AdiParca NoAdetTipApplied Date A B
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) G.V.W. 4.0-4.5TON(RPR) RR BODY FLAT BED(RS6) (A) 		8-98240-493-0 01 1 1503- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) BATTERY 95D31R<6DN> 02.342 (B) L=300 		8-97231-242-1 01 1 1206- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY NX200-10<S9C> 02.342 (B) L=300 		8-97231-242-1 01 1 1206- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) BATTERY NX200-10<S9C> (A) L=900 		8-98003-123-0 01 1 1206- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) BATTERY 95D31R<6DN> (A) L=900 		8-97351-862-0 01 1 1206-1305 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) G.V.W. 4.0-4.5TON(RPR) BATTERY 95D31R<6DN> (A) L=900 		8-97351-862-0 01 1 1306-1502 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) G.V.W. 4.0-4.5TON(RPR) BATTERY 95D31R<6DN> EXC. RR BODY FLAT BED(RS6) (A) L=900 		8-97351-862-0 01 1 1503- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) BATTERY NX200-10<S9C> (A) L=1100 		8-98003-121-0 01 1 1206- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) BATTERY 95D31R<6DN> 02.342 (B) L=400 		8-97230-533-1 01 1 1206- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) BATTERY 95D31R<6DN> (A) L=800 		8-98003-122-0 01 1 1206- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
WHEEL BASE 2400MM(24W) BATTERY NX200-10<S9C> 03.430 (B) ID=13 H=15 L=25 		1-09700-888-0 01 1 1206- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.430 (B) ID=13 H=15 L=25 		1-09700-888-0 01 1 1206- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(A) ID=13 L=90 		8-97015-782-1 01 1 1206- ● ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 1206- ● ●
12 02.343 NUT; BATTERY CABLE CLIP
WHEEL BASE 2400MM(24W) BATTERY NX200-10<S9C> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1206- ● ●
12 02.343 NUT; BATTERY CABLE CLIP
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1206- ● ●
12 02.343 NUT; BATTERY CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1206- ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1206- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1206- ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1206- ● ●
81 02.559 BOLT; BATTERY CABLE
WHEEL BASE 2400MM(24W) BATTERY NX200-10<S9C> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 1206- ● ●
81 02.559 BOLT; BATTERY CABLE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 1206- ● ●
217 02.343 CLIP; BAND,CABLE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) BATTERY NX200-10<S9C> 03.162 L=140 		5-09707-031-1 01 1 1206- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
