Sayfa 0-81 - Isuzu EPC

0-81 — GOVERNOR; INJECTION PUMP (#9618) — 213 parça

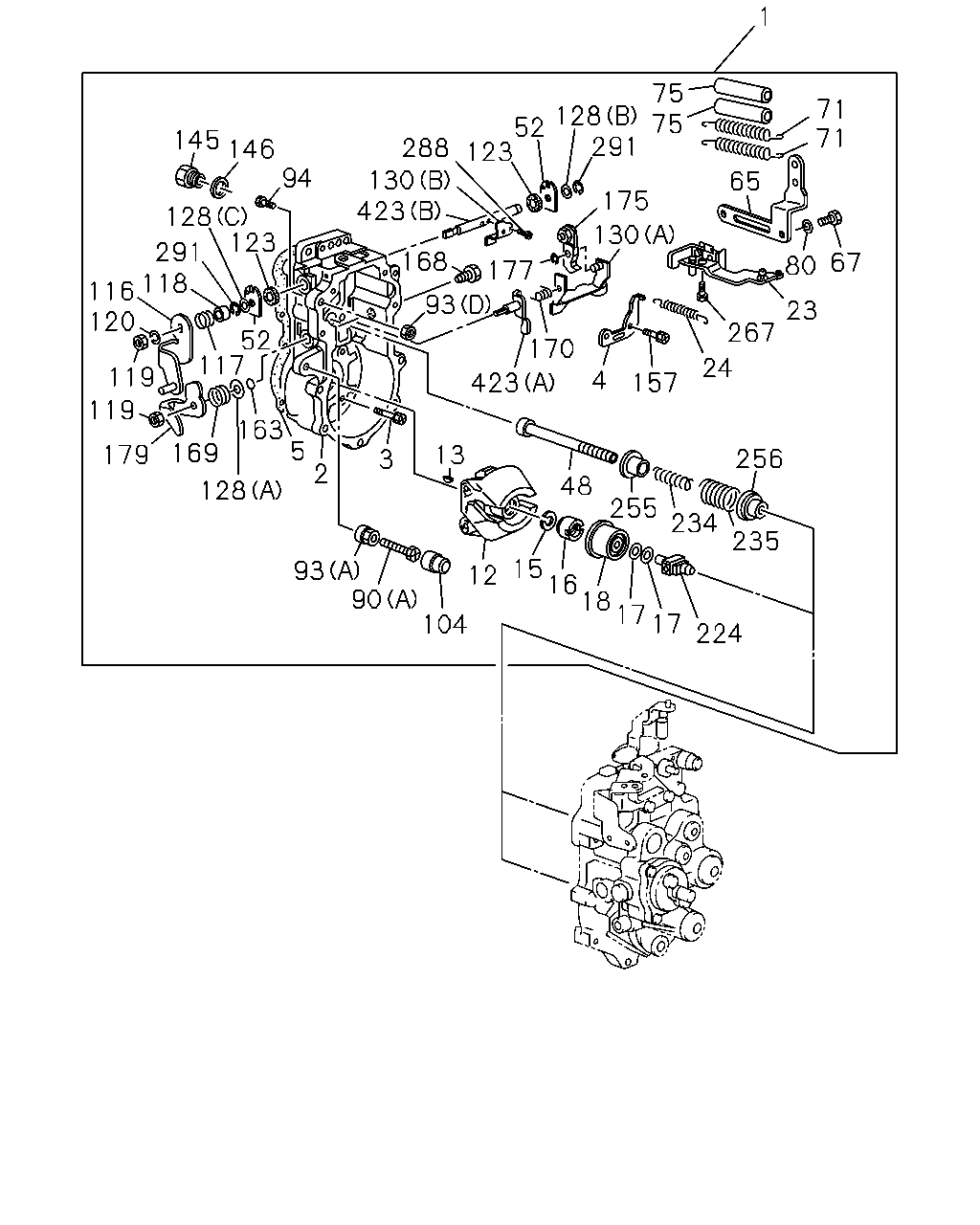

1 75 75 71 71 128 291 52 123 65 145 146 94 288 130 423 128 123 175 130 52 117 291 118 116 120 168 67 80 177 93 23 267 170 24 119 4 423 157 119 163 5 2 169 179 13 256 3 255 48 128 234 235 15 16 18 17 17 93 90 12 104 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-216-4	1-15770-939-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 1-15603-216-4	1-15721-327-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: A = 1-15603-216-4	1-15779-226-0	06	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 1-15603-216-4	1-15779-294-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 1-15603-216-4	1-15779-297-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 1-15603-216-4	1-15722-018-0	01	1	-
13	KEY; FLYWEIGHT,GOV 13MM ASM PART: A = 1-15603-216-4	9-81325-030-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 1-15603-216-4	5-15729-034-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 1-15603-216-4	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 1-15603-216-4	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 1-15603-216-4	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 1-15603-216-4	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 1-15603-216-4	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 1-15603-216-4	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 1-15603-216-4	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 1-15603-216-4	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 1-15603-216-4	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 1-15603-216-4	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 1-15603-216-4	5-15729-372-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 1-15603-216-4	1-15725-865-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 1-15603-216-4	1-15723-450-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 1-15603-216-4	1-15779-240-0	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: A = 1-15603-216-4	1-15779-269-0	02	1	-
65	BRACKET; RETURN SPRING,GOV ASM PART: A = 1-15603-216-4	1-15779-332-0	01	1	-
67	BOLT; SPRING BRKT,GOV ASM PART: A = 1-15603-216-4	1-15729-818-0	02	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 1-15603-216-4	1-15723-482-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: A = 1-15603-216-4	5-15729-013-0	02	1	-
80	WASHER; LK,CONT LEVER,GOV ASM PART: A = 1-15603-216-4	1-15779-199-0	02	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X45 ASM PART: A = 1-15603-216-4	1-15779-244-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X49 ASM PART: A = 1-15603-216-4	1-15779-245-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X53 ASM PART: A = 1-15603-216-4	1-15779-246-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: A = 1-15603-216-4	1-15779-247-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M10X70 ASM PART: A = 1-15603-216-4	1-15779-248-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 1-15603-216-4	1-15779-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 1-15603-216-4	1-15779-278-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C), M10 ASM PART: A = 1-15603-216-4	9-09111-410-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: A = 1-15603-216-4	9-88410-525-0	01	1	-
94	SCREW; ADJ,CONT LEVER,GOV ASM PART: A = 1-15603-216-4	1-15779-233-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW ASM PART: A = 1-15603-216-4	8-97085-022-0	02	1	-
116	LEVER; ENG STOP,GOV ASM PART: A = 1-15603-216-4	1-15725-857-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: A = 1-15603-216-4	1-15723-443-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: A = 1-15603-216-4	1-15779-389-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 1-15603-216-4	1-15729-236-0	02	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV ASM PART: A = 1-15603-216-4	1-83579-492-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 1-15603-216-4	1-15779-282-0	02	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.60 ASM PART: A = 1-15603-216-4	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.80 ASM PART: A = 1-15603-216-4	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.90 ASM PART: A = 1-15603-216-4	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.50 ASM PART: A = 1-15603-216-4	1-15779-230-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.20 ASM PART: A = 1-15603-216-4	1-15779-231-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C) ASM PART: A = 1-15603-216-4	1-15779-388-0	01	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.50 ASM PART: A = 1-15603-216-4	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.30 ASM PART: A = 1-15603-216-4	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.40 ASM PART: A = 1-15603-216-4	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.25 ASM PART: A = 1-15603-216-4	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.35 ASM PART: A = 1-15603-216-4	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.20 ASM PART: A = 1-15603-216-4	9-88410-421-0	AR	1	-
130	LEVER; CONT,GOV (B) ASM PART: A = 1-15603-216-4	1-15725-775-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: A = 1-15603-216-4	1-15725-877-0	01	1	-
145	CAP; GOV COVER,INJ PUMP ASM PART: A = 1-15603-216-4	1-15729-041-0	01	1	-
146	GASKET; COVER CAP,GOV ASM PART: A = 1-15603-216-4	9-81325-528-0	01	1	-
157	BOLT; START SPRING PLATE,GOV ASM PART: A = 1-15603-216-4	1-15779-226-0	02	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: A = 1-15603-216-4	1-15779-227-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: A = 1-15603-216-4	1-15779-285-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: A = 1-15603-216-4	1-15723-458-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: A = 1-15603-216-4	1-15723-132-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: A = 1-15603-216-4	1-15725-854-0	01	1	-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: A = 1-15603-216-4	8-94324-735-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: A = 1-15603-216-4	1-15725-876-0	01	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: A = 1-15603-216-4	1-15779-334-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: A = 1-15603-216-4	1-15723-479-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 1-15603-216-4	1-15723-512-0	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: A = 1-15603-216-4	1-15779-241-0	01	1	-
256	SEAT; GOV SPRING ASM PART: A = 1-15603-216-4	1-15779-242-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 1-15603-216-4	1-15749-747-0	01	1	-
288	BOLT; LEVER ASM PART: A = 1-15603-216-4	1-15729-197-0	02	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: A = 1-15603-216-4	1-15779-196-0	02	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: A = 1-15603-216-4	1-15779-228-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: A = 1-15603-216-4	1-15779-387-0	01	1	-

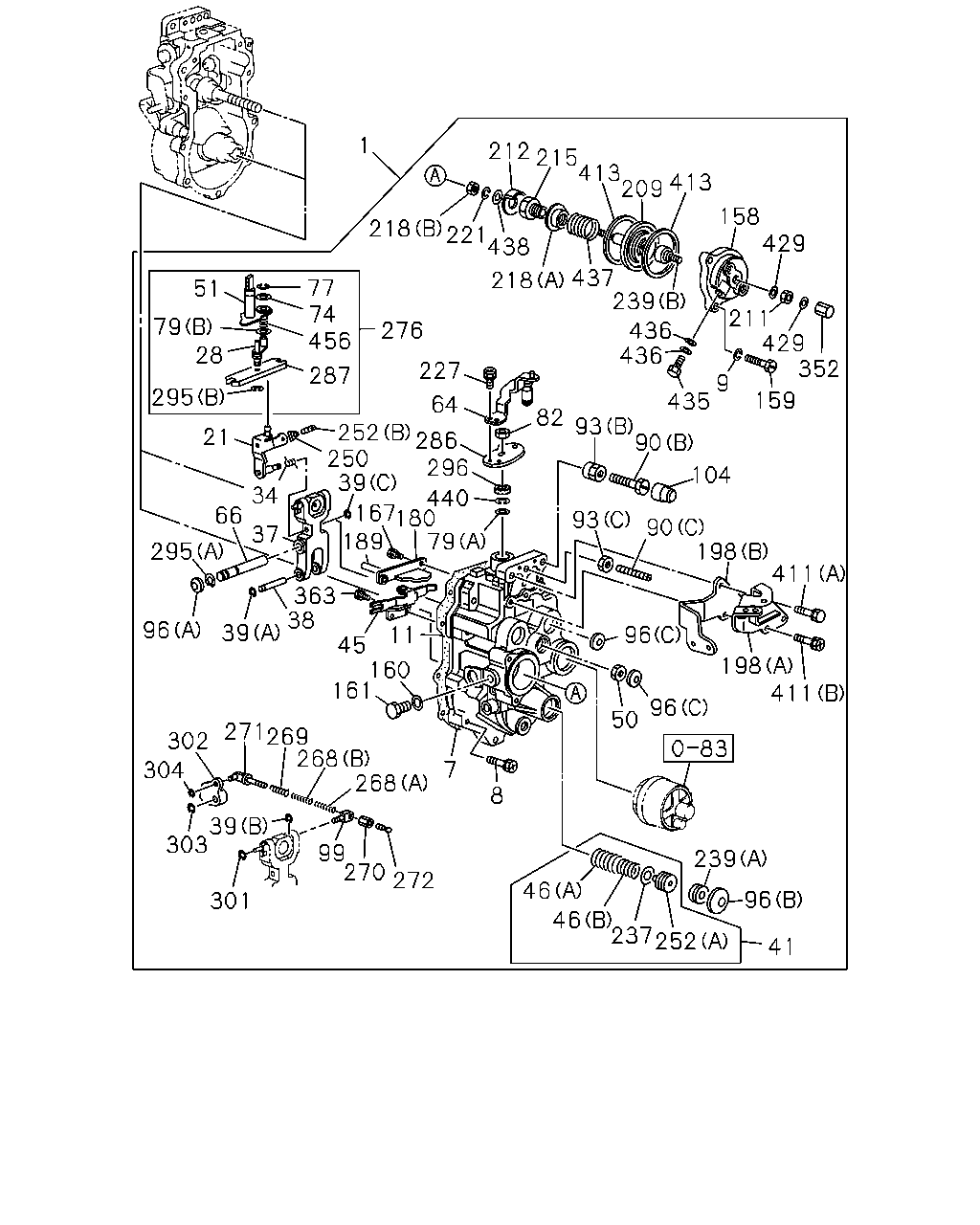

1 212 215 413 413 209 158 429 218 221 438 211 429 352 437 239 218 77 74 456 51 79 28 276 436 436 227 287 9 435 295 159 64 82 93 90 252 286 250 296 39 21 104 34 66 37 440 167 180 189 79 93 90 198 411 295 363 38 11 96 39 96 45 160 161 198 411 96 50 271 269 268 268 302 7 304 39 303 8 99 270 272 239 46 96 301 46 237 252 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-216-4	1-15770-939-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-216-4	1-15721-324-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP ASM PART: A = 1-15603-216-4	5-15729-033-0	09	1	-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: A = 1-15603-216-4	9-09150-506-0	03	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 1-15603-216-4	1-15779-251-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 1-15603-216-4	1-15725-779-1	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: A = 1-15603-216-4	1-15725-780-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 1-15603-216-4	1-15723-444-1	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 1-15603-216-4	1-15725-778-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: A = 1-15603-216-4	1-15779-271-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (B) ASM PART: A = 1-15603-216-4	1-09588-170-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (A) ASM PART: A = 1-15603-216-4	8-94244-599-0	02	1	-
39	RING; SNAP,LEVER PIN,GOV (C), ID=4 ASM PART: A = 1-15603-216-4	9-09185-404-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 1-15603-216-4	1-15723-530-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: A = 1-15603-216-4	1-15725-860-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 1-15603-216-4	1-15723-501-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 1-15603-216-4	1-15723-513-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 1-15603-216-4	8-94171-147-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 1-15603-216-4	1-15779-480-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 1-15603-216-4	1-15725-858-0	01	1	-
66	SHAFT; LEVER ASM PART: A = 1-15603-216-4	1-15779-234-0	01	1	-
74	WASHER; LEVER SPR ASM PART: A = 1-15603-216-4	1-15779-232-0	01	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: A = 1-15603-216-4	5-15729-023-0	01	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: A = 1-15603-216-4	1-15729-988-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B) ASM PART: A = 1-15603-216-4	1-15779-232-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 1-15603-216-4	1-15729-236-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X45 ASM PART: A = 1-15603-216-4	1-15779-244-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X49 ASM PART: A = 1-15603-216-4	1-15779-245-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X53 ASM PART: A = 1-15603-216-4	1-15779-246-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: A = 1-15603-216-4	1-15779-247-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M10X70 ASM PART: A = 1-15603-216-4	1-15779-248-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 1-15603-216-4	1-15779-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 1-15603-216-4	1-15779-278-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C), M10 ASM PART: A = 1-15603-216-4	9-09111-410-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: A = 1-15603-216-4	9-88410-525-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: A = 1-15603-216-4	1-15779-293-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: A = 1-15603-216-4	5-15729-076-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: A = 1-15603-216-4	8-94171-148-0	03	1	-
99	PIN; TENSION LEVER,GOV ASM PART: A = 1-15603-216-4	1-15779-286-1	01	1	-
104	CAP; LOCK NUT,ADJ SCREW ASM PART: A = 1-15603-216-4	8-97085-022-0	02	1	-
158	COVER; GOV HSG ASM PART: A = 1-15603-216-4	1-15721-303-0	01	1	-
159	BOLT; COVER ASM PART: A = 1-15603-216-4	1-15779-202-0	03	1	-
160	GASKET; PLUG TO HSG L=96 ASM PART: A = 1-15603-216-4	1-15729-066-0	01	1	-
161	PLUG; HSG ASM PART: A = 1-15603-216-4	8-97037-288-0	01	1	-
167	BOLT; PLATE M6X16 ASM PART: A = 1-15603-216-4	5-15729-071-0	02	1	-
180	PLATE; GOV COVER ASM PART: A = 1-15603-216-4	1-15779-335-0	01	1	-
189	ROD; PUSH,GOV L=72.5 ASM PART: A = 1-15603-216-4	1-15779-336-0	01	1	-
189	ROD; PUSH,GOV L=73.0 ASM PART: A = 1-15603-216-4	1-15779-337-0	01	1	-
189	ROD; PUSH,GOV L=73.5 ASM PART: A = 1-15603-216-4	1-15779-338-0	01	1	-
189	ROD; PUSH,GOV L=74.0 ASM PART: A = 1-15603-216-4	1-15779-339-0	01	1	-
189	ROD; PUSH,GOV L=74.5 ASM PART: A = 1-15603-216-4	1-15779-340-0	01	1	-
189	ROD; PUSH,GOV L=75.0 ASM PART: A = 1-15603-216-4	1-15779-341-0	01	1	-
189	ROD; PUSH,GOV L=75.5 ASM PART: A = 1-15603-216-4	1-15779-342-0	01	1	-
189	ROD; PUSH,GOV L=76.0 ASM PART: A = 1-15603-216-4	1-15779-343-0	01	1	-
189	ROD; PUSH,GOV L=76.5 ASM PART: A = 1-15603-216-4	1-15779-344-0	01	1	-
189	ROD; PUSH,GOV L=77.0 ASM PART: A = 1-15603-216-4	1-15779-345-0	01	1	-
189	ROD; PUSH,GOV L=77.5 ASM PART: A = 1-15603-216-4	1-15779-346-0	01	1	-
189	ROD; PUSH,GOV L=78.0 ASM PART: A = 1-15603-216-4	1-15779-347-0	01	1	-
189	ROD; PUSH,GOV L=78.5 ASM PART: A = 1-15603-216-4	1-15779-348-0	01	1	-
189	ROD; PUSH,GOV L=79.0 ASM PART: A = 1-15603-216-4	1-15779-349-0	01	1	-
189	ROD; PUSH,GOV L=79.5 ASM PART: A = 1-15603-216-4	1-15779-350-0	01	1	-
189	ROD; PUSH,GOV L=80.0 ASM PART: A = 1-15603-216-4	1-15779-351-0	01	1	-
189	ROD; PUSH,GOV L=80.5 ASM PART: A = 1-15603-216-4	1-15779-352-0	01	1	-
189	ROD; PUSH,GOV L=81.0 ASM PART: A = 1-15603-216-4	1-15779-353-0	01	1	-
189	ROD; PUSH,GOV L=81.5 ASM PART: A = 1-15603-216-4	1-15779-354-0	01	1	-
189	ROD; PUSH,GOV L=82.0 ASM PART: A = 1-15603-216-4	1-15779-355-0	01	1	-
189	ROD; PUSH,GOV L=82.5 ASM PART: A = 1-15603-216-4	1-15779-356-0	01	1	-
189	ROD; PUSH,GOV L=83.0 ASM PART: A = 1-15603-216-4	1-15779-426-0	01	1	-
189	ROD; PUSH,GOV L=83.5 ASM PART: A = 1-15603-216-4	1-15779-427-0	01	1	-
189	ROD; PUSH,GOV L=84.0 ASM PART: A = 1-15603-216-4	1-15779-428-0	01	1	-
189	ROD; PUSH,GOV L=84.5 ASM PART: A = 1-15603-216-4	1-15779-429-0	01	1	-
189	ROD; PUSH,GOV L=85.0 ASM PART: A = 1-15603-216-4	1-15779-430-0	01	1	-
189	ROD; PUSH,GOV L=85.5 ASM PART: A = 1-15603-216-4	1-15779-431-0	01	1	-
189	ROD; PUSH,GOV L=86.0 ASM PART: A = 1-15603-216-4	1-15779-432-0	01	1	-
189	ROD; PUSH,GOV L=86.5 ASM PART: A = 1-15603-216-4	1-15779-433-0	01	1	-
189	ROD; PUSH,GOV L=87.0 ASM PART: A = 1-15603-216-4	1-15779-434-0	01	1	-
189	ROD; PUSH,GOV L=87.5 ASM PART: A = 1-15603-216-4	1-15779-435-0	01	1	-
189	ROD; PUSH,GOV L=88.0 ASM PART: A = 1-15603-216-4	1-15779-436-0	01	1	-
189	ROD; PUSH,GOV L=88.5 ASM PART: A = 1-15603-216-4	1-15779-437-0	01	1	-
189	ROD; PUSH,GOV L=89.0 ASM PART: A = 1-15603-216-4	1-15779-438-0	01	1	-
189	ROD; PUSH,GOV L=89.5 ASM PART: A = 1-15603-216-4	1-15779-439-0	01	1	-
189	ROD; PUSH,GOV L=90.0 ASM PART: A = 1-15603-216-4	1-15779-440-0	01	1	-
198	BRACKET; COVER (A) ASM PART: A = 1-15603-216-4	1-15779-453-0	01	1	-
198	BRACKET; COVER (B) ASM PART: A = 1-15603-216-4	1-15779-470-0	01	1	-
209	DIAPHRAGM; GOV ASM PART: A = 1-15603-216-4	1-15713-006-0	01	1	-
211	NUT; LOCK,GOV ASM PART: A = 1-15603-216-4	9-88410-525-0	01	1	-
212	PLATE; GOV ASM PART: A = 1-15603-216-4	8-94122-719-0	01	1	-
215	BOLT; DIAPH ASM PART: A = 1-15603-216-4	8-97037-284-0	01	1	-
218	NUT; DIAPH (A) ASM PART: A = 1-15603-216-4	1-15729-249-0	01	1	-
218	NUT; DIAPH (B) ASM PART: A = 1-15603-216-4	8-94122-726-0	01	1	-
221	WASHER; LK,DIAPH ID=6.1 ASM PART: A = 1-15603-216-4	9-09150-506-0	01	1	-
227	BOLT; GOV LEVER ASM PART: A = 1-15603-216-4	1-15719-005-0	02	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=2.00 ASM PART: A = 1-15603-216-4	1-15729-891-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=3.00 ASM PART: A = 1-15603-216-4	1-15729-892-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=4.00 ASM PART: A = 1-15603-216-4	1-15729-893-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: A = 1-15603-216-4	5-15729-286-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.50 ASM PART: A = 1-15603-216-4	5-15729-287-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: A = 1-15603-216-4	9-81325-088-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: A = 1-15603-216-4	9-81325-551-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.40 ASM PART: A = 1-15603-216-4	9-81325-552-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: A = 1-15603-216-4	9-81325-553-0	AR	1	-
239	SCREW; GOV (A) ASM PART: A = 1-15603-216-4	1-15779-239-0	01	1	-
239	SCREW; GOV (B) ASM PART: A = 1-15603-216-4	8-97037-287-0	01	1	-
250	NUT; GUIDE SCREW,GOV SHAFT ASM PART: A = 1-15603-216-4	1-15779-287-0	01	1	-
252	SCREW; GUIDE (A) ASM PART: A = 1-15603-216-4	1-15779-238-0	01	1	-
252	SCREW; GUIDE (B) ASM PART: A = 1-15603-216-4	1-15779-288-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (A) ASM PART: A = 1-15603-216-4	1-15723-445-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (B) ASM PART: A = 1-15603-216-4	1-15723-446-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: A = 1-15603-216-4	1-15723-459-0	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: A = 1-15603-216-4	1-15779-272-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: A = 1-15603-216-4	1-15779-235-1	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 1-15603-216-4	1-15779-289-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: A = 1-15603-216-4	1-15725-883-0	01	1	-
286	LEVER; GOV ASM PART: A = 1-15603-216-4	1-15725-782-0	01	1	-
287	LEVER; GOV ASM PART: A = 1-15603-216-4	1-15725-781-0	01	1	-
295	RING; SNAP (A) ASM PART: A = 1-15603-216-4	1-15779-273-0	02	1	-
295	RING; SNAP (B) ASM PART: A = 1-15603-216-4	5-15729-023-0	01	1	-
296	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 1-15603-216-4	8-97024-879-0	01	1	-
301	RING; SNAP ID=4 ASM PART: A = 1-15603-216-4	9-09185-404-0	01	1	-
302	PLATE; CAM,GOV ASM PART: A = 1-15603-216-4	1-15779-522-0	01	1	-
303	RING; SNAP,CAM PLATE,GOV ASM PART: A = 1-15603-216-4	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: A = 1-15603-216-4	9-09185-404-0	01	1	-
352	NUT; CAP CAP NUT ASM PART: A = 1-15603-216-4	1-15729-093-0	01	1	-
363	BOLT; LEVER FIX ASM PART: A = 1-15603-216-4	8-94247-029-0	02	1	-
411	BOLT; BRKT (A) ASM PART: A = 1-15603-216-4	1-15779-415-0	01	1	-
411	BOLT; BRKT (B), M6X20 ASM PART: A = 1-15603-216-4	9-81325-187-0	02	1	-
413	GASKET; GOV COVER ASM PART: A = 1-15603-216-4	1-15779-129-0	02	1	-
429	GASKET; CAP NUT ASM PART: A = 1-15603-216-4	1-15729-868-0	02	1	-
435	BOLT; EYE,GOV COVER ASM PART: A = 1-15603-216-4	1-15729-325-0	01	1	-
436	GASKET; EYE BOLT ASM PART: A = 1-15603-216-4	1-15729-849-0	02	1	-
437	SPRING; DIAPHRAGM ASM PART: A = 1-15603-216-4	1-15723-541-0	01	1	-
438	DISK; DIAPHRAGM ASM PART: A = 1-15603-216-4	1-15779-333-0	01	1	-
440	RING; SNAP,LEVER ASM PART: A = 1-15603-216-4	1-15729-989-0	01	1	-
456	SPRING; LEVER,GOV ASM PART: A = 1-15603-216-4	1-15723-452-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
