◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51422 - QKR LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#96177) — 64 parça

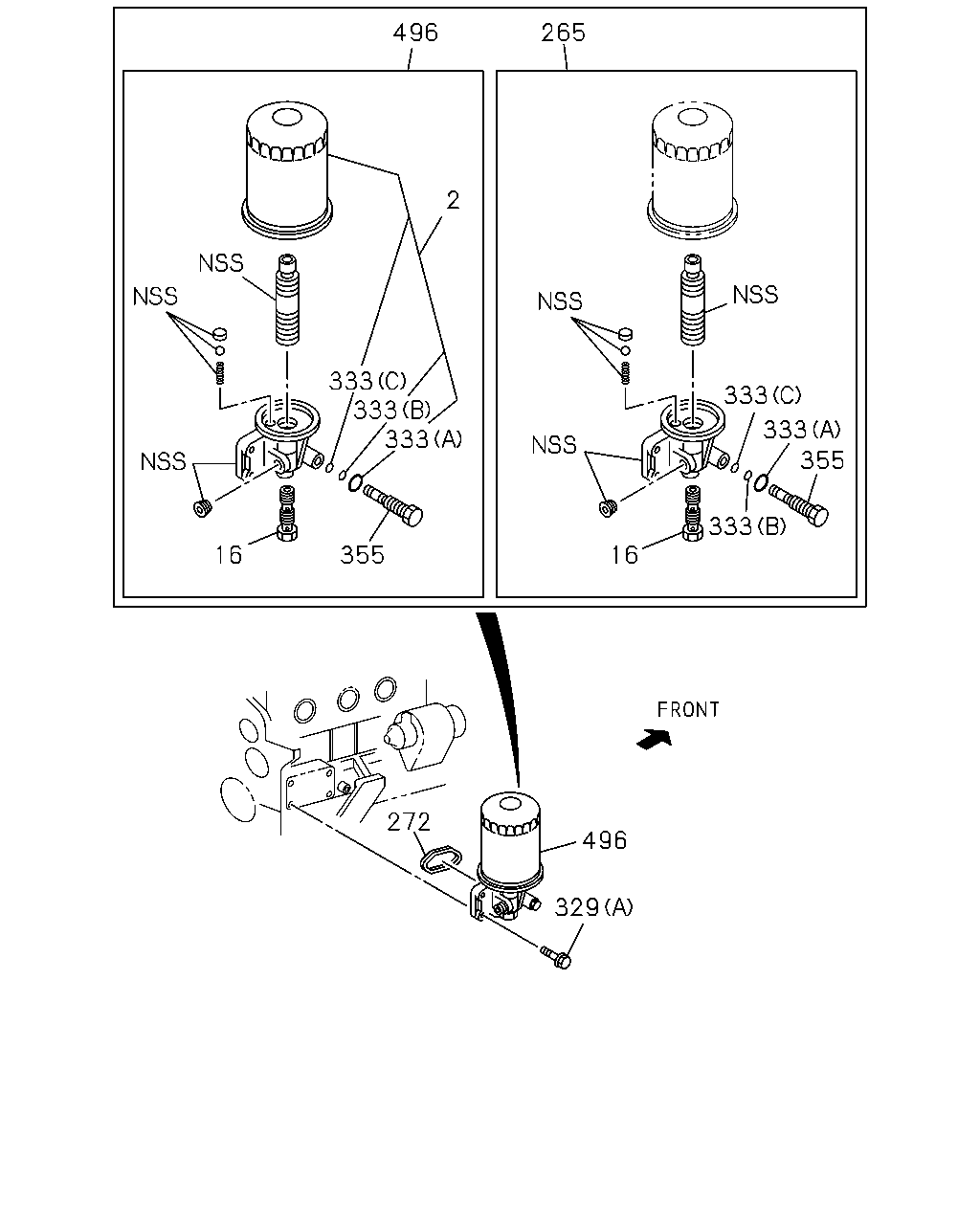

çizim 288124
333 355 333 333 16 355 16 333 333 333 2 265 496 496 272 329
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.836 ELEMENT; OIL FILTER 8-97329-911-0 01 1 1206- ●
2 01.836 ELEMENT; OIL FILTER 8-97049-708-0 01 1 1206- ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-021-0 01 1 1206- ●
2 01.836 ELEMENT; OIL FILTER
EXC. OIL COOLER<KC4> BEST VALUE PARTS 		5-87610-009-0 01 1 1206- ●
16 01.540 VALVE ASM; RELIEF
EXC. OIL COOLER<KC4> 01.837 		8-94167-882-0 01 1 1206- ●
265 01.837 BODY; OIL FILTER
EXC. OIL COOLER<KC4> 		8-97129-937-1 01 1 1206-1304 ●
265 01.837 BODY; OIL FILTER
EXC. OIL COOLER<KC4> 		8-97129-937-1 02 1 1305- ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 		8-98087-965-0 01 1 1206- ● ●
329 01.840 BOLT; OIL FILTER
04.686 (B) M8X60 FLANGE 		0-28050-860-0 02 1 1206- ●
329 01.840 BOLT; OIL FILTER
00.004 (C) M8X32 FLANGE 		0-28080-832-0 02 1 1206- ●
329 01.840 BOLT; OIL FILTER
03.275 (A) M8X25 FLANGE 		0-28050-825-0 04 1 1206- ●
333 01.844 GASKET; OIL FILTER
EXC. OIL COOLER<KC4> (A) ID=13.6 		8-94167-884-0 01 1 1206- ●
333 01.844 GASKET; OIL FILTER
EXC. OIL COOLER<KC4> (B) ID=8.8 		8-94167-885-0 01 1 1206- ●
333 01.844 GASKET; OIL FILTER
EXC. OIL COOLER<KC4> (C) ID=6.8 		8-94167-886-0 01 1 1206- ●
355 01.837 PLUG; OIL PRESS
EXC. OIL COOLER<KC4> 		8-94167-883-0 01 1 1206- ●
496 01.835 FILTER ASM; OIL
EXC. OIL COOLER<KC4> 		8-94462-137-2 01 1 1206- ●

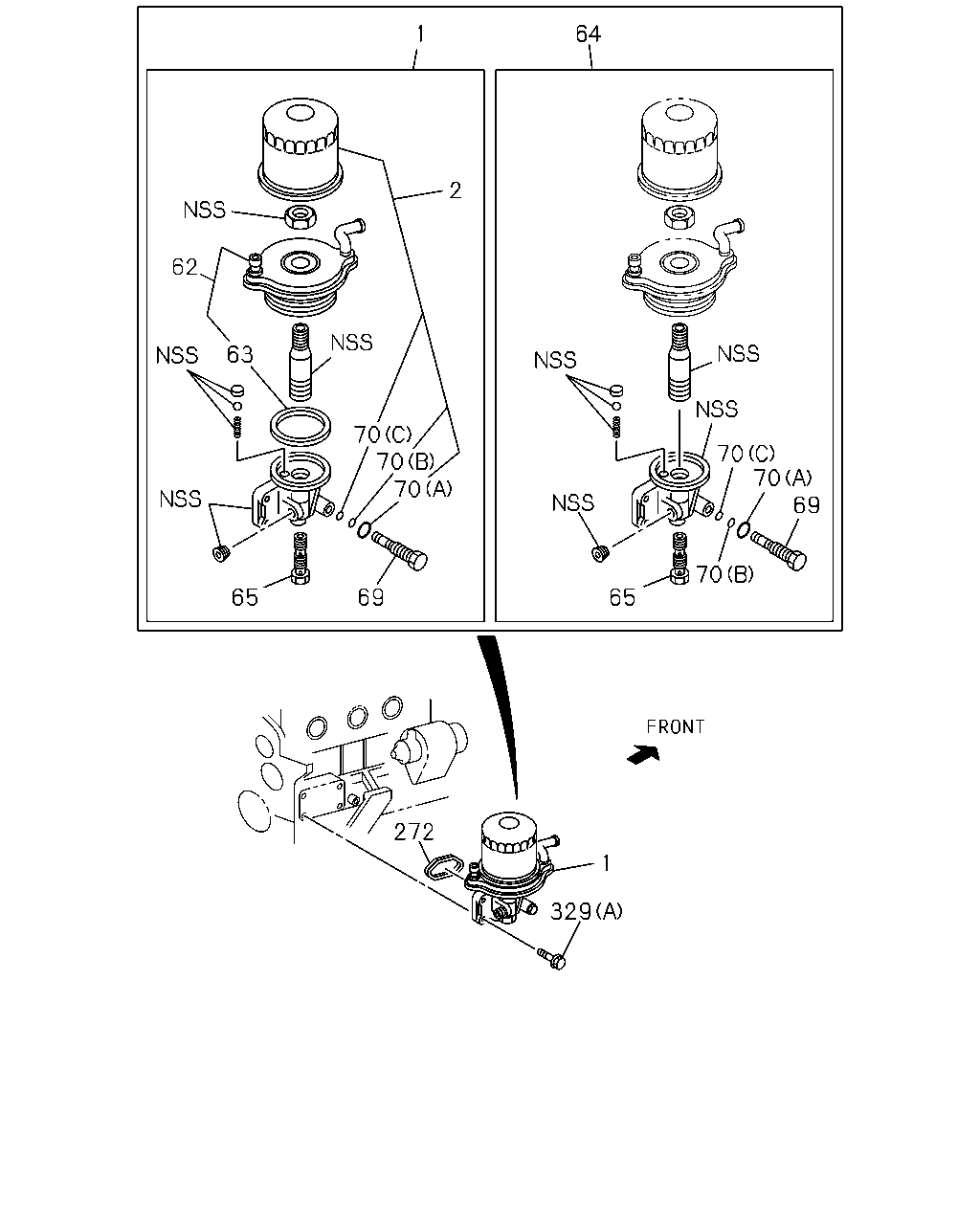

çizim 288128
69 70 70 64 1 2 70 65 69 70 70 70 65 63 62 329 1 272
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.540 FILTER & COOLER ASM; OIL 8-97224-298-2 01 1 1206- ●
1 01.540 FILTER & COOLER ASM; OIL
OIL COOLER<KC4> 		8-94327-272-1 01 1 1206- ●
2 01.836 ELEMENT; OIL FILTER 8-97329-911-0 01 1 1206- ●
2 01.836 ELEMENT; OIL FILTER 8-97049-708-0 01 1 1206- ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-021-0 01 1 1206- ●
2 01.836 ELEMENT; OIL FILTER
EXC. OIL COOLER<KC4> BEST VALUE PARTS 		5-87610-009-0 01 1 1206- ●
62 01.540 COOLER ASM; OIL 8-97226-391-0 01 1 1206- ●
62 01.540 COOLER ASM; OIL
OIL COOLER<KC4> 		8-94401-680-0 01 1 1206- ●
63 01.550 GASKET; COOLER TO BRKT
OIL COOLER<KC4> 		8-94383-720-0 01 1 1206- ●
63 01.550 GASKET; COOLER TO BRKT 8-94383-720-0 01 1 1206- ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97166-497-2 01 1 1206- ●
64 01.540 BODY; OIL FILTER & OIL COOLER
OIL COOLER<KC4> 		8-97081-756-0 01 1 1206- ●
65 01.540 VALVE; OIL COOLER 8-94450-772-0 01 1 1206- ●
65 01.540 VALVE; OIL COOLER
OIL COOLER<KC4> 01.837 		8-94167-882-0 01 1 1206- ●
69 01.837 PLUG; BODY,OIL FILTER
OIL COOLER<KC4> 		8-94167-883-0 01 1 1206- ●
70 01.844 GASKET; PLUG,OIL FILTER
(D) 		9-09921-193-0 01 1 1206- ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> (A) ID=13.6 		8-94167-884-0 01 1 1206- ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> (B) ID=8.8 		8-94167-885-0 01 1 1206- ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> (C) ID=6.8 		8-94167-886-0 01 1 1206- ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 		8-98087-965-0 01 1 1206- ● ●
329 01.840 BOLT; OIL FILTER
04.686 (B) M8X60 FLANGE 		0-28050-860-0 02 1 1206- ●
329 01.840 BOLT; OIL FILTER
00.004 (C) M8X32 FLANGE 		0-28080-832-0 02 1 1206- ●
329 01.840 BOLT; OIL FILTER
03.275 (A) M8X25 FLANGE 		0-28050-825-0 04 1 1206- ●

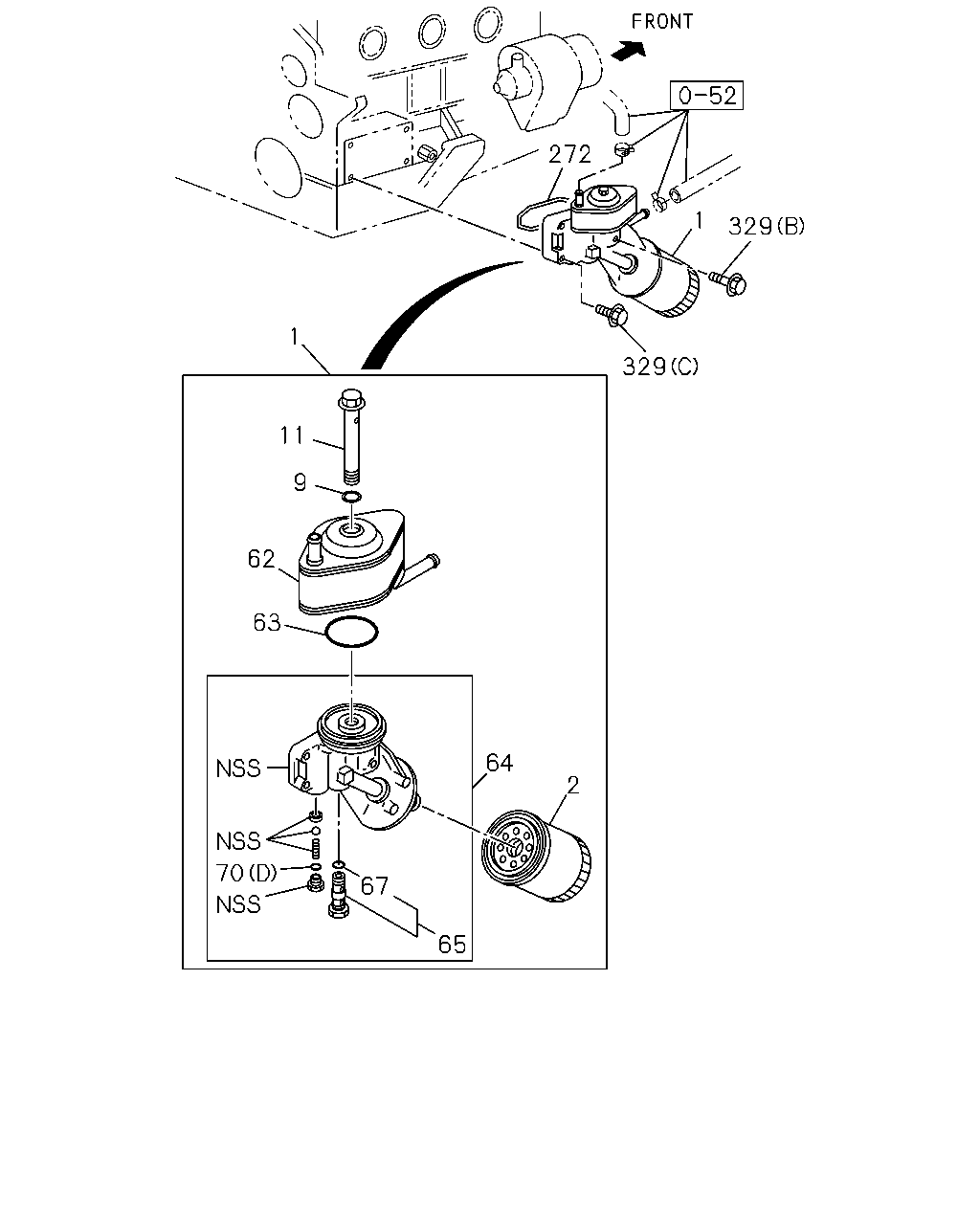

çizim 288131
329 329 1 272 1 11 9 62 63 64 2 65 67 70
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.540 FILTER & COOLER ASM; OIL 8-97224-298-2 01 1 1206- ●
1 01.540 FILTER & COOLER ASM; OIL
OIL COOLER<KC4> 		8-94327-272-1 01 1 1206- ●
2 01.836 ELEMENT; OIL FILTER 8-97329-911-0 01 1 1206- ●
2 01.836 ELEMENT; OIL FILTER 8-97049-708-0 01 1 1206- ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-021-0 01 1 1206- ●
2 01.836 ELEMENT; OIL FILTER
EXC. OIL COOLER<KC4> BEST VALUE PARTS 		5-87610-009-0 01 1 1206- ●
9 01.840 GASKET; CENTER BOLT 8-97047-000-0 01 1 1206- ●
11 01.840 BOLT; CENTER 8-97144-713-0 01 1 1206- ●
62 01.540 COOLER ASM; OIL 8-97226-391-0 01 1 1206- ●
62 01.540 COOLER ASM; OIL
OIL COOLER<KC4> 		8-94401-680-0 01 1 1206- ●
63 01.550 GASKET; COOLER TO BRKT
OIL COOLER<KC4> 		8-94383-720-0 01 1 1206- ●
63 01.550 GASKET; COOLER TO BRKT 8-94383-720-0 01 1 1206- ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97166-497-2 01 1 1206- ●
64 01.540 BODY; OIL FILTER & OIL COOLER
OIL COOLER<KC4> 		8-97081-756-0 01 1 1206- ●
65 01.540 VALVE; OIL COOLER 8-94450-772-0 01 1 1206- ●
65 01.540 VALVE; OIL COOLER
OIL COOLER<KC4> 01.837 		8-94167-882-0 01 1 1206- ●
67 01.550 GASKET; VLV
01.837 		9-09920-975-0 01 1 1206- ●
70 01.844 GASKET; PLUG,OIL FILTER
(D) 		9-09921-193-0 01 1 1206- ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> (A) ID=13.6 		8-94167-884-0 01 1 1206- ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> (B) ID=8.8 		8-94167-885-0 01 1 1206- ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> (C) ID=6.8 		8-94167-886-0 01 1 1206- ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 		8-98087-965-0 01 1 1206- ● ●
329 01.840 BOLT; OIL FILTER
04.686 (B) M8X60 FLANGE 		0-28050-860-0 02 1 1206- ●
329 01.840 BOLT; OIL FILTER
00.004 (C) M8X32 FLANGE 		0-28080-832-0 02 1 1206- ●
329 01.840 BOLT; OIL FILTER
03.275 (A) M8X25 FLANGE 		0-28050-825-0 04 1 1206- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
