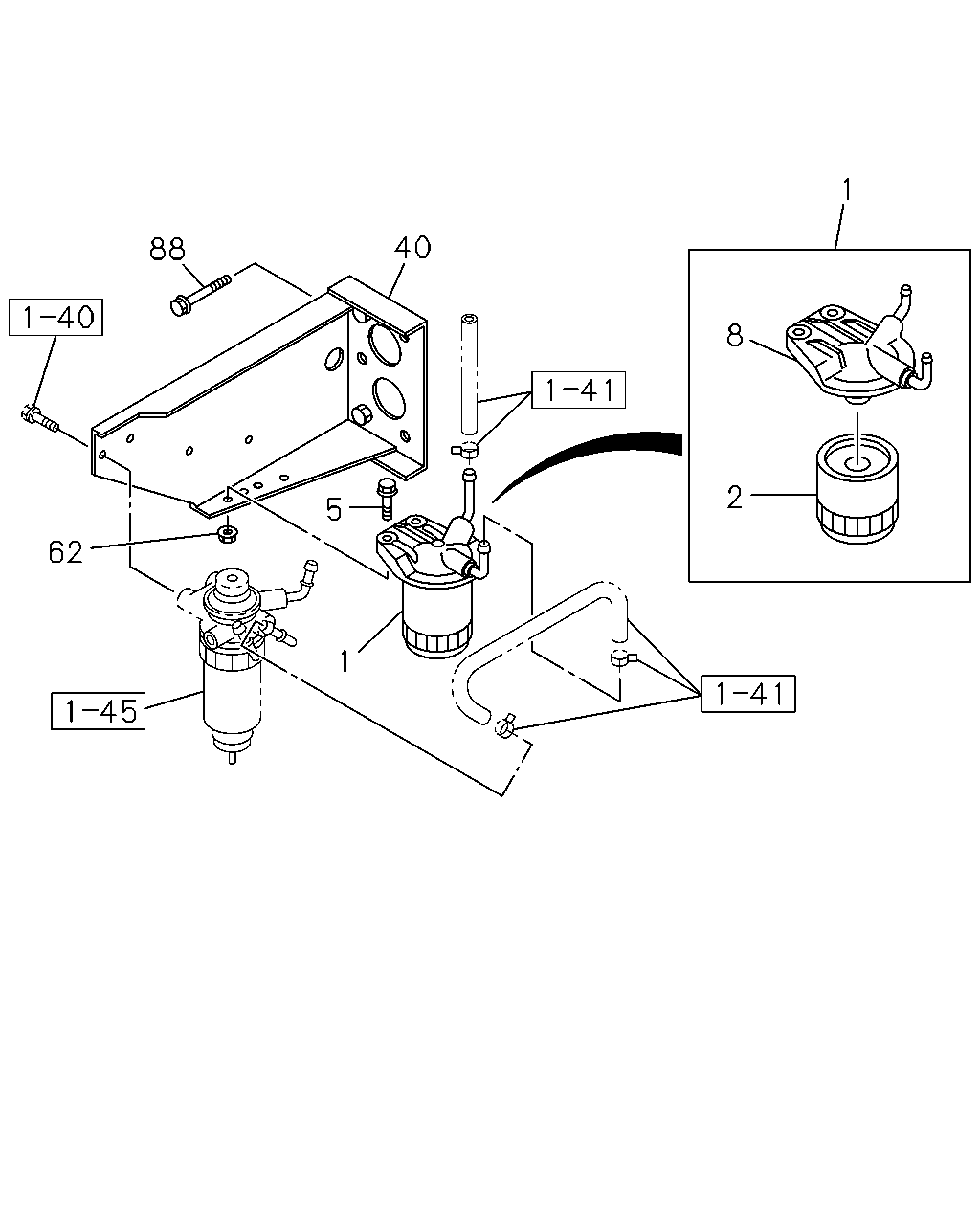

0-41 — FUEL FILTER AND BRACKET (#96176) — 53 parça

1 5 62 88 40 1 2 2 57 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 FILTER ASM; FUEL IDENTIFICATION LABEL FOR KD<6UT> EXC. FUEL FILTER DUAL(S6B)	8-97693-166-0	01	1	1206-	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B)	8-98006-454-0	01	1	1206-		●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B), IDENTIFICATIONLABEL FOR KD<6UT>	8-98006-454-0	01	1	1206-	●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	1206-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER IDENTIFICATION LABEL FOR KD<6UT> EXC. FUEL FILTER DUAL(S6B)	5-87220-512-0	01	1	1206-	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B)	8-97916-993-2	01	1	1206-		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B), IDENTIFICATIONLABEL FOR KD<6UT>	8-97916-993-2	01	1	1206-	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	1206-	●	●
5	03.890 BOLT; FUEL FILTER M10X30 FLANGE	0-28051-030-0	02	1	1206-1403	●	●
5	03.890 BOLT; FUEL FILTER 03.613 M10X40 FLANGE	0-28651-040-0	02	1	1404-	●	●
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 2400MM(24W)	8-98017-562-0	01	1	1206-	●	●
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W)	8-97226-277-0	01	1	1206-	●	●
56	03.890 PLUG; FUEL FILTER FUEL FILTER DUAL(S6B)	5-13226-001-0	01	1	1206-	●	●
57	03.890 GASKET; PLUG FUEL FILTER DUAL(S6B) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	1206-	●	●
62	03.895 NUT; FUEL FILTER WHEEL BASE 2400MM(24W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1206-	●	●
62	03.895 NUT; FUEL FILTER WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1206-1403	●	●
62	03.895 NUT; FUEL FILTER 03.162 M10 FLANGE	0-91180-110-0	02	1	1404-	●	●
62	03.895 NUT; FUEL FILTER WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1404-	●	●
62	03.895 NUT; FUEL FILTER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	03	1	1206-	●	●
62	03.895 NUT; FUEL FILTER 04.085 M10 FLANGE	0-91180-210-0	02	1	1206-1403	●	●
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 2400MM(24W) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	1206-1403	●	●
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 2400MM(24W) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1404-	●	●
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 2400MM(24W) 03.890 M10X30 FLANGE	0-28051-030-0	02	1	1206-1403	●	●
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1404-	●	●
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.890 M10X30 FLANGE	0-28051-030-0	03	1	1206-1403	●	●
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1404-	●	●

40 88 1 8 2 1 5 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 FILTER ASM; FUEL IDENTIFICATION LABEL FOR KD<6UT> EXC. FUEL FILTER DUAL(S6B)	8-97693-166-0	01	1	1206-	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B)	8-98006-454-0	01	1	1206-		●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B), IDENTIFICATIONLABEL FOR KD<6UT>	8-98006-454-0	01	1	1206-	●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	1206-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER IDENTIFICATION LABEL FOR KD<6UT> EXC. FUEL FILTER DUAL(S6B)	5-87220-512-0	01	1	1206-	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B)	8-97916-993-2	01	1	1206-		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B), IDENTIFICATIONLABEL FOR KD<6UT>	8-97916-993-2	01	1	1206-	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) 01.836	8-94144-613-0	02	1	1206-	●	●
5	03.890 BOLT; FUEL FILTER M10X30 FLANGE	0-28051-030-0	02	1	1206-1403	●	●
5	03.890 BOLT; FUEL FILTER 03.613 M10X40 FLANGE	0-28651-040-0	02	1	1404-	●	●
8	03.890 COVER; FUEL FILTER IDENTIFICATION LABEL FOR KD<6UT> EXC. FUEL FILTER DUAL(S6B)	5-87220-513-0	01	1	1206-	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL(S6B)	8-97917-558-0	01	1	1206-		●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL(S6B), IDENTIFICATIONLABEL FOR KD<6UT>	8-97917-558-0	01	1	1206-	●
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 2400MM(24W)	8-98017-562-0	01	1	1206-	●	●
40	03.890 BRACKET; FUEL FILTER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W)	8-97226-277-0	01	1	1206-	●	●
62	03.895 NUT; FUEL FILTER WHEEL BASE 2400MM(24W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1206-	●	●
62	03.895 NUT; FUEL FILTER WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1206-1403	●	●
62	03.895 NUT; FUEL FILTER 03.162 M10 FLANGE	0-91180-110-0	02	1	1404-	●	●
62	03.895 NUT; FUEL FILTER WHEEL BASE 2400MM(24W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1404-	●	●
62	03.895 NUT; FUEL FILTER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	03	1	1206-	●	●
62	03.895 NUT; FUEL FILTER 04.085 M10 FLANGE	0-91180-210-0	02	1	1206-1403	●	●
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 2400MM(24W) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	1206-1403	●	●
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 2400MM(24W) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1404-	●	●
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 2400MM(24W) 03.890 M10X30 FLANGE	0-28051-030-0	02	1	1206-1403	●	●
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1404-	●	●
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.890 M10X30 FLANGE	0-28051-030-0	03	1	1206-1403	●	●
88	03.895 BOLT; BRKT,FUEL FILTER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1404-	●	●
