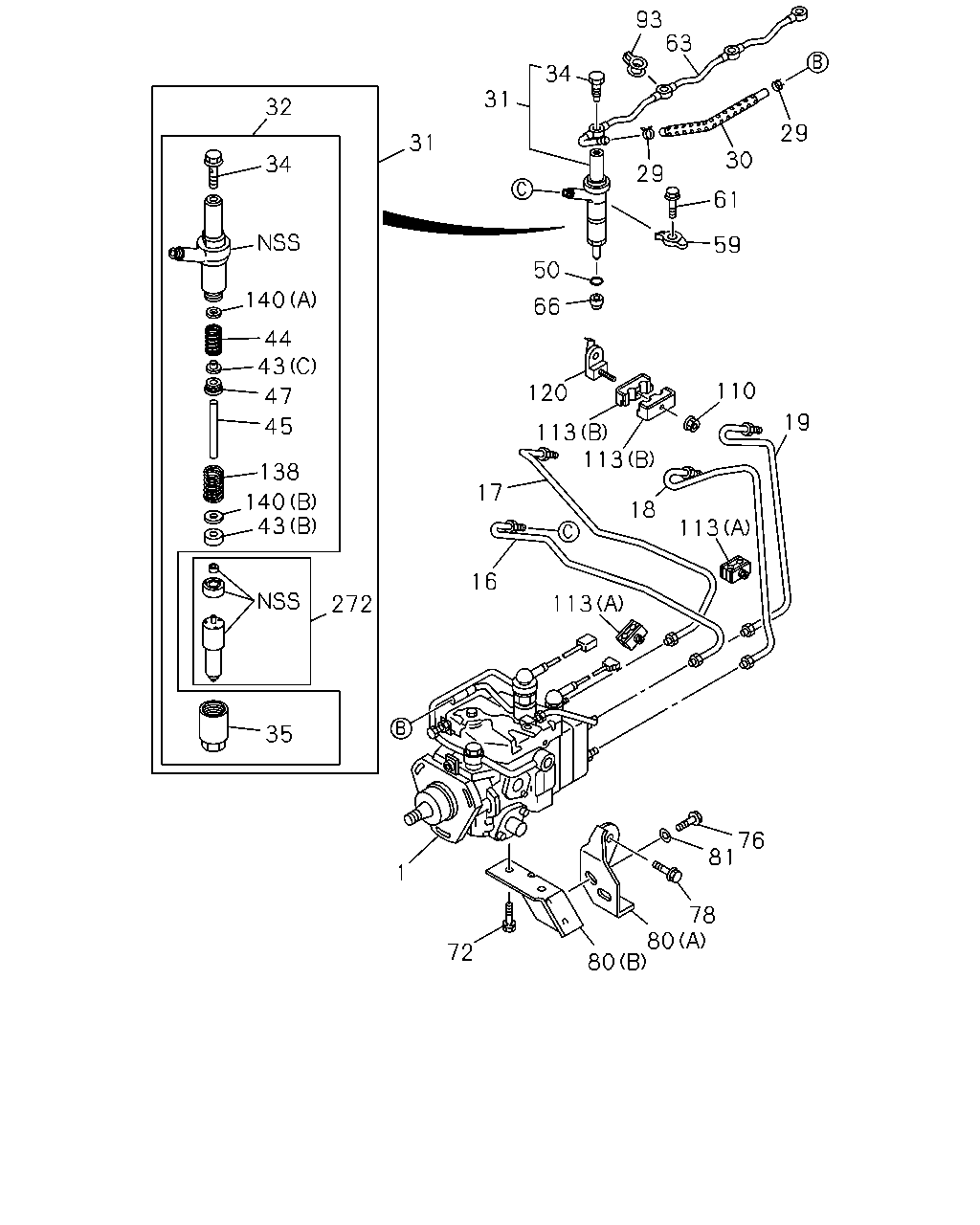

0-40 — FUEL INJECTION SYSTEM (#96175) — 315 parça

93 34 63 29 30 61 29 59 50 31 31 66 32 34 140 44 43 47 45 138 140 43 272 35 1 72 80 80 78 81 76 16 113 17 18 113 113 113 120 110 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97263-086-3	01	1	1206-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16>	8-97120-180-1	01	1	1206-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. POWER STEERING<N40>	8-97120-180-1	01	1	1206-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. POWER STEERING<N40>,TACHOMETER<U16>	8-97120-179-1	01	1	1206-		●
16	03.330 PIPE; INJ NO.1	8-97223-923-1	01	1	1206-	●
16	03.330 PIPE; INJ NO.1	8-97120-154-2	01	1	1206-		●
17	03.330 PIPE; INJ NO.2	8-97223-924-1	01	1	1206-	●
17	03.330 PIPE; INJ NO.2	8-97120-155-2	01	1	1206-		●
18	03.330 PIPE; INJ NO.3	8-97223-925-1	01	1	1206-	●
18	03.330 PIPE; INJ NO.3	8-97120-156-2	01	1	1206-		●
19	03.330 PIPE; INJ NO.4	8-97223-926-1	01	1	1206-	●
19	03.330 PIPE; INJ NO.4	8-97120-157-3	01	1	1206-		●
29	03.162 CLIP; HOSE 03.163 ID=11	8-97173-219-0	02	1	1206-	●	●
29	03.162 CLIP; HOSE 01.219 ID=13	8-94238-571-0	07	1	1206-		●
30	03.163 HOSE; RUBBER,FUEL LEAK L=320	8-97364-773-0	01	1	1206-1509	●
30	03.163 HOSE; RUBBER,FUEL LEAK L=320	8-97364-773-0	02	1	1510-	●
30	03.163 HOSE; RUBBER,FUEL LEAK L=240	8-97364-774-1	01	1	1206-		●
31	03.332 NOZZLE ASM; INJ	8-97382-945-0	04	1	1206-	●
31	03.332 NOZZLE ASM; INJ	8-97122-939-0	04	1	1206-		●
32	03.332 HOLDER ASM; NOZZLE	8-97203-471-1	04	1	1206-	●
32	03.332 HOLDER ASM; NOZZLE	8-94451-184-1	04	1	1206-		●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.306	8-94320-307-0	04	1	1206-	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	1206-	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	1206-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.00	8-97223-343-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.02	8-97223-344-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.04	8-97223-345-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.06	8-97223-346-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.08	8-97223-347-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.10	8-97223-348-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.12	8-97223-349-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.14	8-97223-350-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.16	8-97223-351-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.18	8-97223-352-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.20	8-97223-353-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.22	8-97223-354-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.24	8-97223-355-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.26	8-97223-356-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.28	8-97223-357-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.30	8-97223-358-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.32	8-97223-359-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.34	8-97223-360-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.36	8-97223-361-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.38	8-97223-362-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.40	8-97223-363-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.42	8-97223-364-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.44	8-97223-365-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.46	8-97223-366-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.48	8-97223-367-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.50	8-97223-368-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.52	8-97223-369-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.54	8-97223-370-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.56	8-97223-371-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.58	8-97223-372-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.60	8-97223-373-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.62	8-97223-374-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.64	8-97223-375-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.66	8-97223-376-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.68	8-97223-377-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.70	8-97223-378-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.72	8-97223-379-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.74	8-97223-380-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.76	8-97223-381-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.78	8-97223-382-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.80	8-97223-383-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.82	8-97223-384-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.84	8-97223-385-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.86	8-97223-386-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.88	8-97223-387-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.90	8-97223-388-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.92	8-97223-389-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.94	8-97223-390-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.96	8-97223-391-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.98	8-97223-392-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=3.00	8-97223-393-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C)	8-97361-697-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94312-723-0	04	1	1206-		●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	1206-	●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	1206-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.25	8-97355-112-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.26	8-97355-113-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.27	8-97355-114-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.28	8-97355-115-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.29	8-97355-116-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.30	8-97355-117-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.31	8-97355-118-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.32	8-97355-119-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.33	8-97355-120-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.34	8-97355-121-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.35	8-97355-122-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.36	8-97355-123-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.37	8-97355-124-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.38	8-97355-125-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.39	8-97355-126-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.40	8-97355-127-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.41	8-97355-128-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.42	8-97355-129-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.43	8-97355-130-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.44	8-97355-131-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.45	8-97355-132-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.46	8-97355-133-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.47	8-97355-134-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.48	8-97355-135-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.49	8-97355-136-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.50	8-97355-137-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.51	8-97355-138-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.52	8-97355-139-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.53	8-97355-140-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.54	8-97355-141-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.55	8-97355-142-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.56	8-97355-143-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.57	8-97355-144-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.58	8-97355-145-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.59	8-97355-146-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.60	8-97355-147-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.61	8-97355-148-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.62	8-97355-149-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.63	8-97355-150-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.64	8-97355-151-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.65	8-97355-152-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.66	8-97355-153-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.67	8-97355-154-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.68	8-97355-155-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.69	8-97355-156-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.70	8-97355-157-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.71	8-97355-158-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.72	8-97355-159-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.73	8-97355-160-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.74	8-97355-161-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.75	8-97355-162-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.76	8-97355-163-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.77	8-97355-164-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.78	8-97355-165-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.79	8-97355-166-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.80	8-97355-167-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.81	8-97355-168-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.82	8-97355-169-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.83	8-97355-170-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.84	8-97355-171-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.85	8-97355-172-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.86	8-97355-173-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.87	8-97355-174-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.88	8-97355-175-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.89	8-97355-176-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.90	8-97355-177-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.91	8-97355-178-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.92	8-97355-179-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.93	8-97355-180-0	04	1	1206-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.94	8-97355-182-0	04	1	1206-	●
47	03.332 SPACER; NOZZLE SPRING,NOZZLE HOL	8-97223-340-0	04	1	1206-	●
50	03.332 GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97287-402-2	04	1	1206-	●	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	1206-	●
59	03.332 CLAMP; NOZZLE HOLDER	8-94433-427-0	04	1	1206-		●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94468-020-2	04	1	1206-	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94433-717-1	04	1	1206-		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97288-702-0	01	1	1206-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	1206-	●	●
72	03.330 BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER	0-50551-020-0	02	1	1206-	●	●
76	03.330 BOLT; BRKT TO BRKT 09.008 M8X25 W/LK WASHER	0-50540-825-0	02	1	1206-	●	●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1206-	●	●
80	03.306 BRACKET; PUMP (A)	8-97368-670-0	01	1	1206-	●	●
80	03.306 BRACKET; PUMP (B)	8-97368-671-0	01	1	1206-	●	●
81	03.330 WASHER; PL,BRKT TO PUMP 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1206-	●	●
93	03.162 GASKET; LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-236-0	04	1	1206-	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1206-	●
113	03.162 CLIP; INJ PIPE (B)	1-09701-132-1	02	1	1206-1210	●
113	03.162 CLIP; INJ PIPE 03.634 (B)	1-09701-240-0	02	1	1211-	●
113	03.162 CLIP; INJ PIPE (A)	8-97224-041-1	02	1	1206-1212	●
113	03.162 CLIP; INJ PIPE (A)	8-98227-926-0	02	1	1301-	●
113	03.162 CLIP; INJ PIPE 03.330 (A)	5-15419-013-1	02	1	1206-		●
120	03.330 BRACKET; INJ PIPE	8-98015-024-1	01	1	1206-	●
138	03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER	8-94174-141-0	04	1	1206-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.10	8-97116-029-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.20	8-97116-032-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.30	8-97116-033-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.40	8-97116-034-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.50	8-97116-035-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.51	8-97116-036-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.52	8-97116-037-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.53	8-97116-038-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.54	8-97116-039-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.55	8-97116-040-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.56	8-97116-041-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.57	8-97116-042-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.58	8-97116-043-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.59	8-97116-044-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=1.20	1-15349-004-0	AR	1	1206-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.52	1-15349-044-0	AR	1	1206-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.54	1-15349-045-0	AR	1	1206-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.56	1-15349-046-0	AR	1	1206-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.58	1-15349-047-0	AR	1	1206-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.60	1-15349-048-0	AR	1	1206-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.70	1-15349-049-0	AR	1	1206-	●
272	03.332 NOZZLE KIT; INJ	8-97329-208-0	04	1	1206-	●

29 136 29 28 29 29 28 29 28 29 29 29 29 59 61 31 50 66 30 31 32 140 44 43 146 46 33 35 72 80 1 80 78 81 76 113 113 16 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97263-086-3	01	1	1206-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16>	8-97120-180-1	01	1	1206-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. POWER STEERING<N40>	8-97120-180-1	01	1	1206-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. POWER STEERING<N40>,TACHOMETER<U16>	8-97120-179-1	01	1	1206-		●
16	03.330 PIPE; INJ NO.1	8-97223-923-1	01	1	1206-	●
16	03.330 PIPE; INJ NO.1	8-97120-154-2	01	1	1206-		●
17	03.330 PIPE; INJ NO.2	8-97223-924-1	01	1	1206-	●
17	03.330 PIPE; INJ NO.2	8-97120-155-2	01	1	1206-		●
18	03.330 PIPE; INJ NO.3	8-97223-925-1	01	1	1206-	●
18	03.330 PIPE; INJ NO.3	8-97120-156-2	01	1	1206-		●
19	03.330 PIPE; INJ NO.4	8-97223-926-1	01	1	1206-	●
19	03.330 PIPE; INJ NO.4	8-97120-157-3	01	1	1206-		●
28	03.163 HOSE; FUEL,NOZZLE TO NOZZLE	8-97912-623-0	03	1	1206-		●
29	03.162 CLIP; HOSE 03.163 ID=11	8-97173-219-0	02	1	1206-	●	●
29	03.162 CLIP; HOSE 01.219 ID=13	8-94238-571-0	07	1	1206-		●
30	03.163 HOSE; RUBBER,FUEL LEAK L=320	8-97364-773-0	01	1	1206-1509	●
30	03.163 HOSE; RUBBER,FUEL LEAK L=320	8-97364-773-0	02	1	1510-	●
30	03.163 HOSE; RUBBER,FUEL LEAK L=240	8-97364-774-1	01	1	1206-		●
31	03.332 NOZZLE ASM; INJ	8-97382-945-0	04	1	1206-	●
31	03.332 NOZZLE ASM; INJ	8-97122-939-0	04	1	1206-		●
32	03.332 HOLDER ASM; NOZZLE	8-97203-471-1	04	1	1206-	●
32	03.332 HOLDER ASM; NOZZLE	8-94451-184-1	04	1	1206-		●
33	03.332 NOZZLE; INJ	8-97109-671-0	04	1	1206-		●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	1206-	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	1206-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.00	8-97223-343-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.02	8-97223-344-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.04	8-97223-345-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.06	8-97223-346-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.08	8-97223-347-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.10	8-97223-348-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.12	8-97223-349-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.14	8-97223-350-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.16	8-97223-351-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.18	8-97223-352-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.20	8-97223-353-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.22	8-97223-354-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.24	8-97223-355-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.26	8-97223-356-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.28	8-97223-357-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.30	8-97223-358-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.32	8-97223-359-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.34	8-97223-360-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.36	8-97223-361-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.38	8-97223-362-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.40	8-97223-363-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.42	8-97223-364-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.44	8-97223-365-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.46	8-97223-366-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.48	8-97223-367-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.50	8-97223-368-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.52	8-97223-369-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.54	8-97223-370-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.56	8-97223-371-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.58	8-97223-372-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.60	8-97223-373-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.62	8-97223-374-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.64	8-97223-375-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.66	8-97223-376-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.68	8-97223-377-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.70	8-97223-378-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.72	8-97223-379-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.74	8-97223-380-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.76	8-97223-381-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.78	8-97223-382-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.80	8-97223-383-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.82	8-97223-384-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.84	8-97223-385-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.86	8-97223-386-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.88	8-97223-387-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.90	8-97223-388-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.92	8-97223-389-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.94	8-97223-390-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.96	8-97223-391-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.98	8-97223-392-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=3.00	8-97223-393-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C)	8-97361-697-0	04	1	1206-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94312-723-0	04	1	1206-		●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	1206-	●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	1206-		●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	1206-		●
50	03.332 GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97287-402-2	04	1	1206-	●	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	1206-	●
59	03.332 CLAMP; NOZZLE HOLDER	8-94433-427-0	04	1	1206-		●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94468-020-2	04	1	1206-	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94433-717-1	04	1	1206-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	1206-	●	●
72	03.330 BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER	0-50551-020-0	02	1	1206-	●	●
76	03.330 BOLT; BRKT TO BRKT 09.008 M8X25 W/LK WASHER	0-50540-825-0	02	1	1206-	●	●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1206-	●	●
80	03.306 BRACKET; PUMP (A)	8-97368-670-0	01	1	1206-	●	●
80	03.306 BRACKET; PUMP (B)	8-97368-671-0	01	1	1206-	●	●
81	03.330 WASHER; PL,BRKT TO PUMP 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1206-	●	●
113	03.162 CLIP; INJ PIPE (B)	1-09701-132-1	02	1	1206-1210	●
113	03.162 CLIP; INJ PIPE 03.634 (B)	1-09701-240-0	02	1	1211-	●
113	03.162 CLIP; INJ PIPE (A)	8-97224-041-1	02	1	1206-1212	●
113	03.162 CLIP; INJ PIPE (A)	8-98227-926-0	02	1	1301-	●
113	03.162 CLIP; INJ PIPE 03.330 (A)	5-15419-013-1	02	1	1206-		●
136	03.162 CAP; NOZZLE,FUEL END	8-94473-967-0	01	1	1206-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.10	8-97116-029-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.20	8-97116-032-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.30	8-97116-033-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.40	8-97116-034-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.50	8-97116-035-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.51	8-97116-036-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.52	8-97116-037-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.53	8-97116-038-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.54	8-97116-039-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.55	8-97116-040-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.56	8-97116-041-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.57	8-97116-042-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.58	8-97116-043-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.59	8-97116-044-0	AR	1	1206-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=1.20	1-15349-004-0	AR	1	1206-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.52	1-15349-044-0	AR	1	1206-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.54	1-15349-045-0	AR	1	1206-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.56	1-15349-046-0	AR	1	1206-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.58	1-15349-047-0	AR	1	1206-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.60	1-15349-048-0	AR	1	1206-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.70	1-15349-049-0	AR	1	1206-	●
146	03.332 SPACER; NOZZLE	8-94174-183-0	04	1	1206-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
