Isuzu WW
▶
TRUCKS
▶
QKR
▶
51422 - QKR LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶

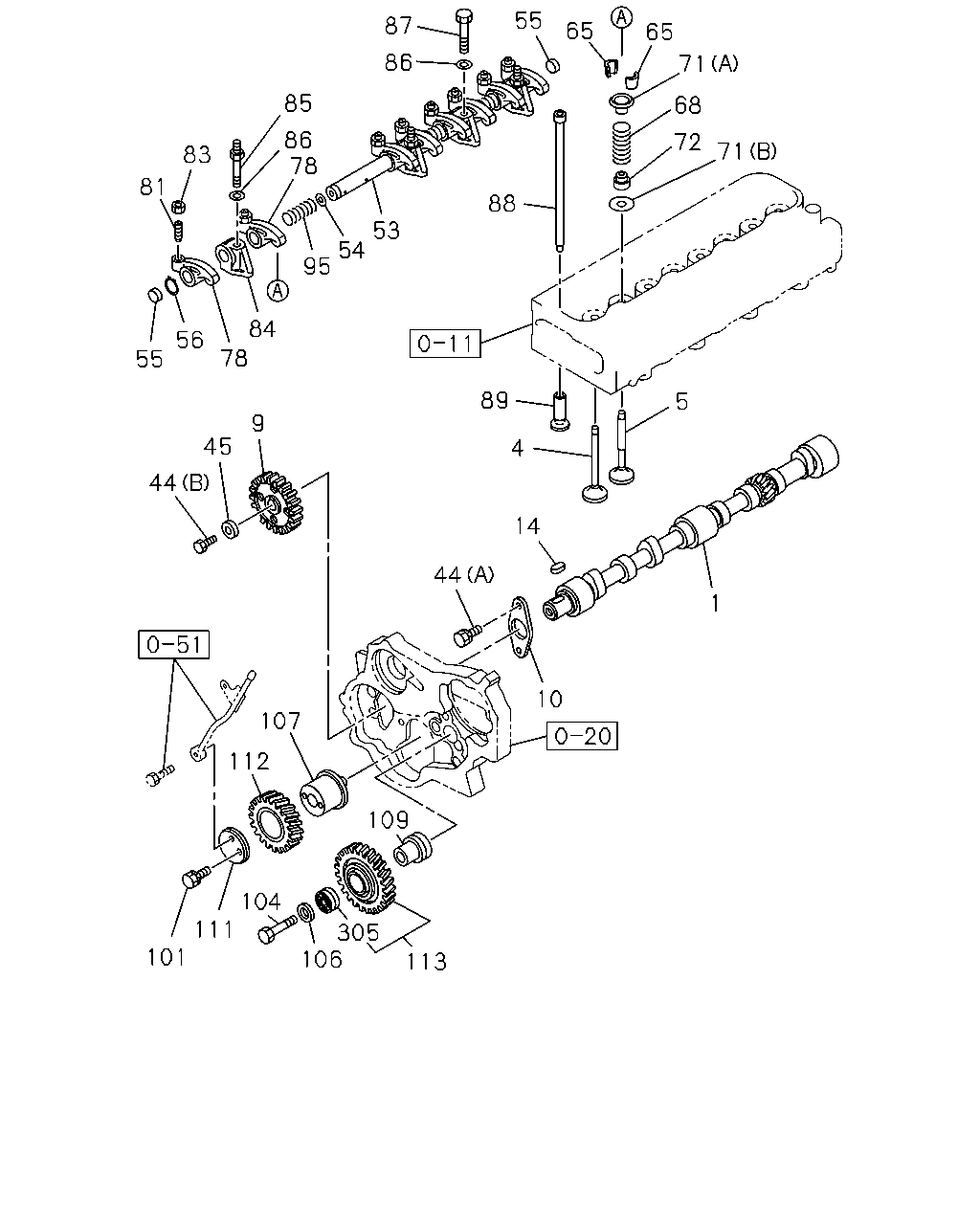

0-14 — CAMSHAFT AND VALVE
(#96161) — 46 parça
Tümü
A - 4JB1-TC ENG
B - 4JB1-NA ENG
87
55
65
86
85
83
86
81
78
55
56
84
95
54
53
78
88
65
71
68
71
72
89
5
4
14
1
44
10
107
112
109
104
305
113
106
111
45
44
9
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
00.519 CAMSHAFT
8-97287-657-1
01
1
1206-
●
●
4
00.296 VALVE; INL
8-94464-921-2
04
1
1206-
●
4
00.296 VALVE; INL
8-94133-275-2
04
1
1206-
●
5
00.297 VALVE; EXH
8-94433-245-1
04
1
1206-1405
●
5
00.297 VALVE; EXH
8-98277-383-0
04
1
1406-
●
5
00.297 VALVE; EXH
8-94247-875-2
04
1
1206-
●
9
00.736 GEAR; CM/SHF
Z=42
8-97229-594-2
01
1
1206-
●
9
00.736 GEAR; CM/SHF
Z=42
8-97079-212-1
01
1
1206-
●
10
00.533 PLATE; THRUST
8-94110-480-1
01
1
1206-
●
●
14
00.738 KEY; CM/SHF
08.960
9-08000-718-0
01
1
1206-
●
●
44
00.738 BOLT
02.343 (A) M8X16 FLANGE
0-28050-816-0
02
1
1206-
●
●
44
00.738 BOLT
00.533 (B) M12X47
8-94433-407-0
01
1
1206-
●
●
45
00.738 WASHER; GEAR CAM
ID=13 OD=36
5-12519-002-1
01
1
1206-
●
●
53
00.353 SHAFT; ROCKER ARM
8-97036-197-0
01
1
1206-
●
●
54
00.349 WASHER; ROCKER SPR
ID=19.1 OD=23
8-94341-906-0
06
1
1206-
●
●
55
00.356 PLUG; ROCKER SHAFT END
9-12626-005-0
02
1
1206-
●
●
56
00.349 RING; SNAP,ROCKER ARM
ID=17.5
9-09180-019-0
02
1
1206-
●
●
65
00.310 COLLAR; SPLIT
5-12565-004-0
16
1
1206-
●
●
68
00.303 SPRING; VLV
H=48 NATURAL
8-94433-247-0
08
1
1206-
●
●
71
00.309 SEAT; SPR
(B) OD=34
5-12563-001-0
08
1
1206-
●
●
71
00.309 SEAT; SPR
(A) OD=32.8
8-94133-731-2
08
1
1206-
●
●
72
00.308 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97120-307-0
08
1
1206-
●
●
78
00.333 ARM; ROCKER
8-94152-344-0
08
1
1206-
●
●
81
00.429 SCREW; ADJ,ROCKER ARM
M8 L=30
8-94152-283-1
08
1
1206-
●
●
83
00.787 NUT; ADJ SCREW,LK
00.777 M8
0-91111-508-0
08
1
1206-
●
●
84
00.349 BRACKET; ROCKER SHAFT,INTER
8-94152-345-1
04
1
1206-
●
●
85
00.349 BOLT; BRKT
M8X15,M10X60 L=82
8-94433-304-0
03
1
1206-
●
●
86
00.349 WASHER; ROCKER ARM FIX
ID=10.5
9-09164-010-0
04
1
1206-
●
●
87
00.349 BOLT; ROCKER SHAFT
M10X60
8-94433-302-0
01
1
1206-
●
●
88
00.426 ROD; PUSH
8-97071-673-0
08
1
1206-
●
●
89
00.459 TAPPET; VLV
8-94438-305-1
08
1
1206-
●
●
95
00.376 SPRING; ROCKER SHAFT
8-94341-905-0
03
1
1206-
●
●
101
00.724 BOLT; THRUST COLLAR
M8X53 FLANGE
8-97223-999-0
02
1
1206-
●
●
104
00.724 BOLT; SHAFT IDLE
8-94109-706-1
01
1
1206-
●
●
106
00.724 WASHER; IDLE GEAR SHAFT
00.738 ID=13 OD=36
5-12519-002-1
01
1
1206-
●
●
107
00.724 SHAFT; IDLE GEAR
8-97920-007-0
01
1
1206-
●
107
00.724 SHAFT; IDLE GEAR
8-94139-758-1
01
1
1206-
●
109
00.724 SHAFT; IDLE GEAR
8-97218-780-0
01
1
1206-
●
109
00.724 SHAFT; IDLE GEAR
8-94109-913-1
01
1
1206-
●
111
00.724 COLLAR; THRUST,IDLE GEAR
8-94141-937-1
01
1
1206-
●
●
112
00.724 GEAR; IDLE
Z=31
8-97229-601-0
01
1
1206-
●
112
00.724 GEAR; IDLE
Z=31
8-97164-773-0
01
1
1206-
●
113
00.724 GEAR; IDLE
Z=37
8-98140-217-0
01
1
1206-
●
113
00.724 GEAR; IDLE
Z=37
8-94139-761-0
01
1
1206-
●
305
00.724 BEARING; IDLE GEAR
8-98140-110-0
01
1
1206-
●
305
00.724 BEARING; IDLE GEAR
8-94110-271-0
01
1
1206-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
