0-11 — CYLINDER HEAD (#96158) — 24 parça

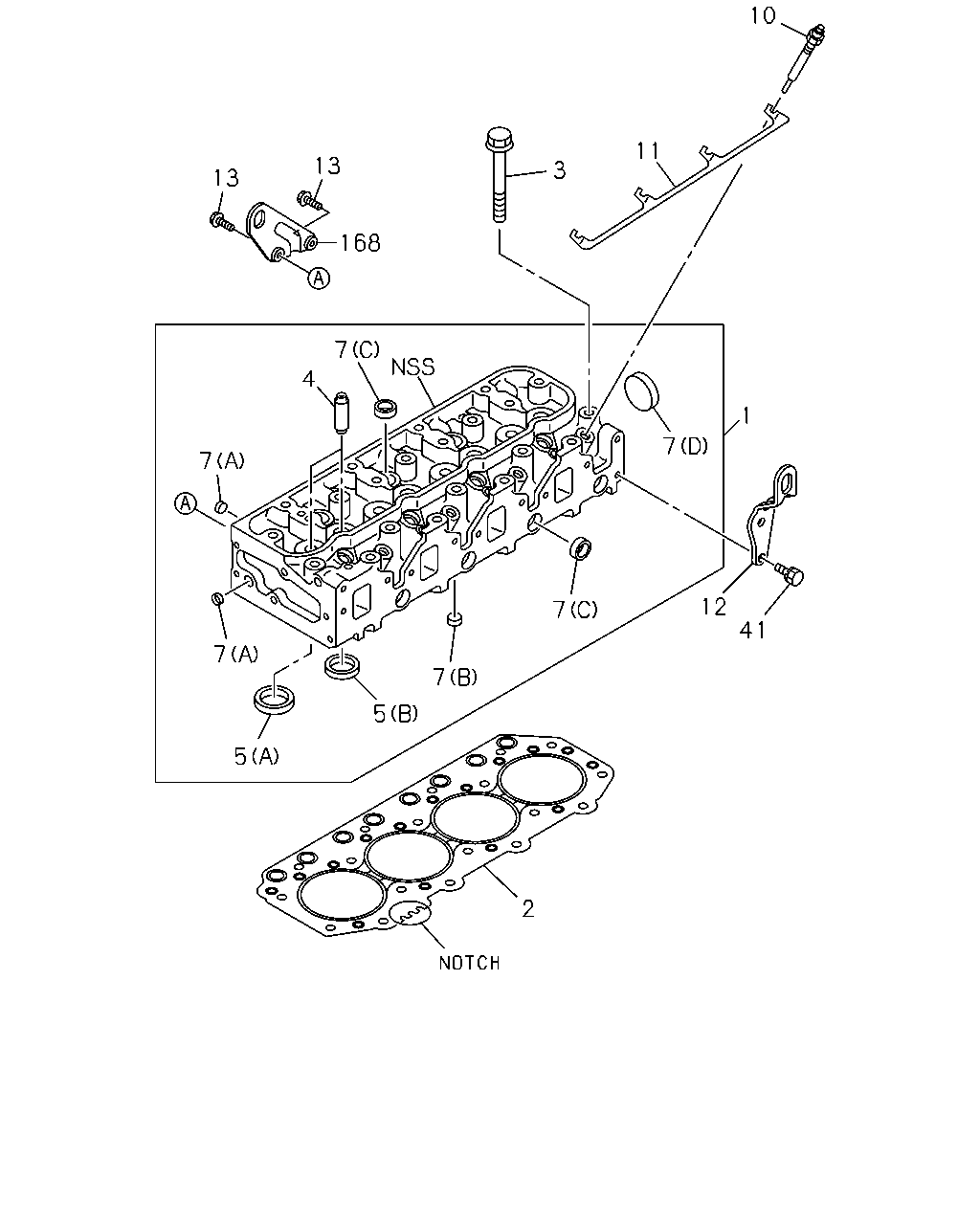

çizim 288009
13 13 168 3 11 10 7 1 41 12 7 7 5 5 7 7 4 7 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.269 HEAD ASM; CYL 8-97204-376-6 01 1 1206- ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> 		8-97120-178-4 01 1 1206- ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4> 		8-97109-642-4 01 1 1206- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 1206- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 1206- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 1206- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 1206- ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 1206- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=41.2 		8-97231-228-0 04 1 1206- ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 1206- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 1206- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 1206- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 1206- ● ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (C) OD=22 		8-97209-609-0 06 1 1206- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 1206- ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4> (C) OD=22 		8-97209-609-0 07 1 1206- ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 1206- ● ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-2 04 1 1206- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 1206- ● ●
12 00.004 HANGER; ENG,RR 8-97107-739-0 01 1 1206- ● ●
13 00.004 BOLT; HANGER
09.171 M10X25 FLANGE 		0-28051-025-0 01 1 1206- ● ●
13 00.004 BOLT; HANGER
09.008 M8X25 W/LK WASHER 		0-50540-825-0 01 1 1206- ● ●
41 09.181 BOLT; ENG HANGER
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1206- ● ●
168 00.004 HANGER; ENG,FRT 8-94379-714-1 01 1 1206- ● ●
