Sayfa 4-65A - Isuzu EPC

4-65A — REAR LEAF SPRING (#96153) — 248 parça

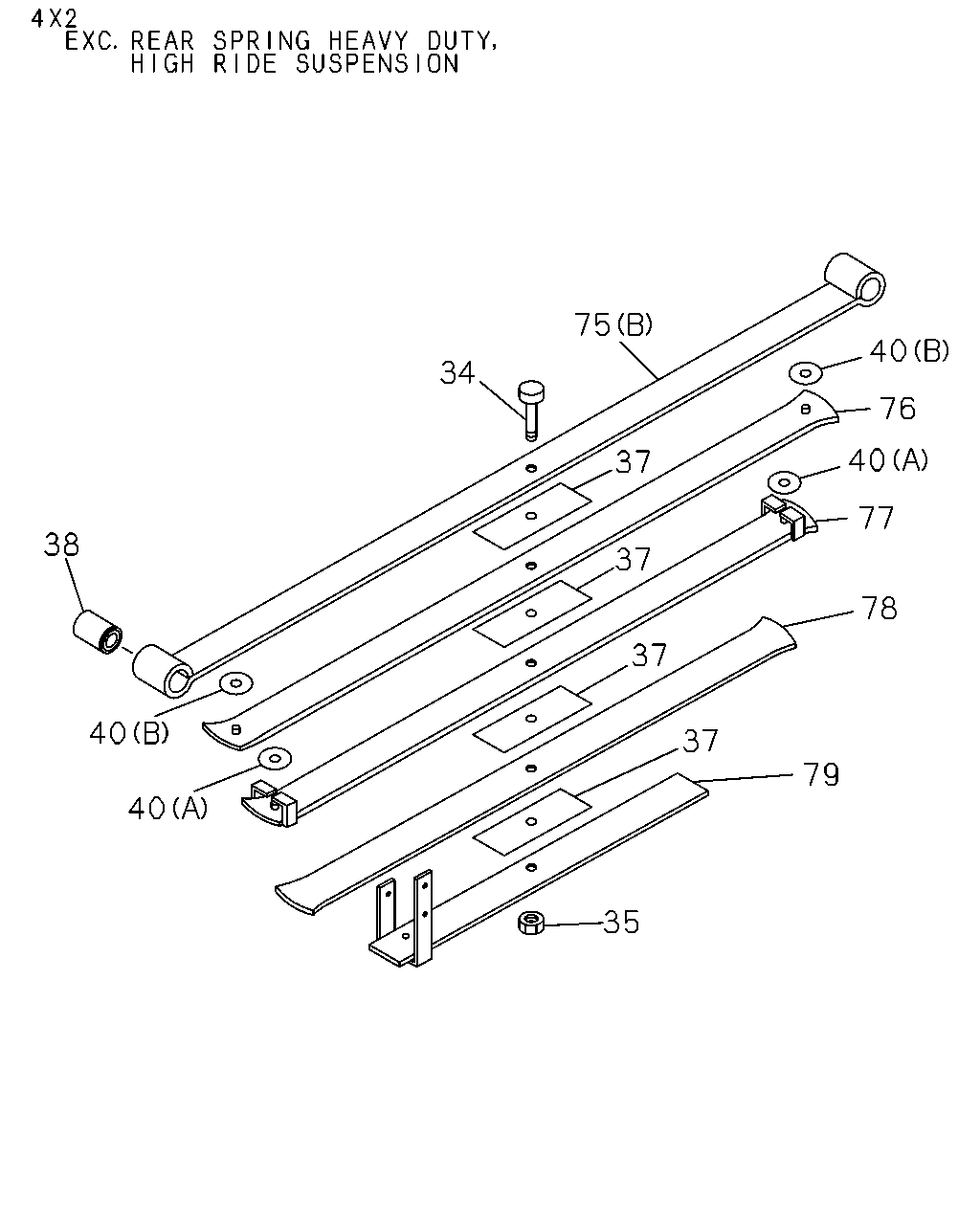

35 79 37 78 37 37 37 40 40 38 34 75 40 76 40 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: C = 8-97947-009-2, 97947009	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: B = 8-97947-008-2, 97947008	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X58 ASM PART: D = 8-97947-010-2, 97947010	8-97947-210-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: A = 8-97946-546-5, 97946546, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020	8-98161-928-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: A = 8-97946-546-5, 97946546, E = 8-97947-011-3, 97947011, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010	8-97947-195-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, K = 8-98215-684-0, 98215684	8-98161-302-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98161-302-0	04	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010, E = 8-97947-011-3, 97947011, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010, E = 8-97947-011-3, 97947011, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010, E = 8-97947-011-3, 97947011, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	8-97947-218-0	02	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: B = 8-97947-008-2, 97947008	8-97947-425-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (C) ASM PART: C = 8-97947-009-2, 97947009	8-97947-430-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: D = 8-97947-010-2, 97947010	8-97947-436-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: A = 8-97946-546-5, 97946546, G = 8-98174-020-3, 98174020	8-97947-441-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (D) ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, K = 8-98215-684-0, 98215684	8-97947-446-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (E) ASM PART: F = 8-97947-012-5, 97947012	8-97947-451-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98193-953-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-426-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: C = 8-97947-009-2, 97947009	8-97947-431-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-97947-010-2, 97947010	8-97947-437-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-97946-546-5, 97946546, G = 8-98174-020-3, 98174020	8-97947-442-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, K = 8-98215-684-0, 98215684	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: F = 8-97947-012-5, 97947012	8-97947-452-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98193-954-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-427-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-97947-009-2, 97947009	8-97947-432-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-97947-010-2, 97947010	8-97947-438-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-97946-546-5, 97946546	8-97947-443-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-97947-011-3, 97947011, K = 8-98215-684-0, 98215684	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: F = 8-97947-012-5, 97947012	8-97947-453-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: G = 8-98174-020-3, 98174020	8-98174-369-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: H = 8-98174-344-2, 98174344	8-98174-370-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: J = 8-98193-440-2, 98193440	8-98193-955-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: I = 8-98193-439-2, 98193439	8-98193-956-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-428-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: C = 8-97947-009-2, 97947009	8-97947-433-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-97947-010-2, 97947010	8-97947-439-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-97946-546-5, 97946546, G = 8-98174-020-3, 98174020	8-97947-444-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344	8-97947-449-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: F = 8-97947-012-5, 97947012	8-97947-454-3	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: K = 8-98215-684-0, 98215684	8-98215-883-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-429-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: C = 8-97947-009-2, 97947009	8-97947-434-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-97947-010-2, 97947010	8-97947-440-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-97946-546-5, 97946546, G = 8-98174-020-3, 98174020	8-97947-445-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, K = 8-98215-684-0, 98215684	8-97947-450-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98193-958-2	01	1	-

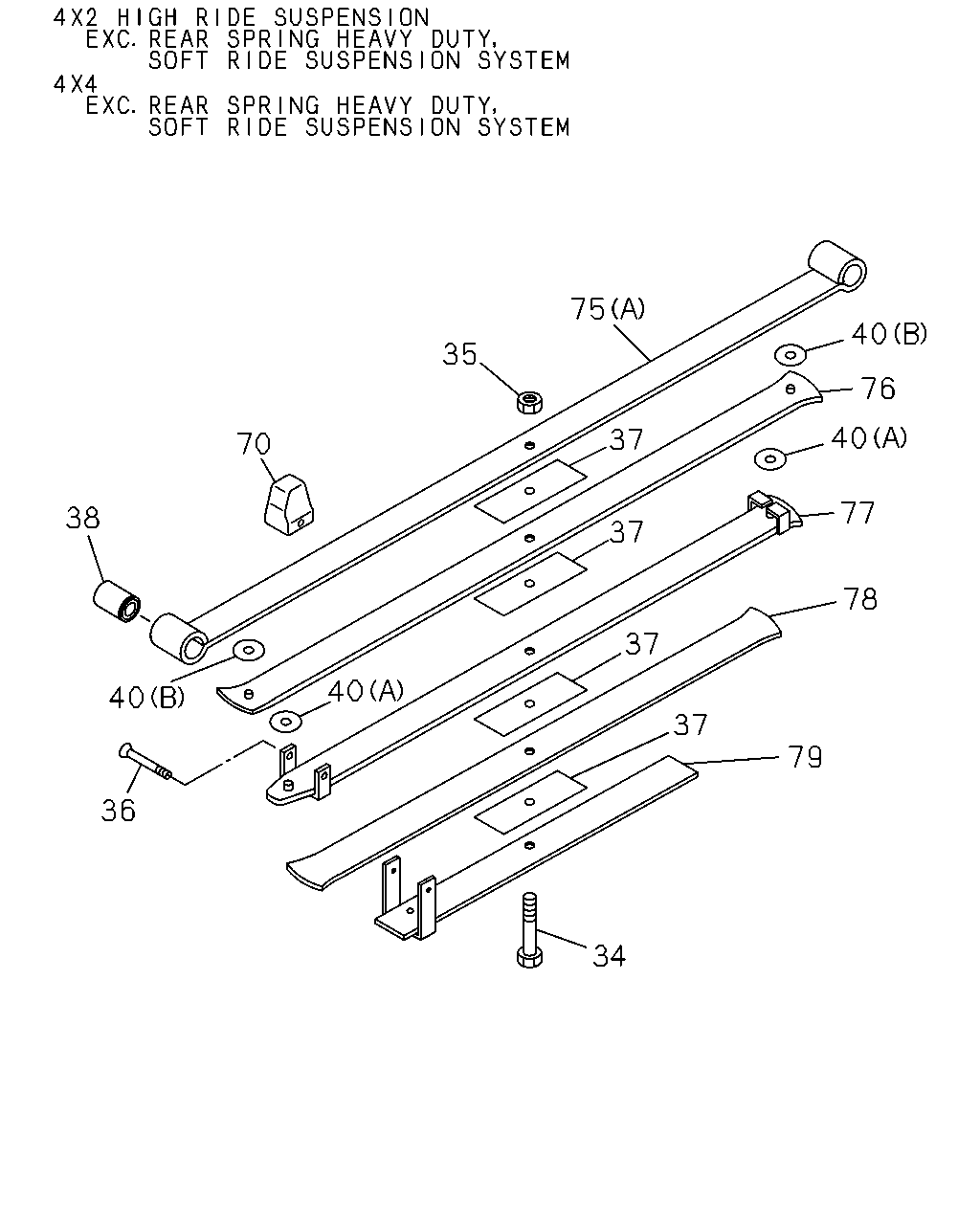

34 37 79 40 37 78 77 40 37 37 40 36 70 38 35 75 40 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: C = 8-97947-009-2, 97947009	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: B = 8-97947-008-2, 97947008	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X58 ASM PART: D = 8-97947-010-2, 97947010	8-97947-210-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: A = 8-97946-546-5, 97946546, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020	8-98161-928-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: A = 8-97946-546-5, 97946546, E = 8-97947-011-3, 97947011, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010	8-97945-821-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, H = 8-98174-344-2, 98174344, J = 8-98193-440-2, 98193440	8-98161-948-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010	8-97947-195-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, K = 8-98215-684-0, 98215684	8-98161-302-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98161-302-0	04	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010, E = 8-97947-011-3, 97947011, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010, E = 8-97947-011-3, 97947011, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010, E = 8-97947-011-3, 97947011, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	8-97947-218-0	02	1	-
70	07.505 RUBBER; LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, H = 8-98174-344-2, 98174344, J = 8-98193-440-2, 98193440	8-98170-912-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: B = 8-97947-008-2, 97947008	8-97947-425-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (C) ASM PART: C = 8-97947-009-2, 97947009	8-97947-430-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: D = 8-97947-010-2, 97947010	8-97947-436-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: A = 8-97946-546-5, 97946546, G = 8-98174-020-3, 98174020	8-97947-441-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (D) ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, K = 8-98215-684-0, 98215684	8-97947-446-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (E) ASM PART: F = 8-97947-012-5, 97947012	8-97947-451-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98193-953-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-426-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: C = 8-97947-009-2, 97947009	8-97947-431-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-97947-010-2, 97947010	8-97947-437-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-97946-546-5, 97946546, G = 8-98174-020-3, 98174020	8-97947-442-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, K = 8-98215-684-0, 98215684	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: F = 8-97947-012-5, 97947012	8-97947-452-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98193-954-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-427-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-97947-009-2, 97947009	8-97947-432-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-97947-010-2, 97947010	8-97947-438-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-97946-546-5, 97946546	8-97947-443-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-97947-011-3, 97947011, K = 8-98215-684-0, 98215684	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: F = 8-97947-012-5, 97947012	8-97947-453-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: G = 8-98174-020-3, 98174020	8-98174-369-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: H = 8-98174-344-2, 98174344	8-98174-370-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: J = 8-98193-440-2, 98193440	8-98193-955-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: I = 8-98193-439-2, 98193439	8-98193-956-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-428-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: C = 8-97947-009-2, 97947009	8-97947-433-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-97947-010-2, 97947010	8-97947-439-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-97946-546-5, 97946546, G = 8-98174-020-3, 98174020	8-97947-444-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344	8-97947-449-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: F = 8-97947-012-5, 97947012	8-97947-454-3	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: K = 8-98215-684-0, 98215684	8-98215-883-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-429-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: C = 8-97947-009-2, 97947009	8-97947-434-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-97947-010-2, 97947010	8-97947-440-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-97946-546-5, 97946546, G = 8-98174-020-3, 98174020	8-97947-445-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, K = 8-98215-684-0, 98215684	8-97947-450-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98193-958-2	01	1	-

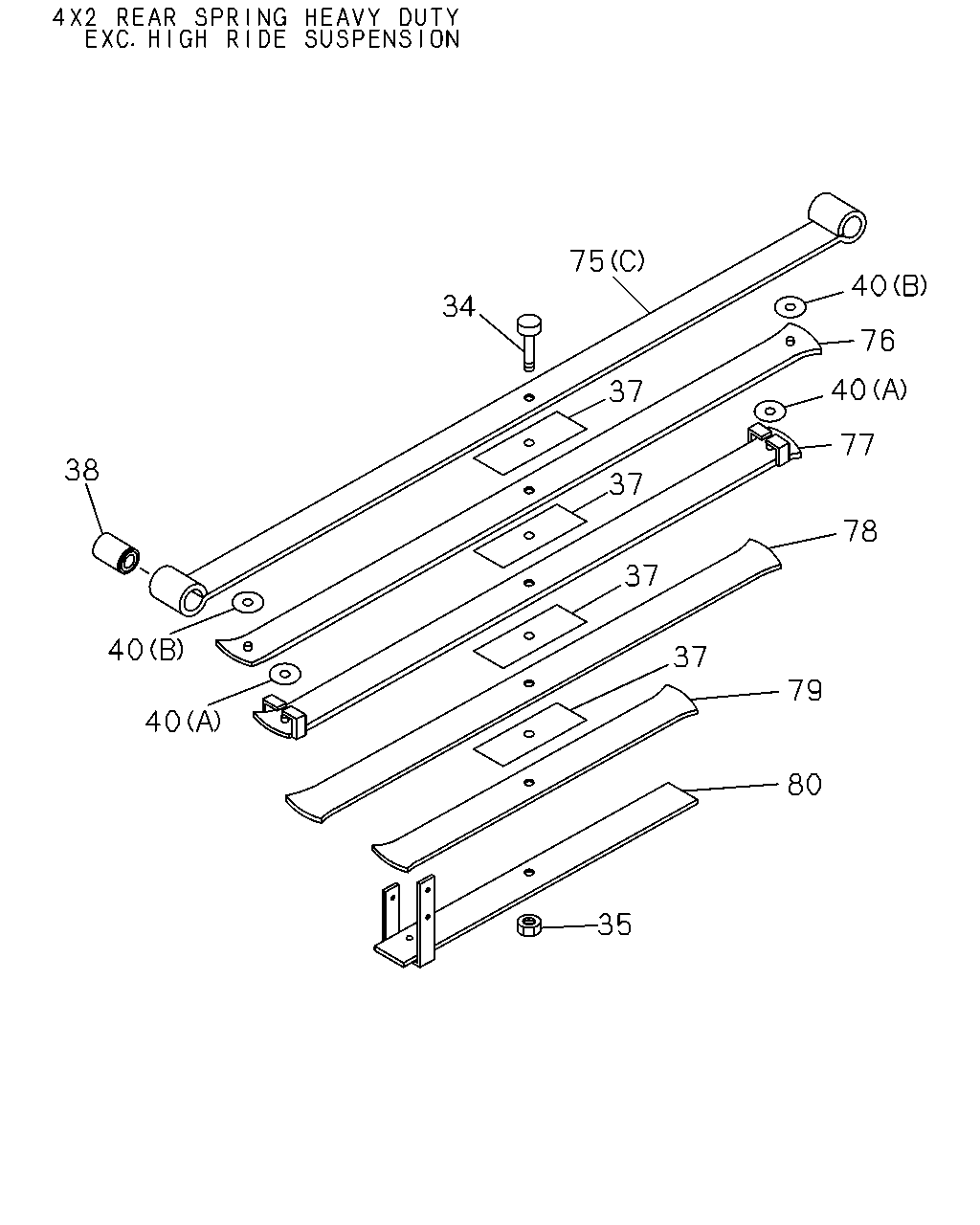

35 80 79 37 37 78 77 40 76 40 75 34 40 40 38 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: C = 8-97947-009-2, 97947009	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: B = 8-97947-008-2, 97947008	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X58 ASM PART: D = 8-97947-010-2, 97947010	8-97947-210-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: A = 8-97946-546-5, 97946546, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020	8-98161-928-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: A = 8-97946-546-5, 97946546, E = 8-97947-011-3, 97947011, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010	8-97947-195-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, K = 8-98215-684-0, 98215684	8-98161-302-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98161-302-0	04	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010, E = 8-97947-011-3, 97947011, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010, E = 8-97947-011-3, 97947011, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010, E = 8-97947-011-3, 97947011, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	8-97947-218-0	02	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: B = 8-97947-008-2, 97947008	8-97947-425-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (C) ASM PART: C = 8-97947-009-2, 97947009	8-97947-430-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: D = 8-97947-010-2, 97947010	8-97947-436-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: A = 8-97946-546-5, 97946546, G = 8-98174-020-3, 98174020	8-97947-441-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (D) ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, K = 8-98215-684-0, 98215684	8-97947-446-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (E) ASM PART: F = 8-97947-012-5, 97947012	8-97947-451-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98193-953-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-426-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: C = 8-97947-009-2, 97947009	8-97947-431-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-97947-010-2, 97947010	8-97947-437-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-97946-546-5, 97946546, G = 8-98174-020-3, 98174020	8-97947-442-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, K = 8-98215-684-0, 98215684	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: F = 8-97947-012-5, 97947012	8-97947-452-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98193-954-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-427-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-97947-009-2, 97947009	8-97947-432-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-97947-010-2, 97947010	8-97947-438-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-97946-546-5, 97946546	8-97947-443-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-97947-011-3, 97947011, K = 8-98215-684-0, 98215684	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: F = 8-97947-012-5, 97947012	8-97947-453-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: G = 8-98174-020-3, 98174020	8-98174-369-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: H = 8-98174-344-2, 98174344	8-98174-370-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: J = 8-98193-440-2, 98193440	8-98193-955-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: I = 8-98193-439-2, 98193439	8-98193-956-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-428-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: C = 8-97947-009-2, 97947009	8-97947-433-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-97947-010-2, 97947010	8-97947-439-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-97946-546-5, 97946546, G = 8-98174-020-3, 98174020	8-97947-444-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344	8-97947-449-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: F = 8-97947-012-5, 97947012	8-97947-454-3	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: K = 8-98215-684-0, 98215684	8-98215-883-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-429-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: C = 8-97947-009-2, 97947009	8-97947-434-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-97947-010-2, 97947010	8-97947-440-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-97946-546-5, 97946546, G = 8-98174-020-3, 98174020	8-97947-445-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, K = 8-98215-684-0, 98215684	8-97947-450-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98193-958-2	01	1	-
80	07.505 SPRING; LEAF,NO 6,RR ASM PART: C = 8-97947-009-2, 97947009	8-97947-435-1	01	1	-

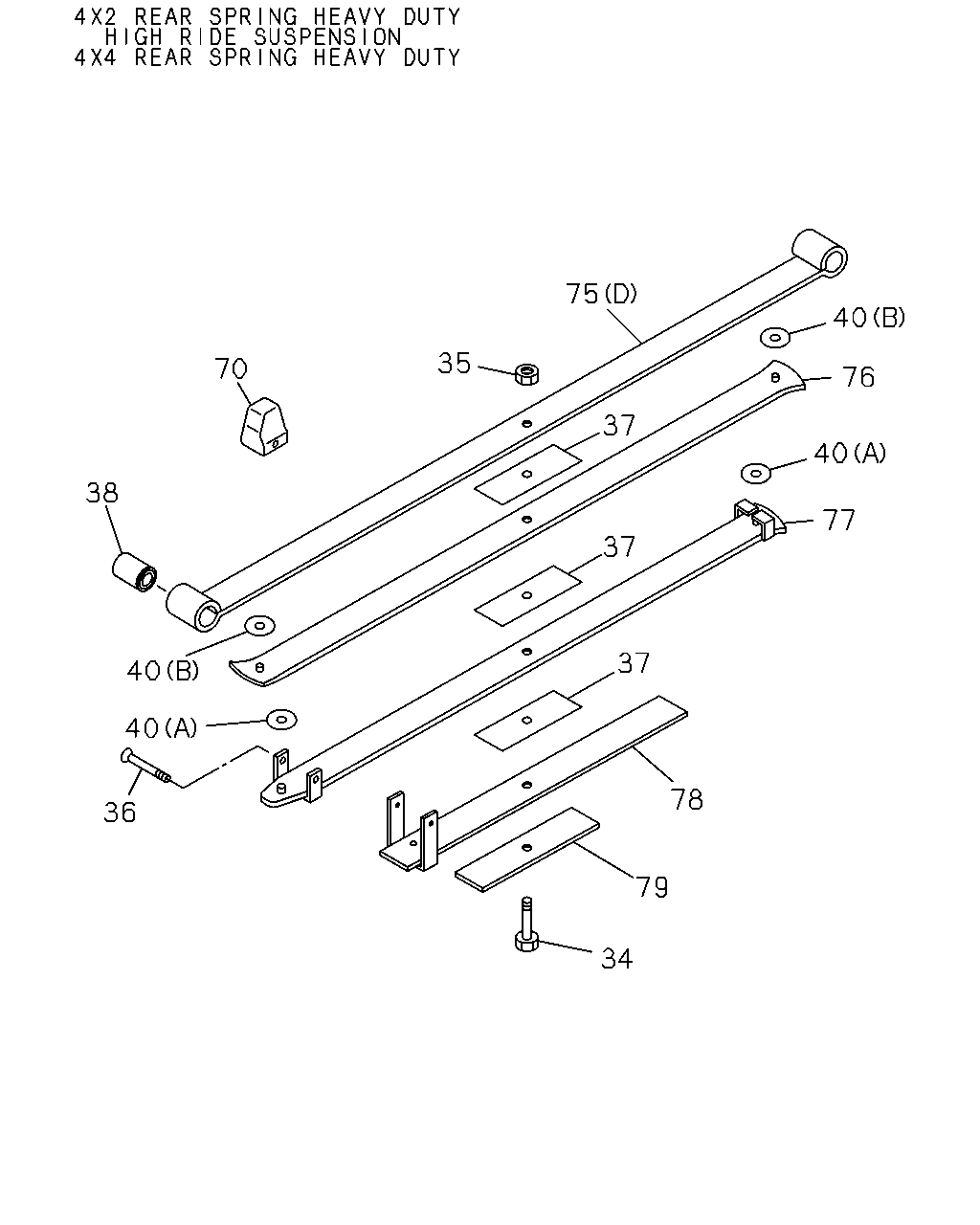

34 79 78 37 37 77 40 76 40 72 35 70 38 40 40 36 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: C = 8-97947-009-2, 97947009	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: B = 8-97947-008-2, 97947008	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X58 ASM PART: D = 8-97947-010-2, 97947010	8-97947-210-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: A = 8-97946-546-5, 97946546, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020	8-98161-928-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: A = 8-97946-546-5, 97946546, E = 8-97947-011-3, 97947011, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010	8-97945-821-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, H = 8-98174-344-2, 98174344, J = 8-98193-440-2, 98193440	8-98161-948-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010	8-97947-195-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, K = 8-98215-684-0, 98215684	8-98161-302-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98161-302-0	04	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010, E = 8-97947-011-3, 97947011, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010, E = 8-97947-011-3, 97947011, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010, E = 8-97947-011-3, 97947011, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	8-97947-218-0	02	1	-
70	07.505 RUBBER; LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, H = 8-98174-344-2, 98174344, J = 8-98193-440-2, 98193440	8-98170-912-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-426-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: C = 8-97947-009-2, 97947009	8-97947-431-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-97947-010-2, 97947010	8-97947-437-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-97946-546-5, 97946546, G = 8-98174-020-3, 98174020	8-97947-442-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, K = 8-98215-684-0, 98215684	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: F = 8-97947-012-5, 97947012	8-97947-452-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98193-954-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-427-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-97947-009-2, 97947009	8-97947-432-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-97947-010-2, 97947010	8-97947-438-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-97946-546-5, 97946546	8-97947-443-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-97947-011-3, 97947011, K = 8-98215-684-0, 98215684	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: F = 8-97947-012-5, 97947012	8-97947-453-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: G = 8-98174-020-3, 98174020	8-98174-369-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: H = 8-98174-344-2, 98174344	8-98174-370-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: J = 8-98193-440-2, 98193440	8-98193-955-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: I = 8-98193-439-2, 98193439	8-98193-956-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-428-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: C = 8-97947-009-2, 97947009	8-97947-433-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-97947-010-2, 97947010	8-97947-439-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-97946-546-5, 97946546, G = 8-98174-020-3, 98174020	8-97947-444-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344	8-97947-449-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: F = 8-97947-012-5, 97947012	8-97947-454-3	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: K = 8-98215-684-0, 98215684	8-98215-883-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-429-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: C = 8-97947-009-2, 97947009	8-97947-434-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-97947-010-2, 97947010	8-97947-440-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-97946-546-5, 97946546, G = 8-98174-020-3, 98174020	8-97947-445-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, K = 8-98215-684-0, 98215684	8-97947-450-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98193-958-2	01	1	-

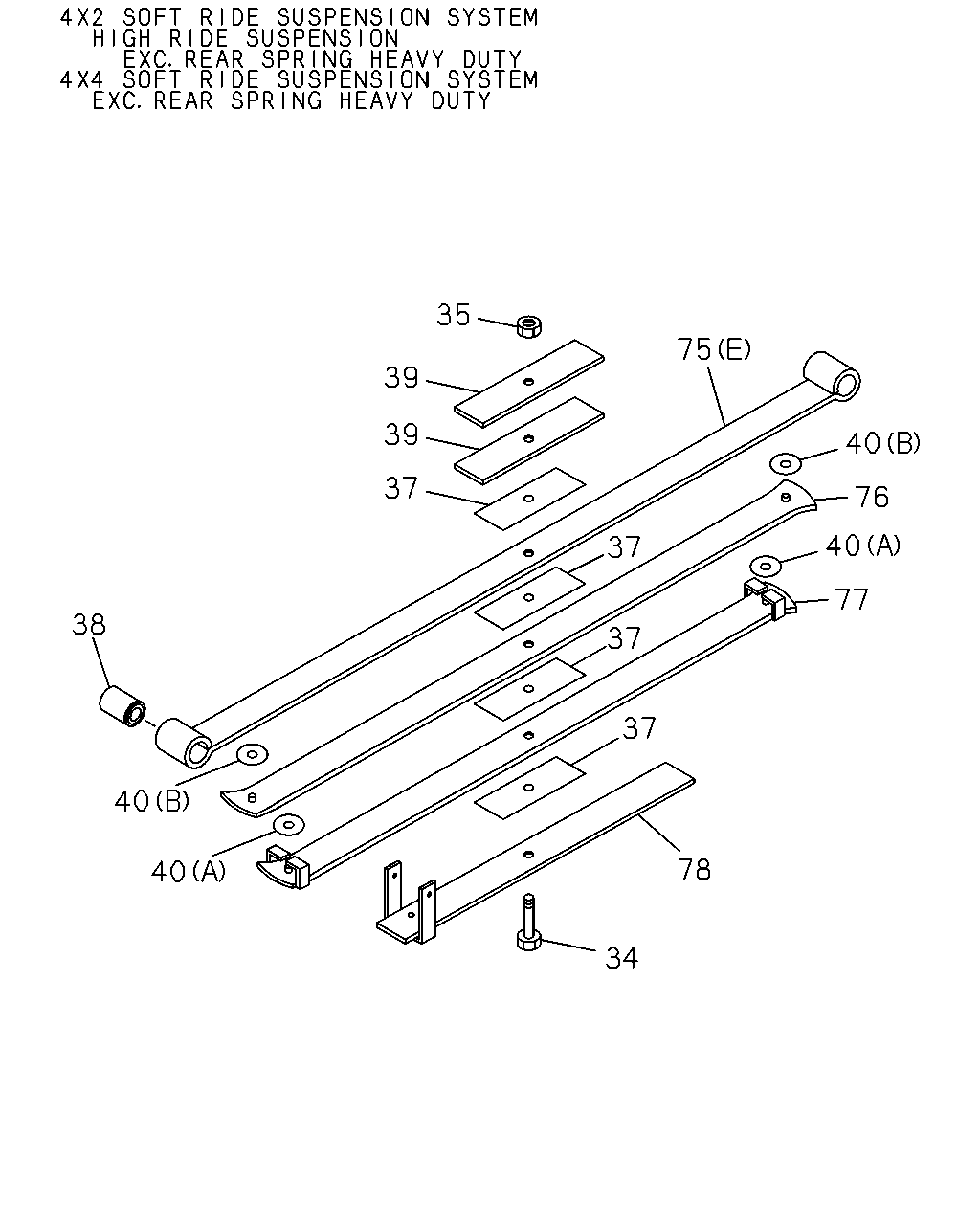

34 78 37 37 37 75 40 76 77 40 40 40 38 37 39 39 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: C = 8-97947-009-2, 97947009	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: B = 8-97947-008-2, 97947008	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X58 ASM PART: D = 8-97947-010-2, 97947010	8-97947-210-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: A = 8-97946-546-5, 97946546, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020	8-98161-928-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: A = 8-97946-546-5, 97946546, E = 8-97947-011-3, 97947011, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010	8-97947-195-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, K = 8-98215-684-0, 98215684	8-98161-302-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98161-302-0	04	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010, E = 8-97947-011-3, 97947011, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	8-97947-171-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN ASM PART: F = 8-97947-012-5, 97947012	8-98161-304-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010, E = 8-97947-011-3, 97947011, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-97947-009-2, 97947009, D = 8-97947-010-2, 97947010, E = 8-97947-011-3, 97947011, F = 8-97947-012-5, 97947012, G = 8-98174-020-3, 98174020, H = 8-98174-344-2, 98174344, I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440, K = 8-98215-684-0, 98215684	8-97947-218-0	02	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: B = 8-97947-008-2, 97947008	8-97947-425-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (C) ASM PART: C = 8-97947-009-2, 97947009	8-97947-430-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: D = 8-97947-010-2, 97947010	8-97947-436-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: A = 8-97946-546-5, 97946546, G = 8-98174-020-3, 98174020	8-97947-441-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (D) ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, K = 8-98215-684-0, 98215684	8-97947-446-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (E) ASM PART: F = 8-97947-012-5, 97947012	8-97947-451-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98193-953-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-426-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: C = 8-97947-009-2, 97947009	8-97947-431-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-97947-010-2, 97947010	8-97947-437-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-97946-546-5, 97946546, G = 8-98174-020-3, 98174020	8-97947-442-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344, K = 8-98215-684-0, 98215684	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: F = 8-97947-012-5, 97947012	8-97947-452-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98193-954-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-427-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-97947-009-2, 97947009	8-97947-432-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-97947-010-2, 97947010	8-97947-438-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-97946-546-5, 97946546	8-97947-443-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-97947-011-3, 97947011, K = 8-98215-684-0, 98215684	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: F = 8-97947-012-5, 97947012	8-97947-453-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: G = 8-98174-020-3, 98174020	8-98174-369-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: H = 8-98174-344-2, 98174344	8-98174-370-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: J = 8-98193-440-2, 98193440	8-98193-955-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: I = 8-98193-439-2, 98193439	8-98193-956-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-428-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: C = 8-97947-009-2, 97947009	8-97947-433-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-97947-010-2, 97947010	8-97947-439-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-97946-546-5, 97946546, G = 8-98174-020-3, 98174020	8-97947-444-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: E = 8-97947-011-3, 97947011, H = 8-98174-344-2, 98174344	8-97947-449-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: F = 8-97947-012-5, 97947012	8-97947-454-3	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: I = 8-98193-439-2, 98193439, J = 8-98193-440-2, 98193440	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: K = 8-98215-684-0, 98215684	8-98215-883-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
