Isuzu WW
▶
TRUCKS
▶
QKR
▶
51423 - QKR RHD
▶
9 - Tools
▶
9-01 - TOOLS
▶

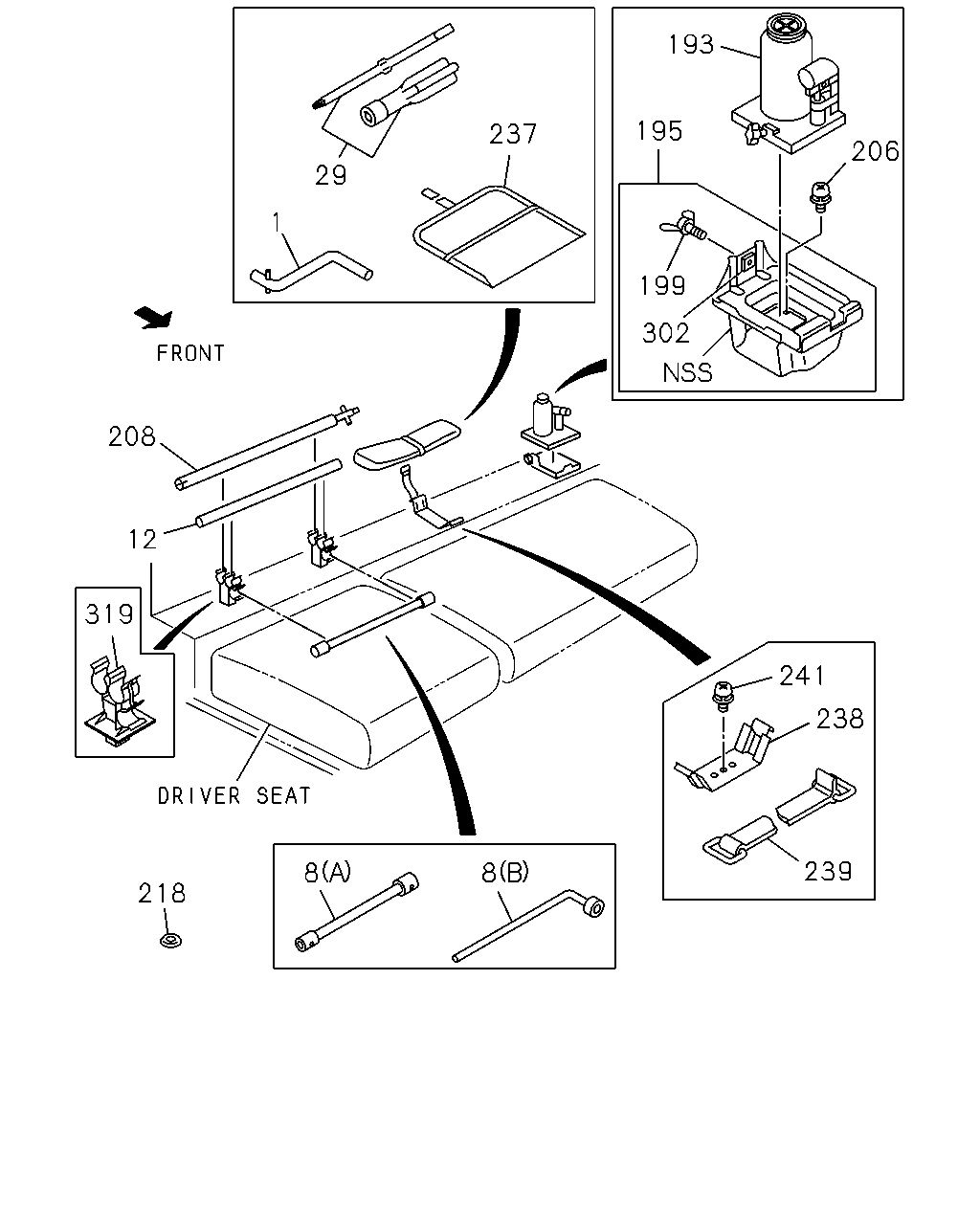

9-01 — TOOLS
(#96152) — 21 parça
Tümü
A - NKR5SE
B - NKR5SN
237
29
1
195
193
206
199
241
238
239
302
208
12
319
218
8
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
07.629 HANDLE; SPARE TIRE CARRIER
8-97218-985-0
01
1
1206-
●
●
8
08.821 WRENCH; WHEEL
(B) B=23 L=300
9-85113-935-0
01
1
1206-
●
8
08.821 WRENCH; WHEEL
(A) B=41X19 L=330
8-94386-490-1
01
1
1206-
●
12
08.821 HANDLE; WRENCH,WHEEL PIN
08.820 OD=25 L=480
1-85116-011-0
01
1
1206-1407
●
12
08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480
8-98257-407-0
01
1
1408-
●
29
08.821 DRIVER; SCREW
<+>,<-> L=160
8-94242-798-1
01
1
1206-
●
●
193
08.820 JACK ASM
5TON
8-98114-047-0
01
1
1206-
●
193
08.820 JACK ASM
4TON
8-98012-285-0
01
1
1206-
●
195
08.820 BRACKET; JACK
8-94273-287-7
01
1
1206-
●
195
08.820 BRACKET; JACK
8-94262-068-3
01
1
1206-
●
199
08.820 BOLT; JACK
M8X30 WING
8-94279-018-1
01
1
1206-
●
199
08.820 BOLT; JACK
M8X50 WING
8-94279-136-0
01
1
1206-
●
206
08.820 SCREW; OIL JACK BRKT
16.570 M6X16
0-38050-616-0
01
1
1206-
●
●
208
08.820 HANDLE; JACK
L=642
8-98181-477-0
01
1
1206-
●
●
218
08.821 PLUG
08.131 OD=53.5
8-94356-253-0
02
1
1206-
●
●
237
08.821 BAG; TOOL
8-97130-903-1
01
1
1206-
●
●
238
08.820 SUPPORT; TOOL BAG
8-97994-977-0
01
1
1206-
●
●
239
08.820 BAND; TOOL BAG
L=100
5-73997-026-1
01
1
1206-
●
●
241
08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16
0-38050-616-0
01
1
1206-
●
●
302
08.820 NUT; JACK BRKT
8-94279-522-0
01
1
1206-
●
●
319
08.821 CLIP; TOOL BAR
8-97853-077-2
02
1
1206-
●
●
