8-65 — CONTROL LEVER; HEATER AND AIR CON (#96148) — 15 parça

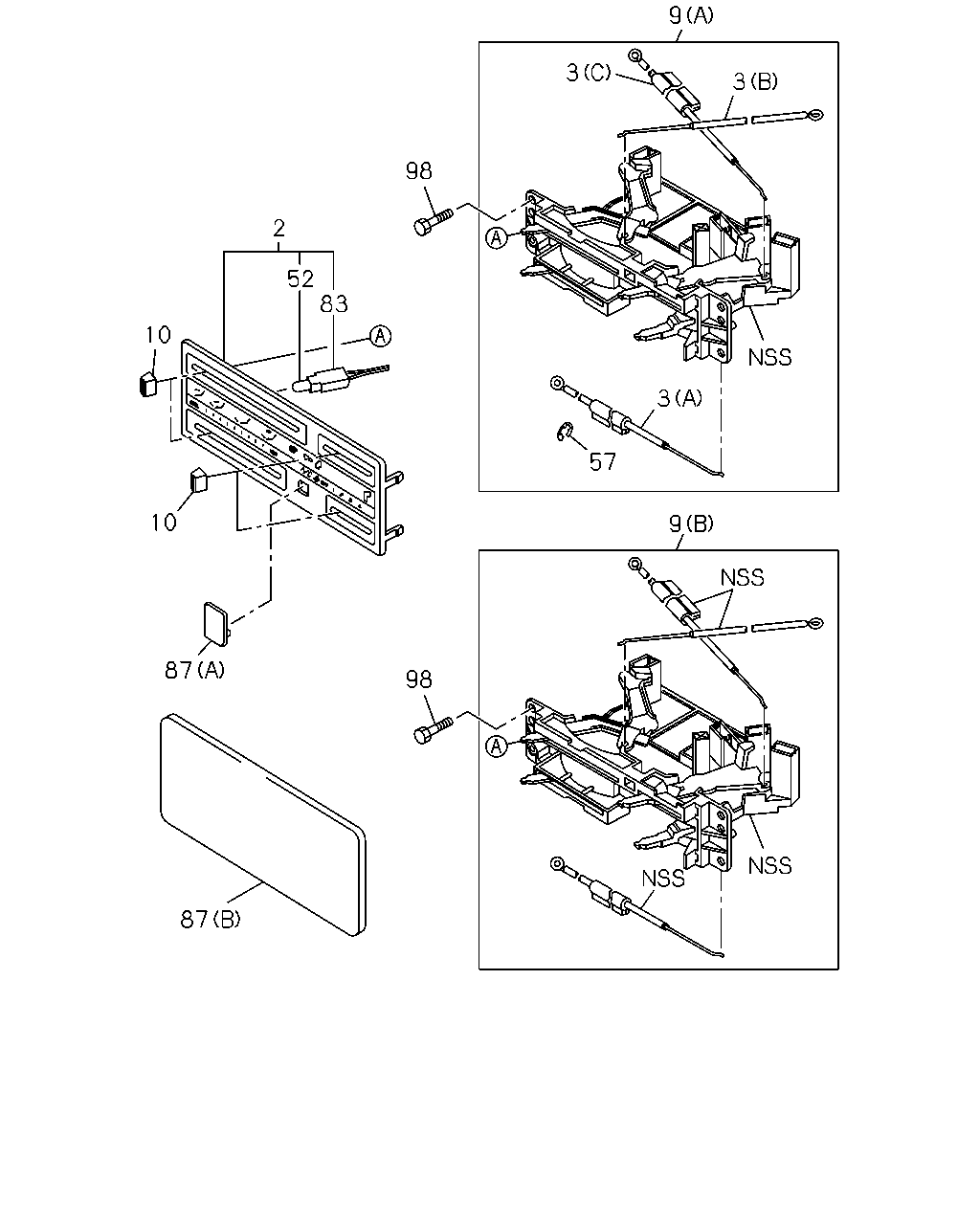

çizim 288869
98 2 52 10 10 87 83 98 87 9 3 3 57 3 9
BalonParca AdiParca NoAdetTipApplied Date A B
2 08.852 PANEL ASM; CONT,ILLUMINATION 8-97048-330-1 01 1 1206- ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41) (A) MIX 		8-97085-617-2 01 1 1206- ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41) (B) MODE 		8-97085-618-1 01 1 1206- ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41) (C) FRESH 		8-97087-578-0 01 1 1206- ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) (B) 		8-97381-197-0 01 1 1206- ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41) (A) 		8-97048-456-4 01 1 1206- ● ●
10 08.852 KNOB; CONT LEVER
FORGED AIR VENTILATION(C39) 		8-97114-430-0 02 1 1206- ● ●
10 08.852 KNOB; CONT LEVER
HEATER & DEFROSTER(C41) 		8-97114-430-0 04 1 1206- ● ●
52 08.991 BULB; PANEL ILLUMINATION
14V 140MA 		8-97100-290-0 01 1 1206- ● ●
57 09.787 RING; SNAP,HTR CONT LVR
HEATER & DEFROSTER(C41) 		8-97262-535-0 01 1 1206- ● ●
83 08.849 HARNESS; CONT PANEL 8-97308-566-0 01 1 1206- ● ●
87 08.849 CAP; A/C SWITCH
(A) 		8-97065-448-2 01 1 1206- ● ●
87 08.849 CAP; A/C SWITCH
EXC. HEATER & DEFROSTER(C41) (B) 		8-97071-228-0 01 1 1206- ● ●
98 08.852 SCREW; CONT PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 03 1 1206-1210 ● ●
98 08.852 SCREW; CONT PANEL
02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 03 1 1211- ● ●
