◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51423 - QKR RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#96147) — 64 parça

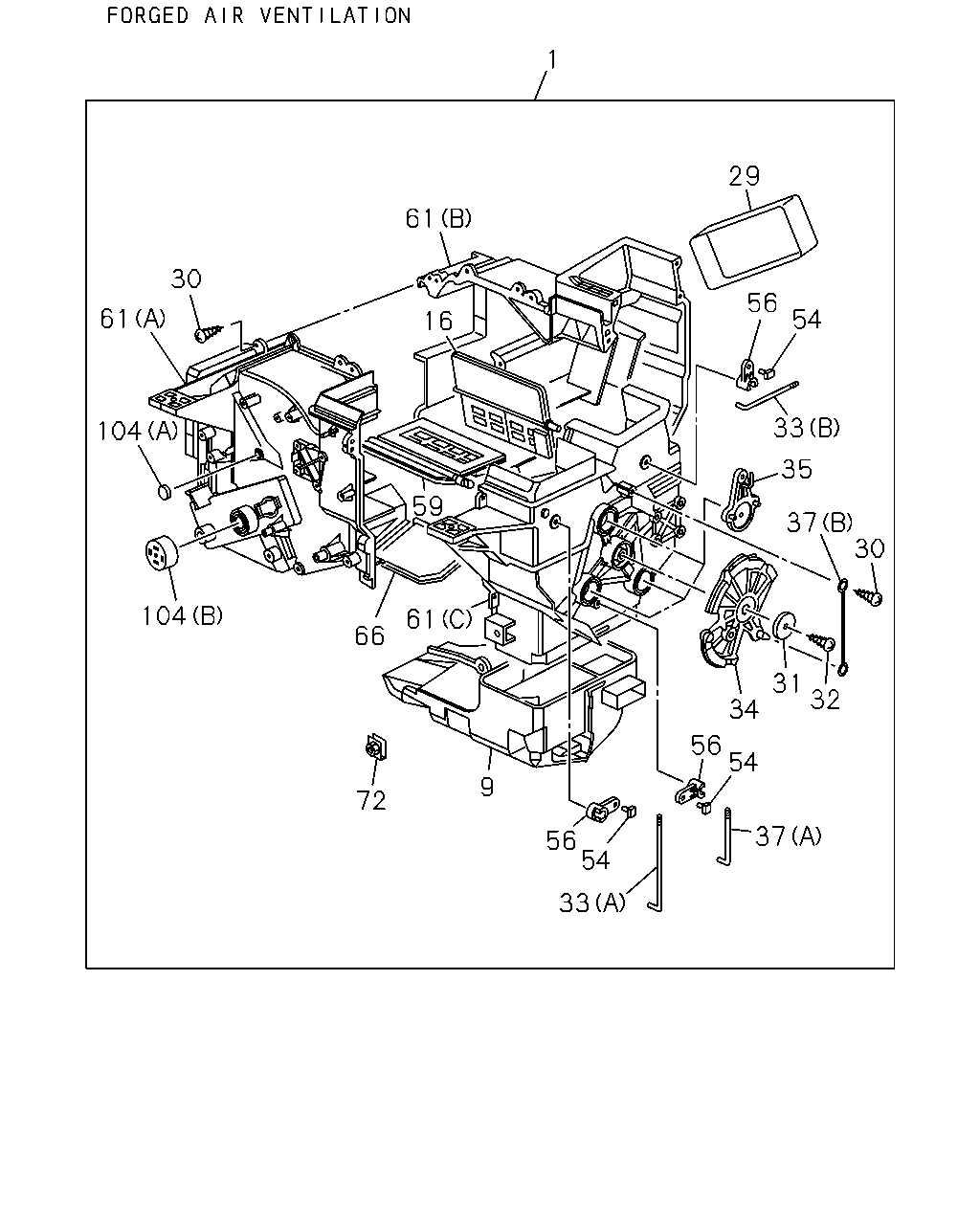

çizim 288861
29 1 61 30 61 104 16 56 54 33 35 37 30 31 32 34 56 54 61 104 72 66 9 56 54 33 37 59
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-97381-200-0 01 1 1206- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-97224-286-2 01 1 1206-1408 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98238-498-0 01 1 1409- ● ●
9 08.854 DUCT; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97087-555-0 01 1 1206- ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97087-559-2 01 1 1206- ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-97102-661-0 01 1 1206- ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 		8-94324-850-0 11 1 1206- ● ●
31 08.852 WASHER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-94129-950-0 01 1 1206- ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.846 M5X16 		8-94248-820-0 01 1 1409- ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 10.240 M5X20 		9-09829-324-1 01 1 1206-1408 ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 10.240 M5X20 		9-09829-324-1 01 1 1409- ● ●
33 09.786 ROD; SHUTTER LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) 		8-97087-568-1 01 1 1206- ● ●
33 09.786 ROD; SHUTTER LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) 		8-97087-569-1 01 1 1206- ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97166-657-0 01 1 1206- ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97087-565-0 03 1 1206- ● ●
37 08.852 ROD; LEVER
FORGED AIR VENTILATION(C39) (B) 		8-98008-959-0 01 1 1206- ● ●
37 08.852 ROD; LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) 		8-97087-570-1 01 1 1206- ● ●
54 08.854 CLIP; SHUTTER LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		1-83574-136-0 03 1 1206- ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97096-142-0 03 1 1206- ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97087-558-2 01 1 1206- ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (A) 		8-97115-147-3 01 1 1206- ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) 		8-97087-552-0 01 1 1206- ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (C) 		8-97087-553-0 01 1 1206- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-97087-551-3 01 1 1206- ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97087-560-2 01 1 1206- ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97085-613-0 02 1 1206- ● ●
104 08.854 CAP; CASE,HTR UNIT
FORGED AIR VENTILATION(C39) 08.845 (A) 		8-94328-657-0 04 1 1206- ● ●
104 08.854 CAP; CASE,HTR UNIT
FORGED AIR VENTILATION(C39) (B) 		8-94387-703-0 01 1 1206- ● ●

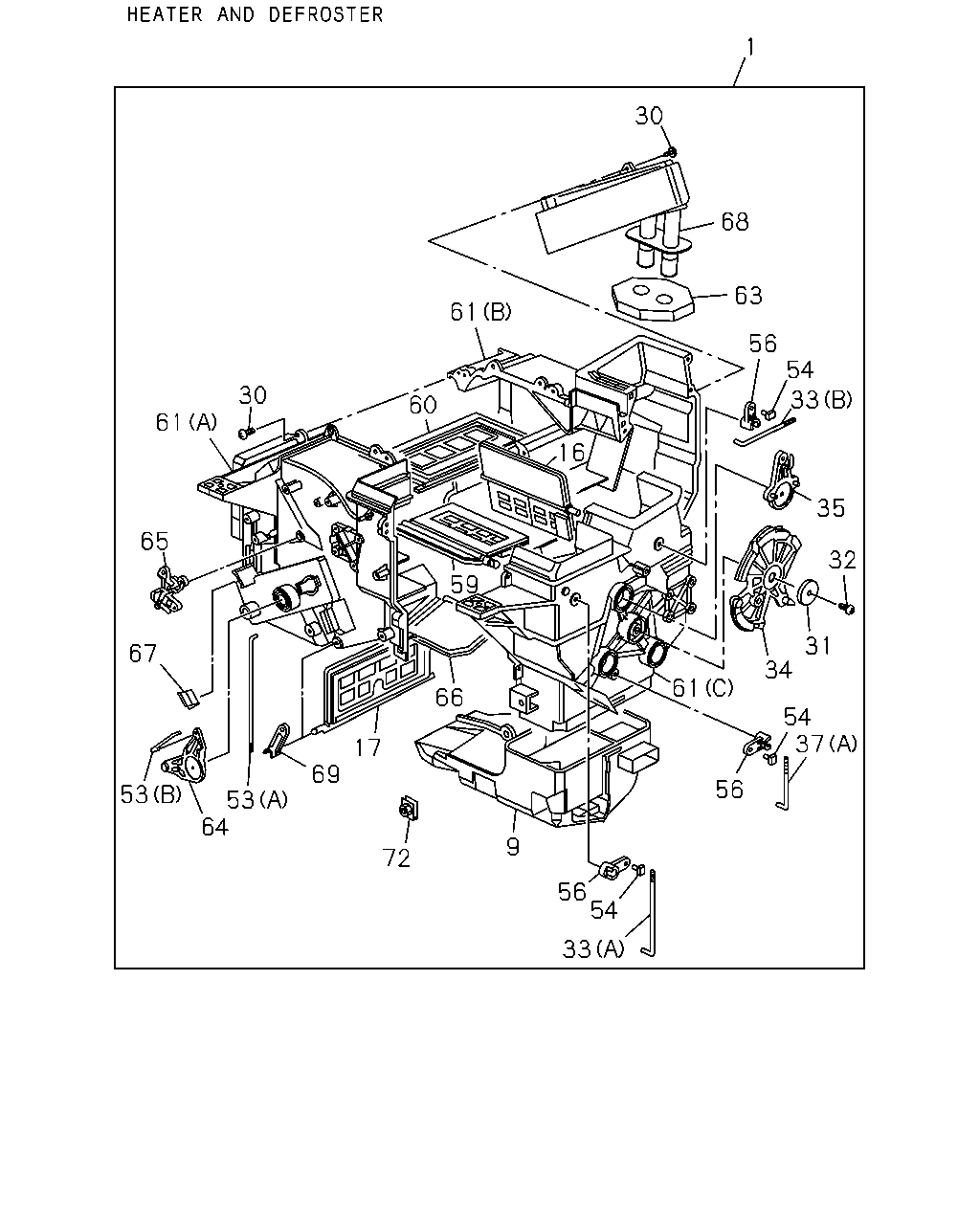

çizim 289678
30 68 61 63 30 61 65 60 56 54 33 35 59 67 66 61 34 32 31 54 37 56 9 72 69 17 53 53 64 56 54 33 1 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-97381-200-0 01 1 1206- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-97224-286-2 01 1 1206-1408 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98238-498-0 01 1 1409- ● ●
9 08.854 DUCT; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97087-555-0 01 1 1206- ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97087-559-2 01 1 1206- ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41) 		8-97087-557-1 01 1 1206- ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 		8-94324-850-0 11 1 1206- ● ●
31 08.852 WASHER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-94129-950-0 01 1 1206- ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.846 M5X16 		8-94248-820-0 01 1 1409- ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 10.240 M5X20 		9-09829-324-1 01 1 1206-1408 ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 10.240 M5X20 		9-09829-324-1 01 1 1409- ● ●
33 09.786 ROD; SHUTTER LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) 		8-97087-568-1 01 1 1206- ● ●
33 09.786 ROD; SHUTTER LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) 		8-97087-569-1 01 1 1206- ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97166-657-0 01 1 1206- ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97087-565-0 03 1 1206- ● ●
37 08.852 ROD; LEVER
FORGED AIR VENTILATION(C39) (B) 		8-98008-959-0 01 1 1206- ● ●
37 08.852 ROD; LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) 		8-97087-570-1 01 1 1206- ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (B) 		8-97087-566-0 01 1 1206- ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (A) 		8-97087-567-1 01 1 1206- ● ●
54 08.854 CLIP; SHUTTER LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		1-83574-136-0 03 1 1206- ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97096-142-0 03 1 1206- ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97087-558-2 01 1 1206- ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41) 		8-97087-556-1 01 1 1206- ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (A) 		8-97115-147-3 01 1 1206- ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) 		8-97087-552-0 01 1 1206- ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (C) 		8-97087-553-0 01 1 1206- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-97087-551-3 01 1 1206- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41) 		8-97131-580-0 01 1 1206- ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41) 		8-97087-562-1 01 1 1206- ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41) 		8-97087-564-1 01 1 1206- ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97087-560-2 01 1 1206- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) 09.787 		8-94337-654-0 02 1 1206- ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-97251-290-0 01 1 1206-1408 ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98238-503-0 01 1 1409- ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-97087-563-1 01 1 1206- ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-97085-613-0 02 1 1206- ● ●
