8-40 — HEATER SYSTEM
(#96145) — 23 parça
Tümü
A - NKR5SE
B - NKR5SN
◀

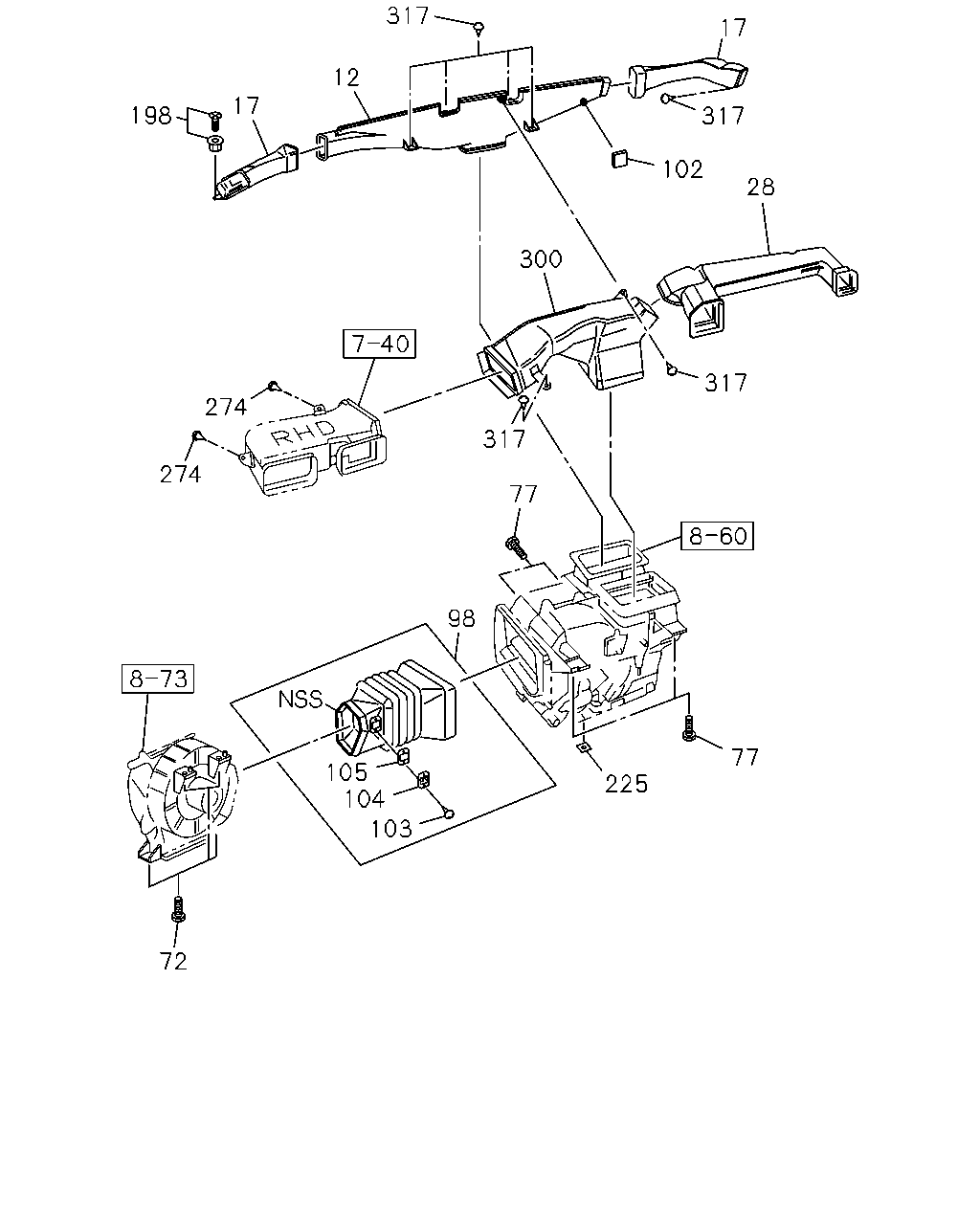

[840A] NOZZLE AND DUCT (19 parça)
[840A] PLUG (2 parça)
[840A] PLATE;BAFFLE,BOLWER UNIT (2 parça)
▶
317
12
198
17
274
274
300
102
17
317
28
317
317
77
225
77
98
105
104
103
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
09.779 NOZZLE; DEFROSTER
HEATER & DEFROSTER(C41)
8-97251-627-0
01
1
1206-
●
●
17
09.779 NOZZLE; DEFROSTER,SIDE
HEATER & DEFROSTER(C41)
8-97262-689-0
01
1
1206-
●
●
17
09.779 NOZZLE; DEFROSTER,SIDE
HEATER & DEFROSTER(C41)
8-97262-690-0
01
1
1206-
●
●
28
09.786 DUCT; AIR,VENTILATOR
8-97262-686-0
01
1
1206-
●
●
72
08.857 BOLT; BLOWER UNIT
03.162 M6X20 FLANGE
0-28650-620-0
02
1
1206-
●
●
72
08.857 BOLT; BLOWER UNIT
M8X35
8-97103-452-0
02
1
1206-
●
●
77
08.845 BOLT; HTR UNIT
03.162 M6X20 FLANGE
0-28650-620-0
02
1
1206-
●
●
77
08.845 BOLT; HTR UNIT
M8X25
8-97103-451-0
02
1
1206-
●
●
98
09.262 DUCT; BLOWER UNIT TO HTR UNIT
8-97358-595-0
01
1
1206-
●
●
102
09.262 LINING; HTR DUCT
HEATER & DEFROSTER(C41)
8-97145-038-0
01
1
1206-
●
●
103
08.855 SCREW; TAPPING,RESISTOR FIX
09.789 M4X16 TAPPING
1-83579-114-0
02
1
1206-
●
●
104
08.855 RESISTOR; HTR DUCT
8-97357-912-0
01
1
1206-
●
●
105
08.856 PLATE; HTR DUCT
8-97020-761-0
01
1
1206-
●
●
198
09.787 CLIP; DUCT
HEATER & DEFROSTER(C41) 12.934 D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
01
1
1206-
●
●
225
08.845 SEAL; WATER
8-97856-616-0
04
1
1206-
●
●
274
08.852 SCREW; VENT DUCT
FORGED AIR VENTILATION(C39) 04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
01
1
1206-
●
●
274
08.852 SCREW; VENT DUCT
HEATER & DEFROSTER(C41) 04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
02
1
1206-
●
●
300
09.264 DUCT; VENT,CENTER
8-97262-687-0
01
1
1206-
●
●
317
09.264 SCREW; DEFROSTER NOZZLE
HEATER & DEFROSTER(C41) 04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
05
1
1206-
●
●
266
266
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
266
08.845 PLUG; HTR HOLE
16.550 (B)
8-97037-392-0
01
1
1206-
●
●
266
08.845 PLUG; HTR HOLE
09.211 (A) OD=13
9-09756-019-0
01
1
1206-
●
●
371
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
370
08.866 PLATE; BAFFLE,BLOWER UNIT
8-97856-129-2
01
1
1206-
●
●
371
08.866 FASTENER; BAFFLE PLATE
12.934 D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
01
1
1206-
●
●
