◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51423 - QKR RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#96142) — 27 parça

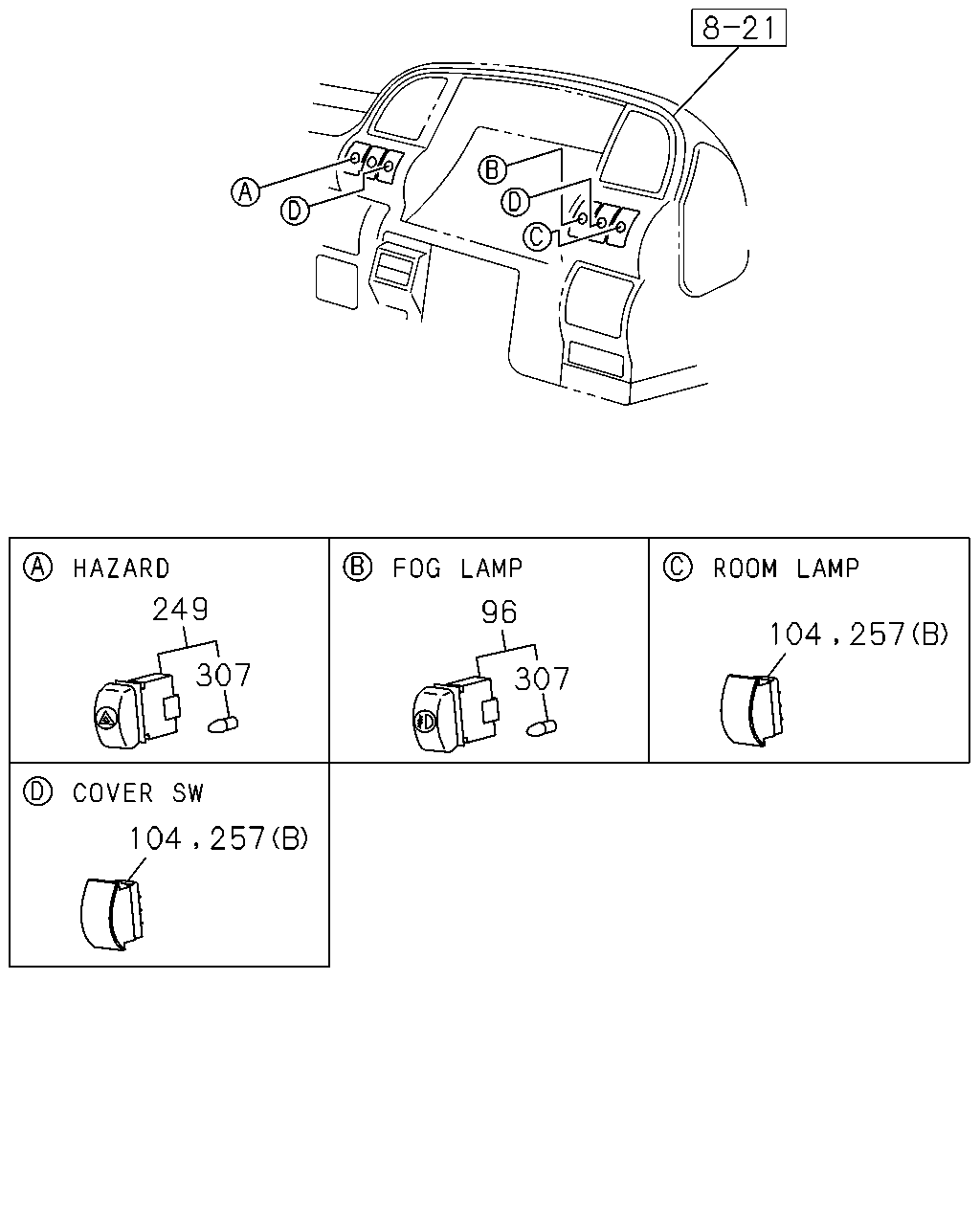

çizim 288800
104 257 96 307 104 257 249 307
BalonParca AdiParca NoAdetTipApplied Date A B
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97140-964-0 01 1 1206- ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 1206- ● ●
249 02.485 SWITCH; HAZARD 8-97202-476-0 01 1 1206- ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 1206- ● ●
257 16.081 COVER; HOLE,SW
09.744 (B) 		8-97136-694-0 02 1 1206- ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> 14V 60MA 		8-97116-329-0 01 1 1206- ● ●
307 08.991 BULB ASM; SW
14V 60MA 		8-97116-329-0 02 1 1206- ● ●

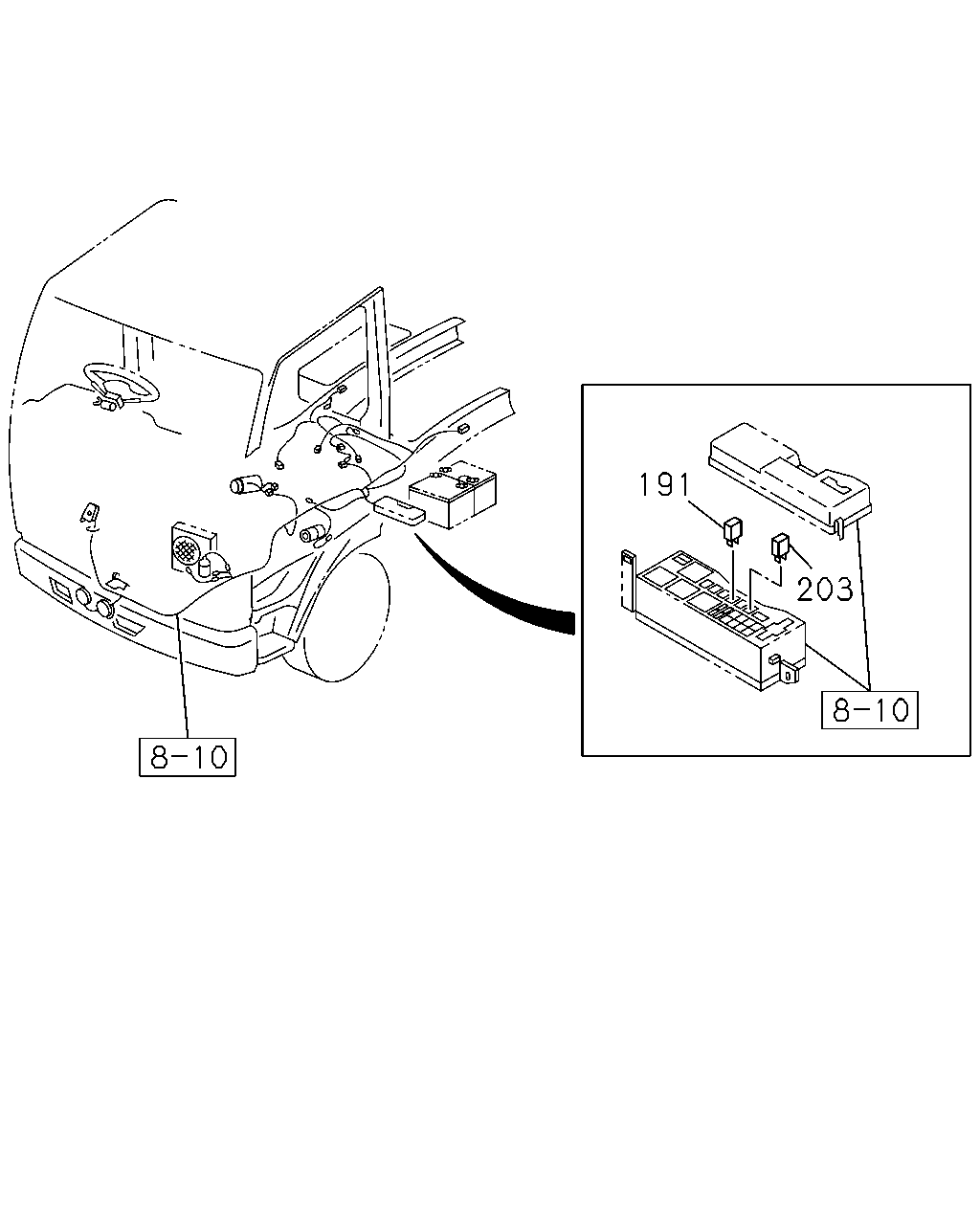

çizim 288807
191 203
BalonParca AdiParca NoAdetTipApplied Date A B
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> 12V 20A 		8-97173-037-1 01 1 1206- ● ●
203 02.510 RELAY; COLD START DEVICE (CSD)
4JB1-NA ENG(RLF) 12V 20A 		8-97173-037-1 01 1 1206- ● ●
çizim 288809
257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B
29 16.263 SWITCH; DOOR 8-97855-032-3 01 1 1206- ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 1206- ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 1206- ● ●
257 16.081 COVER; HOLE,SW
09.744 (B) 		8-97136-694-0 02 1 1206- ● ●

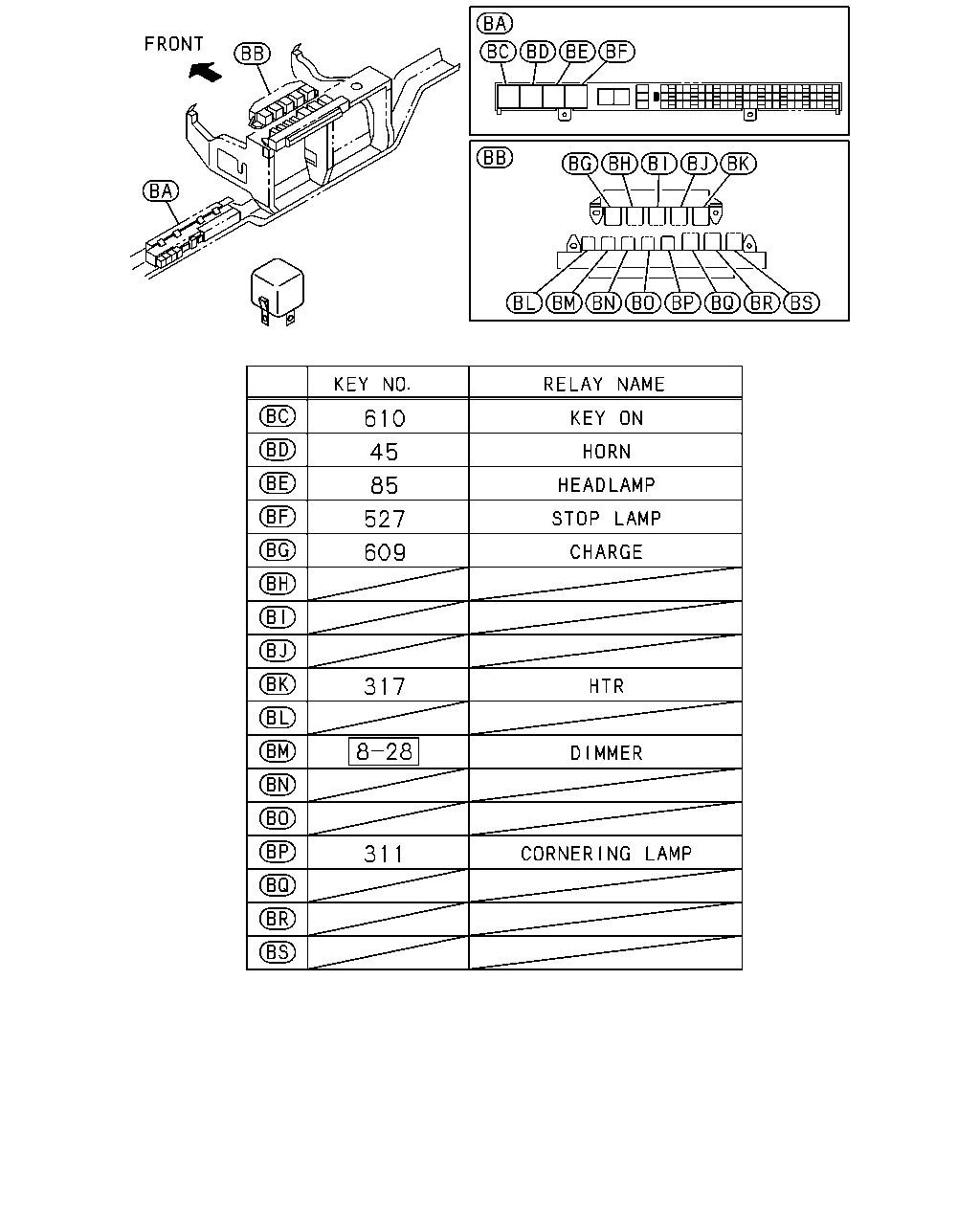

çizim 288812
610 85 45 527 609 317 311
BalonParca AdiParca NoAdetTipApplied Date A B
45 02.252 RELAY; HORN
02.510 12V 20A 		8-97173-037-1 01 1 1206- ● ●
85 02.485 RELAY; HEADLAMP
02.510 12V 20A 		8-97173-037-1 01 1 1206- ● ●
311 02.596 RELAY; CORNERING LAMP
02.510 12V 20A 		8-97173-037-1 01 1 1206- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
08.852 12V 20A 		8-97060-926-1 01 1 1206- ● ●
527 02.510 RELAY; TAIL
12V 20A 		8-97173-037-1 01 1 1206- ● ●
609 02.485 RELAY; CHARGE
02.510 12V 		8-97063-441-2 01 1 1206- ● ●
610 02.510 RELAY; KEY ON
12V 20A 		8-97173-037-1 01 1 1206- ● ●

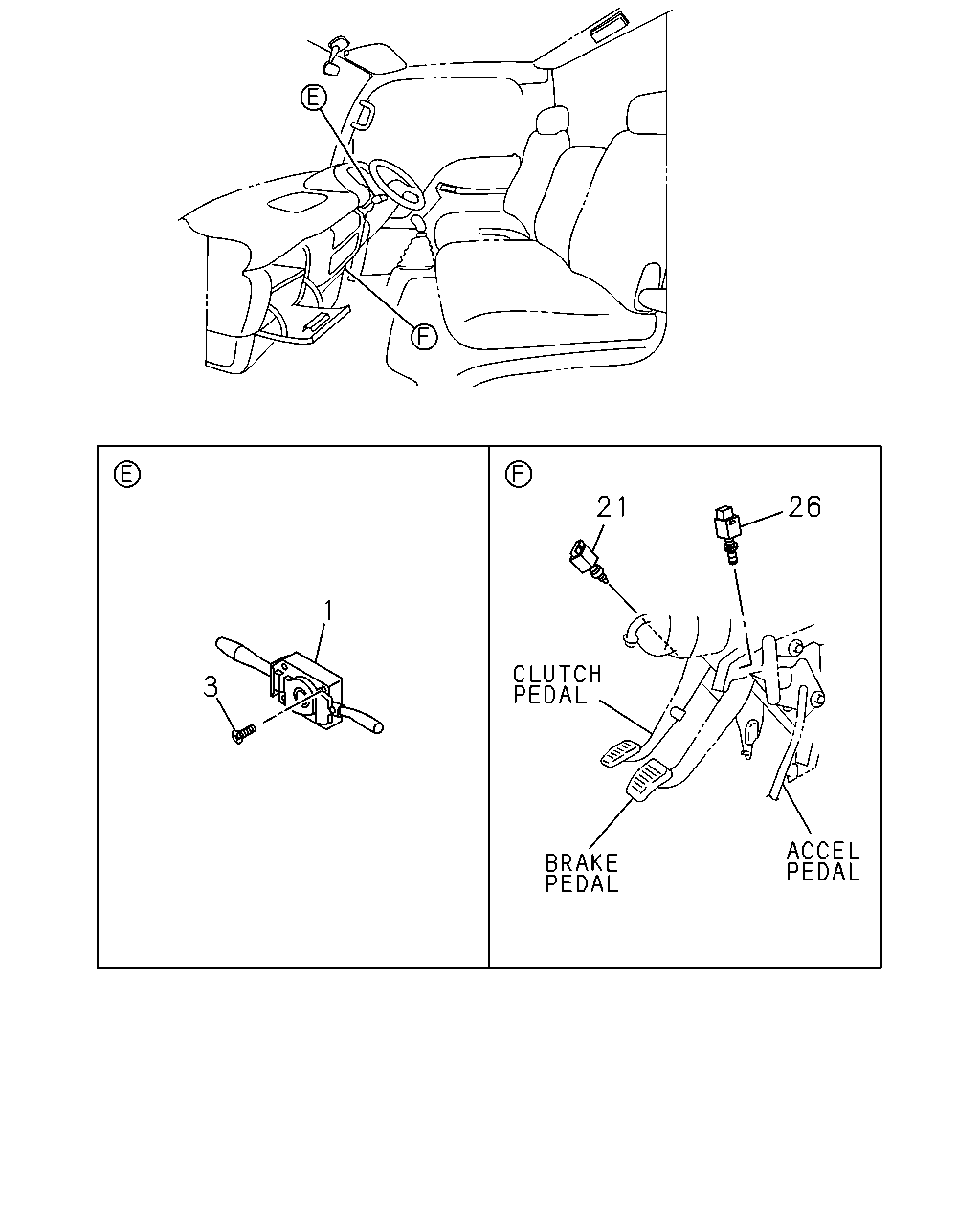

çizim 289670
21 26 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97383-519-0 01 1 1206- ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97383-520-0 01 1 1206- ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97383-515-0 01 1 1206- ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97383-516-0 01 1 1206- ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 04 1 1206- ● ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 1206- ● ●
26 03.636 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 		8-97358-315-0 01 1 1206- ● ●
