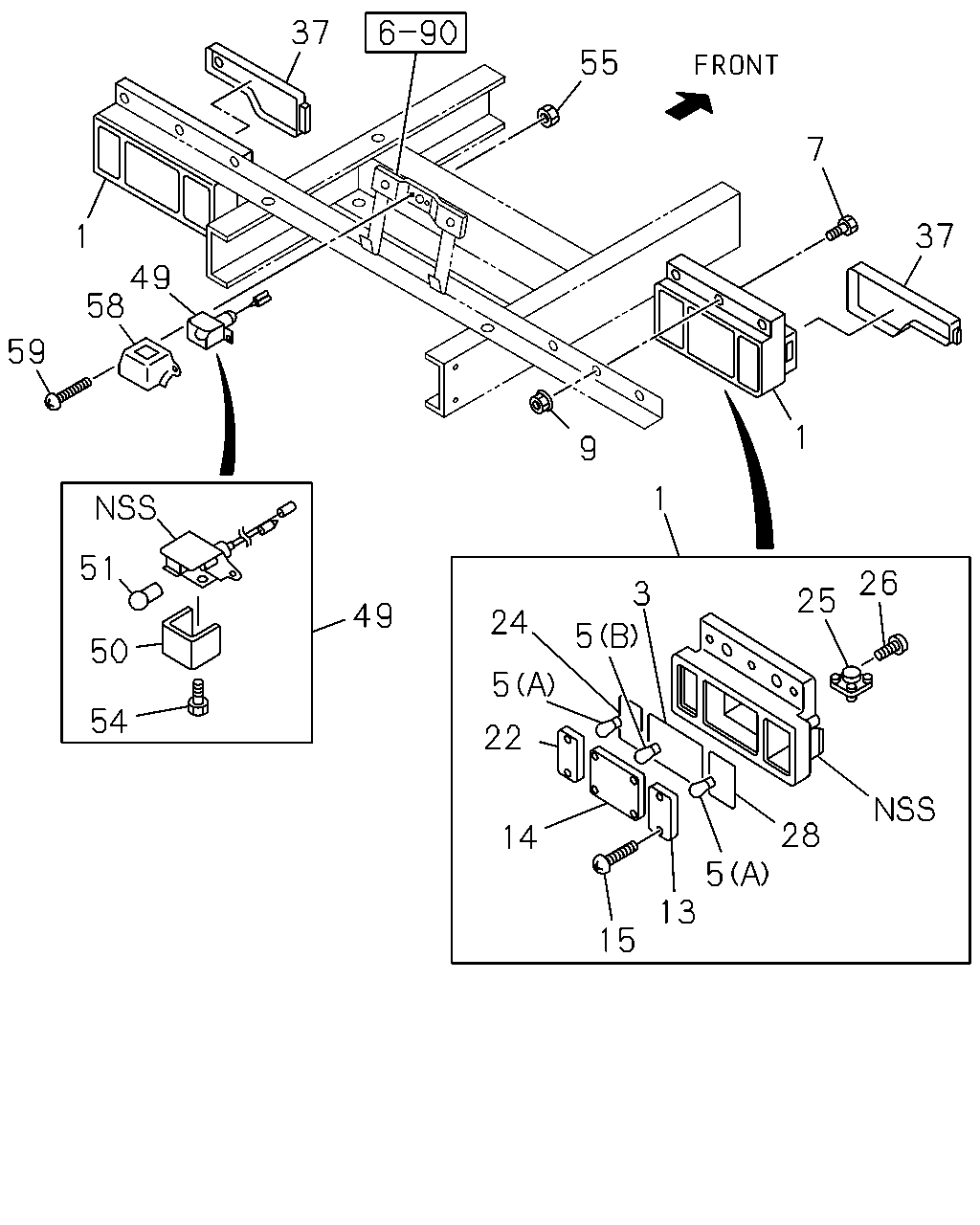

8-03 — LAMP; REAR AND REAR SIDE (#96138) — 87 parça

37 55 37 7 9 1 25 28 26 5 24 5 22 14 15 5 13 3 1 50 54 59 58 49 49 51 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6)	8-97213-352-0	01	1	1307-1309	●
1	02.679 LAMP ASM; RR COMB	8-97213-352-0	01	1	1310-1312		●
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6)	8-97213-352-0	01	1	1310-1312	●
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6)	8-97213-352-0	01	1	1401-1411	●
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6)	8-97213-352-0	01	1	1412-	●	●
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6) BACK BUZZER<YM9>	8-97213-353-0	01	1	1307-1309	●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9>	8-97213-353-0	01	1	1310-1312		●
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6) BACK BUZZER<YM9>	8-97213-353-0	01	1	1310-1312	●
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6) BACK BUZZER<YM9>	8-97213-353-0	01	1	1401-1411	●
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6) BACK BUZZER<YM9>	8-97213-353-0	01	1	1412-	●	●
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6) EXC. BACK BUZZER<YM9>	8-97213-351-0	01	1	1307-1309	●
1	02.679 LAMP ASM; RR COMB EXC. BACK BUZZER<YM9>	8-97213-351-0	01	1	1310-1312		●
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6) EXC. BACK BUZZER<YM9>	8-97213-351-0	01	1	1310-1312	●
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6) EXC. BACK BUZZER<YM9>	8-97213-351-0	01	1	1401-1411	●
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6) EXC. BACK BUZZER<YM9>	8-97213-351-0	01	1	1412-	●	●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9>	8-98120-439-0	01	1	1206-1306	●	●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9>	8-98120-439-0	01	1	1307-1309		●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6)	8-98120-439-0	01	1	1307-1309	●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6)	8-98120-439-0	01	1	1310-1312	●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9>	8-98120-439-0	01	1	1401-1411		●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6)	8-98120-439-0	01	1	1401-1411	●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6)	8-98120-439-0	01	1	1412-	●	●
1	02.679 LAMP ASM; RR COMB	8-98072-025-0	01	1	1206-1306	●	●
1	02.679 LAMP ASM; RR COMB	8-98072-025-0	01	1	1307-1309		●
1	02.679 LAMP ASM; RR COMB EXC. RR BODY FLAT BED(RS6)	8-98072-025-0	01	1	1307-1309	●
1	02.679 LAMP ASM; RR COMB EXC. RR BODY FLAT BED(RS6)	8-98072-025-0	01	1	1310-1312	●
1	02.679 LAMP ASM; RR COMB	8-98072-025-0	01	1	1401-1411		●
1	02.679 LAMP ASM; RR COMB EXC. RR BODY FLAT BED(RS6)	8-98072-025-0	01	1	1401-1411	●
1	02.679 LAMP ASM; RR COMB EXC. RR BODY FLAT BED(RS6)	8-98072-025-0	01	1	1412-	●	●
1	02.679 LAMP ASM; RR COMB EXC. BACK BUZZER<YM9>	8-98072-024-0	01	1	1206-1306	●	●
1	02.679 LAMP ASM; RR COMB EXC. BACK BUZZER<YM9>	8-98072-024-0	01	1	1307-1309		●
1	02.679 LAMP ASM; RR COMB EXC. RR BODY FLAT BED(RS6),BACK BUZZER<YM9>	8-98072-024-0	01	1	1307-1309	●
1	02.679 LAMP ASM; RR COMB EXC. RR BODY FLAT BED(RS6),BACK BUZZER<YM9>	8-98072-024-0	01	1	1310-1312	●
1	02.679 LAMP ASM; RR COMB EXC. BACK BUZZER<YM9>	8-98072-024-0	01	1	1401-1411		●
1	02.679 LAMP ASM; RR COMB EXC. RR BODY FLAT BED(RS6),BACK BUZZER<YM9>	8-98072-024-0	01	1	1401-1411	●
1	02.679 LAMP ASM; RR COMB EXC. RR BODY FLAT BED(RS6),BACK BUZZER<YM9>	8-98072-024-0	01	1	1412-	●	●
3	02.684 GASKET; RR COMB LAMP	8-94257-505-0	01	1	1206-	●	●
3	02.684 GASKET; RR COMB LAMP	8-94257-505-0	01	1	1206-	●	●
5	08.991 BULB; RR COMB LAMP (A) 12V 21W	8-94124-074-0	02	1	1206-	●	●
5	08.991 BULB; RR COMB LAMP (A) 12V 21W	8-94124-074-0	02	1	1206-	●	●
5	08.991 BULB; RR COMB LAMP (B) 12V 21/5W	8-94125-959-0	01	1	1206-	●	●
5	08.991 BULB; RR COMB LAMP (B) 12V 21/5W	8-94125-959-0	01	1	1206-	●	●
7	02.664 SCREW; RR COMB LAMP RR BODY FLAT BED(RS6) M6X20	8-94402-623-0	06	1	1307-1309	●
7	02.664 SCREW; RR COMB LAMP EXC. RR BODY FLAT BED(RS6) M6X20	8-94402-623-0	04	1	1310-1312	●
7	02.664 SCREW; RR COMB LAMP RR BODY FLAT BED(RS6) M6X20	8-94402-623-0	06	1	1401-1411	●
7	02.664 SCREW; RR COMB LAMP RR BODY FLAT BED(RS6) M6X20	8-94402-623-0	06	1	1412-	●	●
7	02.664 SCREW; RR COMB LAMP M6X20	8-94402-623-0	04	1	1206-1306	●	●
7	02.664 SCREW; RR COMB LAMP M6X20	8-94402-623-0	04	1	1307-1309		●
7	02.664 SCREW; RR COMB LAMP EXC. RR BODY FLAT BED(RS6) M6X20	8-94402-623-0	04	1	1307-1309	●
7	02.664 SCREW; RR COMB LAMP M6X20	8-94402-623-0	06	1	1310-1312		●
7	02.664 SCREW; RR COMB LAMP RR BODY FLAT BED(RS6) M6X20	8-94402-623-0	06	1	1310-1312	●
7	02.664 SCREW; RR COMB LAMP M6X20	8-94402-623-0	04	1	1401-1411		●
7	02.664 SCREW; RR COMB LAMP EXC. RR BODY FLAT BED(RS6) M6X20	8-94402-623-0	04	1	1401-1411	●
7	02.664 SCREW; RR COMB LAMP EXC. RR BODY FLAT BED(RS6) M6X20	8-94402-623-0	04	1	1412-	●	●
9	02.689 NUT; LAMP,RR COMB EXC. RR BODY FLAT BED(RS6) 07.829 M6 FLANGE	5-09440-004-0	04	1	1310-1312	●
9	02.689 NUT; LAMP,RR COMB 07.829 M6 FLANGE	5-09440-004-0	04	1	1206-1306	●	●
9	02.689 NUT; LAMP,RR COMB 07.829 M6 FLANGE	5-09440-004-0	04	1	1307-1309		●
9	02.689 NUT; LAMP,RR COMB EXC. RR BODY FLAT BED(RS6) 07.829 M6 FLANGE	5-09440-004-0	04	1	1307-1309	●
9	02.689 NUT; LAMP,RR COMB 07.829 M6 FLANGE	5-09440-004-0	06	1	1310-1312		●
9	02.689 NUT; LAMP,RR COMB 07.829 M6 FLANGE	5-09440-004-0	04	1	1401-1411		●
9	02.689 NUT; LAMP,RR COMB EXC. RR BODY FLAT BED(RS6) 07.829 M6 FLANGE	5-09440-004-0	04	1	1401-1411	●
9	02.689 NUT; LAMP,RR COMB EXC. RR BODY FLAT BED(RS6) 07.829 M6 FLANGE	5-09440-004-0	04	1	1412-	●	●
13	02.682 LENS; TURN SIGNAL	8-94174-638-0	01	1	1206-	●	●
13	02.682 LENS; TURN SIGNAL	8-94174-639-0	01	1	1206-	●	●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP	8-94178-624-0	01	1	1206-	●	●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP	8-94178-625-0	01	1	1206-	●	●
15	02.664 SCREW; RR COMB LAMP 08.977 M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	1206-	●	●
15	02.664 SCREW; RR COMB LAMP 08.977 M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	1206-	●	●
22	02.697 LENS; BACKUP,RR COMB LAMP	8-94257-512-1	01	1	1206-	●	●
22	02.697 LENS; BACKUP,RR COMB LAMP	8-94257-512-1	01	1	1206-	●	●
24	02.697 GASKET; BACK,LAMP	8-94257-506-0	01	1	1206-	●	●
24	02.697 GASKET; BACK,LAMP	8-94257-506-0	01	1	1206-	●	●
25	02.810 HORN ASM; BACK BACK BUZZER<YM9>	8-94257-518-0	01	1	1206-	●	●
26	02.812 SCREW; BACK HORN BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	02	1	1206-	●	●
26	02.812 SCREW; BACK HORN 09.655 M4X14 TAPPING	9-07076-414-0	01	1	1206-	●	●
26	02.812 SCREW; BACK HORN EXC. BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	01	1	1206-	●	●
28	02.684 GASKET; TURN,LAMP	8-94257-507-0	01	1	1206-	●	●
28	02.684 GASKET; TURN,LAMP	8-94257-507-0	01	1	1206-	●	●
37	02.680 COVER; RR COMB LAMP	8-94128-858-4	01	1	1206-	●	●
37	02.680 COVER; RR COMB LAMP	8-94129-274-4	01	1	1206-	●	●
49	02.700 LAMP; LICENSE PLATE 12V 10W	5-82120-020-0	01	1	1206-	●	●
50	02.709 LENS; LICENSE PLATE LAMP	5-82125-004-0	01	1	1206-	●	●
51	08.991 BULB; LICENSE PLATE LAMP 12V 10W	8-94126-494-0	01	1	1206-	●	●
54	02.708 SCREW; LICENSE PLATE LAMP 02.709 M4X8	8-94419-312-0	01	1	1206-	●	●
55	02.708 NUT; LICENSE PLATE LAMP 03.444 M5 FLANGE	8-94153-039-0	02	1	1206-	●	●
58	02.705 COVER; LICENSE PLATE LAMP	8-97076-590-1	01	1	1206-	●	●
59	02.708 SCREW; TAP,LICENSE LAMP BODY 14.550 M5X20	9-93490-520-0	02	1	1206-	●	●
