Isuzu WW
▶
TRUCKS
▶
QKR
▶
51423 - QKR RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶
8-01 — LAMP; FRONT AND FRONT SIDE
(#96137) — 54 parça
Tümü
A - NKR5SE
B - NKR5SN
◀

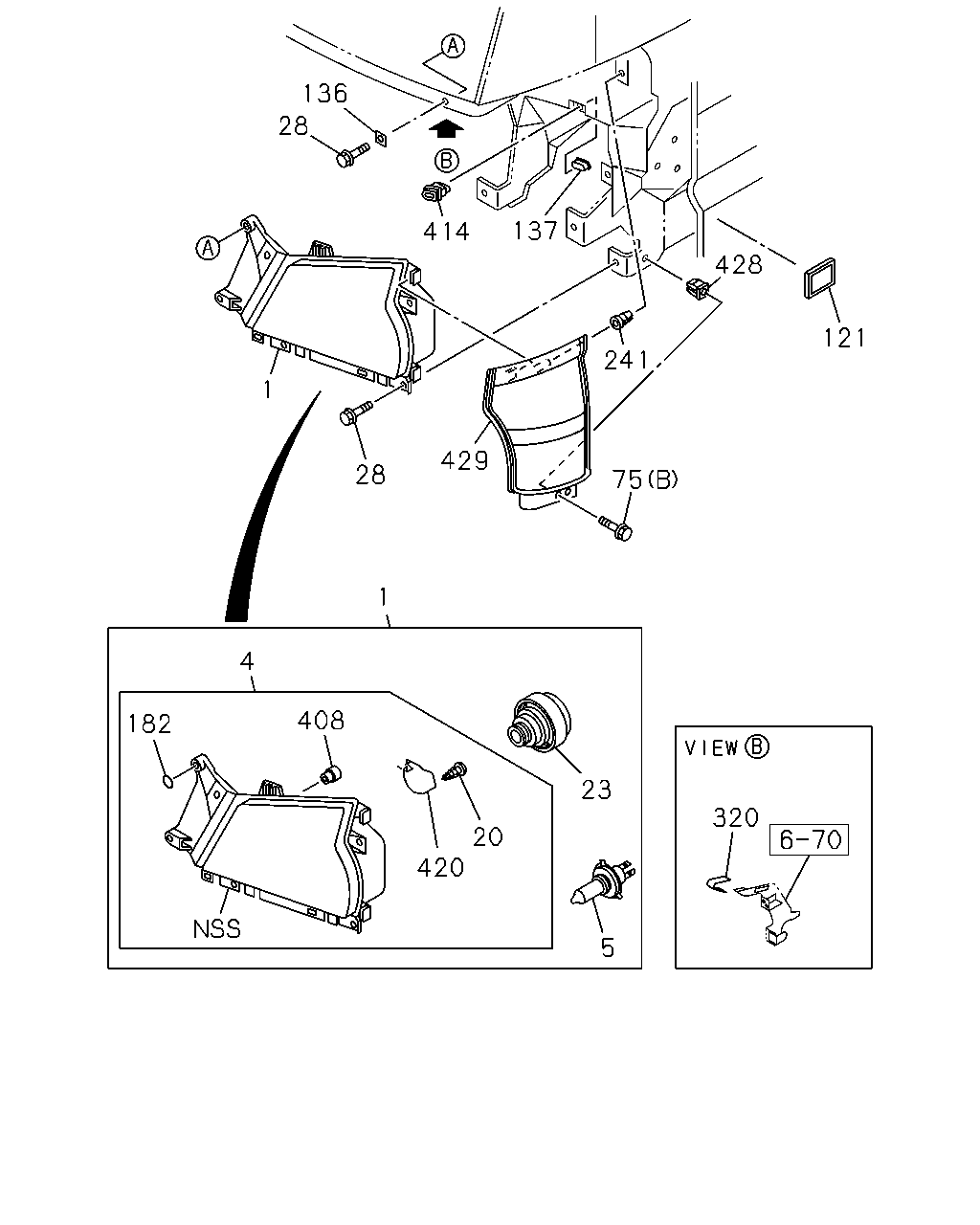

[801A] FRONT LAMP(NO.1) (23 parça)

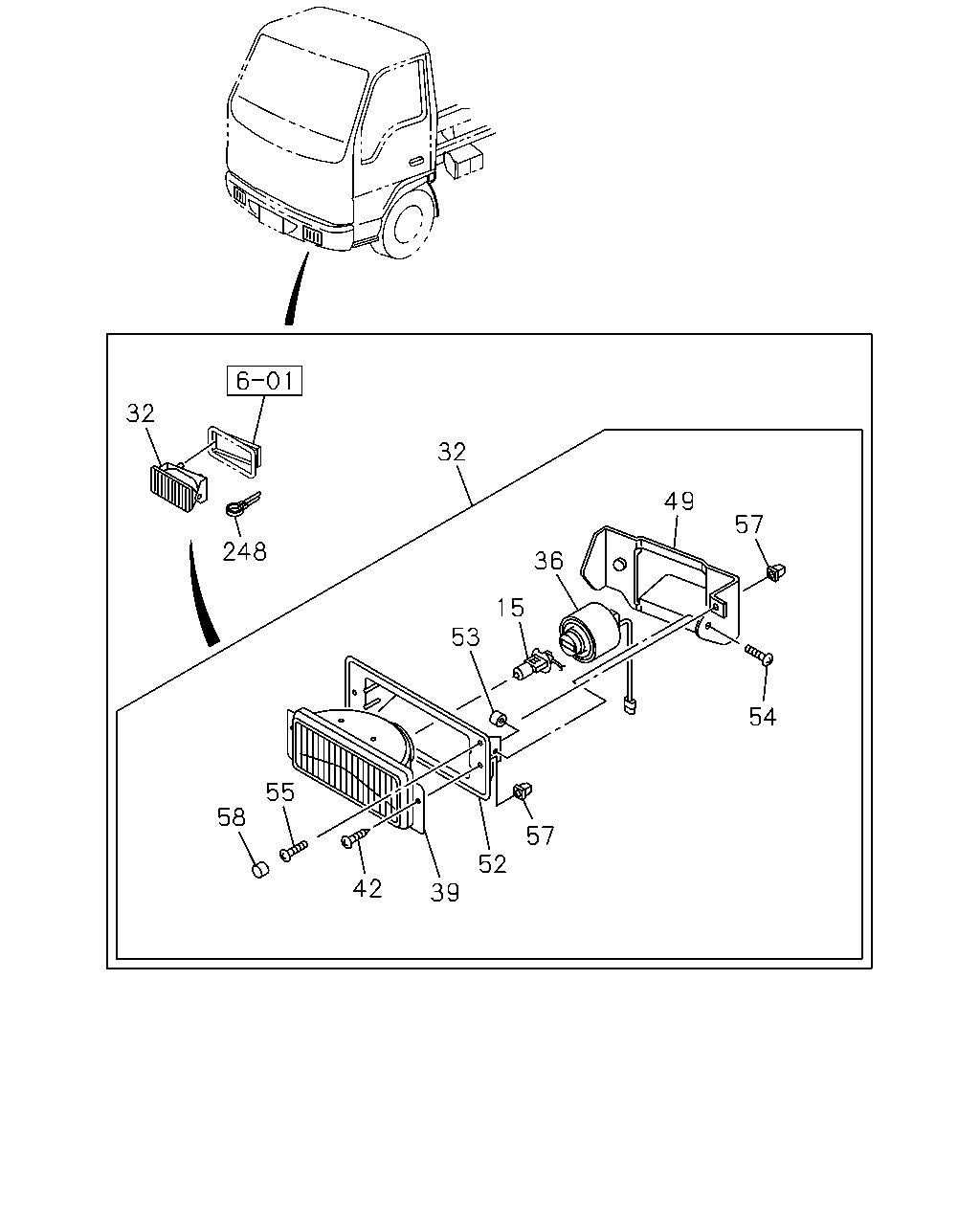

[801A] FOG LAMP (16 parça)
[801A] FRONT LAMP(NO.2) (15 parça)
▶
136
28
1
28
429
75
241
121
428
137
414
1
4
182
408
420
23
20
5
320
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
02.725 LAMP ASM; HEAD
12V 60/55W
8-97372-526-5
01
1
1206-
●
●
1
02.725 LAMP ASM; HEAD
12V 60/55W
8-97372-527-5
01
1
1206-
●
●
4
02.727 HEADLAMP UNIT
8-98009-820-0
01
1
1206-
●
●
4
02.727 HEADLAMP UNIT
8-98009-821-0
01
1
1206-
●
●
5
02.727 BULB; HEADLAMP
12V 60/55W
8-97106-708-0
02
1
1206-
●
●
20
02.736 SCREW; HEADLAMP
8-97378-871-0
02
1
1206-
●
●
23
02.727 COVER; BULB,HEADLAMP
8-97232-491-0
02
1
1206-
●
●
28
02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER
8-98031-842-0
08
1
1206-1401
●
●
28
02.762 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER
8-98164-723-0
08
1
1402-
●
●
75
02.587 SCREW; FRT COMB LAMP
(B) M6X16 TAPPING
8-97374-995-0
02
1
1206-
●
●
75
02.587 SCREW; FRT COMB LAMP
(A) M4X12
8-97378-944-0
14
1
1206-
●
●
121
02.575 REFLECTOR; REFLEX
8-98013-990-1
02
1
1206-
●
●
136
02.726 SEAL; HEADLAMP
03.602 25X25
8-94272-533-0
02
1
1206-
●
●
137
02.726 GROMMET; HEADLAMP
8-97581-666-0
02
1
1206-
●
●
182
02.722 GASKET; HEADLAMP
8-97378-869-0
02
1
1206-
●
●
241
02.726 GROMMET; FRT LAMP
8-97380-030-0
02
1
1206-
●
●
320
02.726 SEALER; HEADLAMP BRKT
8-97850-499-1
01
1
1206-
●
●
408
02.727 CAP; BREATHER,HEADLAMP
8-97378-874-0
02
1
1206-
●
●
414
02.736 PIN; HEADLAMP,RIM
8-97581-667-0
02
1
1206-
●
●
420
02.737 SPRING; BULB,HEADLAMP
8-97378-875-0
02
1
1206-
●
●
428
02.587 GROMMET; SIDE COMB LAMP
16.445
1-09983-081-0
02
1
1206-
●
●
429
02.585 LAMP ASM; SIDE COMB
8-98010-889-0
01
1
1206-
●
●
429
02.585 LAMP ASM; SIDE COMB
8-98010-890-0
01
1
1206-
●
●
32
248
32
58
55
42
39
52
57
53
15
36
49
57
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
15
08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W
8-97093-859-0
02
1
1206-
●
●
32
02.725 LAMP ASM; FOG
FOG LAMP<T96>
8-98054-093-0
01
1
1206-
●
●
32
02.725 LAMP ASM; FOG
FOG LAMP<T96>
8-98054-094-0
01
1
1206-
●
●
36
02.727 CORD; FOG LAMP
FOG LAMP<T96>
8-97095-518-0
02
1
1206-
●
●
39
02.727 UNIT; FOG LAMP
FOG LAMP<T96>
8-98063-678-0
01
1
1206-
●
●
39
02.727 UNIT; FOG LAMP
FOG LAMP<T96>
8-98063-679-0
01
1
1206-
●
●
42
02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96>
8-97104-089-0
04
1
1206-
●
●
49
02.726 BRACKET; LAMP
FOG LAMP<T96>
8-97104-090-0
01
1
1206-
●
●
49
02.726 BRACKET; LAMP
FOG LAMP<T96>
8-97104-091-0
01
1
1206-
●
●
52
02.726 RING; MTG,FOG LAMP
FOG LAMP<T96>
8-97104-062-0
02
1
1206-
●
●
53
02.726 NUT; MTG RING,FOG LAMP
FOG LAMP<T96>
8-94379-802-0
04
1
1206-
●
●
54
02.726 BOLT; MTG RING,FOG LAMP
FOG LAMP<T96> M5X12
8-94379-803-0
04
1
1206-
●
●
55
02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96>
8-97104-087-0
02
1
1206-
●
●
57
02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96>
8-94379-806-0
06
1
1206-
●
●
58
02.726 HOLDER; FOG LAMP
FOG LAMP<T96>
8-97104-088-0
02
1
1206-
●
●
248
02.727 CLIP; HARNESS
FOG LAMP<T96> 02.559 ID=20
5-09700-321-0
02
1
1206-
●
●
429
93
75
67
76
139
139
75
419
68
75
68
315
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
67
02.590 GASKET; FRT COMB LAMP
8-97378-948-0
02
1
1206-
●
●
68
08.991 BULB; FRT COMB LAMP
(A) 12V 21/5W
8-94125-959-0
02
1
1206-
●
●
68
08.991 BULB; FRT COMB LAMP
(B) 12V 21W
8-97304-590-0
02
1
1206-
●
●
75
02.587 SCREW; FRT COMB LAMP
(B) M6X16 TAPPING
8-97374-995-0
02
1
1206-
●
●
75
02.587 SCREW; FRT COMB LAMP
(A) M4X12
8-97378-944-0
14
1
1206-
●
●
76
02.589 LENS; FRT COMB LAMP
8-97378-965-0
01
1
1206-
●
●
76
02.589 LENS; FRT COMB LAMP
8-97378-966-0
01
1
1206-
●
●
93
02.892 BRACKET; SIDE COMB LAMP
8-97378-943-0
01
1
1206-
●
●
93
02.892 BRACKET; SIDE COMB LAMP
8-97378-945-0
01
1
1206-
●
●
139
02.726 COVER; HEADLAMP
01.267
8-97581-653-3
02
1
1206-
●
●
315
02.596 HARNESS; FRT COMB LAMP
8-98010-916-0
02
1
1206-
●
●
419
02.589 LENS; INNER,FRT COMB LAMP
8-97378-946-0
01
1
1206-
●
●
419
02.589 LENS; INNER,FRT COMB LAMP
8-97378-947-0
01
1
1206-
●
●
429
02.585 LAMP ASM; SIDE COMB
8-98010-889-0
01
1
1206-
●
●
429
02.585 LAMP ASM; SIDE COMB
8-98010-890-0
01
1
1206-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
