◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51423 - QKR RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#96128) — 17 parça
çizim 288690
35 35 96 5 9
BalonParca AdiParca NoAdetTipApplied Date A B
5 05.880 LABEL; TIRE AIR PRESSURE
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ) CAUTION SPANISH<YN1> 		8-98096-198-3 01 1 1206- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ) EXC. CAUTION SPANISH<YN1> 		8-98096-197-3 01 1 1206- ●
9 08.808 PLATE; NAME,SPD RANGE
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-944-0 01 1 1206- ● ●
9 08.808 PLATE; NAME,SPD RANGE
CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-938-0 01 1 1206- ● ●
9 08.808 PLATE; NAME,SPD RANGE
EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 1206- ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-98070-512-0 01 1 1206- ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 1206- ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-98067-809-0 01 1 1206- ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JB1-NA ENG(RLF) EXC. FAN FLUID DRIVE<KA3> 		8-97092-930-1 01 1 1206-1304 ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JB1-NA ENG(RLF) FAN FLUID DRIVE<KA3> EXC. OIL COOLER<KC4> 		8-97092-930-1 01 1 1305- ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JB1-NA ENG(RLF) EXC. FAN FLUID DRIVE<KA3> 		8-97092-930-1 01 1 1305- ● ●

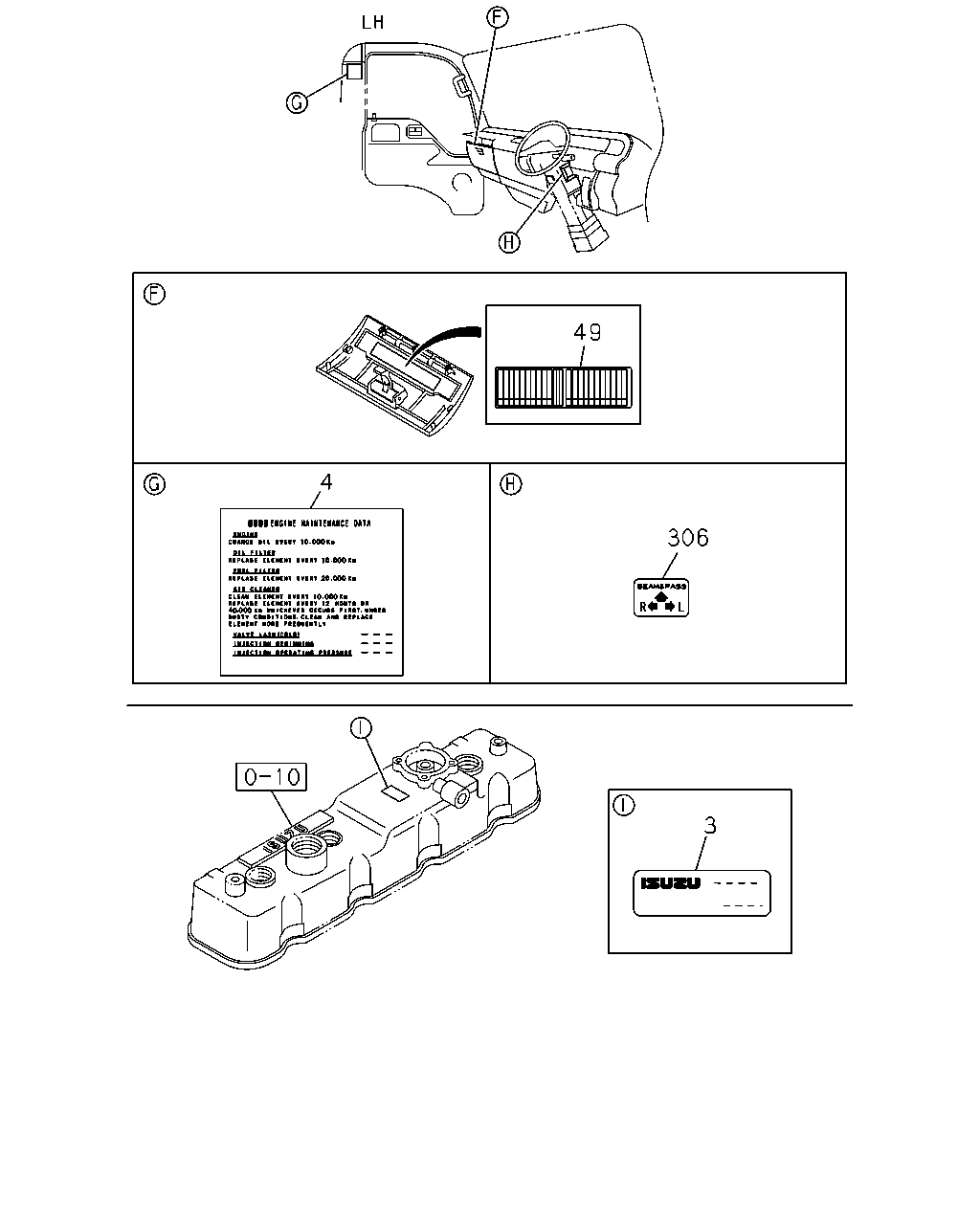

çizim 289668
49 4 306 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 03.680 LABEL; VAC PIPING
4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) 		8-98123-350-0 01 1 1206- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1-TC ENG(RDT) EXC. CAUTION SPANISH<YN1> 		8-97205-917-0 01 1 1206- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1-NA ENG(RLF) CAUTION SPANISH<YN1> 		8-97189-414-0 01 1 1206- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1-NA ENG(RLF) EXC. CAUTION SPANISH<YN1> 		8-97189-413-0 01 1 1206- ● ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-97381-167-0 01 1 1206- ● ●
306 08.808 LABEL; BEAM & PASS
02.459 		8-94273-445-0 01 1 1206- ● ●
