0-52 — OIL AND VACUUM PIPING; ENGINE (#9612) — 55 parça

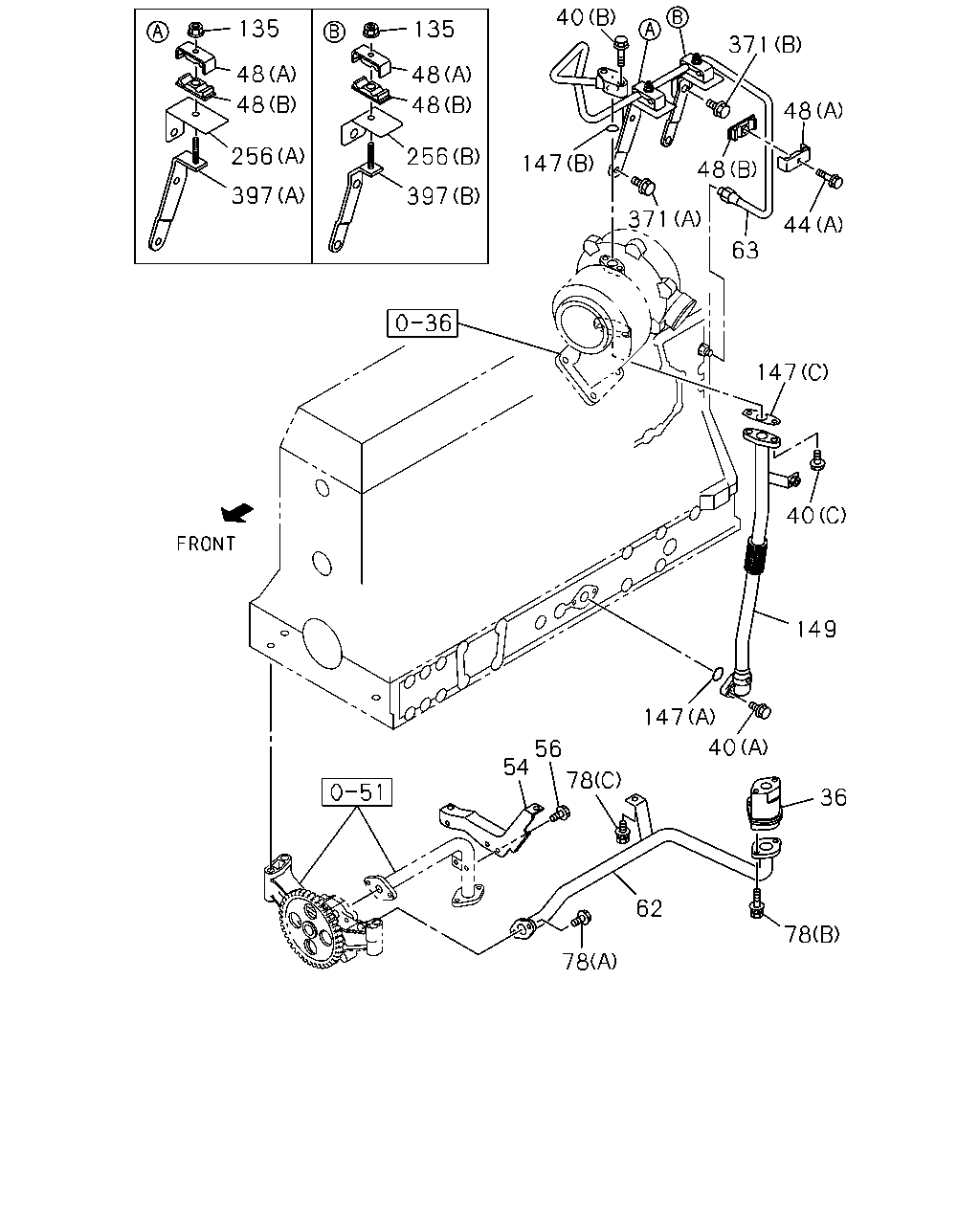

40 135 135 371 48 48 48 48 48 256 256 147 48 397 397 371 44 63 147 40 149 147 40 56 54 78 36 62 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	SPACER; DRAIN BACK	1-13260-108-0	01	1	0109-
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28080-825-0	02	1	0109-0512
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28050-825-0	02	1	0601-
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	0109-0512
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	0109-
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	0109-0512
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28050-635-0	01	1	0601-
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0109-0906
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50540-625-0	01	1	0907-
48	CLIP; OIL PIPE (A) ID=7 & 9 L=25	1-09701-228-3	03	1	0109-
48	CLIP; OIL PIPE (B) ID=7 & 9 L=25	1-09701-229-2	03	1	0109-
54	STAY; OIL STRAINER	1-13345-130-1	01	1	0109-
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	0109-0512
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	0109-
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-567-0	01	1	0109-
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	0109-
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	0109-0906
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50640-800-0	02	1	0907-
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	0109-0512
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50640-816-0	01	1	0601-
135	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	0109-0602
135	NUT; CLIP M6 FLANGE	0-91180-106-0	02	1	0603-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.2	1-09623-297-0	01	1	0109-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0109-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-09637-058-2	01	1	0109-
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-725-0	01	1	0109-
256	PROTECTOR; HEAT,PIPE (A)	1-14181-293-0	01	1	0109-
256	PROTECTOR; HEAT,PIPE (B)	1-14181-294-0	01	1	0109-
371	BOLT; STAY (A) M8X16 FLANGE	0-28080-816-0	02	1	0109-0512
371	BOLT; STAY (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-
371	BOLT; STAY (B) M10X16 FLANGE	0-28181-016-0	02	1	0109-0512
371	BOLT; STAY (B) M10X16 FLANGE	0-28151-016-0	02	1	0601-
397	STAY; OIL PIPE (A)	1-13319-038-0	01	1	0109-
397	STAY; OIL PIPE (B)	1-13319-039-0	01	1	0109-

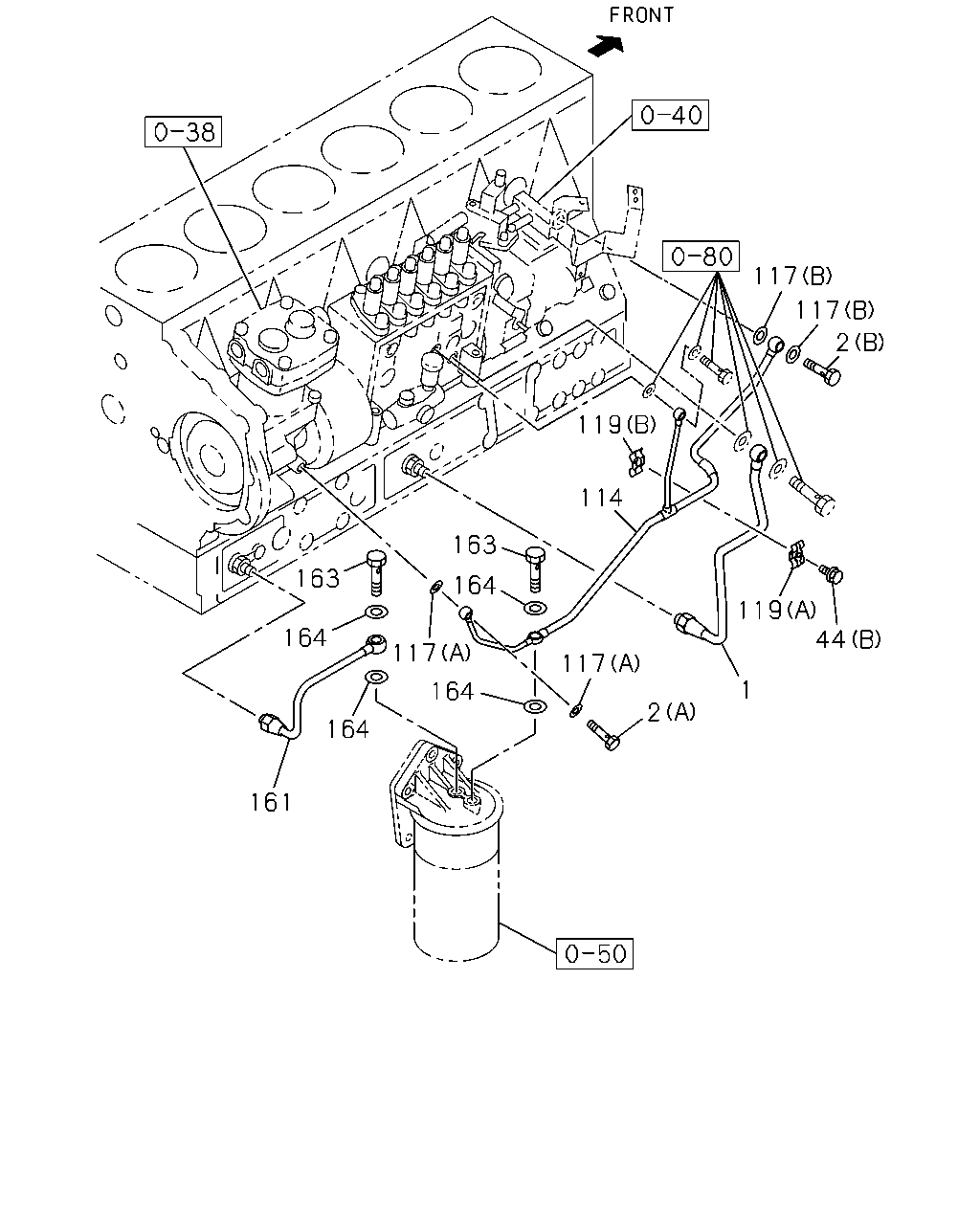

117 117 2 119 114 163 163 164 119 44 164 117 117 1 164 2 164 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-537-0	01	1	0109-
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0109-0805
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	0109-0805
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	0109-0512
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28050-635-0	01	1	0601-
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0109-0906
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50540-625-0	01	1	0907-
114	PIPE ASM; OIL,BODY	1-13313-538-1	01	1	0109-
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0109-
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	0109-1312
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	8-98251-344-0	02	1	1401-
119	CLIP; OIL PIPE,BODY TO CMPR (A) WO/NUT	1-09700-079-0	01	1	0109-
119	CLIP; OIL PIPE,BODY TO CMPR (B) W/NUT	1-09700-080-0	01	1	0109-
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-352-0	01	1	0109-
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0109-
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0109-1312
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-
