◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51423 - QKR RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#96113) — 39 parça

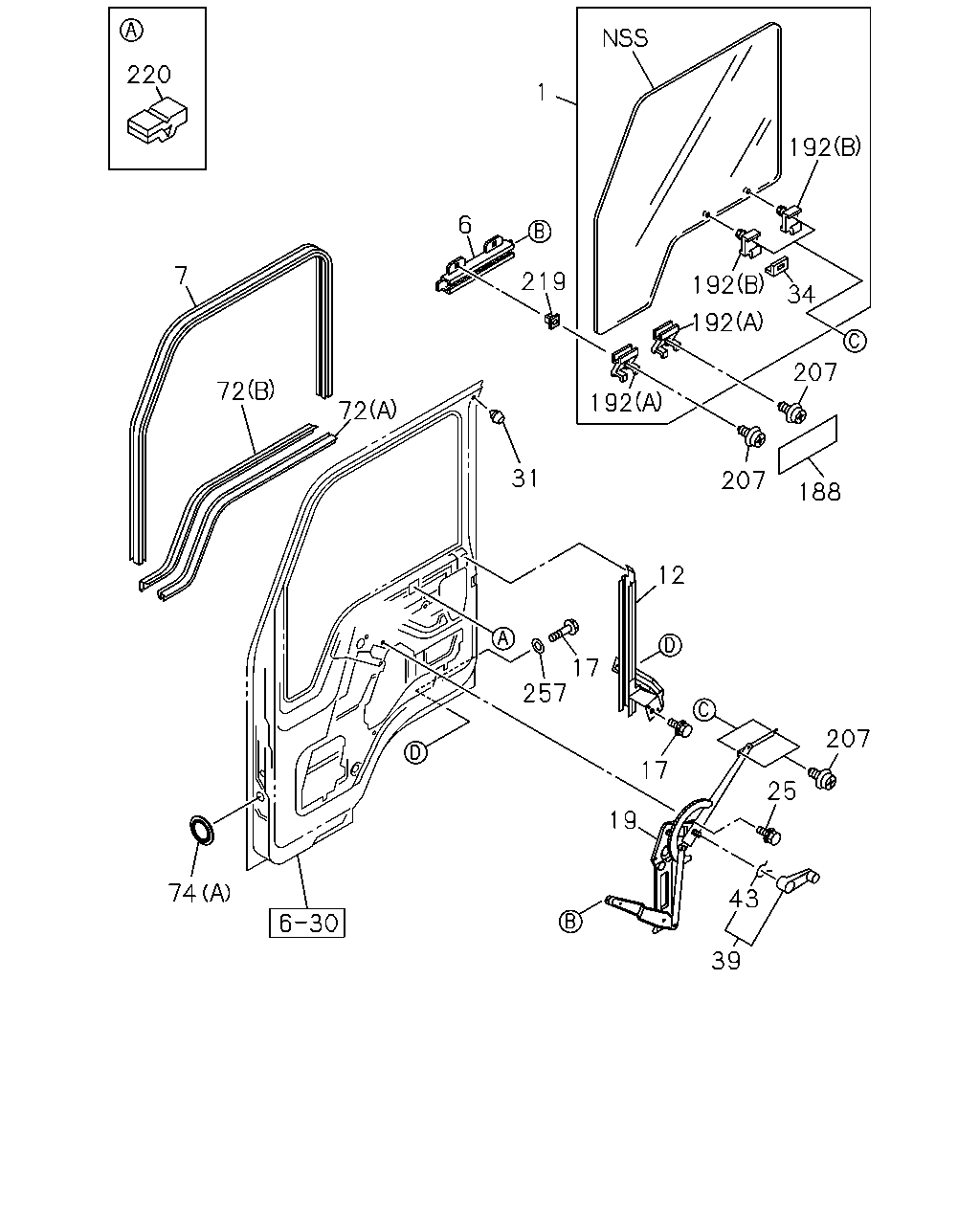

çizim 288591
220 7 72 72 6 219 1 192 192 192 34 207 207 188 192 31 12 17 257 17 19 25 207 43 39 74
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.180 GLASS; FRT DOOR
ASAHI 		8-97867-417-1 01 1 1206- ● ●
1 16.180 GLASS; FRT DOOR
ASAHI 		8-97867-418-1 01 1 1206- ● ●
6 10.685 CHANNEL; DOOR GLASS
W/ROLLER&PROTECTOR 		8-97898-425-1 02 1 1206- ● ●
7 16.190 GLASS RUN; FRT DOOR 8-97852-142-4 01 1 1206- ● ●
7 16.190 GLASS RUN; FRT DOOR 8-97852-143-4 01 1 1206- ● ●
12 16.190 CHANNEL; GLASS RUN,FRT 8-97852-111-5 01 1 1206-1212 ● ●
12 16.190 CHANNEL; GLASS RUN,FRT 8-97867-650-0 01 1 1301- ● ●
12 16.190 CHANNEL; GLASS RUN,FRT 8-97852-112-5 01 1 1206-1212 ● ●
12 16.190 CHANNEL; GLASS RUN,FRT 8-97996-046-0 01 1 1301- ● ●
17 16.183 SCREW; RR CHANNEL
16.585 T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 04 1 1206-1212 ● ●
17 16.183 SCREW; RR CHANNEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 04 1 1301- ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR 8-97852-115-8 01 1 1206- ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR 8-97852-116-8 01 1 1206- ● ●
25 16.270 BOLT; WINDOW REG
16.230 M6X9 LK+W/PL WASHER&TORQUES 		8-98108-677-0 10 1 1206- ● ●
31 16.225 STOPPER; RUBBER,DOOR INNER 8-97852-022-1 02 1 1206- ● ●
34 16.270 STOPPER; WINDOW REG 8-97852-012-0 02 1 1206- ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
GRAY 		8-98090-302-0 02 1 1206- ● ●
43 16.270 CLIP; REG HANDLE,FRT DOOR 8-94220-591-0 02 1 1206- ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-117-6 01 1 1206- ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-118-6 01 1 1206- ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97855-292-6 01 1 1206- ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97855-293-6 01 1 1206- ● ●
74 16.263 GROMMET; DOOR OUTER WAIST
EXC. 2-SPEAKER SYSTEM BASE<U95> 09.656 (A) OD=48 T=9.1 		8-94279-053-0 02 1 1206- ● ●
74 16.263 GROMMET; DOOR OUTER WAIST
EXC. 2-SPEAKER SYSTEM BASE<U95> 09.775 (B) 		8-94279-736-0 02 1 1206- ● ●
188 16.225 PROTECTOR; DOOR SEAL 8-97994-698-1 02 1 1206- ● ●
192 16.183 HOLDER; DOOR GLASS
(A) 		8-97852-076-1 04 1 1206- ● ●
192 16.183 HOLDER; DOOR GLASS
(B) 		8-97852-077-1 04 1 1206- ● ●
207 16.183 SCREW; DOOR GLASS
M4X14.5 TAPPING 		8-98020-522-2 08 1 1206- ● ●
219 16.175 GROMMET; SCREW,CHANNEL,REG 8-94326-756-0 04 1 1206- ● ●
220 16.332 SEAL; LINK ROD 8-97852-321-0 02 1 1206- ● ●
257 03.162 WASHER; G/RUN CHANNEL
ID=6.5 OD=30 		9-09851-911-0 02 1 1301- ● ●

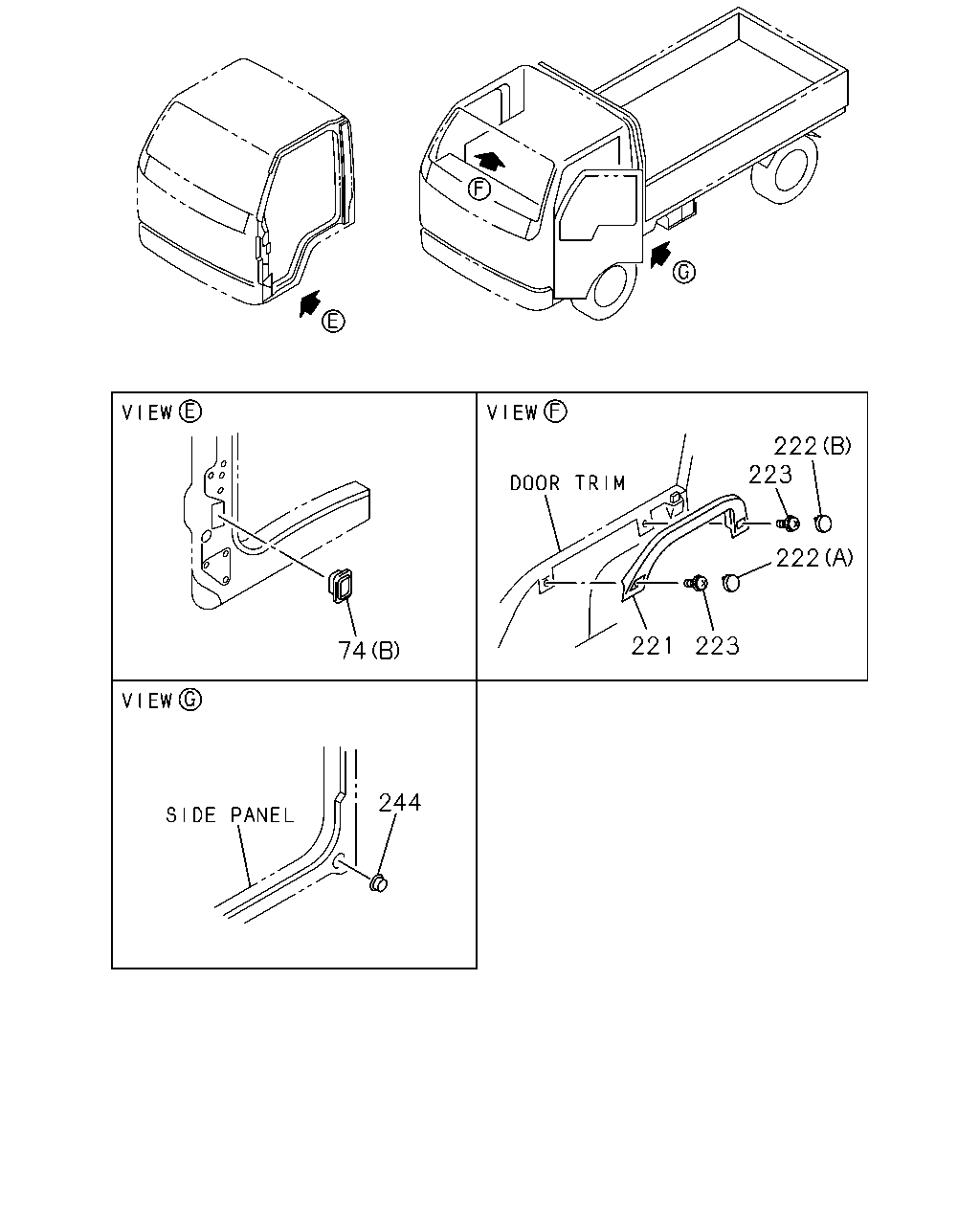

çizim 289665
222 223 222 223 221 74 244
BalonParca AdiParca NoAdetTipApplied Date A B
74 16.263 GROMMET; DOOR OUTER WAIST
EXC. 2-SPEAKER SYSTEM BASE<U95> 09.656 (A) OD=48 T=9.1 		8-94279-053-0 02 1 1206- ● ●
74 16.263 GROMMET; DOOR OUTER WAIST
EXC. 2-SPEAKER SYSTEM BASE<U95> 09.775 (B) 		8-94279-736-0 02 1 1206- ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
GRAY 		8-97582-309-1 01 1 1206- ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
GRAY 		8-97582-310-1 01 1 1206- ● ●
222 16.320 CAP; GUARD BAR
(A) FRONT GRAY 		8-97582-312-0 02 1 1206- ● ●
222 16.320 CAP; GUARD BAR
(B) REAR GRAY 		8-97582-313-0 02 1 1206- ● ●
223 16.320 SCREW; GUARD BAR
M6X18 W/TORQUES 		8-98064-277-0 04 1 1206- ● ●
244 16.155 STOPPER; DOOR 8-97890-484-0 02 1 1206- ● ●
