6-03 — RADIATOR GRILLE (#96107) — 14 parça

çizim 288557

2 116 184 188 129 179 188

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	2	01.266 GRILLE; ORNAMENT WO/DECAL	8-97581-679-5	01	1	1206-	●	●
	116	01.266 MOLDING; ORNAMENT GRILLE	8-97581-655-1	01	1	1206-	●	●
	129	01.269 CLIP; COVER HEADLAMP GRILLE D=6.5	8-97855-279-0	02	1	1206-	●	●
	179	01.269 RETAINER; GRILLE,RAD WHITE	8-97102-415-0	03	1	1206-	●	●
	184	01.269 GROMMET; ORNAMENT	8-97581-668-0	02	1	1206-	●	●
	188	08.010 SEAL; ORNAMENT	8-97584-800-0	02	1	1206-	●	●

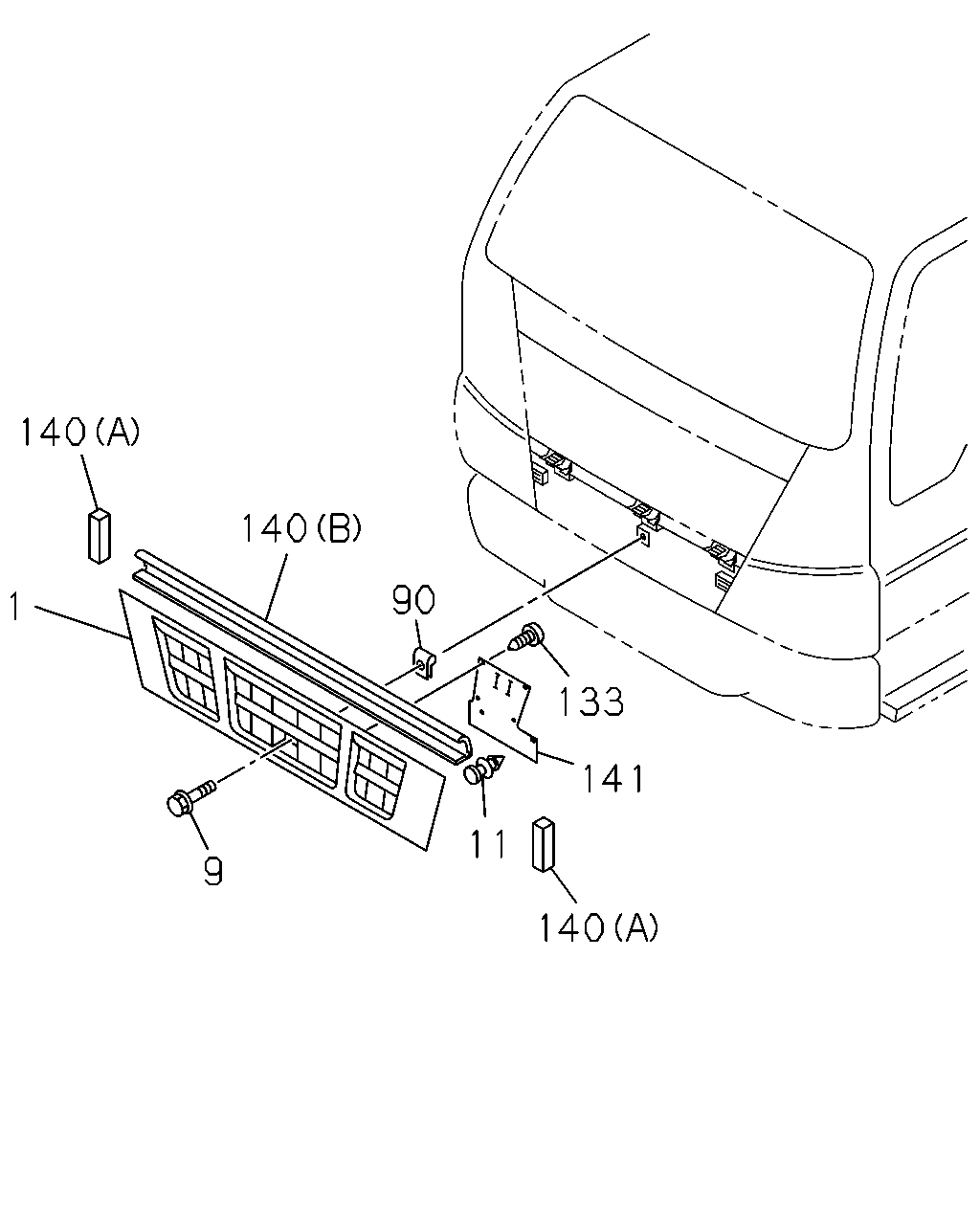

çizim 288576

140 140 90 133 141 140 11 9 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	01.266 GRILLE; RAD PLEASE PAINT TO MATCH BODY COLOR	8-97581-825-2	01	1	1206-	●	●
	9	01.269 SCREW; RAD GRILLE 08.153 M6X20 W/PL WASHER	8-98059-504-0	01	1	1206-	●	●
	11	01.269 CLIP; RAD GRILLE	8-97581-651-2	04	1	1206-	●	●
	90	01.269 NUT; RAD GRILLE	8-98014-760-0	01	1	1206-	●	●
	133	01.269 SCREW; COVER 01.303 M5X12 W/PL WASHER	8-94385-565-0	06	1	1206-	●	●
	140	01.266 SEAL; RAD GRILLE (B)	8-97581-664-0	01	1	1206-	●	●
	140	01.266 SEAL; RAD GRILLE (A)	8-97583-411-1	02	1	1206-	●	●
	141	01.266 COVER; RAD GRILLE	8-97581-648-1	01	1	1206-	●	●
