4-60 — REAR SUSPENSION
(#96097) — 33 parça
Tümü
A - NKR5SE
B - NKR5SN
◀

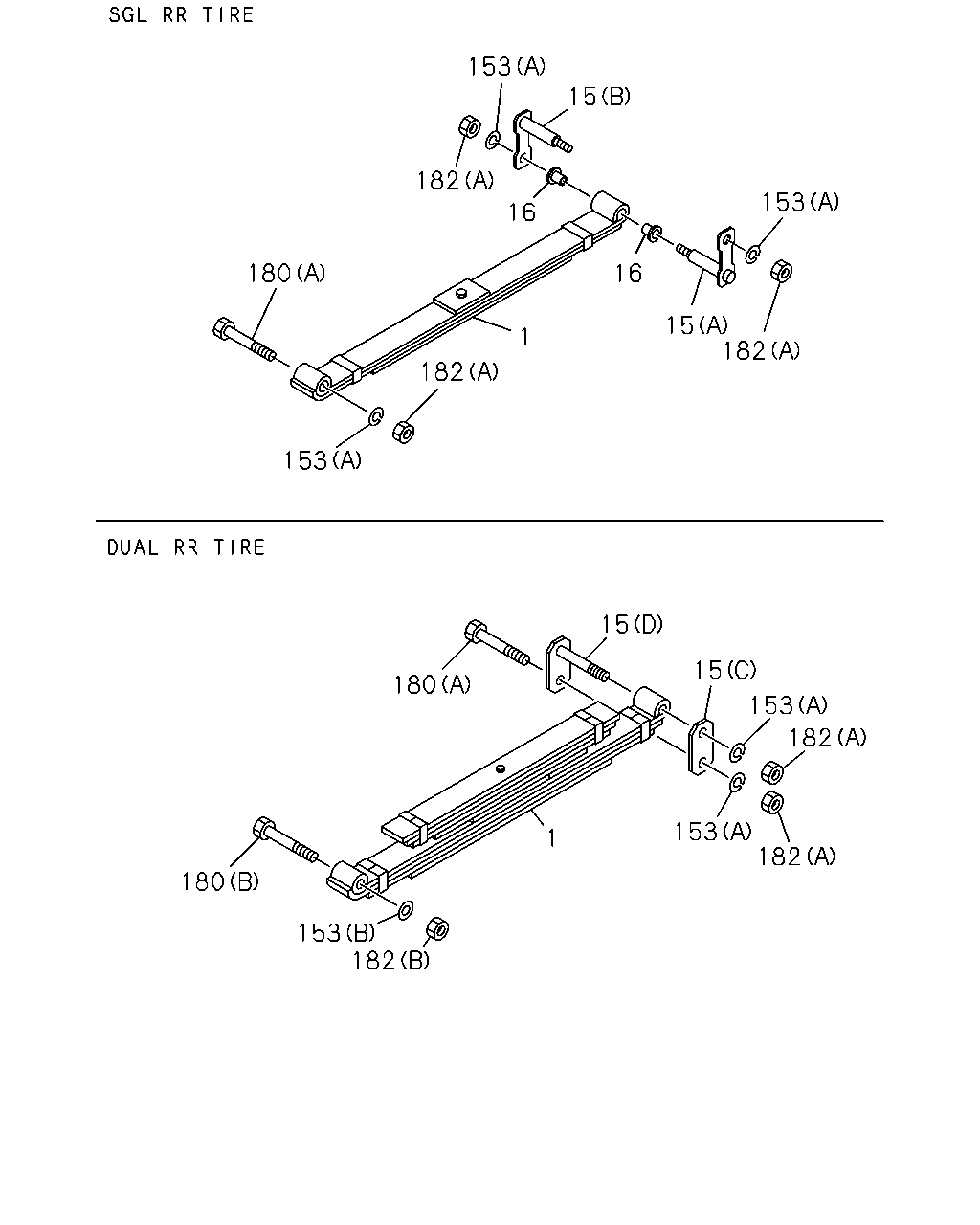

[460A] NO.1 (20 parça)
[460A] NO.2 (13 parça)
▶
153
182
180
182
1
153
180
15
16
16
15
153
15
182
15
153
182
153
1
182
153
180
182
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF
8-97693-008-0
02
1
1206-
●
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 11-LEAF
8-97693-009-0
02
1
1206-
●
15
07.523 SHACKLE; RR SPR
(A) OUTSIDE
8-94113-322-3
02
1
1206-
●
15
07.523 SHACKLE; RR SPR
(B) INSIDE
8-97033-966-1
02
1
1206-
●
15
07.523 SHACKLE; RR SPR
(C)
8-94118-511-3
02
1
1206-
●
15
07.523 SHACKLE; RR SPR
(D) W/PIN
8-97360-011-0
02
1
1206-
●
16
07.524 BUSHING; SHACKLE,RR SPR
8-94113-323-2
04
1
1206-
●
16
07.524 BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS
5-87610-160-0
04
1
1206-
●
153
07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5
8-98011-489-0
02
1
1206-
●
153
07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5
8-98011-489-0
04
1
1206-
●
●
153
07.529 WASHER; PL,SPRING PIN
(B) ID=19
8-97360-119-0
02
1
1206-
●
180
07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122
8-98011-487-0
02
1
1206-
●
●
180
07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE
8-97360-110-0
02
1
1206-
●
●
180
07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130
8-98011-488-0
02
1
1206-
●
180
07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE
8-97360-112-0
02
1
1206-
●
182
07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) M16
0-91110-516-0
02
1
1206-
●
182
07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) M16
0-91110-516-0
04
1
1206-
●
●
182
07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE
8-97360-125-0
02
1
1206-
●
182
07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE
8-97360-125-0
04
1
1206-
●
●
182
07.529 NUT; PIN,RR SPR
(B) M18
0-91110-518-0
02
1
1206-
●
4
1
465
6
5
502
227
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF
8-97693-008-0
02
1
1206-
●
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 11-LEAF
8-97693-009-0
02
1
1206-
●
4
07.516 U-BOLT; RR SPR
IDENTIFICATION LABEL FOR KD<6UT> L=235
8-97693-075-0
04
1
1206-
●
4
07.516 U-BOLT; RR SPR
EXC. IDENTIFICATION LABEL FOR KD<6UT> L=235
8-94127-920-3
04
1
1206-
●
4
07.516 U-BOLT; RR SPR
L=265
8-94127-923-3
04
1
1206-
●
5
07.529 NUT; U-BOLT,RR SPR
07.417 M16
8-97360-121-0
08
1
1206-
●
●
6
07.516 WASHER; PL,U-BOLT
ID=16.4
8-97360-118-0
08
1
1206-
●
●
225
07.535 RUBBER; CUSHION,RR SPR
8-97693-023-0
02
1
1206-
●
225
07.535 RUBBER; CUSHION,RR SPR
8-97693-022-0
02
1
1206-
●
227
07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE
0-91180-112-0
02
1
1206-
●
●
465
07.518 SHIM; ADJ
RR BODY FLAT BED(RS6)
8-97072-589-0
AR
1
1307-1411
●
465
07.518 SHIM; ADJ
RR BODY FLAT BED(RS6)
8-97072-589-0
AR
1
1412-
●
●
502
07.506 CLAMP; RR LEAF SPR
07.518 L=130 T=4.5
8-94119-069-2
02
1
1206-
●
●
