◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51423 - QKR RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#96095) — 35 parça

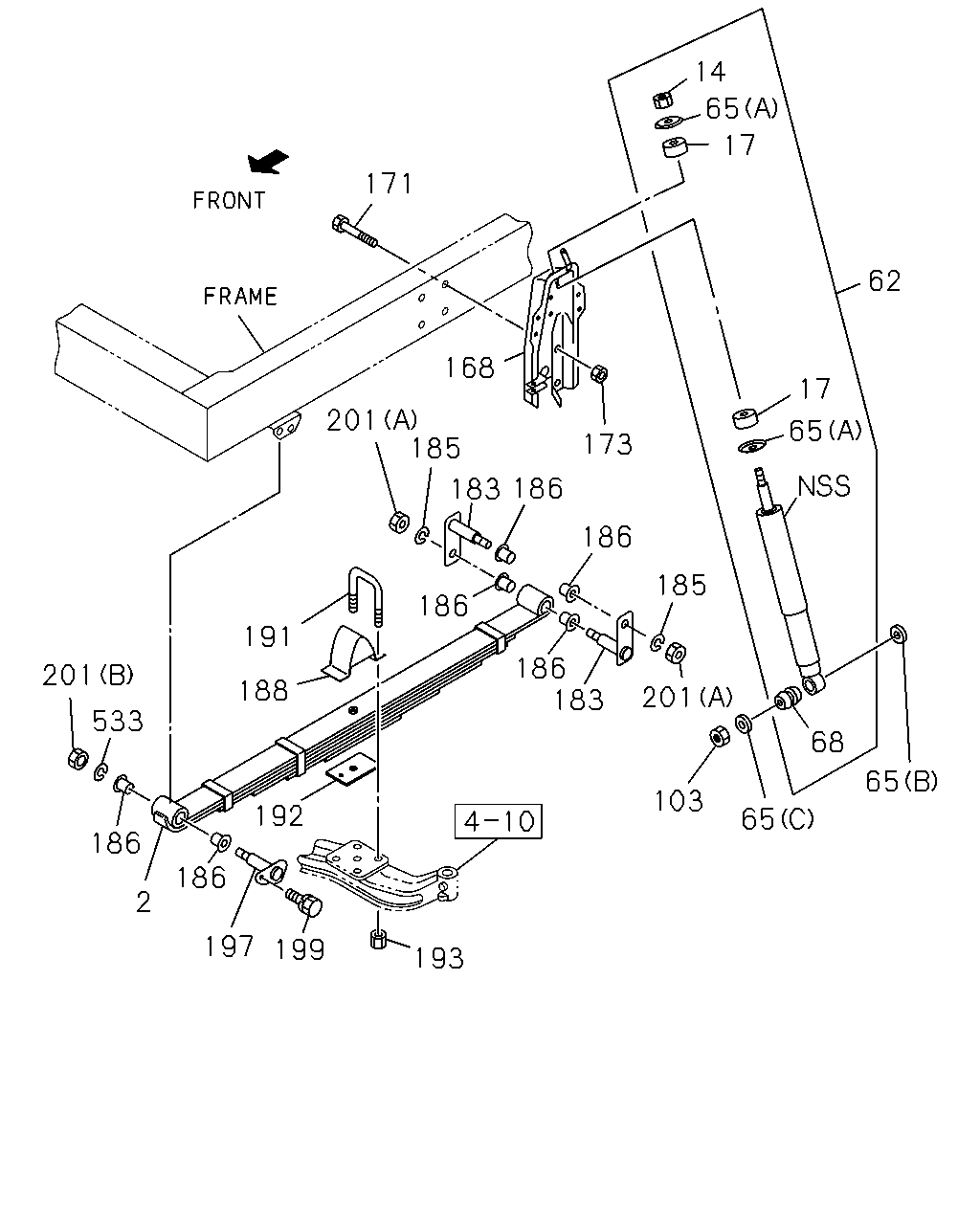

çizim 289658
171 14 65 17 62 17 65 173 168 186 186 185 183 185 201 191 188 201 533 186 192 186 197 199 193 103 65 68 65 201 183 186 186 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-97693-005-0 01 1 1206- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-97693-007-0 01 1 1206- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF 		8-97693-004-0 01 1 1206- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF 		8-97693-006-0 01 1 1206- ●
14 07.389 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 1206- ● ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 1206- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97260-214-1 02 1 1206- ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97253-605-1 02 1 1206- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		5-87610-127-1 02 1 1304- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		5-87610-152-0 02 1 1304- ●
65 07.347 WASHER; S/ABS
(B) ID=17 OD=32 		0-91614-616-0 02 1 1206- ● ●
65 07.347 WASHER; S/ABS
07.245 (A) ID=10.5 OD=38 		9-51631-062-0 04 1 1206- ● ●
65 07.347 WASHER; S/ABS
(C) ID=12.5 		9-51679-022-0 02 1 1206- ● ●
68 07.388 BUSHING; S/ABS
07.347 TOKICO 		8-94224-694-0 02 1 1206- ● ●
103 07.347 NUT; S/ABS TO LWR LINK
04.439 M12 		0-91111-512-0 02 1 1206- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-97316-007-1 01 1 1206- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-97316-015-1 01 1 1206- ● ●
171 07.395 BOLT; S/ABS BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 08 1 1206- ● ●
173 07.395 NUT; S/ABS
04.085 M10 FLANGE 		0-91180-210-0 08 1 1206-1403 ● ●
173 07.395 NUT; S/ABS
03.162 M10 FLANGE 		0-91180-110-0 08 1 1404- ● ●
183 07.436 SHACKLE; FRT SUSP 8-98034-341-0 04 1 1206- ● ●
185 07.427 WASHER; LK,PIN
ID=16.5 		8-98011-489-0 04 1 1206- ● ●
186 07.105 BUSHING; SHACKLE 8-97081-531-0 12 1 1206- ● ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-97693-024-0 02 1 1206- ● ●
191 07.417 U-BOLT; FRT SPR
L=95 		8-97304-073-1 02 1 1206- ●
191 07.417 U-BOLT; FRT SPR
L=105 		8-97304-074-1 02 1 1206- ●
191 07.417 U-BOLT; FRT SPR
L=105 		8-97304-074-1 04 1 1206- ●
192 07.436 PIECE; DIST
07.425 		8-94249-413-1 02 1 1206- ●
193 07.417 NUT; U BOLT
06.174 M14 FLANGE 		8-97360-124-0 08 1 1206- ● ●
197 07.427 PIN; FRT SPR,FRT 8-94117-900-1 02 1 1206- ● ●
199 07.427 BOLT
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1206- ● ●
201 07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF> 06.509 (B) M16 		0-91110-516-0 02 1 1206- ● ●
201 07.427 NUT; PIN LK
06.509 (A) M16 		0-91110-516-0 04 1 1206- ● ●
201 07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> (B) M16 FLANGE 		8-97360-125-0 02 1 1206- ● ●
533 07.347 WASHER; FRT SUSP
KD PREPARATORY PACK<6HF> 07.427 ID=16.5 		8-98011-489-0 02 1 1206- ● ●
