◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51423 - QKR RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶

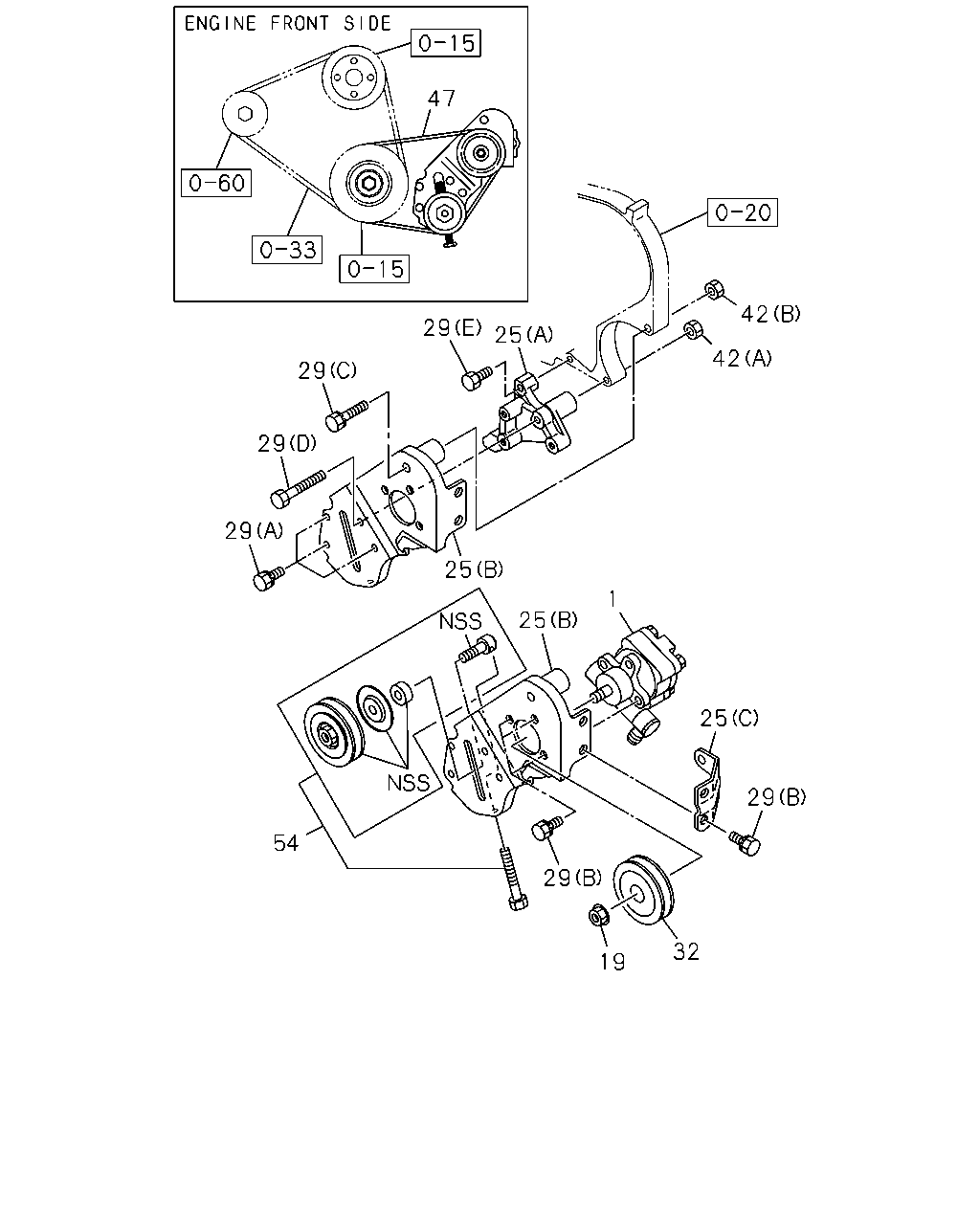

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#96092) — 18 parça
çizim 288473
42 42 47 29 29 29 29 25 25 25 54 29 25 29 32 19 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97354-730-1 01 1 1206-1303 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-98217-772-0 01 1 1304- ● ●
19 07.874 NUT; PULLEY,OIL PUMP
07.395 M12 		8-97360-126-0 01 1 1206- ● ●
25 06.606 BRACKET; P/S PUMP
(B) 		8-97065-974-0 01 1 1206- ● ●
25 06.606 BRACKET; P/S PUMP
(A) 		8-97107-869-0 01 1 1206- ● ●
25 06.606 BRACKET; P/S PUMP
(C) 		8-97107-872-0 01 1 1206- ● ●
29 09.171 BOLT; BRKT,POWER STRG
00.386 (D) M8X100 FLANGE 		0-28050-800-0 01 1 1206- ● ●
29 09.171 BOLT; BRKT,POWER STRG
02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 1206- ● ●
29 09.171 BOLT; BRKT,POWER STRG
04.686 (E) M8X60 FLANGE 		0-28050-860-0 01 1 1206- ● ●
29 09.171 BOLT; BRKT,POWER STRG
09.181 (C) M10X100 FLANGE 		0-28051-000-0 01 1 1206- ● ●
29 09.171 BOLT; BRKT,POWER STRG
02.343 (B) M10X20 FLANGE 		0-28651-020-0 05 1 1206- ● ●
32 06.665 PULLEY; IDLER,P/S 8-97084-332-2 01 1 1206-1303 ● ●
32 06.665 PULLEY; IDLER,P/S 8-98217-771-0 01 1 1304- ● ●
42 06.672 NUT; ADJ PLATE
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1206- ● ●
42 06.672 NUT; ADJ PLATE
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1206- ● ●
47 01.066 BELT; P/S PUMP 8-97085-131-0 01 1 1206- ● ●
47 01.066 BELT; P/S PUMP
BEST VALUE PARTS 		5-87610-096-0 01 1 1206- ● ●
54 06.655 IDLER ASM; P/S OIL PUMP 8-94128-866-0 01 1 1206- ● ●
