Isuzu WW
▶
TRUCKS
▶
QKR
▶
51423 - QKR RHD
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶

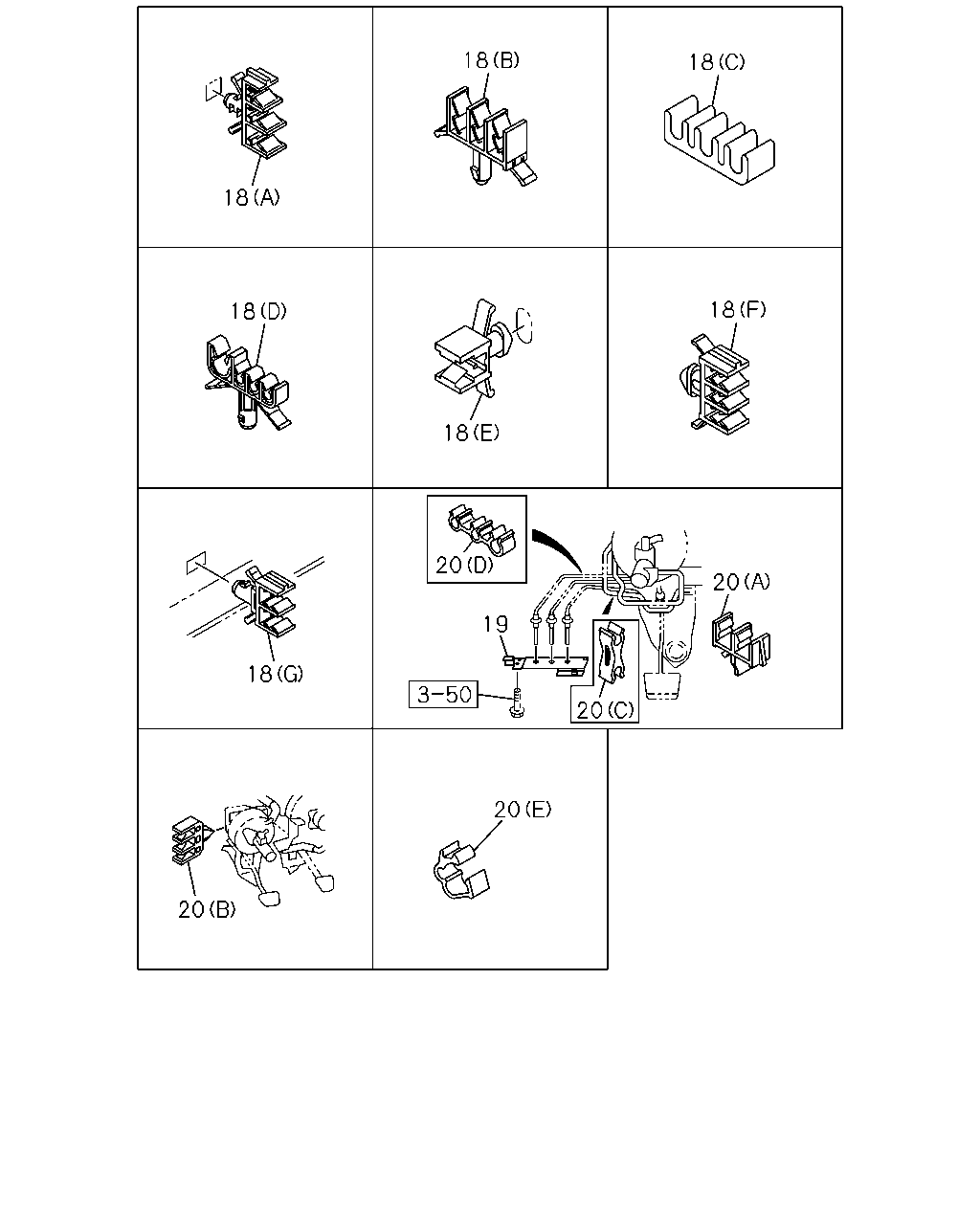

3-58 — FIXING PARTS; OIL PIPING
(#96081) — 20 parça
Tümü
A - NKR5SE
B - NKR5SN
18
18
18
18
18
18
20
20
20
18
20
20
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
18
04.686 CLIP; BRK PIPE
(G) ID=4.8X2
8-94316-410-0
02
1
1206-
●
18
04.686 CLIP; BRK PIPE
(D) ID=10 & 4.76X3
8-97168-820-0
02
1
1206-
●
18
04.686 CLIP; BRK PIPE
03.162 (A) ID=10 & 6.4 & 4.8
8-97064-484-1
03
1
1206-
●
●
18
04.686 CLIP; BRK PIPE
03.162 (A) ID=10 & 6.4 & 4.8
8-97064-484-1
03
1
1206-
●
18
04.686 CLIP; BRK PIPE
(E) ID=4.8 H=26
8-94249-685-0
01
1
1206-
●
●
18
04.686 CLIP; BRK PIPE
(E) ID=4.8 H=26
8-94249-685-0
01
1
1206-
●
●
18
04.686 CLIP; BRK PIPE
04.685 (C) ID=4.76X3
8-94122-333-0
01
1
1206-
●
●
18
04.686 CLIP; BRK PIPE
(F) ID=6.5 & 4.8X2 H=29
8-94249-689-2
02
1
1206-
●
●
18
04.686 CLIP; BRK PIPE
(B) ID=6.5 & 4.8X2
8-94131-710-2
01
1
1206-
●
●
18
04.686 CLIP; BRK PIPE
(B) ID=6.5 & 4.8X2
8-94131-710-2
01
1
1206-
●
18
04.686 CLIP; BRK PIPE
(G) ID=4.8X2
8-94316-410-0
01
1
1206-
●
18
04.686 CLIP; BRK PIPE
03.162 (A) ID=10 & 6.4 & 4.8
8-97064-484-1
02
1
1206-
●
18
04.686 CLIP; BRK PIPE
(E) ID=4.8 H=26
8-94249-685-0
02
1
1206-
●
18
04.686 CLIP; BRK PIPE
(E) ID=4.8 H=26
8-94249-685-0
02
1
1206-
●
19
04.686 BRACKET; OIL PIPE
8-97042-258-4
01
1
1206-
●
●
20
04.686 CLIP; BRK PIPE
(E) ID=6.35 & 4.76X2
8-94107-732-1
01
1
1206-
●
●
20
04.686 CLIP; BRK PIPE
(A) ID=4.8X2
8-94113-470-0
01
1
1206-
●
●
20
04.686 CLIP; BRK PIPE
(D) ID=6.4 & 4.8X2
8-94146-043-0
01
1
1206-
●
●
20
04.686 CLIP; BRK PIPE
04.868 (C) ID=4.6X2
8-94241-454-0
01
1
1206-
●
●
20
04.686 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2
8-94250-923-2
01
1
1206-
●
●
