Isuzu WW
▶
TRUCKS
▶
QKR
▶
51423 - QKR RHD
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#96079) — 19 parça
Tümü
A - NKR5SE
B - NKR5SN
◀
[352A] NO.1 (14 parça)
[352A] NO.2 (5 parça)
▶

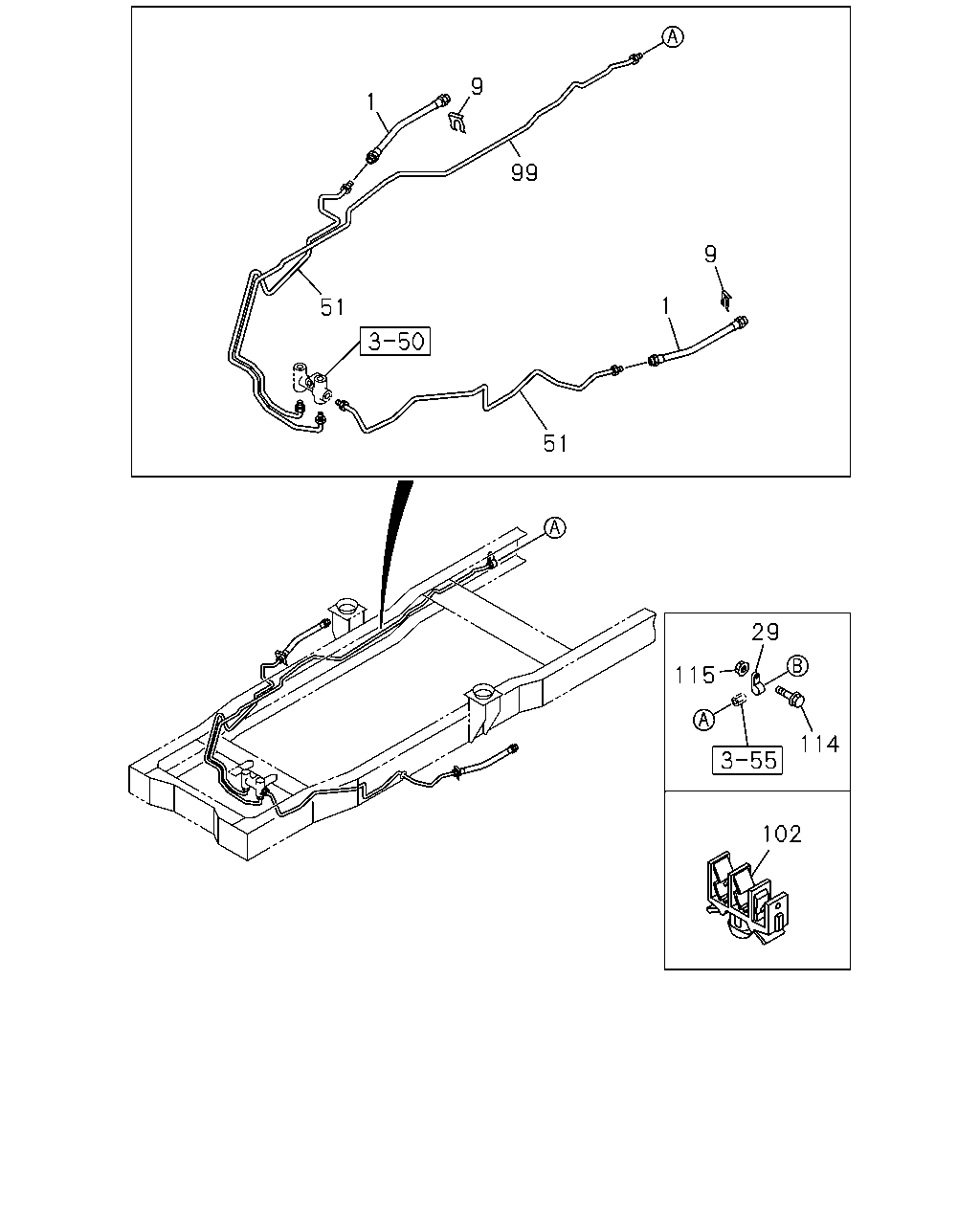

1
9
99
51
51
115
29
114
102
1
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.680 HOSE; FLEX,FRT BRK
L=310
8-97035-063-1
02
1
1206-
●
●
9
04.686 CLIP; FLEX HOSE,FRT BRK
8-97360-054-0
02
1
1206-
●
●
9
04.686 CLIP; FLEX HOSE,FRT BRK
8-97360-054-0
02
1
1206-
●
●
29
04.686 CLIP; UNION
ID=16 L=20
0-95235-532-0
01
1
1206-
●
●
51
04.685 PIPE; BRK
4JB1-TC ENG(RDT) 04.686
8-97205-104-0
01
1
1206-
●
●
51
04.685 PIPE; BRK
L=918
8-94249-679-4
01
1
1206-
●
●
51
04.685 PIPE; BRK
4JB1-NA ENG(RLF)
8-97100-833-3
01
1
1206-
●
●
99
04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT)
8-98187-608-0
01
1
1206-
●
99
04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT)
8-98106-749-0
01
1
1206-
●
99
04.686 PIPE ASM; 4/5/6 WAY
4JB1-NA ENG(RLF) 05.476
8-97301-505-0
01
1
1206-
●
99
04.686 PIPE ASM; 4/5/6 WAY
4JB1-NA ENG(RLF) 05.476
8-97173-706-0
01
1
1206-
●
102
04.686 CLIP; PIPE
ID=6.5 & 4.8X2 H=29
8-94249-689-2
02
1
1206-
●
114
04.685 BOLT; CLIP
00.685 M6X25 FLANGE
0-28650-625-0
01
1
1206-
●
●
115
04.680 NUT; CLIP
01.062 M6 FLANGE
0-91180-106-0
01
1
1206-
●
●

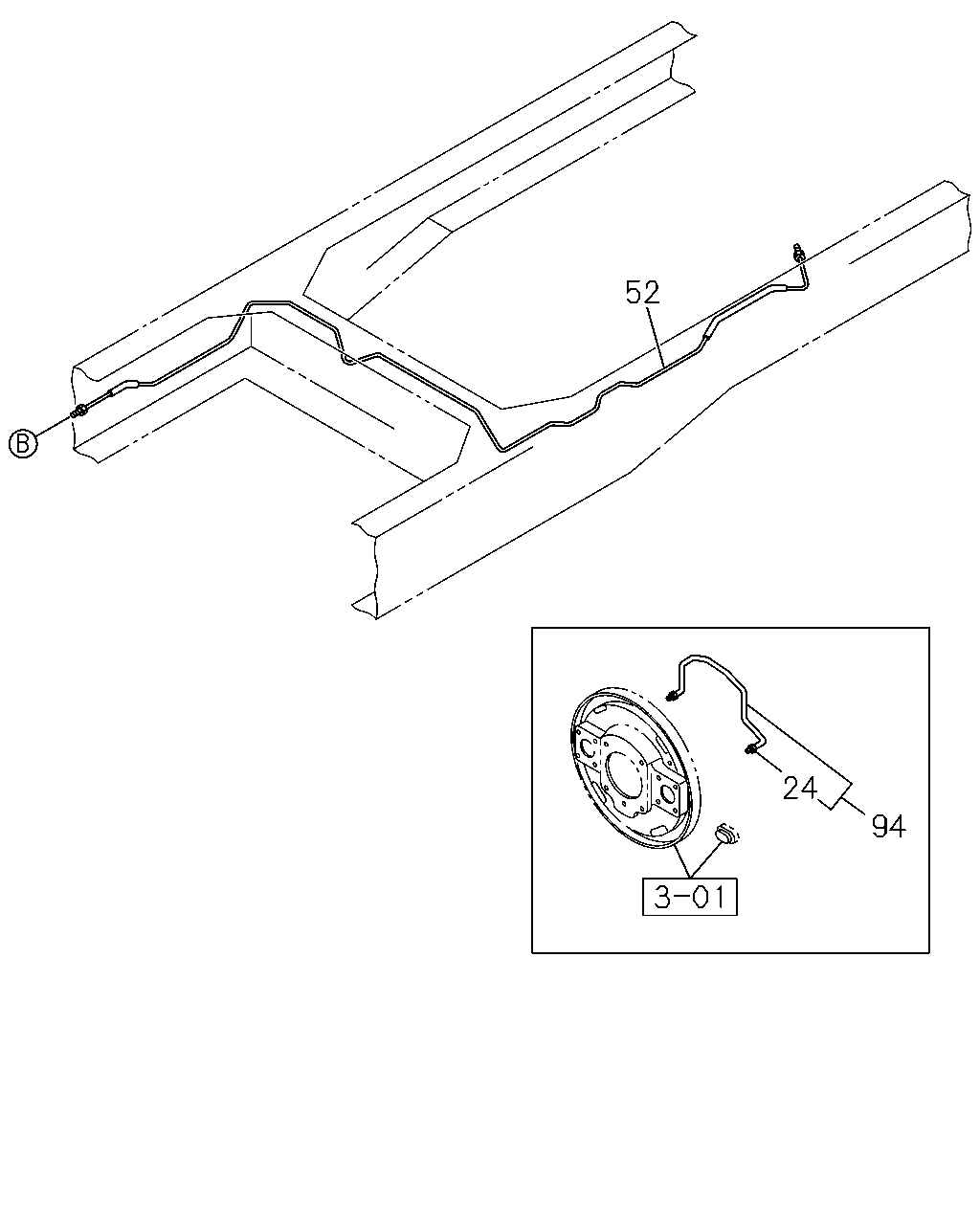

52
24
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
04.686 NUT; UNION,OIL PIPE
0-92107-605-0
02
1
1206-
●
●
52
04.685 PIPE; BRK
8-97300-213-0
01
1
1206-
●
52
04.685 PIPE; BRK
8-97178-897-0
01
1
1206-
●
94
04.685 PIPE; BRK,W/C TO W/C
8-97019-222-0
01
1
1206-
●
●
94
04.685 PIPE; BRK,W/C TO W/C
8-97019-223-0
01
1
1206-
●
●
