3-30 — BRAKE MASTER CYLINDER (#96076) — 13 parça

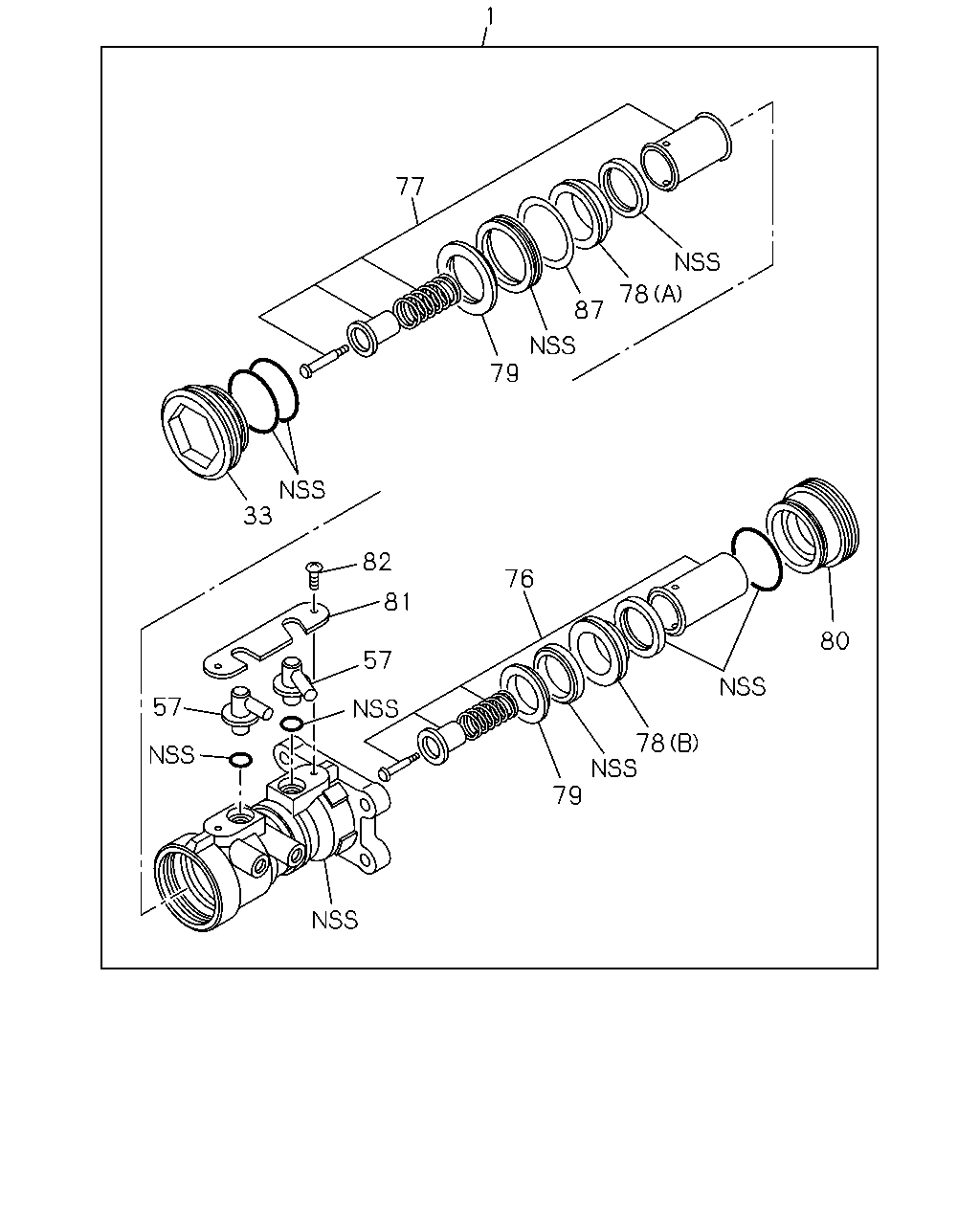

çizim 288371
77 79 87 33 57 82 81 57 76 79 78 80 78 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.650 CYLINDER ASM; BRK MASTER 8-97224-373-0 01 1 1206- ● ●
33 04.661 PLUG; END,M/CYL 8-97186-696-0 01 1 1206- ● ●
57 04.651 NIPPLE; BRK M/CYL 8-97130-442-0 02 1 1206- ● ●
76 04.653 PISTON ASM; PRIMARY 8-97224-636-0 01 1 1206- ● ●
77 04.653 PISTON ASM; SECONDARY 8-97224-635-0 01 1 1206- ● ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 1206- ● ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-310-0 01 1 1206- ● ●
79 04.651 SUPPORTER; CUP 8-97130-462-0 02 1 1206- ● ●
80 04.651 COVER; MASTER CYL 8-97130-448-0 01 1 1206- ● ●
81 04.651 HOLDER; NIPPLE 8-97130-445-0 01 1 1206- ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 1206- ● ●
87 04.662 SPACER; CUP 8-97130-458-0 01 1 1206- ● ●

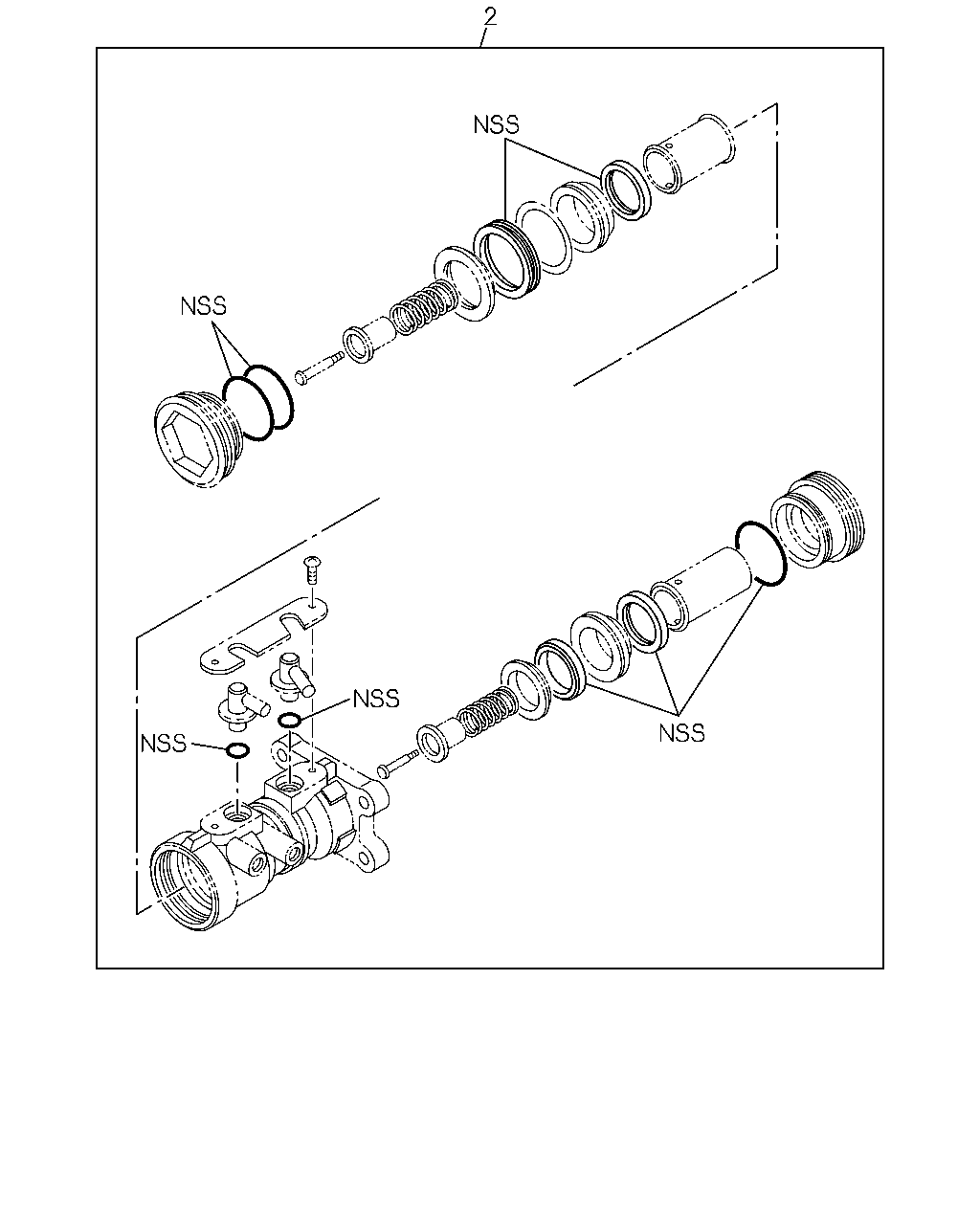

çizim 289648
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 1206- ● ●
