Isuzu WW
▶
TRUCKS
▶
QKR
▶
51423 - QKR RHD
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#96074) — 20 parça
Tümü
A - NKR5SE
B - NKR5SN
◀

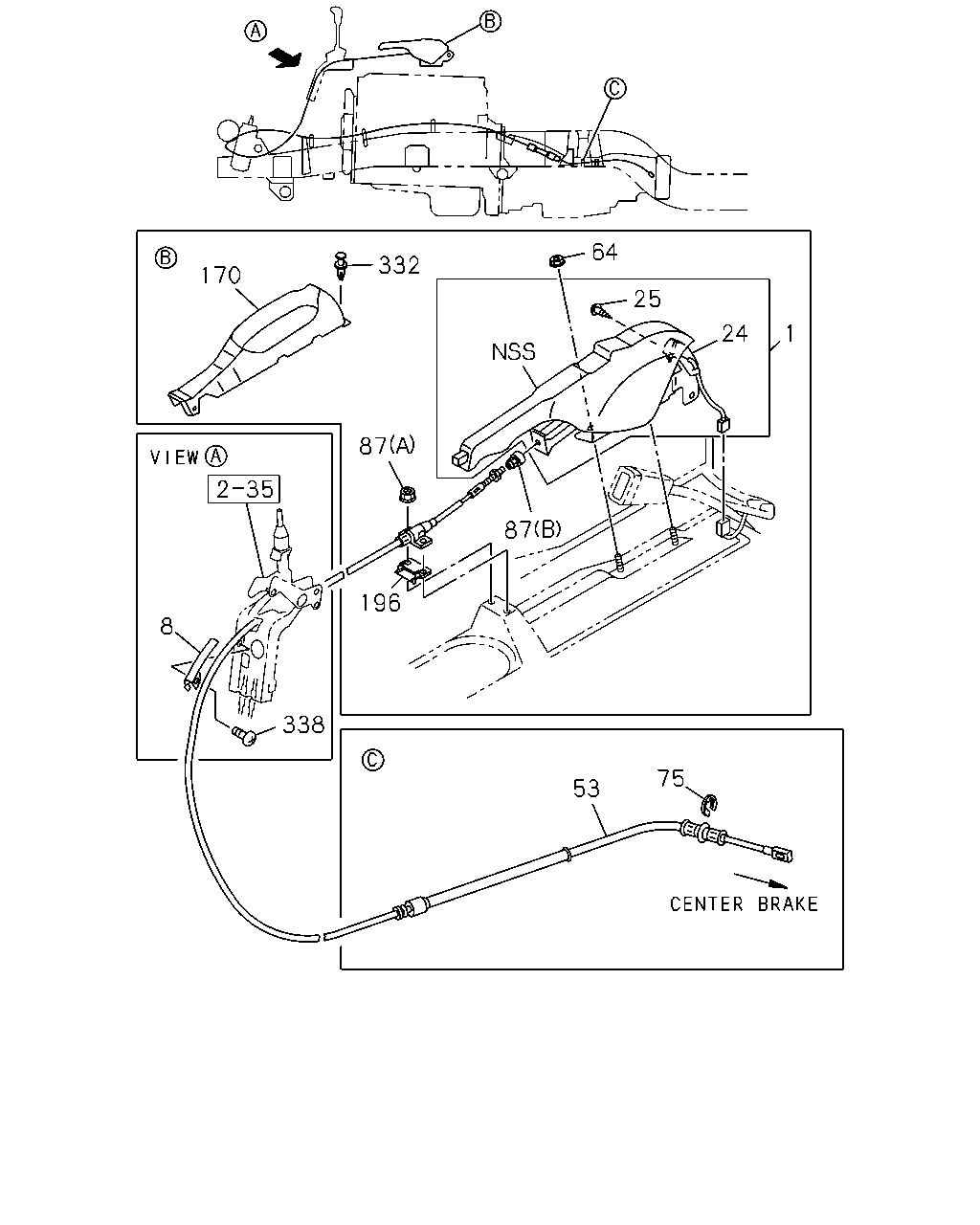

[311A] STEM AND CABLE (15 parça)
[311A] FIXING PARTS (5 parça)
▶
170
332
64
25
24
1
87
87
196
338
8
53
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97409-386-0
01
1
1206-1305
●
●
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97427-545-0
01
1
1306-
●
●
8
04.592 GUIDE; PARKING BRK
8-97190-672-0
01
1
1206-
●
●
24
04.589 SWITCH ASM; PARK BRK
8-97995-828-1
01
1
1206-1305
●
●
24
04.589 SWITCH ASM; PARK BRK
8-98238-611-0
01
1
1306-
●
●
25
04.589 SCREW; SW,PARKING BRK
8-98152-463-0
01
1
1206-
●
●
53
04.779 CABLE; PARK BRK,FRT LWR
8-97184-270-0
01
1
1206-
●
●
64
04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE
0-91380-008-0
02
1
1206-
●
●
75
04.790 RING; SNAP,HAND BRK CABLE
ID=12
0-91805-512-0
01
1
1206-
●
●
87
04.785 NUT
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
1206-
●
●
87
04.785 NUT
(B) M6
8-98034-313-1
01
1
1206-
●
●
170
04.595 COVER; PARKING BRK LEVER
GRAY
8-97409-480-0
01
1
1206-
●
●
196
04.784 SPACER; CABLE TO LEVER
8-98034-201-0
01
1
1206-
●
●
332
04.785 CLIP; COVER
03.602 D6X12.5
8-94146-425-0
01
1
1206-
●
●
338
04.785 SCREW; GUIDE
M6X10
0-34218-610-0
01
1
1206-
●
●
220
324
181
231
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
86
04.785 BOLT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1206-
●
●
181
04.785 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1206-
●
●
220
04.785 NUT; CLIP,PARKING CONT CABLE
01.062 M8 FLANGE
0-91180-108-0
01
1
1206-
●
●
231
04.785 CLIP; BAND,BRK CABLE
ID=13 L=50
0-95235-286-0
01
1
1206-
●
●
324
04.785 BRACKET
8-97113-984-1
01
1
1206-
●
●
