Isuzu WW
▶
TRUCKS
▶
QKR
▶
51423 - QKR RHD
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

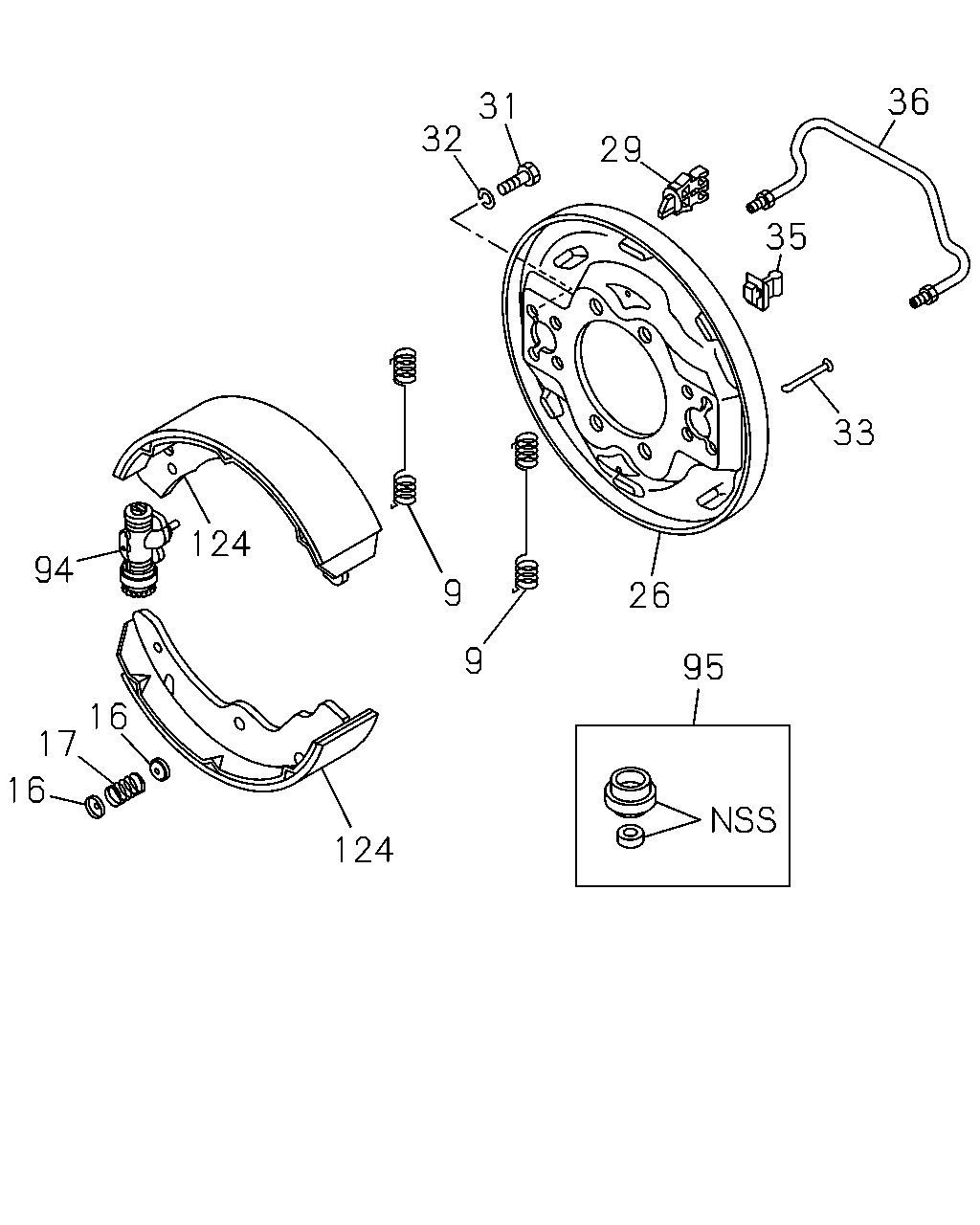

3-05 — REAR WHEEL BRAKE
(#96071) — 19 parça
Tümü
A - NKR5SE
B - NKR5SN
95
26
9
9
124
16
17
16
94
124
32
31
35
33
36
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
9
05.026 SPRING; RETURN,BRK SHOE
5-87220-256-0
04
1
1206-
●
●
16
05.043 CUP; SHOE HOLDING
5-87220-252-0
08
1
1206-
●
●
17
04.043 SPRING; SHOE HOLD DOWN
5-87220-254-0
04
1
1206-
●
●
26
05.001 PLATE; BACK,RR BRK
5-87220-260-0
01
1
1206-
●
●
26
05.001 PLATE; BACK,RR BRK
5-87220-261-0
01
1
1206-
●
●
29
04.685 CLIP; PIPE,BRK
5-87220-266-0
02
1
1206-
●
●
31
04.665 BOLT; RR WHEEL CYL
5-87220-272-0
16
1
1206-
●
●
32
05.056 WASHER; LK
5-87220-273-0
16
1
1206-
●
●
33
05.043 PIN; SHOE HOLD DOWN
5-87220-264-0
04
1
1206-
●
●
35
05.002 GROMMET; CHECK HOLE
5-87220-270-0
04
1
1206-
●
●
36
04.685 PIPE; OIL,RR BRK
5-87220-268-0
02
1
1206-
●
●
94
04.665 CYLINDER; WHEEL,RR BRK
FRONT
5-87220-246-0
01
1
1206-
●
94
04.665 CYLINDER; WHEEL,RR BRK
REAR
5-87220-247-0
01
1
1206-
●
94
04.665 CYLINDER; WHEEL,RR BRK
5-87220-248-0
02
1
1206-
●
94
04.665 CYLINDER; WHEEL,RR BRK
5-87220-249-0
02
1
1206-
●
94
04.665 CYLINDER; WHEEL,RR BRK
FRONT
5-87220-250-0
01
1
1206-
●
94
04.665 CYLINDER; WHEEL,RR BRK
REAR
5-87220-251-0
01
1
1206-
●
95
04.665 CUP SET; RR WHEEL CYL
5-87220-391-0
04
1
1206-
●
●
124
05.017 SHOE ASM; BRK,RR
5-87220-258-0
04
1
1206-
●
●
