0-40 — FUEL INJECTION SYSTEM (#9607) — 88 parça

31 32 34 36 36 37 38 39 40 140 143 138 45 44 141 42 140 142 41 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	0109-
32	HOLDER ASM; NOZZLE	1-15330-054-1	06	1	0109-
33	NOZZLE; INJ	1-15311-265-0	06	1	0109-
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	0109-
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	06	1	0109-
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	0109-
37	NUT; CAP,NOZZLE HOLDER	1-15334-010-0	06	1	0109-
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	06	1	0109-
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-004-0	06	1	0109-
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-011-0	06	1	0109-
41	CONNECTOR; FUEL INL,NOZZLE HOLDER	1-15351-005-0	06	1	0109-
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	5-15339-003-0	06	1	0109-
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94246-531-0	06	1	0109-
45	ROD; PUSH,NOZZLE HOLDER	1-15341-004-0	06	1	0109-
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	0109-
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-001-0	06	1	0109-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	5-15339-007-0	AR	1	0109-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.60	5-15339-008-0	AR	1	0109-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.70	5-15339-009-0	AR	1	0109-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.80	5-15339-010-0	AR	1	0109-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.90	5-15339-011-0	AR	1	0109-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.00	5-15339-012-0	AR	1	0109-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	5-15339-018-0	AR	1	0109-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	5-15339-019-0	AR	1	0109-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	5-15339-020-0	AR	1	0109-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	5-15339-021-0	AR	1	0109-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-94128-982-0	AR	1	0109-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-94128-983-0	AR	1	0109-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-94128-984-0	AR	1	0109-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-94128-985-0	AR	1	0109-
141	ROD; PUSH,UPR,NOZZLE HOLDER	1-15341-006-0	06	1	0109-
142	SPACER; PUSH ROD	1-15339-093-0	06	1	0109-
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER	1-15345-003-0	06	1	0109-

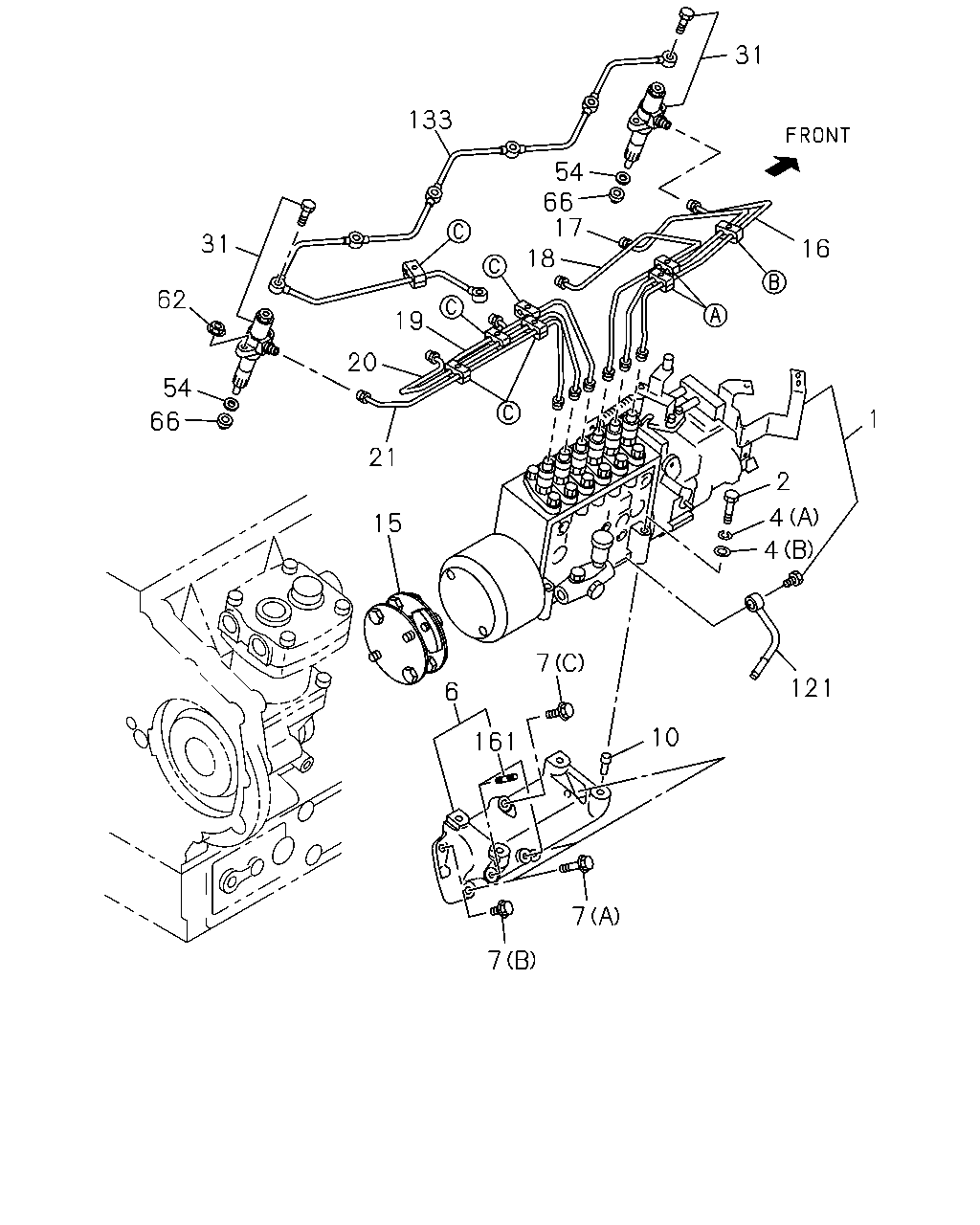

31 133 54 66 17 18 31 16 62 19 20 54 1 66 21 2 4 15 4 7 121 6 10 161 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-216-4	01	1	0109-
2	BOLT; INJ PUMP M10X90	0-16806-090-0	04	1	0109-0512
2	BOLT; INJ PUMP M10X90	0-16856-090-0	04	1	0601-
4	WASHER; INJ PUMP (A) ID=10.2	9-09150-510-0	04	1	0109-0603
4	WASHER; INJ PUMP (A) ID=10.2	0-91510-510-0	04	1	0604-
4	WASHER; INJ PUMP (B) ID=10.5 OD=18	9-09160-510-0	04	1	0109-0605
4	WASHER; INJ PUMP (B) ID=10.5	0-91610-510-0	04	1	0606-
6	BRACKET; INJ PUMP TO C/BL	1-19751-168-0	01	1	0109-0502
6	BRACKET; INJ PUMP TO C/BL	8-97608-455-0	01	1	0503-
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28181-060-0	03	1	0109-0512
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28151-060-0	03	1	0601-
7	BOLT; INJ PUMP BRKT (C) M10X25 FLANGE	0-28781-025-0	01	1	0109-0512
7	BOLT; INJ PUMP BRKT (C) M10X25 FLANGE	0-28751-025-0	01	1	0601-
7	BOLT; INJ PUMP BRKT (B) M10X40 FLANGE	0-28781-040-0	01	1	0109-0512
7	BOLT; INJ PUMP BRKT (B) M10X40 FLANGE	0-28751-040-0	01	1	0601-
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	0109-
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-111-1	01	1	0109-
16	PIPE; INJ NO.1	1-15415-763-0	01	1	0109-
17	PIPE; INJ NO.2	1-15415-764-0	01	1	0109-
18	PIPE; INJ NO.3	1-15415-765-0	01	1	0109-
19	PIPE; INJ NO.4	1-15415-766-0	01	1	0109-
20	PIPE; INJ NO.5	1-15415-767-0	01	1	0109-
21	PIPE; INJ NO.6	1-15415-768-0	01	1	0109-
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	0109-
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	0109-
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	0109-0602
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91180-108-0	12	1	0603-
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	0109-
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-778-0	01	1	0109-
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-777-0	01	1	0109-
161	STUD; INJ PUMP M8X20 L=32	9-04110-820-0	02	1	0109-0604
161	STUD; INJ PUMP M8X20 L=32	0-41010-820-0	02	1	0605-

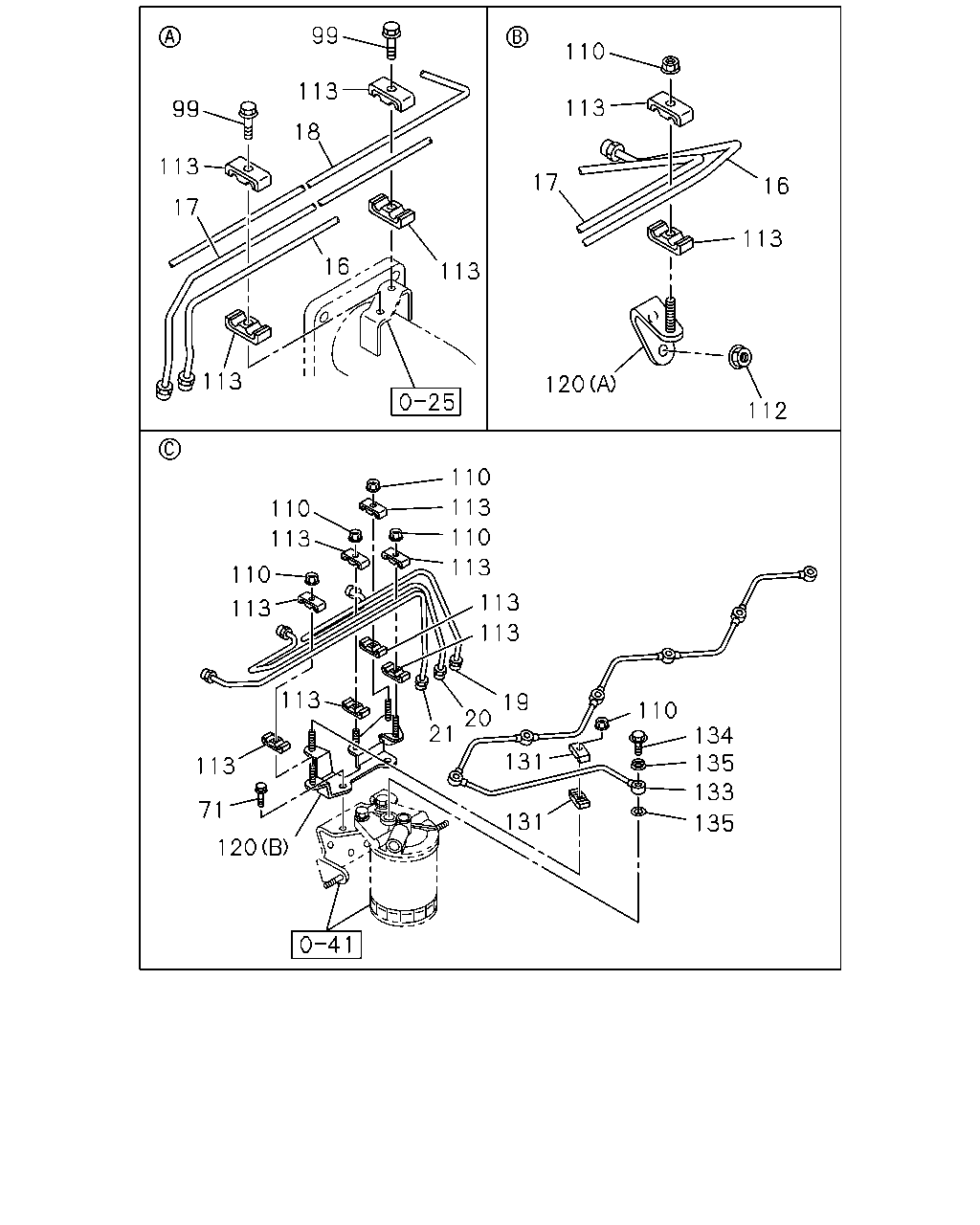

99 110 113 113 99 18 113 17 16 17 113 16 113 113 120 112 110 113 110 110 113 113 110 113 113 113 113 19 110 20 21 134 135 131 113 133 71 131 135 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	PIPE; INJ NO.1	1-15415-763-0	01	1	0109-
17	PIPE; INJ NO.2	1-15415-764-0	01	1	0109-
18	PIPE; INJ NO.3	1-15415-765-0	01	1	0109-
19	PIPE; INJ NO.4	1-15415-766-0	01	1	0109-
20	PIPE; INJ NO.5	1-15415-767-0	01	1	0109-
21	PIPE; INJ NO.6	1-15415-768-0	01	1	0109-
71	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	0109-0512
71	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	02	1	0601-
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28080-635-0	02	1	0109-0512
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28050-635-0	02	1	0601-
110	NUT; CLIP M6 FLANGE	0-91150-106-0	06	1	0109-0602
110	NUT; CLIP M6 FLANGE	0-91180-106-0	06	1	0603-
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0109-0602
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
113	CLIP; INJ PIPE	1-09701-132-1	14	1	0109-1210
113	CLIP; INJ PIPE	1-09701-240-0	14	1	1211-
120	BRACKET; INJ PIPE (A)	1-15419-430-0	01	1	0109-
120	BRACKET; INJ PIPE (B)	1-15419-431-0	01	1	0109-
131	CLIP; OVERFLOW LEAK OFF	1-09701-132-1	02	1	0109-1210
131	CLIP; OVERFLOW LEAK OFF	1-09701-240-0	02	1	1211-
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-777-0	01	1	0109-
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	01	1	0109-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	0109-
