2-25 — SPEEDOMETER DRIVEN GEAR (#96064) — 17 parça

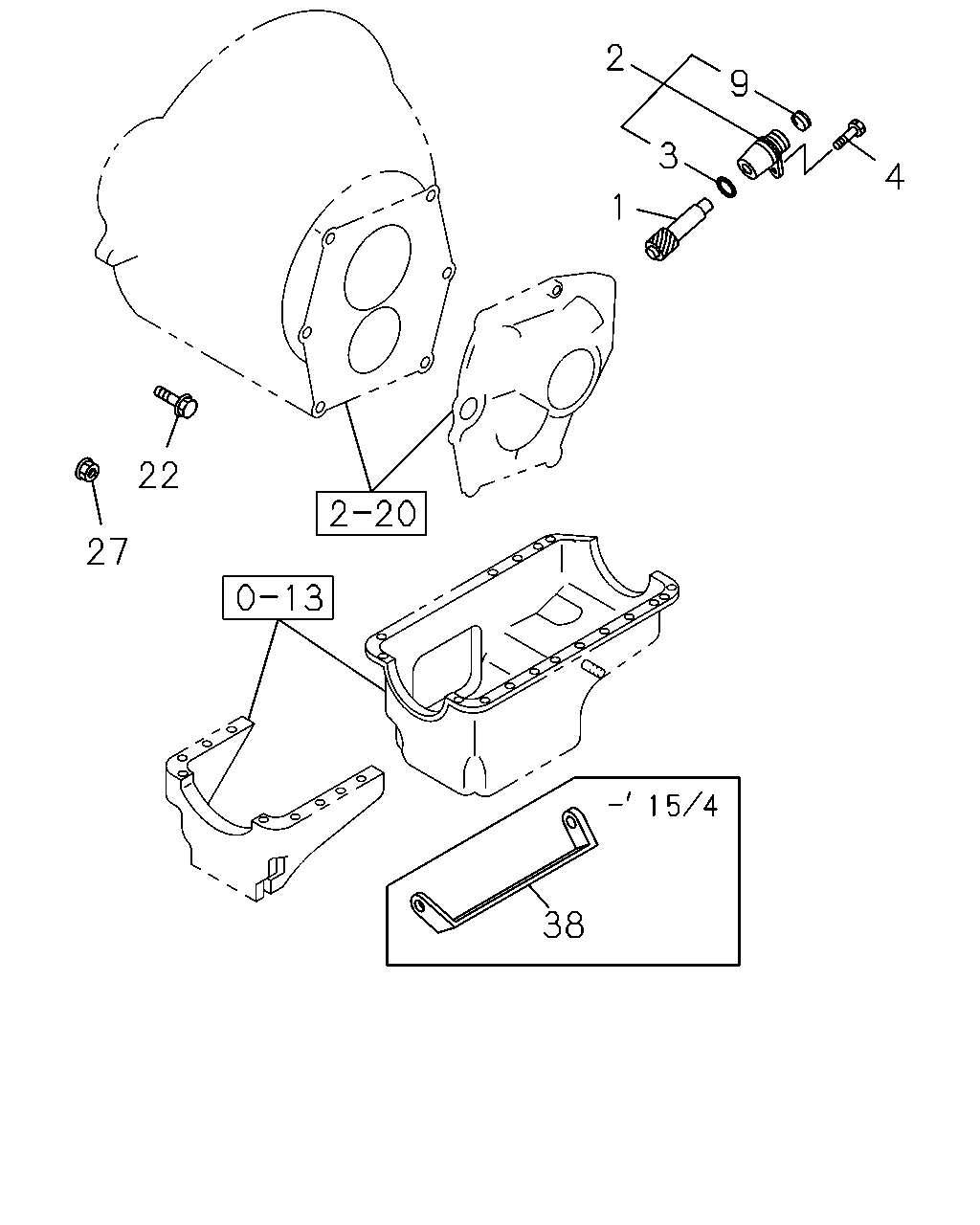

çizim 289643
4 9 2 3 1 22 27 38
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.337 GEAR; DRIVEN,SPD
Z=14 		8-94249-062-0 01 1 1206-1209 ●
1 04.337 GEAR; DRIVEN,SPD
Z=14 		8-98190-000-0 01 1 1210- ●
1 04.337 GEAR; DRIVEN,SPD
Z=16 		8-94249-064-0 01 1 1206-1209 ●
1 04.337 GEAR; DRIVEN,SPD
Z=16 		8-98190-002-0 01 1 1210- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
04.338 Z=14 MARK "4" 		8-97080-360-1 01 1 1206-1209 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
Z=14 MARK "4" 		8-98190-371-0 01 1 1210- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
04.338 Z=16 MARK "6" 		8-97080-362-1 01 1 1206-1209 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
Z=16 MARK "6" 		8-98190-372-0 01 1 1210- ●
3 04.338 GASKET; BUSHING 9-09920-852-0 01 1 1206-1209 ● ●
3 04.338 GASKET; BUSHING
03.278 		9-09567-220-0 01 1 1210- ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1206- ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
NOK 		8-97080-507-0 01 1 1206-1209 ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
NOK 		8-98189-455-0 01 1 1210- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
04.510 M10X35 FLANGE 		0-28051-035-0 04 1 1206- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
M12X35 FLANGE 		0-28051-235-0 04 1 1206- ● ●
27 00.685 NUT; CLU HSG TO TRANS
03.162 M10 FLANGE 		0-91180-110-0 02 1 1206- ● ●
38 00.679 BRACKET; SPACE RUBBER
4JB1-TC ENG(RDT) 		8-97095-937-1 01 1 1206-1504 ● ●
