1-45 — WATER SEDIMENTER; FUEL (#96054) — 32 parça

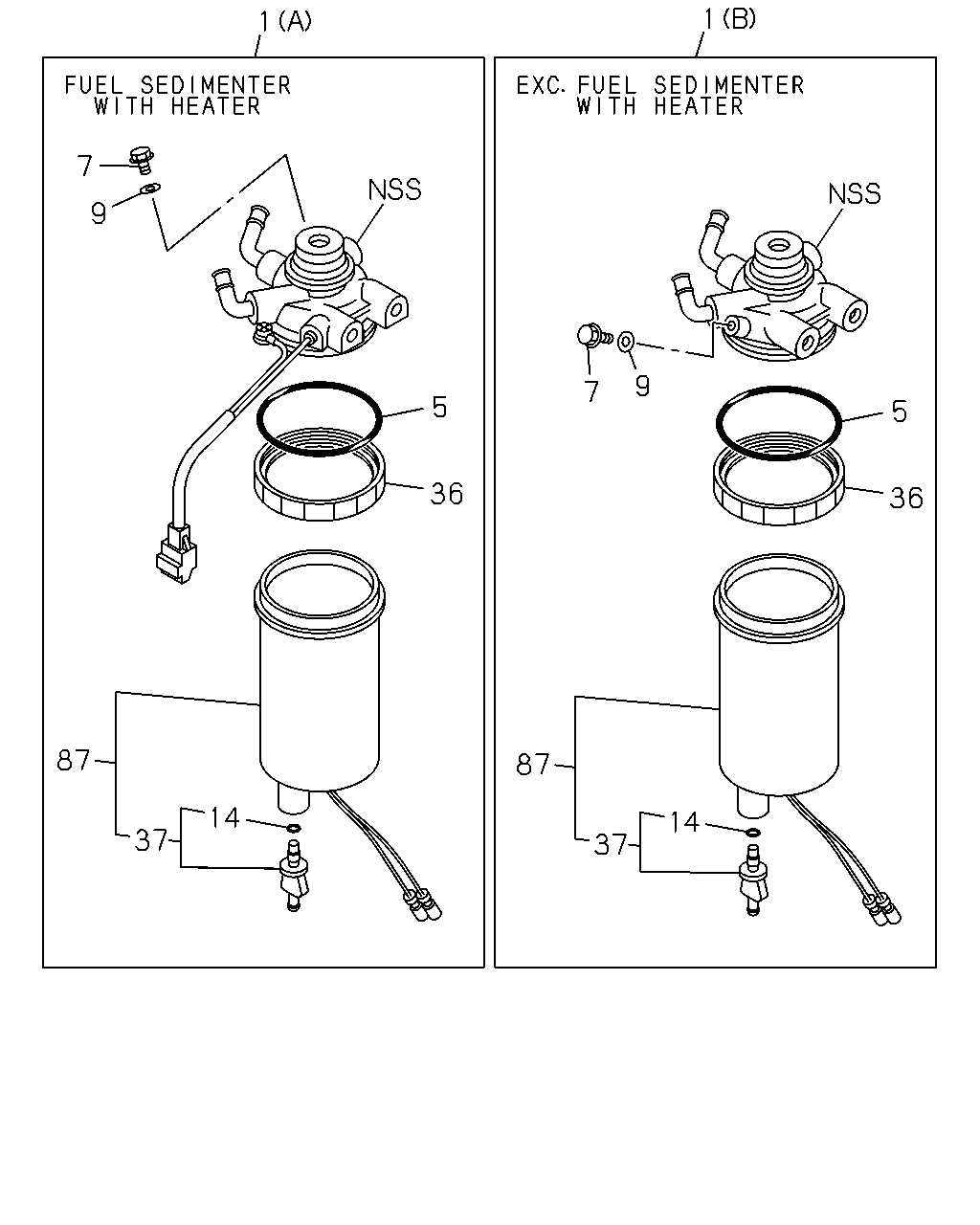

çizim 288273
1 7 9 5 36 14 37 87 14 37 87 9 7 5 36 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97693-167-0 02 1 1206- ● ●
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-3 01 1 1206- ● ●
1 03.890 SEDIMENTER; FUEL
4JB1-TC ENG(RDT) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97081-814-3 01 1 1206- ● ●
1 03.890 SEDIMENTER; FUEL
4JB1-NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-3 01 1 1206- ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		5-87220-514-0 01 1 1206- ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> 		5-09623-075-0 01 1 1206- ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4JB1-TC ENG(RDT) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, IDENTIFICATION LABEL FOR KD<6UT> 		5-09623-075-0 01 1 1206- ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4JB1-NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		5-09623-075-0 01 1 1206- ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		5-87220-515-0 01 1 1206- ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 1206- ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JB1-TC ENG(RDT) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, IDENTIFICATION LABEL FOR KD<6UT> 		8-94132-674-0 01 1 1206- ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JB1-NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 1206- ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		5-87220-516-0 01 1 1206- ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 1206- ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JB1-TC ENG(RDT) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, IDENTIFICATION LABEL FOR KD<6UT> 		8-94132-675-0 01 1 1206- ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JB1-NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 1206- ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		5-87220-517-0 01 1 1206- ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94447-156-0 01 1 1206- ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JB1-TC ENG(RDT) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, IDENTIFICATION LABEL FOR KD<6UT> 		8-94447-156-0 01 1 1206- ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JB1-NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94447-156-0 01 1 1206- ● ●
36 03.890 RING; BODY TO CASE
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		5-87220-518-0 01 1 1206- ● ●
36 03.890 RING; BODY TO CASE
FUEL SEDIMENTER WITH HEATER<6HU> 		5-13234-001-0 01 1 1206- ● ●
36 03.890 RING; BODY TO CASE
4JB1-TC ENG(RDT) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, IDENTIFICATION LABEL FOR KD<6UT> 		5-13234-001-0 01 1 1206- ● ●
36 03.890 RING; BODY TO CASE
4JB1-NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		5-13234-001-0 01 1 1206- ● ●
37 03.890 PLUG; SENSOR
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		5-87220-519-0 01 1 1206- ● ●
37 03.890 PLUG; SENSOR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94453-746-0 01 1 1206- ● ●
37 03.890 PLUG; SENSOR
4JB1-TC ENG(RDT) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, IDENTIFICATION LABEL FOR KD<6UT> 		8-94453-746-0 01 1 1206- ● ●
37 03.890 PLUG; SENSOR
4JB1-NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94453-746-0 01 1 1206- ● ●
87 03.890 CASE ASM; SEDIMENTER
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		5-87220-520-0 01 1 1206- ● ●
87 03.890 CASE ASM; SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97219-363-1 01 1 1206- ● ●
87 03.890 CASE ASM; SEDIMENTER
4JB1-TC ENG(RDT) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97219-363-1 01 1 1206- ● ●
87 03.890 CASE ASM; SEDIMENTER
4JB1-NA ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97219-363-1 01 1 1206- ● ●
