0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#9605) — 59 parça

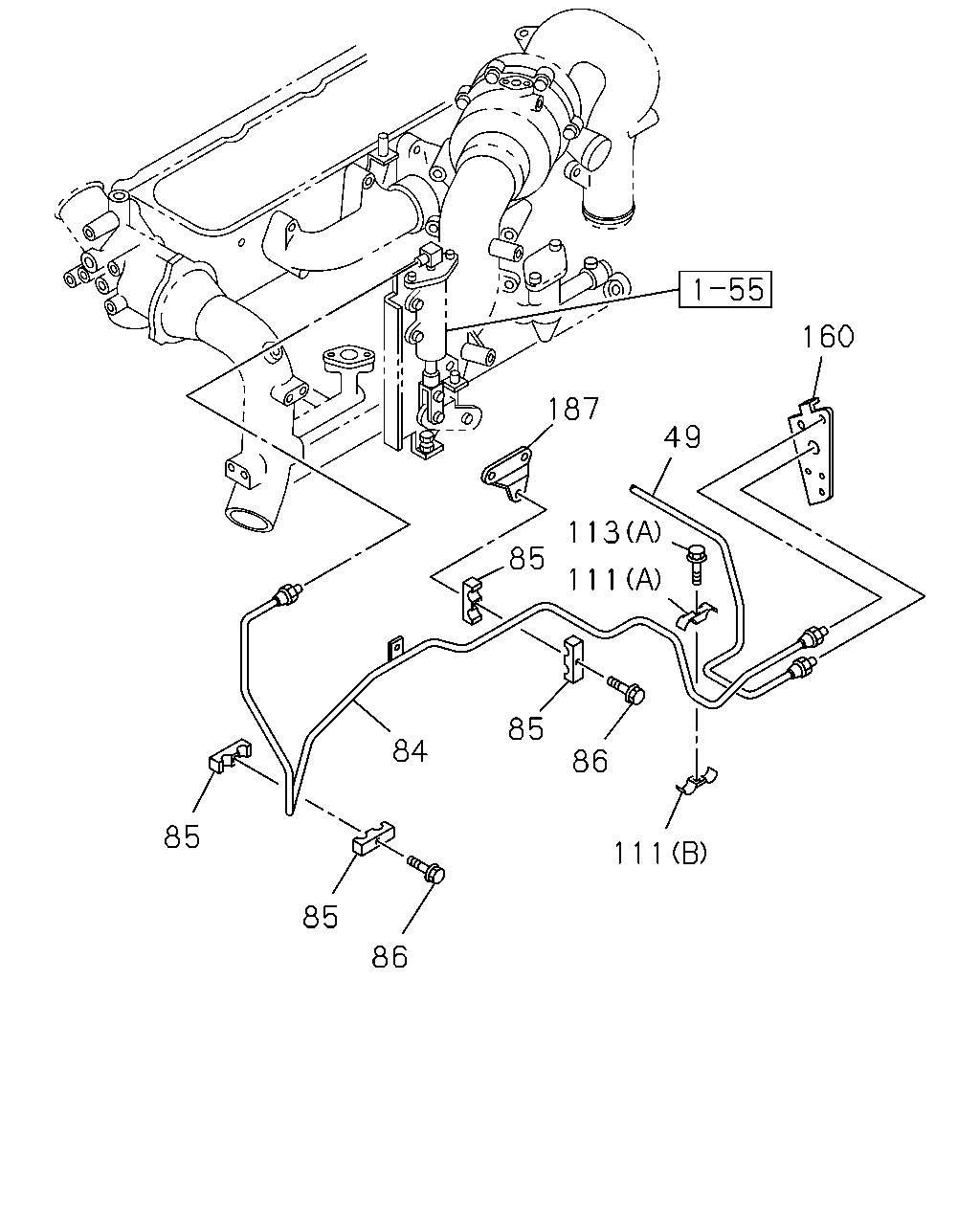

160 187 49 113 85 111 85 84 86 85 111 85 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; AIR,CHARGE	1-19192-963-0	01	1	0109-
84	PIPE; AIR	1-19192-964-0	01	1	0109-
85	CLIP; PIPE	1-09701-240-0	04	1	0109-
86	BOLT; CLIP M6X35 FLANGE	0-28080-635-0	02	1	0109-0512
86	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	02	1	0601-
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	0109-
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	0109-
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	0109-
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	0109-0512
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0601-
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	0109-0512
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-
160	BRACKET; AIR PIPE	1-19199-251-1	01	1	0109-
187	BRACKET; AIR PIPE	1-19199-261-0	01	1	0109-

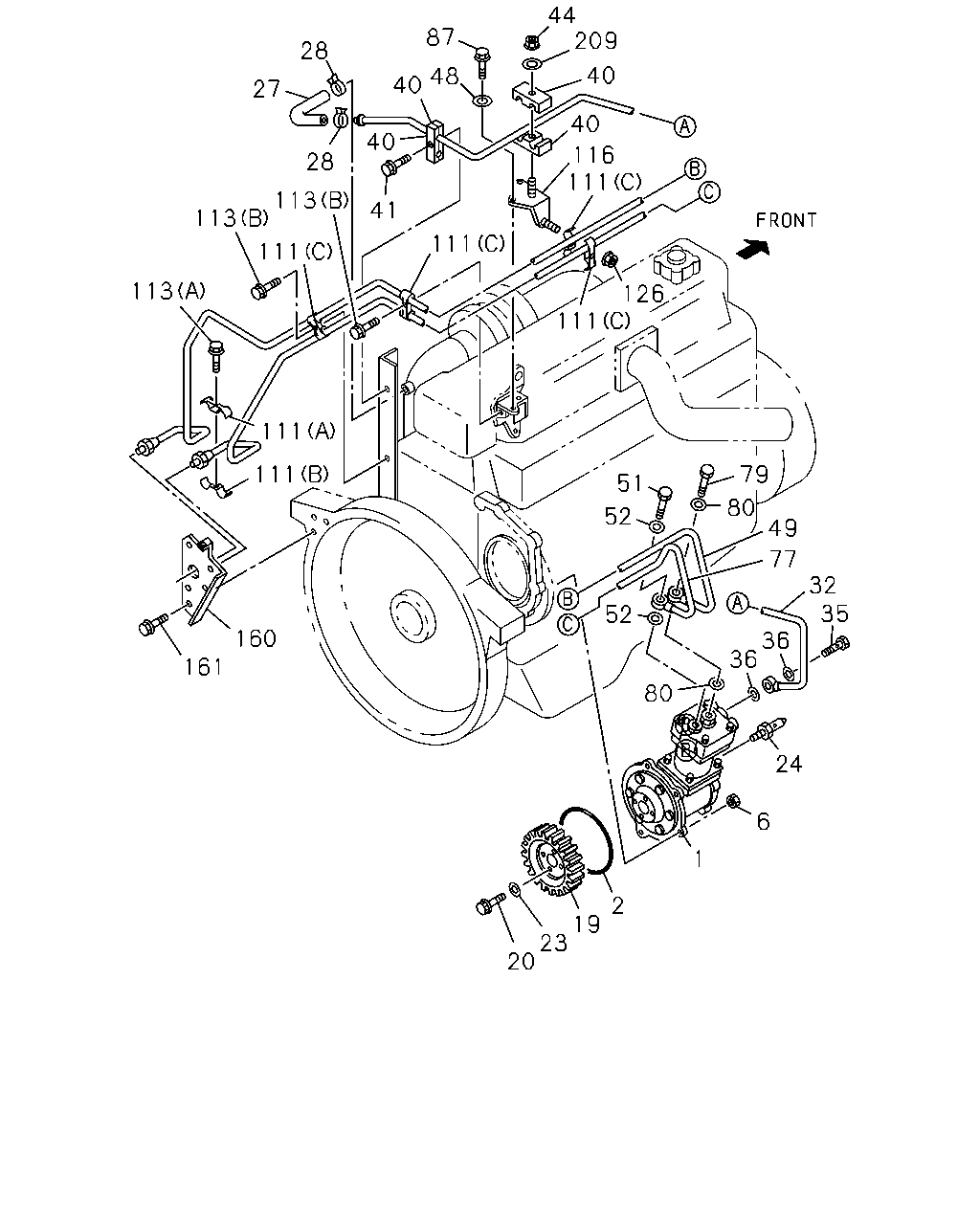

44 209 87 28 40 48 40 27 40 40 116 111 28 113 113 41 111 111 113 126 111 111 111 79 51 80 52 49 77 32 35 52 160 36 36 161 80 24 6 1 2 19 23 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-3	01	1	0109-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	0109-
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	0109-0602
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	04	1	0603-
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	0109-
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0109-
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	0109-
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0109-
27	HOSE; AIR CMPR,SUCTION	1-09360-916-0	01	1	0109-
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0109-
32	PIPE; AIR,AIR CMPR	1-19192-892-0	01	1	0109-
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	0109-
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0109-
40	CLIP; AIR PIPE	1-09701-210-0	04	1	0109-
41	BOLT; CLIP M6X50 FLANGE	0-28080-650-0	01	1	0109-0512
41	BOLT; CLIP M6X50 FLANGE	0-28050-650-0	01	1	0601-
44	NUT M6 FLANGE	0-91150-106-0	01	1	0109-0602
44	NUT M6 FLANGE	0-91180-106-0	01	1	0603-
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0109-0605
48	WASHER; PL,BRKT ID=10.5	0-91610-510-0	02	1	0606-
49	PIPE; AIR,CHARGE	1-19192-963-0	01	1	0109-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0109-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0109-
77	PIPE; AIR,GOV	1-19192-962-0	01	1	0109-
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0109-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0109-1312
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0109-0512
87	BOLT; BRKT FIX M10X20 FLANGE	0-28051-020-0	02	1	0601-
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	0109-
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	0109-
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	0109-
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	0109-0512
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0601-
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	0109-0512
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	0109-0604
116	BRACKET; AIR PIPE	1-19199-357-0	01	1	0605-
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	0109-0602
126	NUT; CLIP FIX M6 FLANGE	0-91180-106-0	01	1	0603-
160	BRACKET; AIR PIPE	1-19199-251-1	01	1	0109-
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	03	1	0109-0512
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	03	1	0601-
209	WASHER; PL ID=6.4 OD=18	9-09160-706-0	02	1	0605-0605
209	WASHER; PL ID=6.4 OD=18	0-91610-706-0	02	1	0606-
