Sayfa 0-80 - Isuzu EPC

0-80 — INJECTION PUMP (#96043) — 345 parça

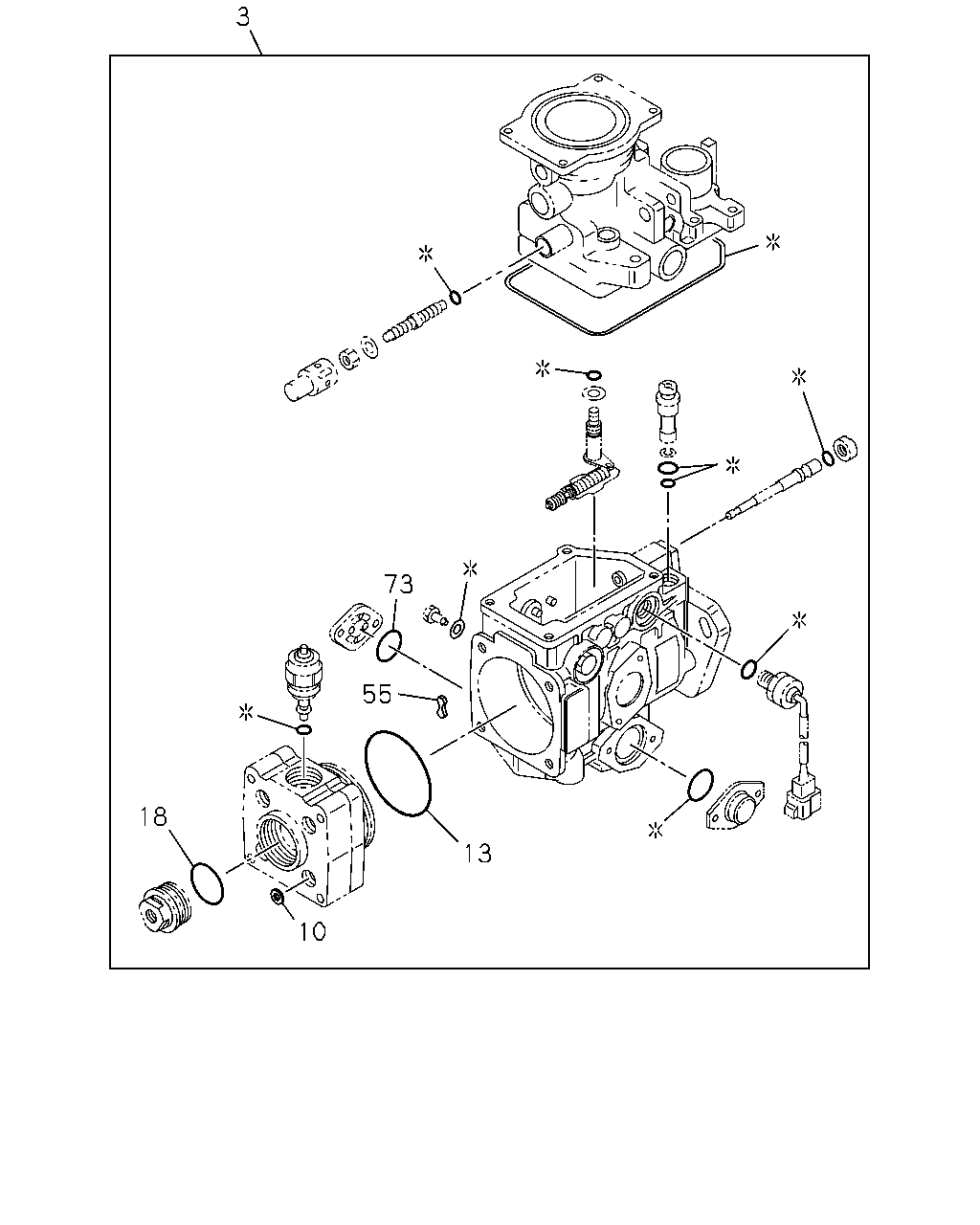

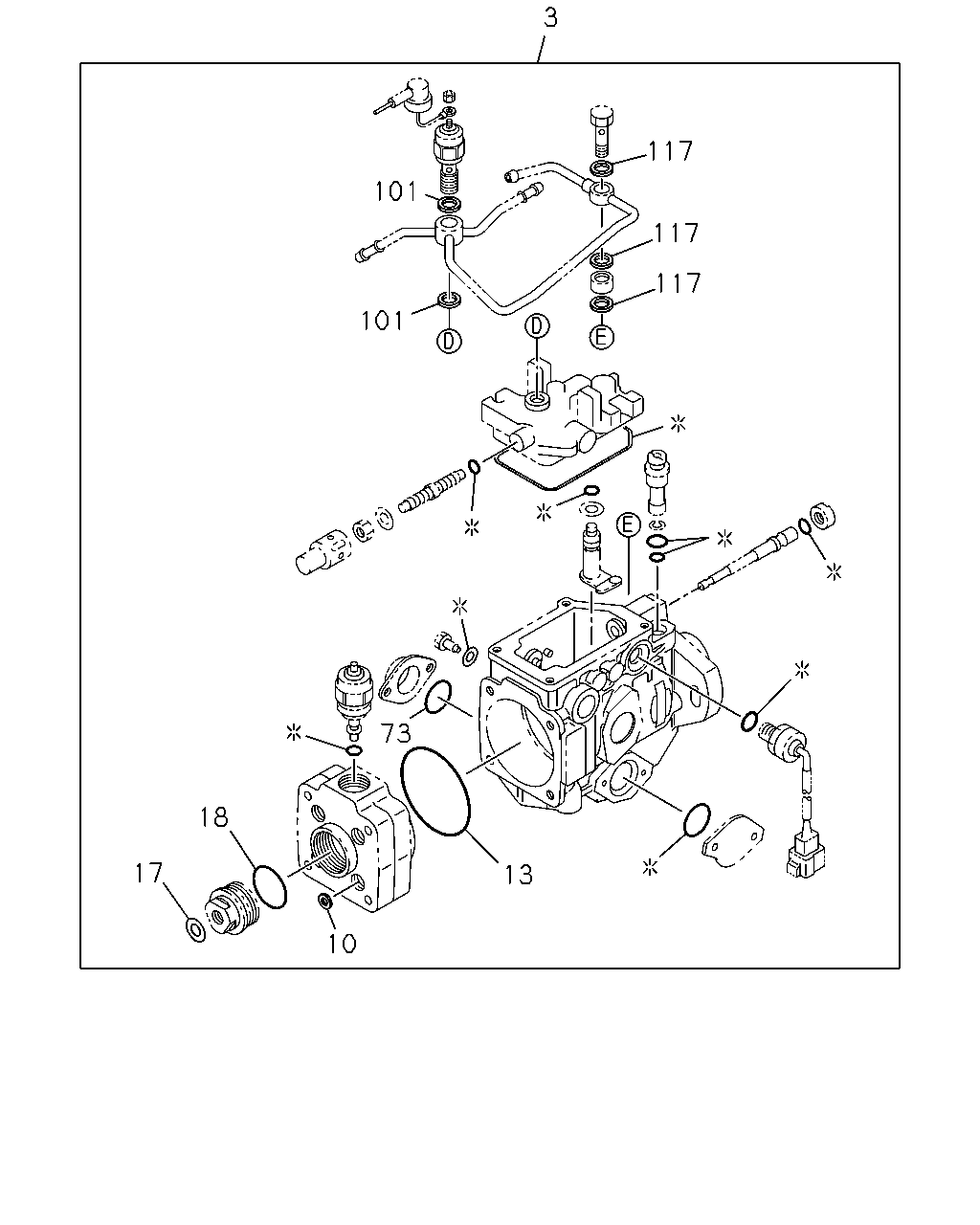

101 101 3 117 117 117 13 73 10 18 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.304 REPAIR KIT; FUEL INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94228-545-0	01	1	-
3	03.304 REPAIR KIT; FUEL INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97383-766-0	01	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94247-716-0	04	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-527-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94433-808-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-637-0	01	1	-
73	03.306 GASKET; COVER TO HSG 03.330 ASM PART: A = 8-97120-180-1, 97120180	8-94433-763-0	01	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: B = 8-97263-086-3, 97263086	8-97383-765-0	01	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP 03.332 ASM PART: A = 8-97120-180-1, 97120180	8-97119-188-0	02	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97249-545-0	02	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP 03.318 ASM PART: A = 8-97120-180-1, 97120180	8-97119-187-0	03	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97249-545-0	03	1	-

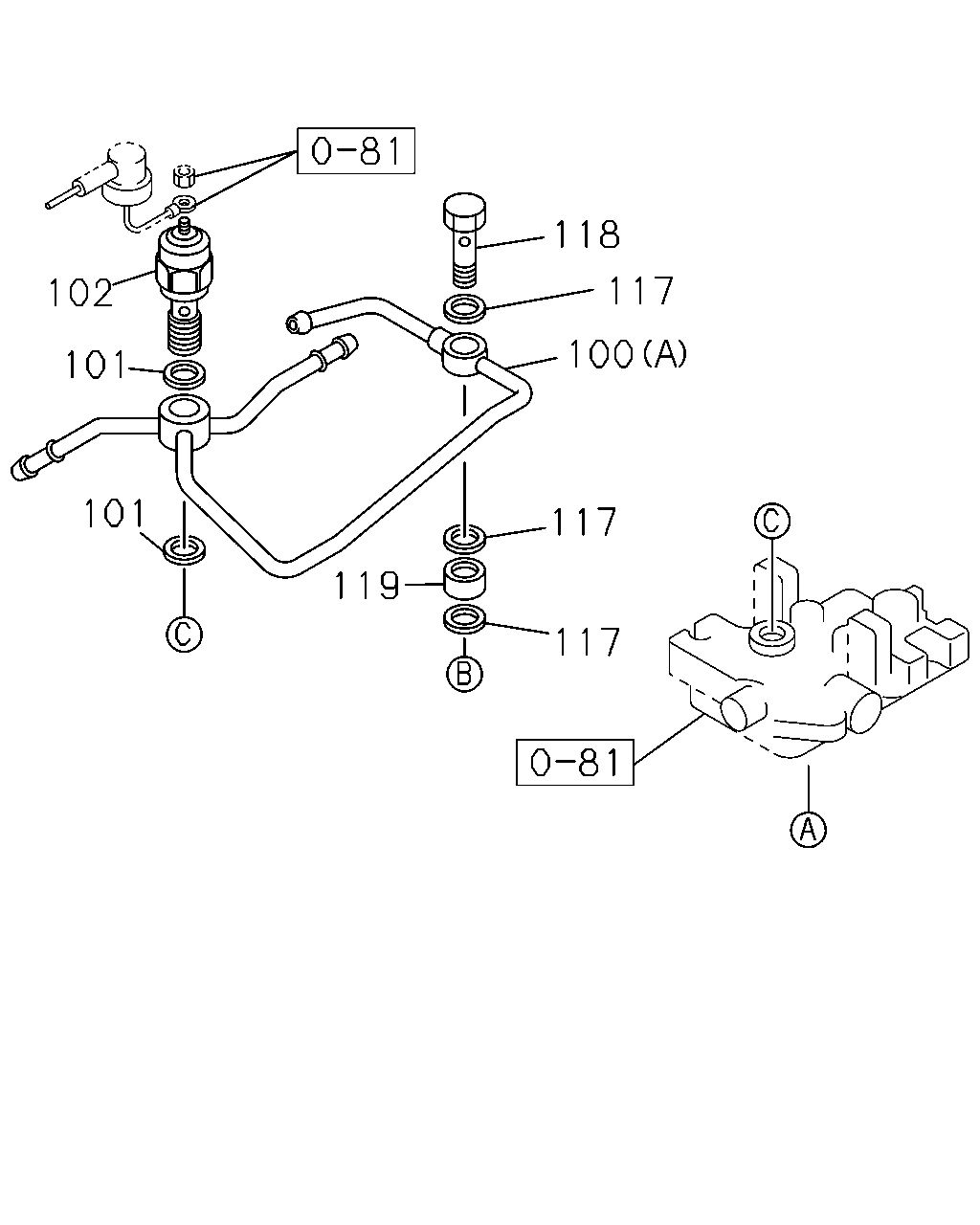

102 101 101 119 117 117 100 117 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: A = 8-97120-180-1, 97120180	8-97102-546-1	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: B = 8-97263-086-3, 97263086	8-97214-510-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (C) ASM PART: B = 8-97263-086-3, 97263086	8-97385-181-0	01	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP 03.332 ASM PART: A = 8-97120-180-1, 97120180	8-97119-188-0	02	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97249-545-0	02	1	-
102	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-97125-533-0	01	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP 03.318 ASM PART: A = 8-97120-180-1, 97120180	8-97119-187-0	03	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97249-545-0	03	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-94379-688-0	01	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP 03.308 ASM PART: A = 8-97120-180-1, 97120180	8-97165-709-0	01	1	-
119	03.162 SPACER; FUEL INL,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-97113-359-0	01	1	-

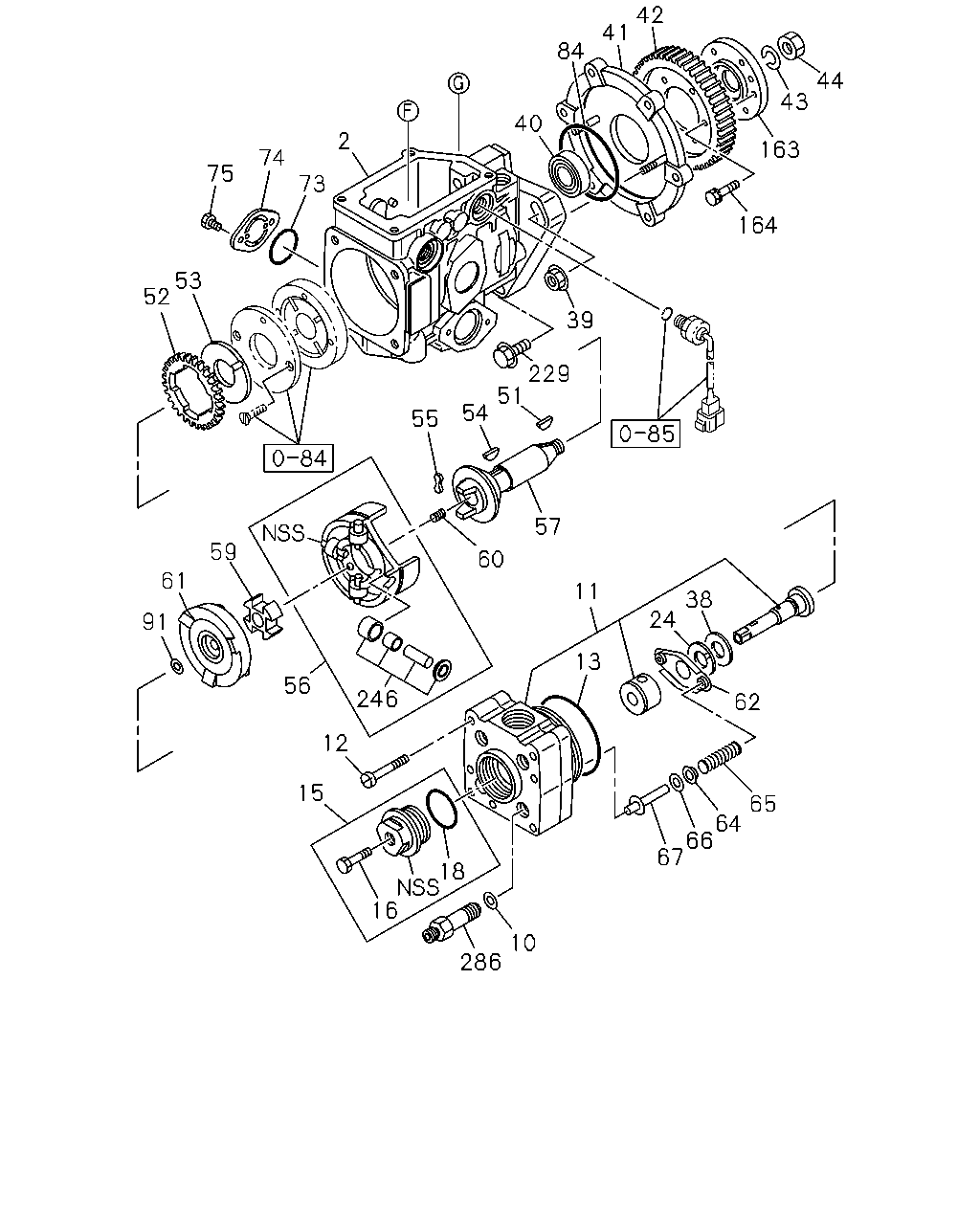

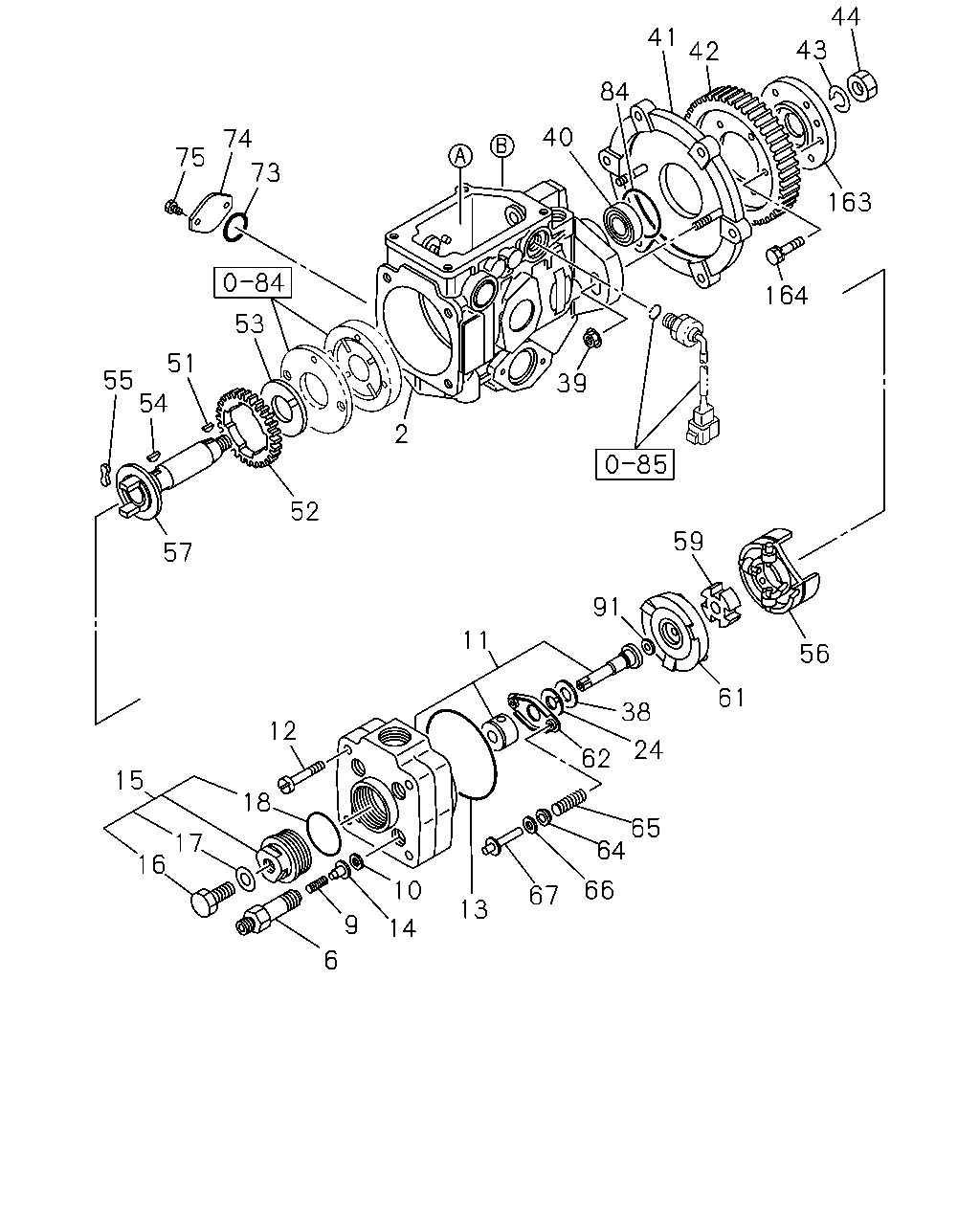

44 43 163 164 39 40 84 41 42 73 74 75 53 51 54 55 52 2 57 15 12 11 91 59 56 61 38 24 62 65 64 66 67 13 10 14 9 6 18 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: A = 8-97120-180-1, 97120180	8-94174-844-0	01	1	-
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: B = 8-97263-086-3, 97263086	8-97231-940-0	01	1	-
6	03.306 HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94367-330-0	04	1	-
9	03.302 SPRING; DELIVERY VLV ASM PART: A = 8-97120-180-1, 97120180	8-94174-803-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94247-716-0	04	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-97125-529-0	01	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97214-499-0	01	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94257-670-0	04	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-94257-670-0	03	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-527-0	01	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94174-802-0	04	1	-
15	03.330 PLUG ASM; DISTR,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94433-807-0	01	1	-
15	03.330 PLUG ASM; DISTR,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97231-942-0	01	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94174-818-0	01	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97224-536-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94433-808-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-637-0	01	1	-
24	03.318 WASHER; PLUNGER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-515-0	01	1	-
38	03.318 SHIM; PLUNGER BARREL,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-514-0	01	1	-
39	03.340 NUT; MTG BRKT FIX ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-97119-344-0	02	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP 03.306 ASM PART: A = 8-97120-180-1, 97120180	8-94227-475-0	01	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97147-034-0	01	1	-
41	03.306 BRACKET; INJ PUMP HSG ASM PART: A = 8-97120-180-1, 97120180	8-94174-843-0	01	1	-
41	03.306 BRACKET; INJ PUMP HSG ASM PART: B = 8-97263-086-3, 97263086	8-97214-512-1	01	1	-
42	03.330 GEAR; DRIVE,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94458-257-0	01	1	-
42	03.330 GEAR; DRIVE,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97229-619-0	01	1	-
43	03.340 WASHER; LK,DRIVE GEAR,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94226-554-0	01	1	-
44	03.330 NUT; DRIVE GEAR FIX,INJ PUMP 03.340, M14 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94226-565-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP 03.330 ASM PART: A = 8-97120-180-1, 97120180	5-83539-024-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-94239-370-0	01	1	-
52	03.340 GEAR; GOV DRIVE,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-483-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94227-484-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-94317-488-0	01	1	-
54	03.340 KEY; FEED PUMP,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-481-0	01	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-94169-528-0	02	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94227-482-1	02	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94433-760-0	01	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97218-960-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94433-759-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97217-211-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94433-761-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97144-349-1	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-97125-528-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97214-495-0	01	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-516-1	01	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-517-0	02	1	-
65	03.308 SPRING KIT; PLUNGER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94433-816-0	01	1	-
65	03.308 SPRING KIT; PLUNGER,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97214-522-0	01	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.50 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-518-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.80 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-519-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.00 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-520-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.20 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-521-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.50 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-522-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.80 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-523-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=2.00 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-524-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.90 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94433-204-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.10 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94433-205-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.30 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94433-206-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.40 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94433-207-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.60 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94433-208-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.70 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94433-209-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: B = 8-97263-086-3, 97263086	8-97146-139-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: B = 8-97263-086-3, 97263086	8-97146-140-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: B = 8-97263-086-3, 97263086	8-97146-141-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.90 ASM PART: B = 8-97263-086-3, 97263086	8-97146-142-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.10 ASM PART: B = 8-97263-086-3, 97263086	8-97189-360-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.20 ASM PART: B = 8-97263-086-3, 97263086	8-97189-361-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.30 ASM PART: B = 8-97263-086-3, 97263086	8-97189-362-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.40 ASM PART: B = 8-97263-086-3, 97263086	8-97189-363-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.50 ASM PART: B = 8-97263-086-3, 97263086	8-97189-364-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.60 ASM PART: B = 8-97263-086-3, 97263086	8-97189-365-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.70 ASM PART: B = 8-97263-086-3, 97263086	8-97189-366-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.80 ASM PART: B = 8-97263-086-3, 97263086	8-97189-367-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.90 ASM PART: B = 8-97263-086-3, 97263086	8-97189-368-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.00 ASM PART: B = 8-97263-086-3, 97263086	8-97189-369-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.10 ASM PART: B = 8-97263-086-3, 97263086	8-97189-370-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.20 ASM PART: B = 8-97263-086-3, 97263086	8-97189-371-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.30 ASM PART: B = 8-97263-086-3, 97263086	8-97189-372-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.40 ASM PART: B = 8-97263-086-3, 97263086	8-97189-373-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: B = 8-97263-086-3, 97263086	8-97189-374-0	AR	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: A = 8-97120-180-1, 97120180	8-94433-776-0	02	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: B = 8-97263-086-3, 97263086	8-97328-703-0	02	1	-
73	03.306 GASKET; COVER TO HSG 03.330 ASM PART: A = 8-97120-180-1, 97120180	8-94433-763-0	01	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: B = 8-97263-086-3, 97263086	8-97383-765-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-97125-525-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97231-934-0	01	1	-
75	03.330 SCREW; COVER TO HSG ASM PART: A = 8-97120-180-1, 97120180	8-94313-276-0	02	1	-
75	03.330 SCREW; COVER TO HSG ASM PART: B = 8-97263-086-3, 97263086	8-97231-933-0	02	1	-
84	03.306 GASKET; BRKT TO HSG ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94247-722-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.74 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94111-658-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.76 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94111-659-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.78 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94111-660-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.80 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94111-661-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.82 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94111-662-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.84 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94111-663-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.86 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94111-664-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.88 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94111-665-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.90 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-528-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.92 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-529-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.94 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-530-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.96 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-531-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.98 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-532-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.00 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-533-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.02 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-534-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.04 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-535-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.06 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-536-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.08 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-537-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.10 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-538-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.12 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-539-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.14 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-540-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.16 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-541-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.18 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-542-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.20 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-543-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.22 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-544-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.24 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-545-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.26 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-546-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.28 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-547-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.30 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-548-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.32 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-549-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.34 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-550-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.36 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-551-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.38 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-552-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.40 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-553-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.42 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-554-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.44 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-555-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.46 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-556-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.48 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-557-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.50 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-558-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.52 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-559-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.54 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-560-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.56 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-561-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.58 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-562-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.60 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-563-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.62 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-564-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.64 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-565-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.66 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-566-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.68 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-567-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.70 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-568-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.72 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-569-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.74 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-570-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.76 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-571-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.78 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-572-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.80 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-573-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.82 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-574-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.84 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-575-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.86 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-576-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.88 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-577-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.90 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-578-0	AR	1	-
163	03.330 COUPLING; INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-337-1	01	1	-
164	03.306 BOLT; GEAR TO COUPLING ASM PART: A = 8-97120-180-1, 97120180	5-15619-112-0	06	1	-
164	03.306 BOLT; GEAR TO COUPLING 01.531, M6X18 ASM PART: B = 8-97263-086-3, 97263086	9-01910-618-0	06	1	-

100 101 90 101 100 119 118 117 117 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
90	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97214-509-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: A = 8-97120-180-1, 97120180	8-97102-546-1	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: B = 8-97263-086-3, 97263086	8-97214-510-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (C) ASM PART: B = 8-97263-086-3, 97263086	8-97385-181-0	01	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP 03.332 ASM PART: A = 8-97120-180-1, 97120180	8-97119-188-0	02	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97249-545-0	02	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP 03.318 ASM PART: A = 8-97120-180-1, 97120180	8-97119-187-0	03	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97249-545-0	03	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-94379-688-0	01	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP 03.308 ASM PART: A = 8-97120-180-1, 97120180	8-97165-709-0	01	1	-
119	03.162 SPACER; FUEL INL,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-97113-359-0	01	1	-

3 73 55 13 10 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.304 REPAIR KIT; FUEL INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94228-545-0	01	1	-
3	03.304 REPAIR KIT; FUEL INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97383-766-0	01	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94247-716-0	04	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-527-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-637-0	01	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-94169-528-0	02	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94227-482-1	02	1	-
73	03.306 GASKET; COVER TO HSG 03.330 ASM PART: A = 8-97120-180-1, 97120180	8-94433-763-0	01	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: B = 8-97263-086-3, 97263086	8-97383-765-0	01	1	-

53 52 75 74 2 73 40 84 41 42 44 43 163 164 229 39 51 54 55 59 61 91 56 246 12 15 18 16 10 286 11 57 60 38 24 13 62 65 64 66 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: A = 8-97120-180-1, 97120180	8-94174-844-0	01	1	-
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: B = 8-97263-086-3, 97263086	8-97231-940-0	01	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94247-716-0	04	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-97125-529-0	01	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97214-499-0	01	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94257-670-0	04	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-94257-670-0	03	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-527-0	01	1	-
15	03.330 PLUG ASM; DISTR,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94433-807-0	01	1	-
15	03.330 PLUG ASM; DISTR,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97231-942-0	01	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94174-818-0	01	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97224-536-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-637-0	01	1	-
24	03.318 WASHER; PLUNGER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-515-0	01	1	-
38	03.318 SHIM; PLUNGER BARREL,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-514-0	01	1	-
39	03.340 NUT; MTG BRKT FIX ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-97119-344-0	02	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP 03.306 ASM PART: A = 8-97120-180-1, 97120180	8-94227-475-0	01	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97147-034-0	01	1	-
41	03.306 BRACKET; INJ PUMP HSG ASM PART: A = 8-97120-180-1, 97120180	8-94174-843-0	01	1	-
41	03.306 BRACKET; INJ PUMP HSG ASM PART: B = 8-97263-086-3, 97263086	8-97214-512-1	01	1	-
42	03.330 GEAR; DRIVE,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94458-257-0	01	1	-
42	03.330 GEAR; DRIVE,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97229-619-0	01	1	-
43	03.340 WASHER; LK,DRIVE GEAR,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94226-554-0	01	1	-
44	03.330 NUT; DRIVE GEAR FIX,INJ PUMP 03.340, M14 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94226-565-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP 03.330 ASM PART: A = 8-97120-180-1, 97120180	5-83539-024-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-94239-370-0	01	1	-
52	03.340 GEAR; GOV DRIVE,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-483-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94227-484-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-94317-488-0	01	1	-
54	03.340 KEY; FEED PUMP,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-481-0	01	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-94169-528-0	02	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94227-482-1	02	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94433-760-0	01	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97218-960-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94433-759-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97217-211-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94433-761-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97144-349-1	01	1	-
60	03.320 SPRING; DRIVE DISC,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97214-524-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-97125-528-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97214-495-0	01	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-516-1	01	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-517-0	02	1	-
65	03.308 SPRING KIT; PLUNGER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-94433-816-0	01	1	-
65	03.308 SPRING KIT; PLUNGER,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97214-522-0	01	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.50 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-518-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.80 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-519-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.00 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-520-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.20 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-521-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.50 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-522-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.80 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-523-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=2.00 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-524-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.90 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94433-204-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.10 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94433-205-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.30 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94433-206-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.40 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94433-207-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.60 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94433-208-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.70 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94433-209-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: B = 8-97263-086-3, 97263086	8-97146-139-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: B = 8-97263-086-3, 97263086	8-97146-140-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: B = 8-97263-086-3, 97263086	8-97146-141-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.90 ASM PART: B = 8-97263-086-3, 97263086	8-97146-142-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.10 ASM PART: B = 8-97263-086-3, 97263086	8-97189-360-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.20 ASM PART: B = 8-97263-086-3, 97263086	8-97189-361-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.30 ASM PART: B = 8-97263-086-3, 97263086	8-97189-362-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.40 ASM PART: B = 8-97263-086-3, 97263086	8-97189-363-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.50 ASM PART: B = 8-97263-086-3, 97263086	8-97189-364-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.60 ASM PART: B = 8-97263-086-3, 97263086	8-97189-365-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.70 ASM PART: B = 8-97263-086-3, 97263086	8-97189-366-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.80 ASM PART: B = 8-97263-086-3, 97263086	8-97189-367-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.90 ASM PART: B = 8-97263-086-3, 97263086	8-97189-368-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.00 ASM PART: B = 8-97263-086-3, 97263086	8-97189-369-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.10 ASM PART: B = 8-97263-086-3, 97263086	8-97189-370-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.20 ASM PART: B = 8-97263-086-3, 97263086	8-97189-371-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.30 ASM PART: B = 8-97263-086-3, 97263086	8-97189-372-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.40 ASM PART: B = 8-97263-086-3, 97263086	8-97189-373-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: B = 8-97263-086-3, 97263086	8-97189-374-0	AR	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: A = 8-97120-180-1, 97120180	8-94433-776-0	02	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: B = 8-97263-086-3, 97263086	8-97328-703-0	02	1	-
73	03.306 GASKET; COVER TO HSG 03.330 ASM PART: A = 8-97120-180-1, 97120180	8-94433-763-0	01	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: B = 8-97263-086-3, 97263086	8-97383-765-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180	8-97125-525-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97231-934-0	01	1	-
75	03.330 SCREW; COVER TO HSG ASM PART: A = 8-97120-180-1, 97120180	8-94313-276-0	02	1	-
75	03.330 SCREW; COVER TO HSG ASM PART: B = 8-97263-086-3, 97263086	8-97231-933-0	02	1	-
84	03.306 GASKET; BRKT TO HSG ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94247-722-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.74 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94111-658-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.76 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94111-659-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.78 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94111-660-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.80 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94111-661-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.82 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94111-662-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.84 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94111-663-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.86 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94111-664-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.88 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94111-665-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.90 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-528-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.92 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-529-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.94 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-530-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.96 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-531-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.98 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-532-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.00 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-533-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.02 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-534-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.04 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-535-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.06 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-536-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.08 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-537-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.10 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-538-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.12 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-539-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.14 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-540-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.16 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-541-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.18 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-542-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.20 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-543-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.22 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-544-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.24 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-545-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.26 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-546-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.28 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-547-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.30 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-548-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.32 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-549-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.34 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-550-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.36 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-551-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.38 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-552-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.40 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-553-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.42 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-554-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.44 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-555-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.46 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-556-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.48 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-557-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.50 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-558-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.52 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-559-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.54 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-560-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.56 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-561-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.58 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-562-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.60 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-563-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.62 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-564-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.64 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-565-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.66 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-566-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.68 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-567-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.70 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-568-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.72 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-569-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.74 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-570-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.76 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-571-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.78 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-572-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.80 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-573-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.82 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-574-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.84 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-575-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.86 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-576-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.88 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-577-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.90 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-578-0	AR	1	-
163	03.330 COUPLING; INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97263-086-3, 97263086	8-94227-337-1	01	1	-
164	03.306 BOLT; GEAR TO COUPLING ASM PART: A = 8-97120-180-1, 97120180	5-15619-112-0	06	1	-
164	03.306 BOLT; GEAR TO COUPLING 01.531, M6X18 ASM PART: B = 8-97263-086-3, 97263086	9-01910-618-0	06	1	-
229	03.330 BOLT; BRKT ASM PART: B = 8-97263-086-3, 97263086	8-97049-904-0	01	1	-
246	03.300 ROLLER KIT; INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97218-980-0	01	1	-
286	03.306 VALVE; PRESSURE,CONT ASM PART: B = 8-97263-086-3, 97263086	8-97227-581-1	04	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
